Plan 52254WM

Cozy 3 Bed Bungalow House Plan

Heated S.F.
1,717
Beds
3
Baths
2.5
Stories
2

Floor Plan

Plan 52254WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52254WM

M-F 9am-5pm EST |

1-203-761-8500

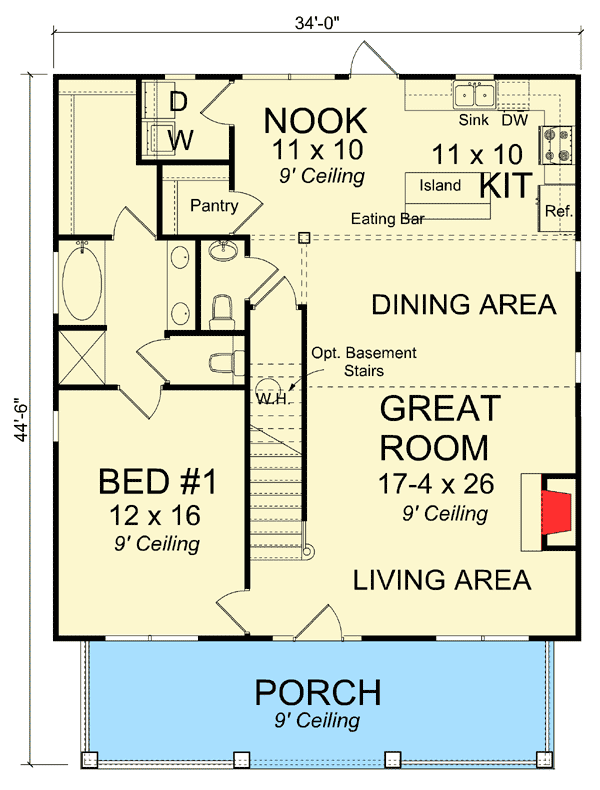

Main Level

Plan 52254WM: Cozy 3 Bed Bungalow House Plan - Floor Plan - Main Level - Cottage, Country

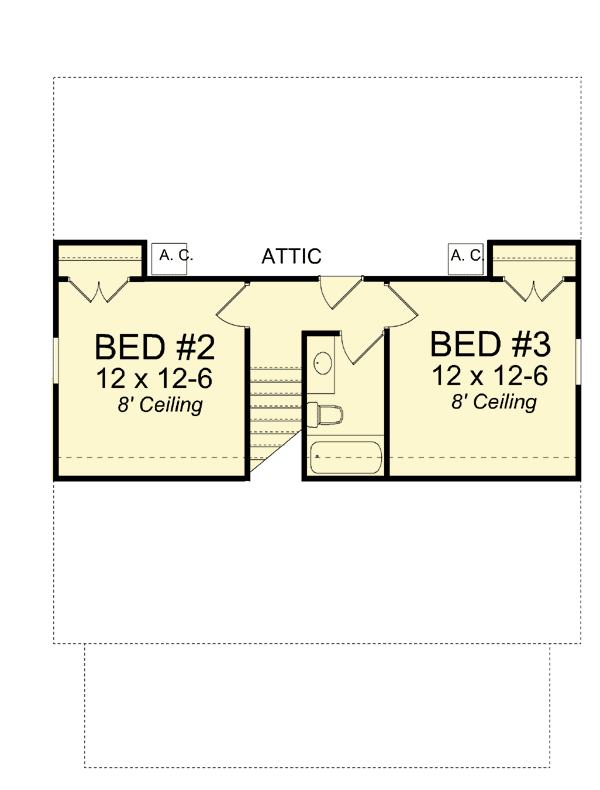

2nd Floor

Plan 52254WM: Cozy 3 Bed Bungalow House Plan - Floor Plan - 2nd Floor - Cottage, Country

Plan Details

  • A first floor master suite and large open living space are key design elements in this 3 bed bungalow house plan.
  • The great room is open to the dining room and that space in turn is open to the kitchen and nook. The island in the kitchen has seating and there is a walk-in pantry for storage.
  • Homeowners won't have far to go at night with the first floor suite close at hand complete with walk-in closet and five fixture bath.
  • On the second floor, two good-sized bedrooms share a bathroom.
  • The stick framed roof has a 9:12 pitch.
  • Related Plan: Get an attached garage with house plan 52252WM. And get more room with house plan 52249WM (1,871 sq. ft.).

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,717 sq. ft.

1st Floor

1,241 sq. ft.

2nd Floor

476 sq. ft.

Porch, Front

240 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

34' 0"

Depth

44' 6"

Max Ridge Height

24' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Special Features

Breakfast Nook

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,717 sq. ft.

1st Floor

1,241 sq. ft.

2nd Floor

476 sq. ft.

Porch, Front

240 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

34' 0"

Depth

44' 6"

Max Ridge Height

24' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Special Features

Breakfast Nook

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor
