Plan 52249WM Bungalow with Terrific Open Living Space

Bungalow with Terrific Open Living Space

Plan 52249WM

  • 1,871

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • A first floor master suite and large open living space are key design elements in this cozy Country house plan.
  • The home comes with both a formal dining area and an informal nook, both easily served by the efficient kitchen with its big storage island and walk-in pantry.
  • Homeowners won't have far to go at night with the first floor suite close at hand.
  • On the second floor, two good-sized bedrooms share a hall bathroom while bedroom 2 has a private bathroom and walk-in clothes closet.
  • Related Plan: Get an attached garage with house plan 52248WM. And downsize with house plan 52254WM (1,717 sq. ft.).

  • Front elevation and construction notes

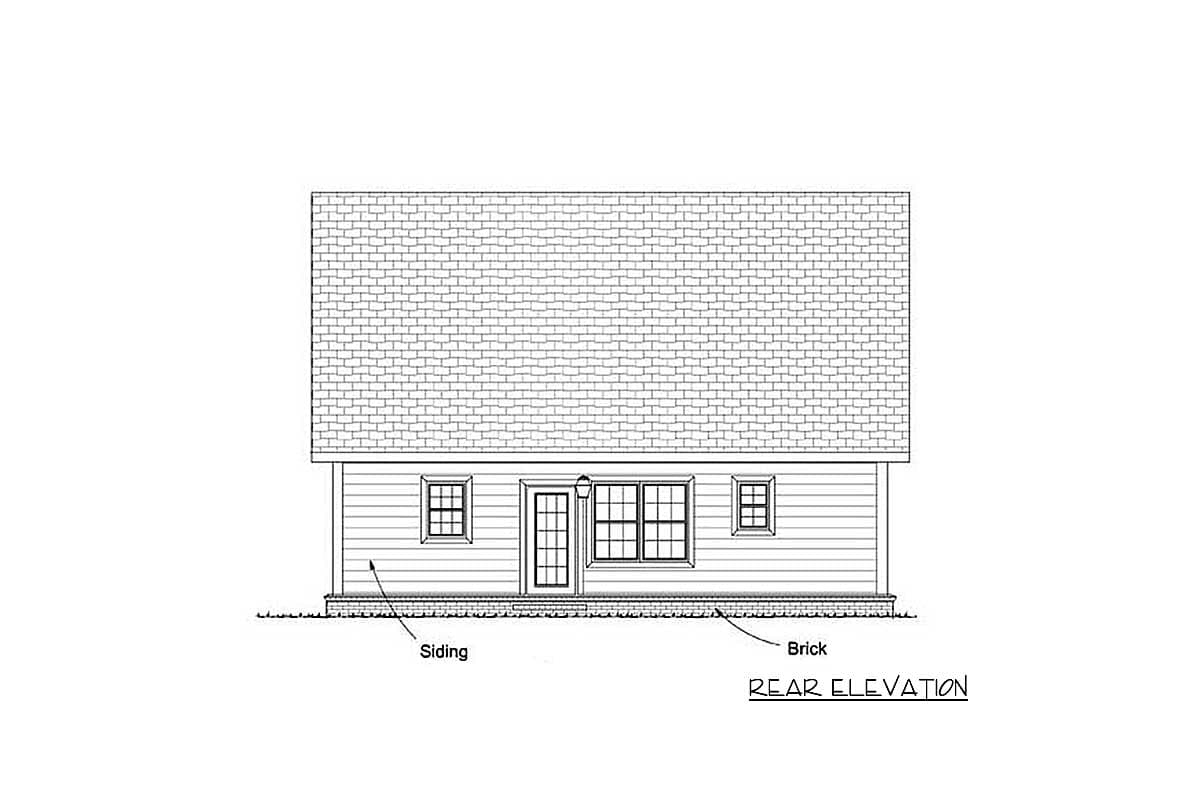

  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Most plans have an optional full building section--only available upon request--at no extra cost.  This section is not typically required in the US but can be a requirement in Canada


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Bungalow with Terrific Open Living Space - 52249WM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

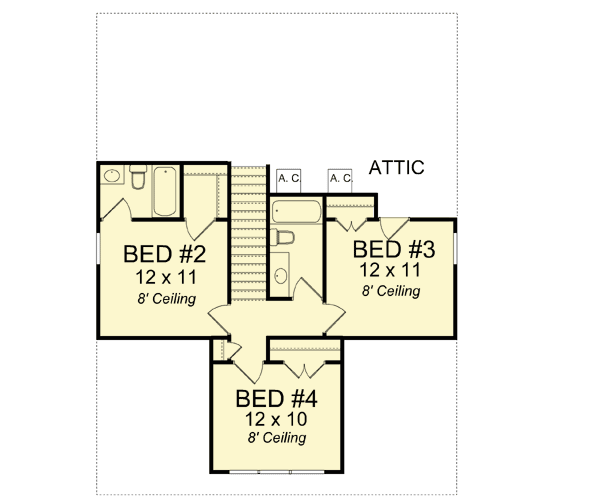

Bungalow with Terrific Open Living Space - 52249WM floor plan - 2nd Floor

Plan details

Bungalow with Terrific Open Living Space

  • 1,871

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Unlimited Build $1,005
  • CAD - Unlimited Build $1,300
  • View all purchase option online

About This Plan

  • A first floor master suite and large open living space are key design elements in this cozy Country house plan.
  • The home comes with both a formal dining area and an informal nook, both easily served by the efficient kitchen with its big storage island and walk-in pantry.
  • Homeowners won't have far to go at night with the first floor suite close at hand.
  • On the second floor, two good-sized bedrooms share a hall bathroom while bedroom 2 has a private bathroom and walk-in clothes closet.
  • Related Plan: Get an attached garage with house plan 52248WM. And downsize with house plan 52254WM (1,717 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,871 sq. ft.
  • 1st Floor: 1,241 sq. ft.
  • 2nd Floor: 630 sq. ft.
  • Porch, Front: 272 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 45' 6"
  • Max ridge height: 26' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
