5985 Square Foot 5 Bed House Plan with Finished Walkout Lower Level

Heated S.F.
3,801
Beds
3 - 5
Baths
2.5 - 4.5
Stories
2
Cars
3

Floor Plan

Plan 703008TYL

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 703008TYL

M-F 9am-5pm EST |

1-203-761-8500

Main Level

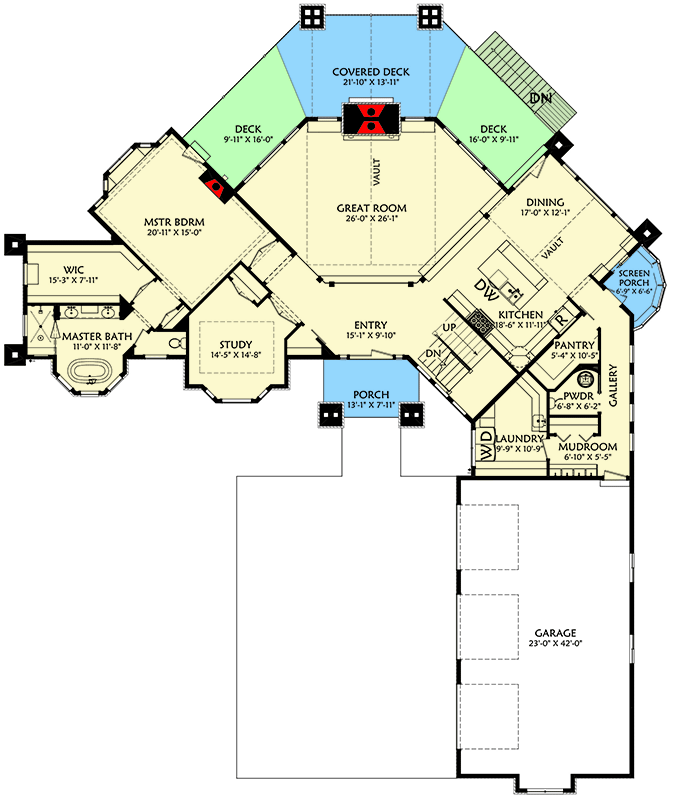

Plan 703008TYL: 5985 Square Foot 5 Bed House Plan with Finished Walkout Lower Level - Floor Plan - Main Level - Craftsman, Mountain

2nd Floor

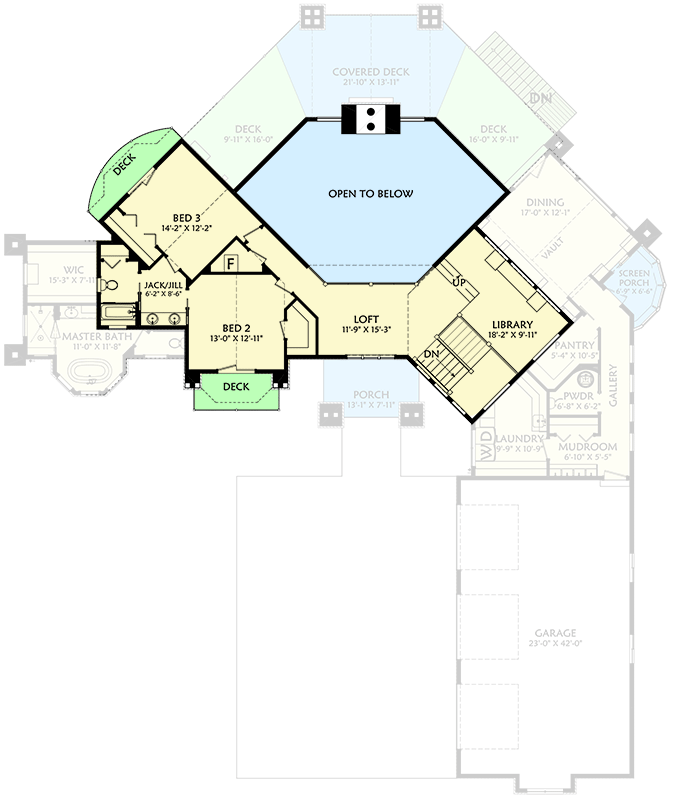

Plan 703008TYL: 5985 Square Foot 5 Bed House Plan with Finished Walkout Lower Level - Floor Plan - 2nd Floor - Craftsman, Mountain

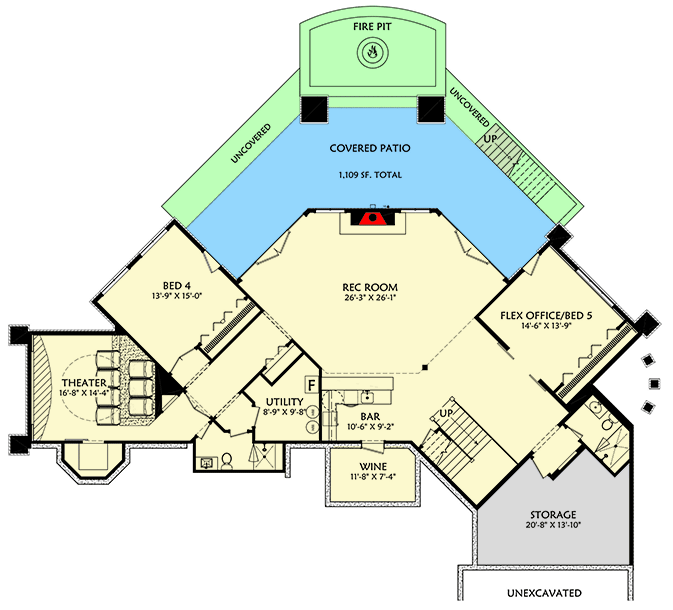

Lower Level

Plan 703008TYL: 5985 Square Foot 5 Bed House Plan with Finished Walkout Lower Level - Floor Plan - Lower Level - Craftsman, Mountain

Plan Details

  • Step inside this home plan and your eyes are drawn to the far wall where a fireplace - flanked by windows looking out back - is in the 2-story great room.
  • The left side of the home is dedicated to the master suite with fireplace and rear deck access.
  • The kitchen and dining room are open to each other on the right side of the home. The dining room has both access to a screen porch and the deck.
  • The second floor has two bedrooms sharing a Jack and Jill bath - each with a private deck - and a loft overlooking the great room below. Three stairs go up to a library that overlooks the stairs going down.
  • The lower level has a massive rec room with fireplace and a bar and two sets of French doors that open to the 1,109 square foot covered patio. To either side, you'll find two bedrooms - one a flex room that would make a great home office - as well as a home theater and wine room.

What's Included

  • Cover page with notes & index
  • Exterior Elevations
  • Floor plans and stair section (the latter when applicable)
  • Roof plan
  • Building section & details
  • Electrical plans
  • Foundation plan (outline only)
  • Main floor framing plan (outline only)
  • Roof plan (outline only)

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,801 sq. ft.

1st Floor

2,704 sq. ft.

2nd Floor

1,097 sq. ft.

Basement Unfinished

265 sq. ft.

Optional Lower Level

2,184 sq. ft.

Loft

212 sq. ft.

Porch, Front

102 sq. ft.

Porch, Rear

1,109 sq. ft.

Screened Porch

50 sq. ft.

Deck

621 sq. ft.

Entry

146 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2, 3, or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

83' 0"

Depth

107' 0"

Max Ridge Height

25' 4"

Garage

Type

Attached

Area

934 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9' 8"

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Mountain

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Formal Dining

Game/Rec Room

Home Office

Home Theater

Jack & Jill Bath

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Stacked Porches

Two Story Great Room

Walk-in Pantry

Wet Bar

Wine Room

Plan Collections

Exclusive

Home Office

Luxury

Sloping Lot

Square Footage Breakdown

Total Heated Area

3,801 sq. ft.

1st Floor

2,704 sq. ft.

2nd Floor

1,097 sq. ft.

Basement Unfinished

265 sq. ft.

Optional Lower Level

2,184 sq. ft.

Loft

212 sq. ft.

Porch, Front

102 sq. ft.

Porch, Rear

1,109 sq. ft.

Screened Porch

50 sq. ft.

Deck

621 sq. ft.

Entry

146 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2, 3, or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

83' 0"

Depth

107' 0"

Max Ridge Height

25' 4"

Garage

Type

Attached

Area

934 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9' 8"

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Mountain

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Formal Dining

Game/Rec Room

Home Office

Home Theater

Jack & Jill Bath

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Stacked Porches

Two Story Great Room

Walk-in Pantry

Wet Bar

Wine Room

Plan Collections

Exclusive

Home Office

Luxury

Sloping Lot
