Plan 85162MS
EXCLUSIVE
6-Bed Craftsman Duplex with Main Level Dens and 1-Car Garages
Heated S.F.
4,097
Units
2
Width
50'
Depth
64'
Cars
2
What's Included
Plan Details
  • This charming Craftsman duplex has two spacious units that offer a comfortable and private floor plan.
  • With an open concept main living area, a roomy loft, and private master suites at the rear of the units (situated on opposite sides of the building), this duplex ensures comfortable, easy living.
  • Other amenities include a den, a walk-in pantry and a second floor laundry room for each unit.
Unit A
2,568 Sq. Ft.
1162 Sq. Ft. 1st Floor
1406 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
25' w 64' d
Unit B
2,339 Sq. Ft.
1050 Sq. Ft. 1st Floor
1289 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
25' w 54' d
What's Included
  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

6-Bed Craftsman Duplex with Main Level Dens and 1-Car Garages

  • 4,097

    Heated s.f.

  • 2

    Units

  • 50'

    Width

  • 64'

    Depth

Floor Plan

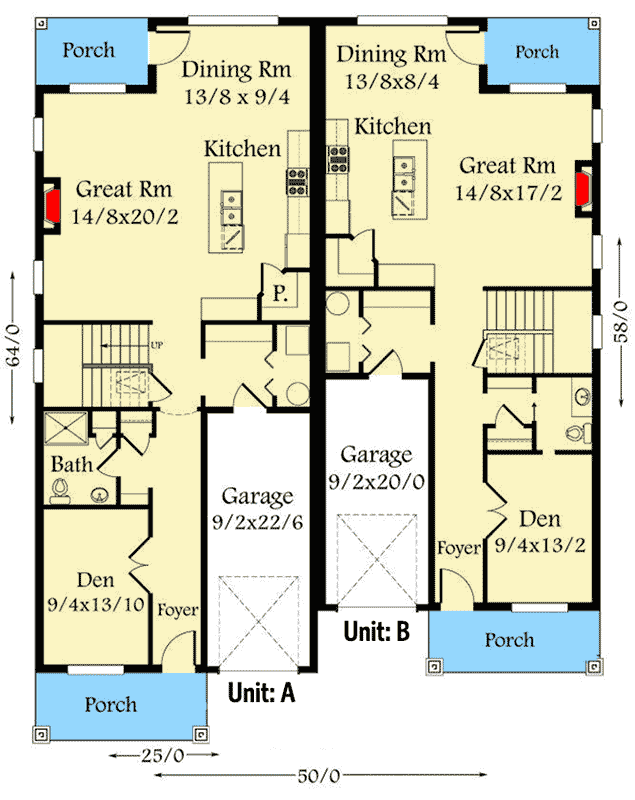

  • Main Level

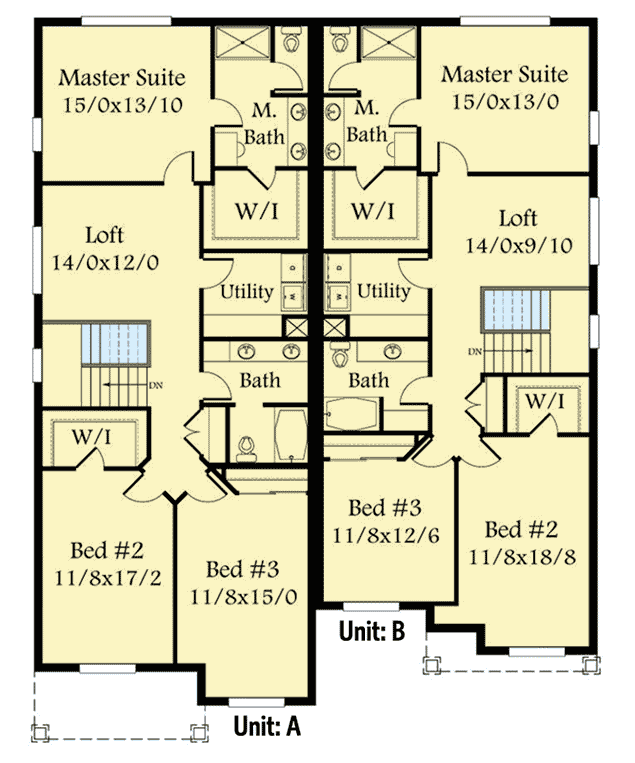

  • 2nd Floor
