6-Unit Multiplex House Plan with Mix of 2110 and 1664 Square Foot 3 Bed Units

Plan 61390UT

  • 11,322

    Heated s.f.

  • 6

    Units

  • 150'

    Width

  • 49' 6"

    Depth

  • This 6 unit apartment building house plan gives you 6 three-bed, two-story units. The overall footprint is 150' wide and 49'6" deep with a 32'3" max ridge height.
  • The first, second and fourth units give you 2,110 square feet of heated living space (1,268 sq. ft. on the main floor and 2,110 sq. ft. on the upper floor), a 2-car garage (484 sq. ft.) and an overall width 28'.
  • The third, fourth and sixth units give you 1,664 square feet of heated living space (674 sq. ft. on the main floor and 990 square feet on the upper floor), a 1-car garage (363 sq. ft.) and an overall width of 22'.
  • Each unit has a private 63' covered front entry, all bedrooms upstairs as well as laundry and a loft and an open concept main floor.
  • Related Plans: Get alternate versions with house plan 61391UT, 61392UT and 61393UT (4 units).

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

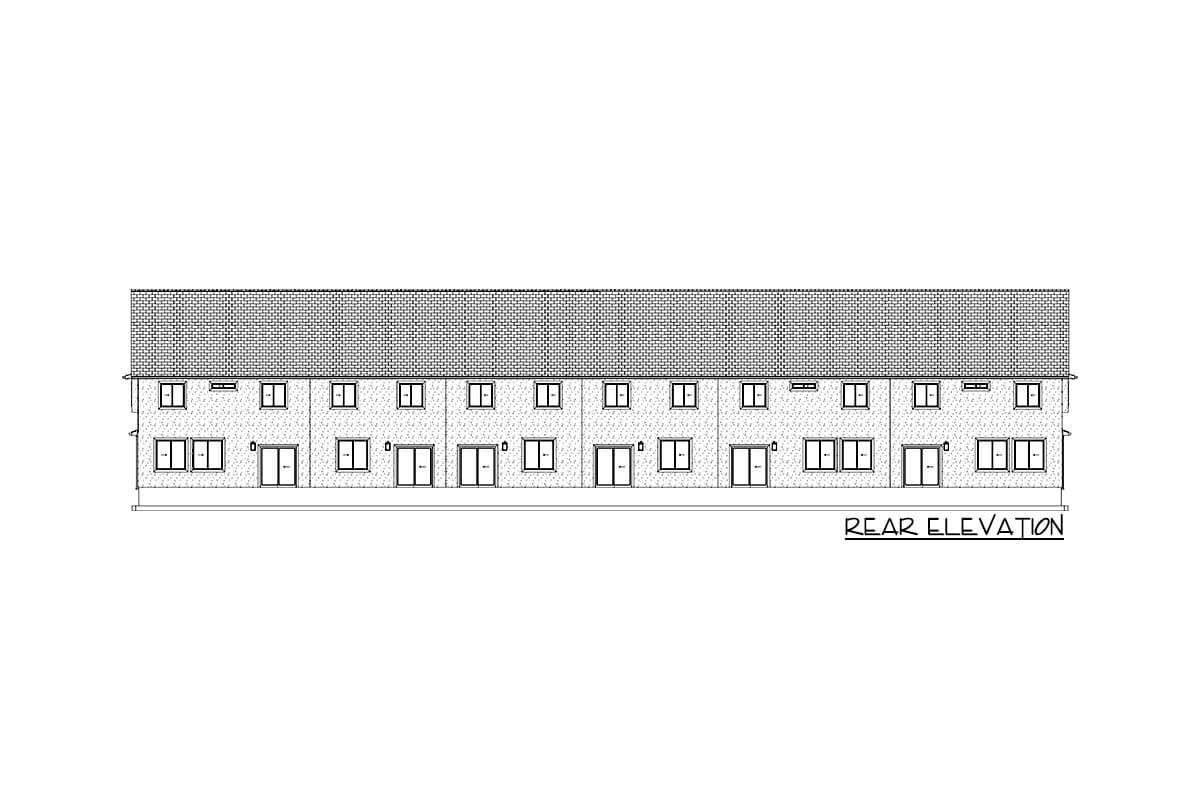

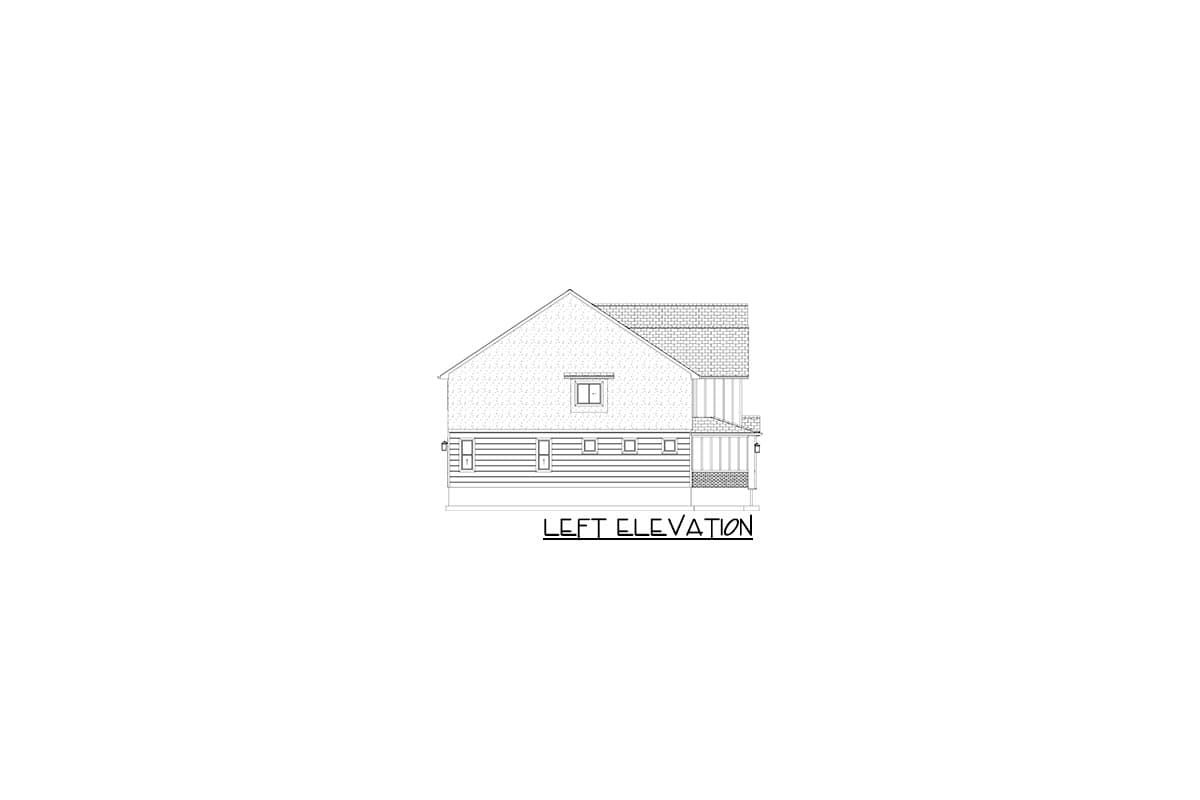

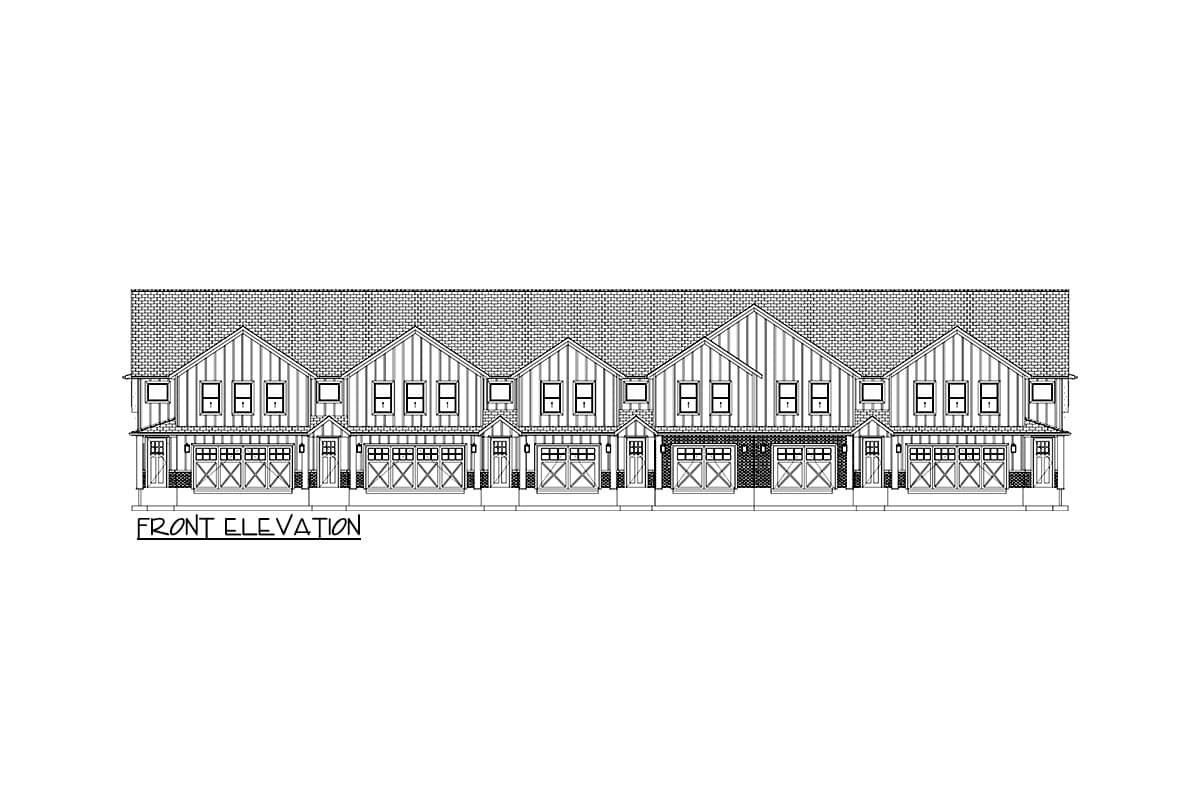

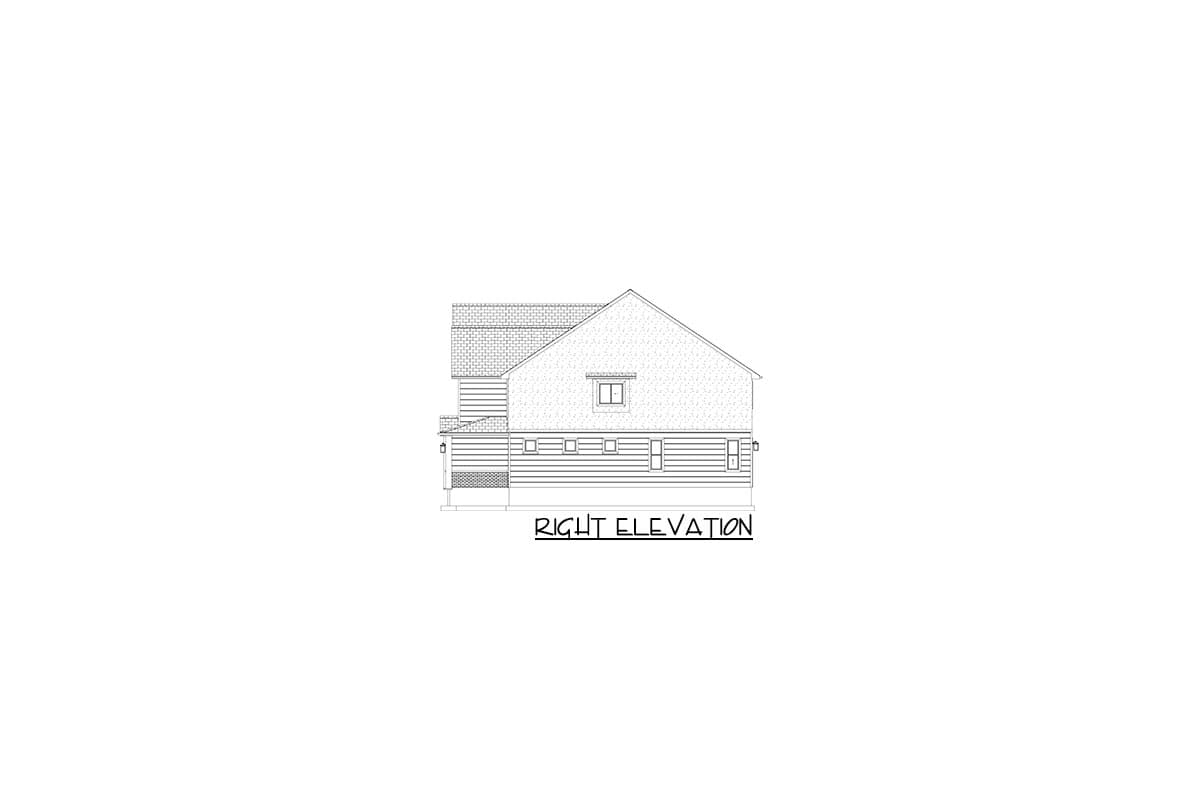

  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Unit Details

A
2,110 Sq. Ft.
842 Sq. Ft. 1st Floor
1268 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
2 Vehicle
Attached
484 Sq. Ft.
28' w 49' d
B
2,110 Sq. Ft.
842 Sq. Ft. 1st Floor
1268 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
2 Vehicle
Attached
484 Sq. Ft.
C
1,664 Sq. Ft.
674 Sq. Ft. 1st Floor
990 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
363 Sq. Ft.
22' w 49' d 32' h
D
16,644 Sq. Ft.
674 Sq. Ft. 1st Floor
990 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
363 Sq. Ft.
22' w 49' d 32' h
E
1,664 Sq. Ft.
674 Sq. Ft. 1st Floor
990 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
363 Sq. Ft.
22' w 49' d 32' h
F
2,110 Sq. Ft.
6330 Sq. Ft. 1st Floor
1268 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
2 Vehicle
Attached
484 Sq. Ft.
28' w 49' d 32' h
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

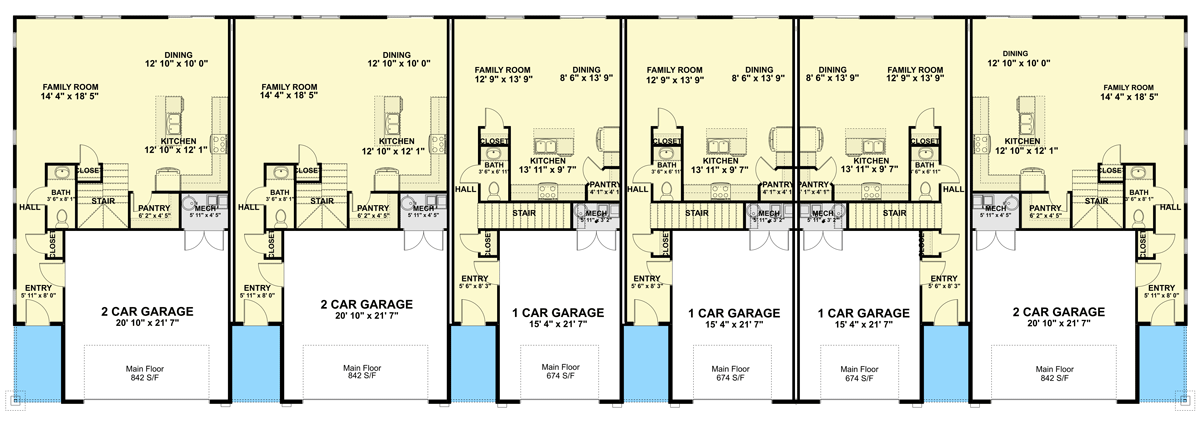

6-Unit Multiplex House Plan with Mix of 2110 and 1664 Square Foot 3 Bed Units - 61390UT floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

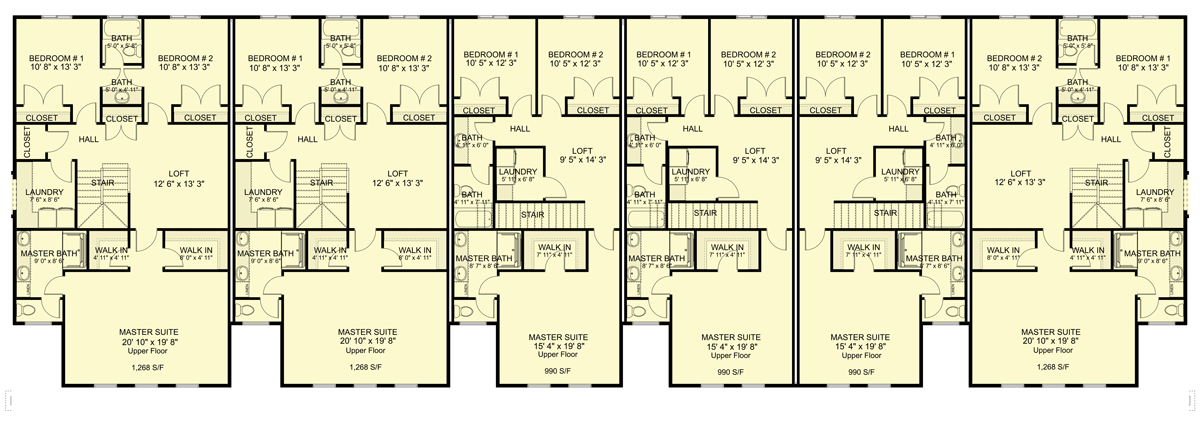

6-Unit Multiplex House Plan with Mix of 2110 and 1664 Square Foot 3 Bed Units - 61390UT floor plan - 2nd Floor

6-Unit Multiplex House Plan with Mix of 2110 and 1664 Square Foot 3 Bed Units

  • 11,322

    Heated s.f.

  • 6

    Units

  • 150'

    Width

  • 49' 6"

    Depth

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 11,322 sq. ft.
  • 1st Floor: 6,330 sq. ft.
  • 2nd Floor: 4,992 sq. ft.

Dimensions

  • Width: 150' 0"
  • Depth: 49' 6"
  • Max ridge height: 32' 3"

Beds/Baths

  • Bedrooms: 10
  • Full bathrooms: 8
  • Half bathrooms: 5

Garage

  • Type: Attached
  • Area: 2541 sq. ft.
  • Count: 8 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Stem Wall
    • Optional Foundations: Walkout, Slab, Daylight, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
