Plan 623534DJ

Two-Story Modern Cottage House Plan with Upstairs Loft

Heated S.F.
3,854
Beds
4
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 623534DJ

Main Level
Main Level
2nd Floor
2nd Floor
Optional Lower Level Layout ($ Paid Option)
Optional Lower Level Layout ($ Paid Option)

Plan 623534DJ

M-F 9am-5pm EST |

1-203-761-8500

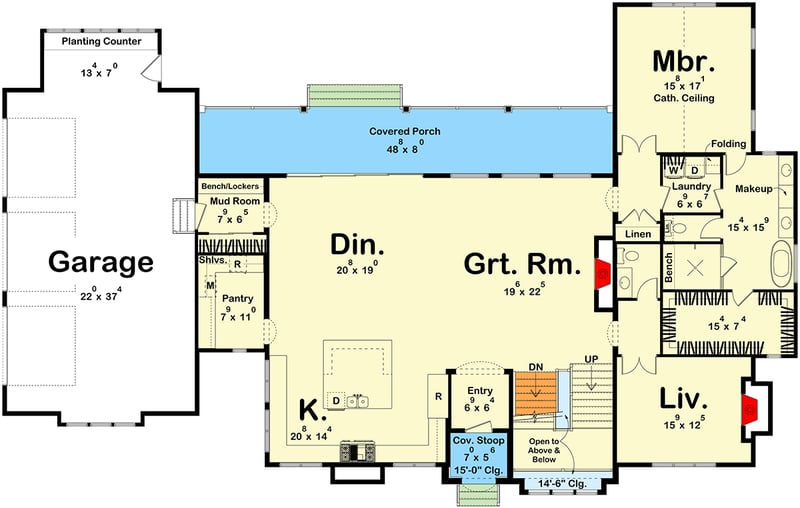

Main Level

Plan 623534DJ: Two-Story Modern Cottage House Plan with Upstairs Loft - Floor Plan - Main Level - Cottage, Transitional, Tudor

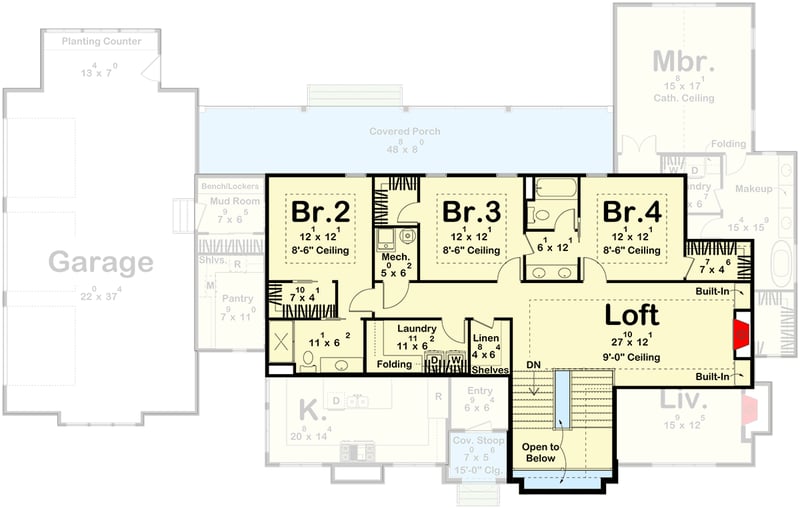

2nd Floor

Plan 623534DJ: Two-Story Modern Cottage House Plan with Upstairs Loft - Floor Plan - 2nd Floor - Cottage, Transitional, Tudor

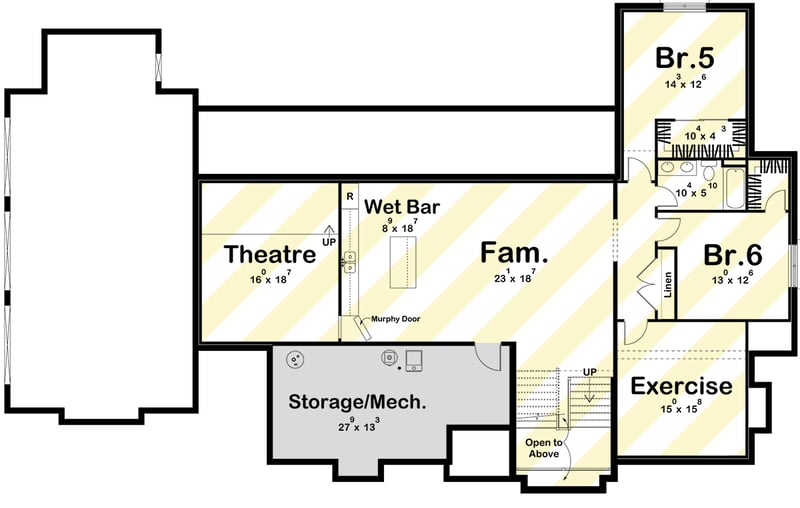

Optional Lower Level Layout ($ Paid Option)

Plan 623534DJ: Two-Story Modern Cottage House Plan with Upstairs Loft - Floor Plan - Optional Lower Level Layout ($ Paid Option) - Cottage, Transitional, Tudor

Plan Details

  • This 3,854 sq. ft. modern cottage house plan offers 4 bedrooms, 3.5 bathrooms, and a spacious 966 sq. ft. 3-car garage.
  • Enter through a welcoming entryway that leads to an open great room and dining area, complemented by a gourmet kitchen with a butler's walk-in pantry.
  • The main floor features a master suite with a private bath and direct laundry access. Relax in the living room or step onto the covered porch.
  • The second floor includes a loft, additional bedrooms with a Jack and Jill bath, and a convenient upstairs laundry room.
  • Enjoy outdoor living with a combined 423 sq. ft. of porch space.
  • Entertainment options abound with a home theater and a game/rec room on the optional lower level, which also includes a wet bar.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,854 sq. ft.

1st Floor

2,558 sq. ft.

2nd Floor

1,296 sq. ft.

Optional Lower Level

2,048 sq. ft.

Porch, Combined

423 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

92' 8"

Depth

57' 4"

Max Ridge Height

31' 1"

Garage

Type

Attached

Area

966 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

16 on 12

Framing Type

Truss

Architectural Style

Cottage

Transitional

Tudor

Special Features

Bedrooms - Split

Game/Rec Room

Home Theater

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Loft

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wet Bar
