655 Sq Ft 2-Car Garage with 682 Sq Ft Upstairs Apartment

Plan 67767MG

682
Heated s.f.
1
Beds
1
Baths
2
Stories
2
Cars

This 2-car garage apartment gives you 655 square feet of garage space set behind two garage bays with a 682 square foot apartment above.
The double garage provides extra space for storage or laundry facilities.
Upstairs the well-planned suite features a bedroom suite on the left and an open concept living area on the right.

Foundation plan
Electrical plan calling out locations, not wiring
Fully dimensioned floor plans

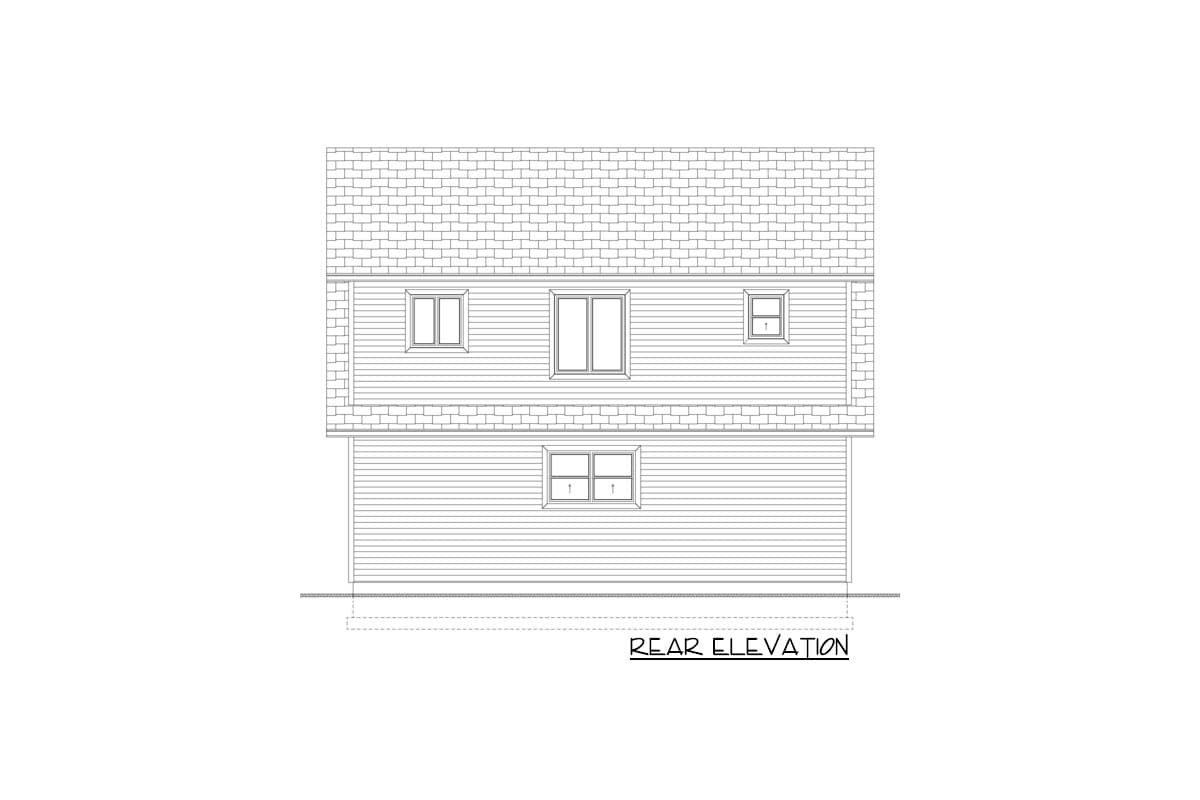

4 elevations
Cross section
Wall details, etc.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

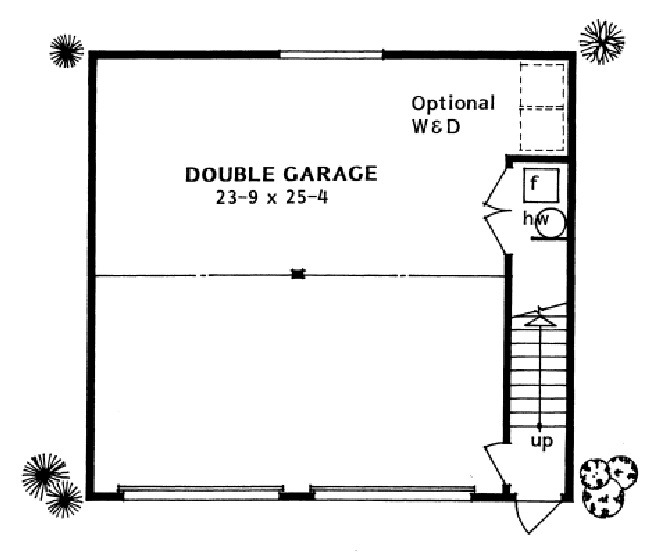

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

655 Sq Ft 2-Car Garage with 682 Sq Ft Upstairs Apartment - 67767MG floor plan - Main Level

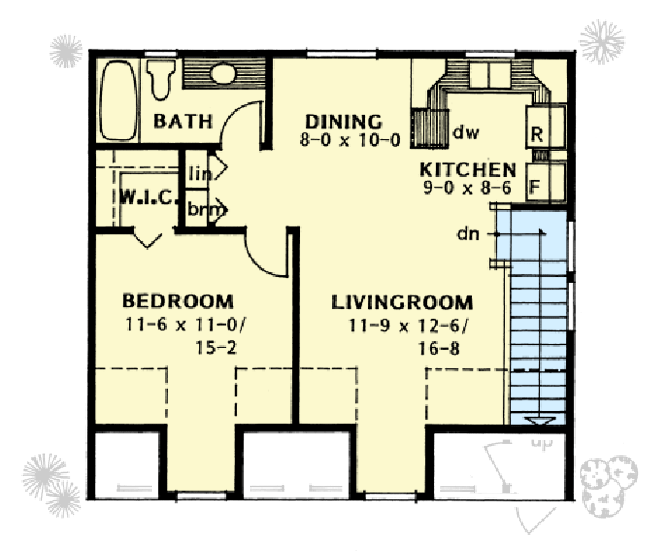

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

655 Sq Ft 2-Car Garage with 682 Sq Ft Upstairs Apartment - 67767MG floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 682 sq. ft.
2nd Floor: 682 sq. ft.

Beds/Baths

Bedrooms: 1

Full bathrooms: 1

Foundation Type

Standard Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 28' 0"
Depth: 26' 0"
Max ridge height: 25' 0"

Garage

Type: Detached
Area: 655 sq. ft.
Count: 2 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch: 12 on 12

Framing Type: Stick

Architectural Style

Special features

Plan Collections
