Light-filled Mountain Home Plan with 3-Car Drive-under Garage

Plan 68855VR

  • 925

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • 3

    Cars

  • The simplicity of the square footprint of this modern mountain home plan keeps budget in mind. Designed for a lot that slopes to the rear, it offers a drive-under garage for three vehicles.
  • On the main living level, oversized windows surround the space, providing a light and airy interior with a vaulted ceiling. The kitchen and living room are open to one another, and extend outdoors onto a spacious balcony.
  • The ceiling rises from 7' on the back bedroom wall to 12'6" on the window-filled living room wall.
  • Related Plans: Get an alternate version with house plans 68854VR680071VR (1,000 sq. ft.) and 68640VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

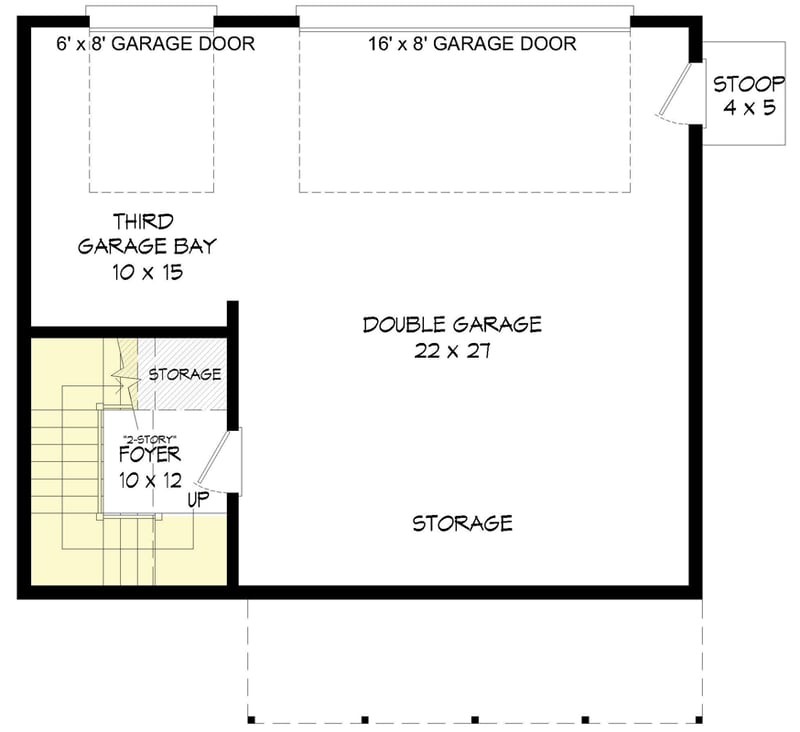

Light-filled Mountain Home Plan with 3-Car Drive-under Garage - 68855VR floor plan - Ground Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

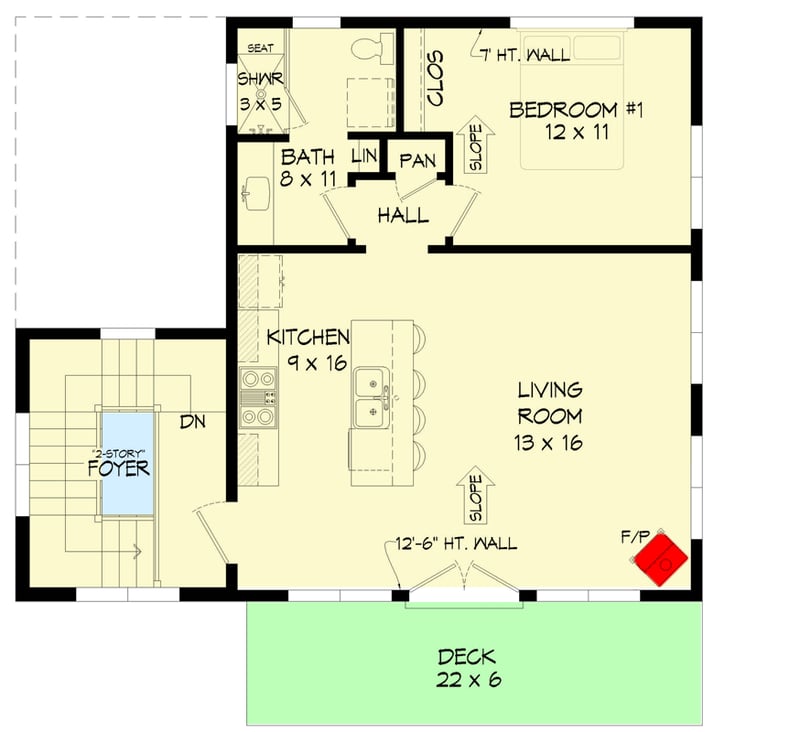

Light-filled Mountain Home Plan with 3-Car Drive-under Garage - 68855VR floor plan - Main Level

Light-filled Mountain Home Plan with 3-Car Drive-under Garage

  • 925

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Ground Level

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 925 sq. ft.
  • Lower Level: 141 sq. ft.
  • 1st Floor: 784 sq. ft.

Dimensions

  • Width: 33' 2"
  • Depth: 34' 3"
  • Max ridge height: 25' 6"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: RV Garage, Attached
  • Area: 796 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 12' 6"

Roof

  • Primary Pitch: 2.5 on 12
  • Framing Type: Stick
