Plan 623166DJ
803 Square Foot Pool House Plan with Upstairs Bunk Bds and Rec Room
Heated S.F.
803
Baths
2
Stories
2
Plan Details
  • This modern cottage-style pool house gives you 803 square feet of heated space, features clean lines and is a contemporary design that is both inviting and sophisticated. The open floor plan offers a spacious and bright living area, complete with large windows that allow natural light to flood the space. The living area is further enhanced by high ceilings, as well as direct access to the kitchen, with a walk-in pantry and bar top, perfect for hosting pool parties, barbecues and casual family gatherings.
  • The pool house has a large covered patio that leads to the pool area, providing ample space for outdoor dining and lounging. The patio is equipped with a grill top and shelving, with plenty of space for comfortable seating, making it a perfect spot to enjoy the beautiful weather and the great company.

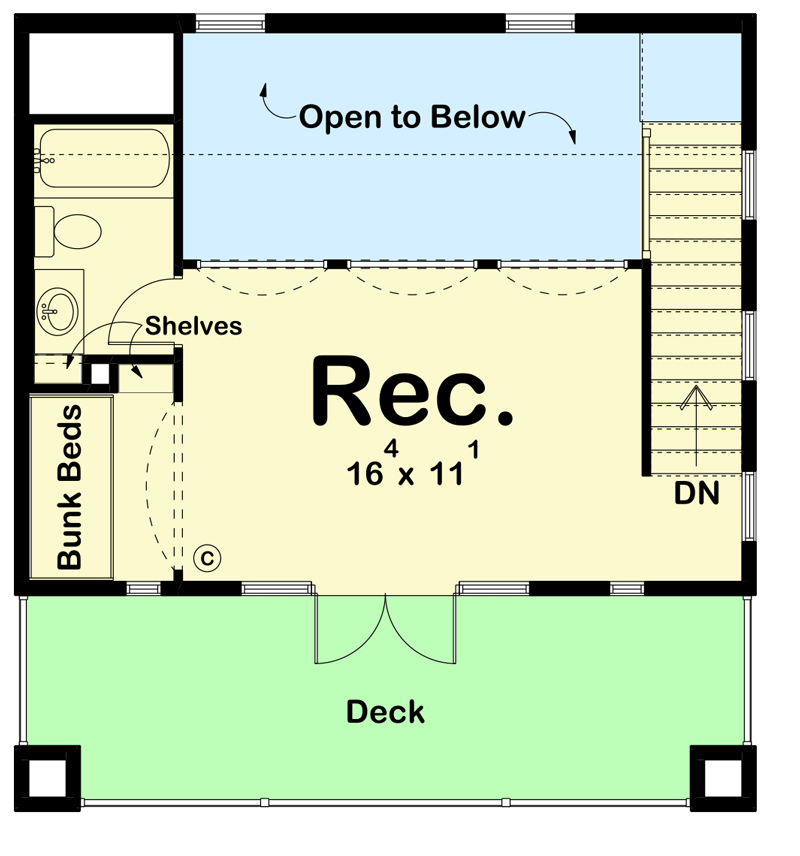

  • Upstairs, the plan has a large rec area and bunk beds, making it a great space for sleepovers or just extra family time in an additional space. This plan is complete with two bathrooms, one upstairs and one downstairs, and an upstairs deck to watch the sunset after a long day of hanging out by the pool.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement

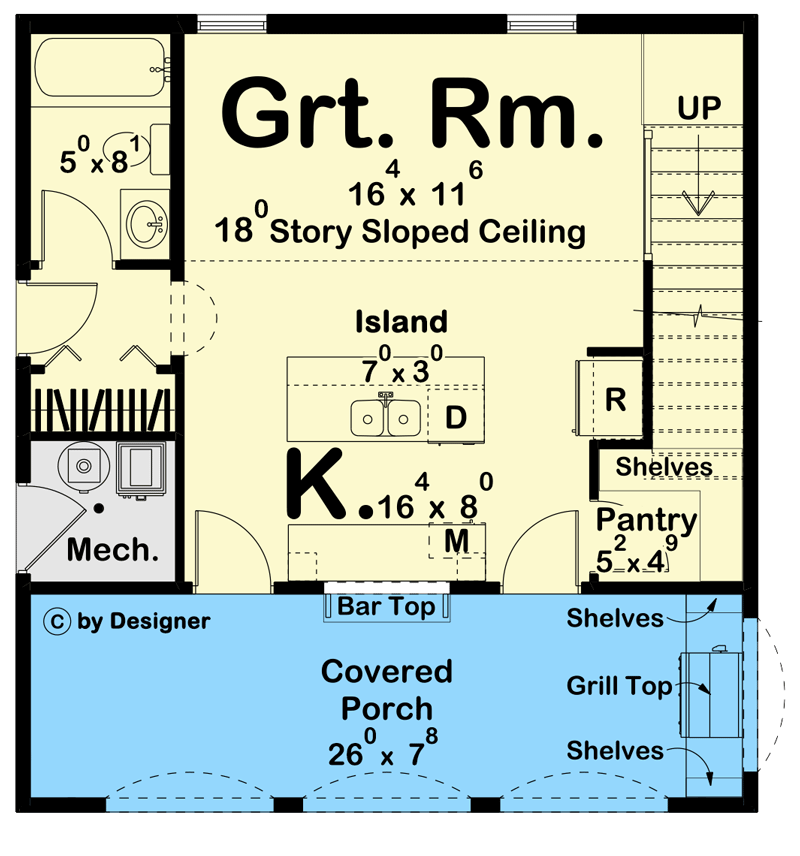

  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

803 Square Foot Pool House Plan with Upstairs Bunk Bds and Rec Room

  • 803

    Heated s.f.

  • Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 803 sq. ft.
  • 1st Floor: 496 sq. ft.
  • 2nd Floor: 307 sq. ft.

Dimensions

  • Width: 26' 0"
  • Depth: 28' 0"
  • Max ridge height: 27' 6"

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Truss
