Duplex House Plan with Asymmetrical 3 Bed Units - 1323 Sq Ft and 1549 Sq Ft

Heated S.F.
2,646
Units
2
Width
Depth

Floor Plan

Plan 80577PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 80577PM

M-F 9am-5pm EST |

1-203-761-8500

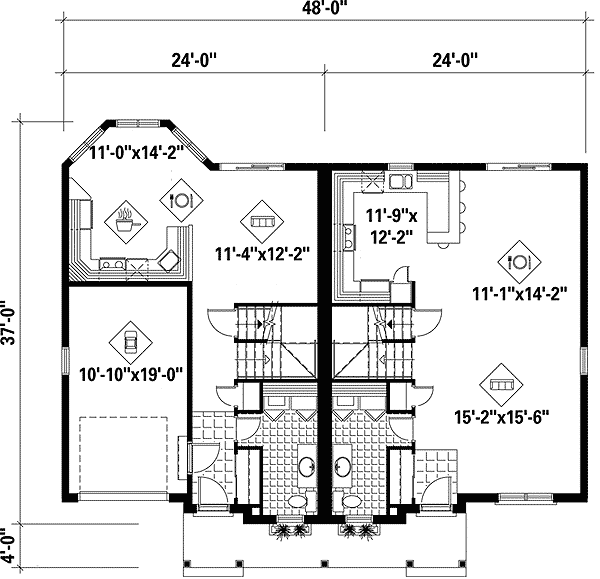

Main Level

Plan 80577PM: Duplex House Plan with Asymmetrical 3 Bed Units - 1323 Sq Ft and 1549 Sq Ft - Floor Plan - Main Level - Traditional

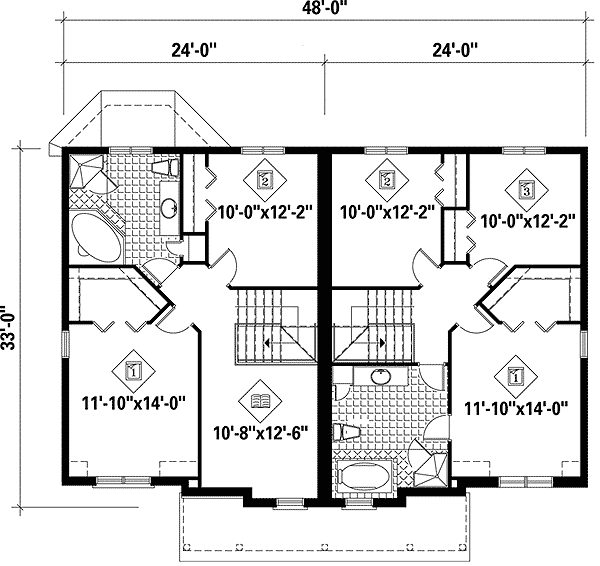

2nd Floor

Plan 80577PM: Duplex House Plan with Asymmetrical 3 Bed Units - 1323 Sq Ft and 1549 Sq Ft - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This duplex house plan give you asymmetrical 3 bedroom units. The one on the left gives you 1,323 square feet of heated livnig and a 1-car garage and the one on the right gives you 1,549 square feet of heated living space.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,323Sq. Ft.
559 Sq. Ft. 1st
764 Sq. Ft. 2nd
Beds
2Beds
Baths
1Full Bath
1Half Bath
Cars
Attached
225 Sq. Ft.
Dimensions
24'width
41'depth
Unfinished Areas
225 Sq. Ft. Garage
450 Sq. Ft. Attached
Unit B
Heated Area
1,549Sq. Ft.
1118 Sq. Ft. 1st
1528 Sq. Ft. 2nd
Beds
3Beds
Baths
1Full Bath
1Half Bath
Dimensions
24'width
41'depth

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,646 sq. ft.

1st Floor

1,118 sq. ft.

2nd Floor

1,528 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

41' 0"

Garage

Type

Attached

Area

225 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Traditional

Special Features

Laundry - Main Level

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

2,646 sq. ft.

1st Floor

1,118 sq. ft.

2nd Floor

1,528 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

41' 0"

Garage

Type

Attached

Area

225 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Traditional

Special Features

Laundry - Main Level

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric
