A Cozy Chalet

Plan 8812SH

  • 1,286

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • This cozy chalet design begins with a railed veranda opening to a living room with a warm fireplace and a dining room with a snack-bar counter through to the kitchen.
  • One bedroom with a roomy wall closet is on the first floor.
  • The second floor holds two additional bedrooms--one a master suite with a private balcony--and a full bath. Additional storage is found on the second floor.
  • Related Plan: Downsize with house plan 8807SH (1,073 sq. ft.).

Each plan set includes the following:

  • Front perspective
  • Foundation plan
  • Fully dimensioned floor plans
  • Cross sections
  • Floor structural suppports
  • Electrical plans

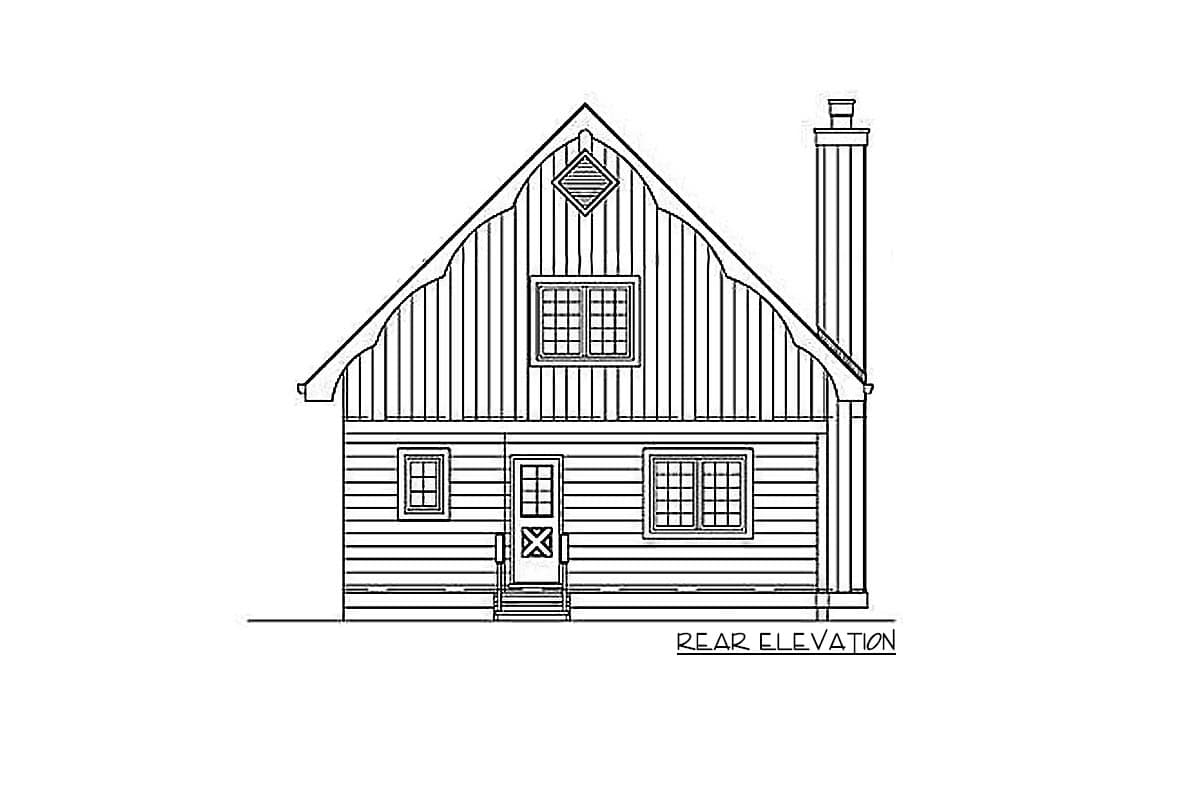

  • All four elevations
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

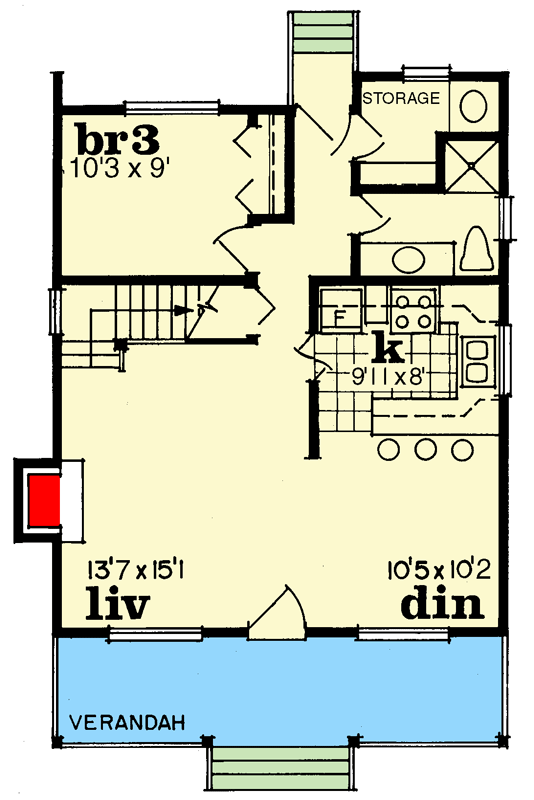

A Cozy Chalet - 8812SH floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

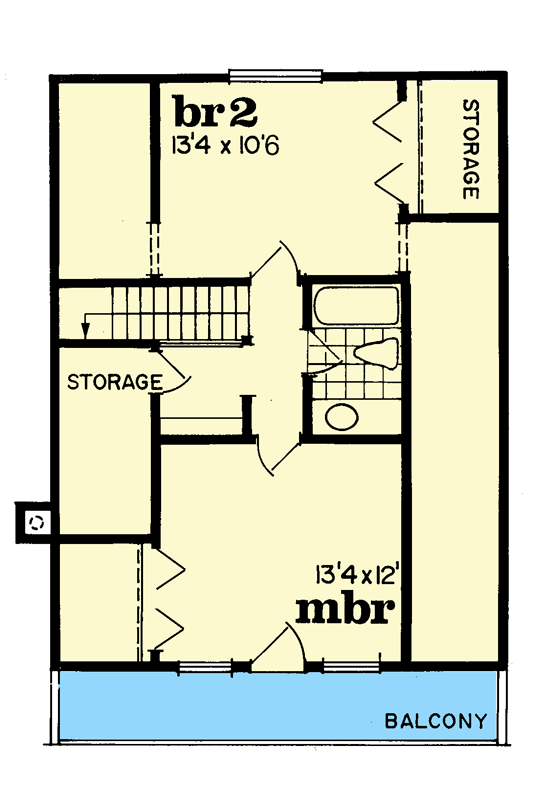

A Cozy Chalet - 8812SH floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,286 sq. ft.
  • 1st Floor: 725 sq. ft.
  • 2nd Floor: 561 sq. ft.
  • Deck: 150 sq. ft.
  • Storage: 19 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 25' 0"
  • Depth: 36' 6"
  • Max ridge height: 27' 0"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

A Cozy Chalet

  • 1,286

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • 5 Sets $700
  • PDF - Single-Build $700
  • 8 Sets $900
  • Reproducible Set $900
  • CAD - Single-Build $1,400
  • View all purchase option online

About This Plan

  • This cozy chalet design begins with a railed veranda opening to a living room with a warm fireplace and a dining room with a snack-bar counter through to the kitchen.
  • One bedroom with a roomy wall closet is on the first floor.
  • The second floor holds two additional bedrooms--one a master suite with a private balcony--and a full bath. Additional storage is found on the second floor.
  • Related Plan: Downsize with house plan 8807SH (1,073 sq. ft.).
