Plan 72320DA

A-Frame Log Cabin House Plan with Lofty Great Room and Bunk Room

Name: Plan 72320DA: A-Frame Log Cabin House Plan with Lofty Great Room and Bunk Room
Brand: Architectural Designs
SKU: 72320DA
Price: 1725.0 USD
Availability: InStock

Heated S.F.

1,216

Beds

Baths

Stories

Cars

Floor Plan

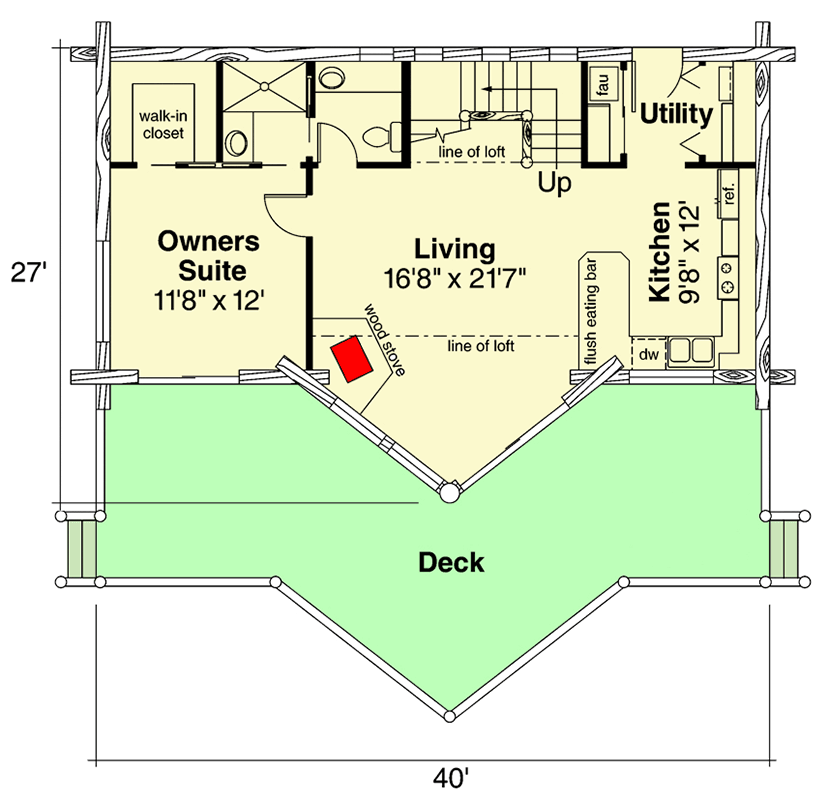

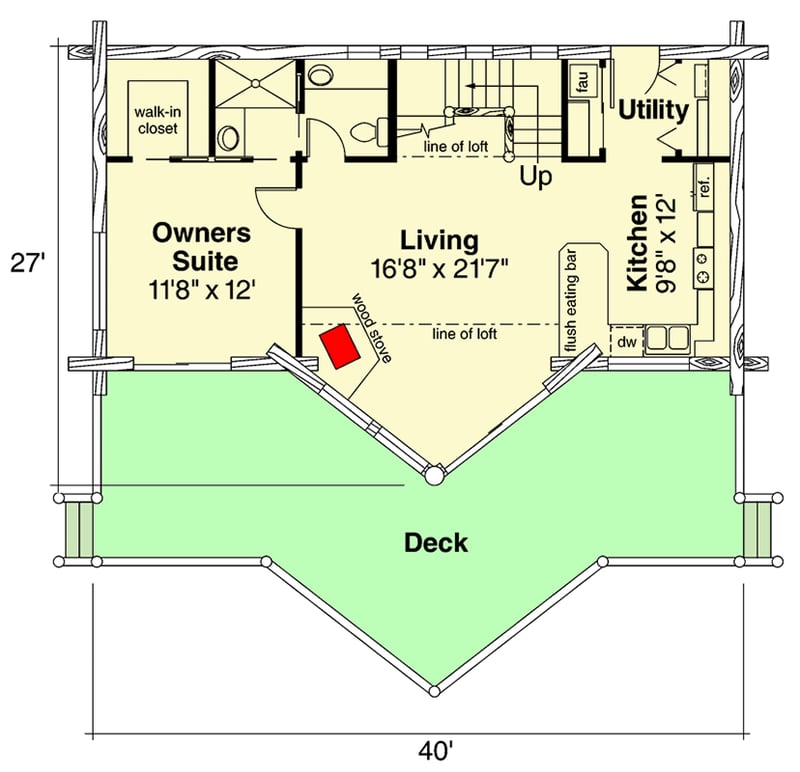

Main Level

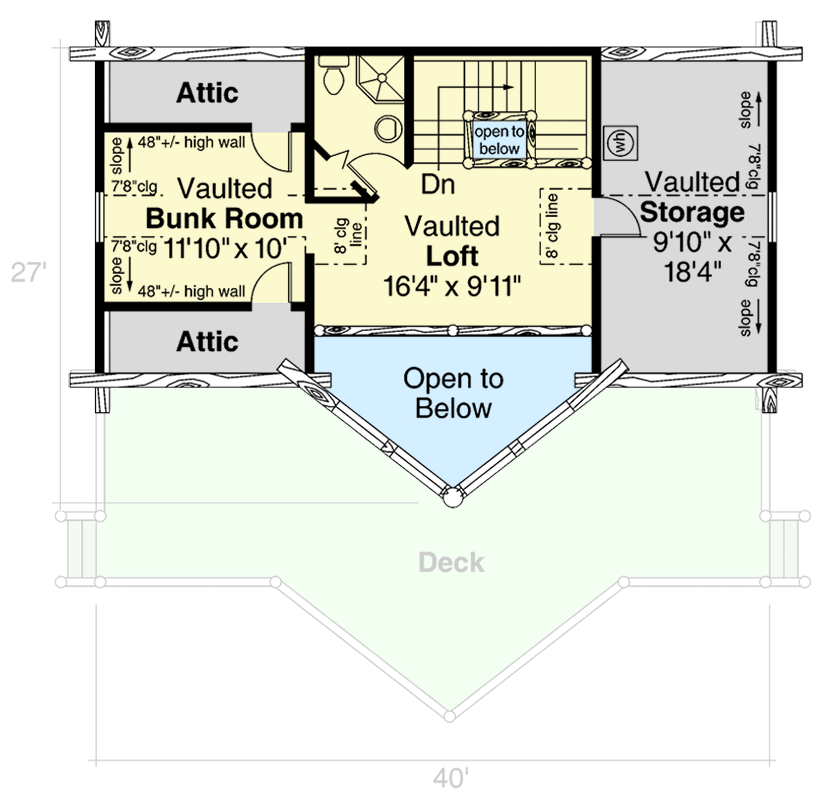

2nd Floor

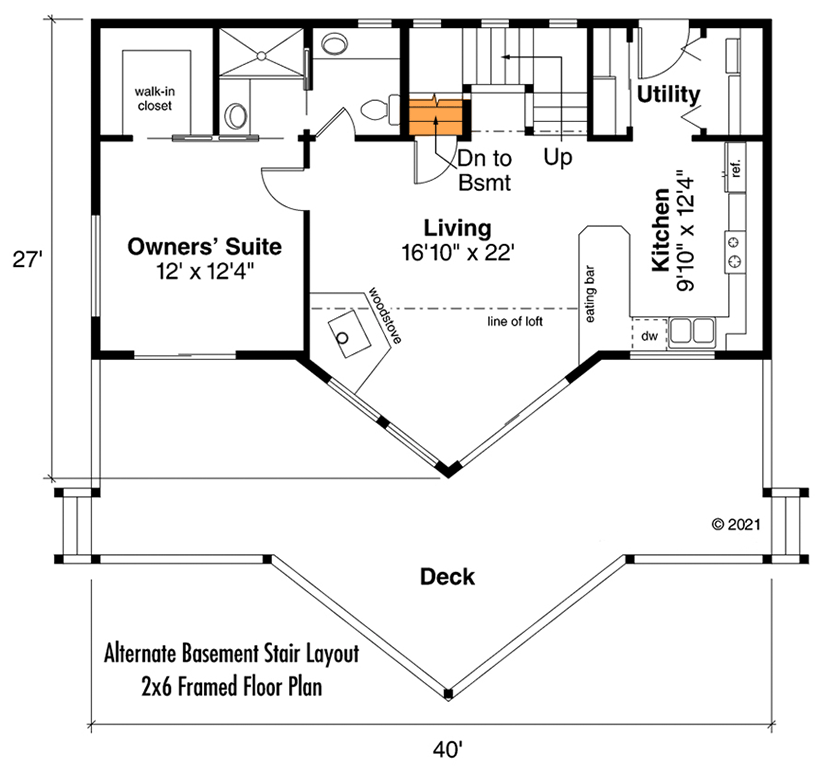

Basement Stairs Location

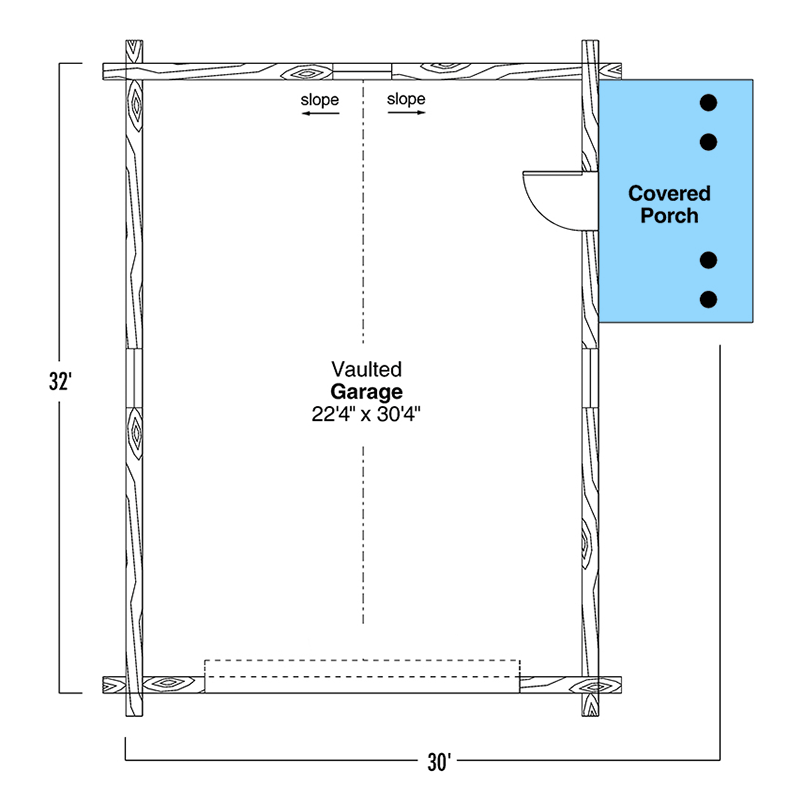

Detached 2-Car Garage

Plan Details

This captivating A-frame log cabin house plan offers 1,216 sq. ft. of heated living space, featuring 2 bedrooms and 2 full bathrooms. Complementing the rustic charm is a detached 2-car garage spanning 768 sq. ft., providing ample space for vehicles and storage.
Step inside this mountain retreat to discover a breathtaking two-story great room, illuminated by a dramatic V-shaped wall of windows that frame stunning views. The open-concept design seamlessly connects living spaces, fostering an airy and welcoming atmosphere.
The main level centers around the magnificent two-story great room, where light pours in through the expansive V-shaped window bay, creating a bright and inviting common space for relaxation and connection.
A convenient master suite is located on the first floor, offering privacy and easy access. Upstairs, a versatile loft overlooks the great room, providing an additional flexible space, accompanied by a dedicated bunk room and another full bathroom, ideal for guests or family.
The upstairs loft provides a flexible area perfect for a reading nook, a quiet workspace, or an additional lounging spot, all while enjoying views of the towering great room below.
Embrace the outdoors on the expansive railed deck, which mirrors the unique V-shape of the house plan's window bay, offering an ideal spot for morning coffee or enjoying the serene mountain air.
Above the main living area, a 207 sq. ft. bonus area and an equally sized storage area on the second floor present opportunities for customization, with the storage area easily convertible into an additional bunk room to accommodate more guests.
Related Plan: Get more room with house plan 72321DA (1,384 sq. ft.).

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

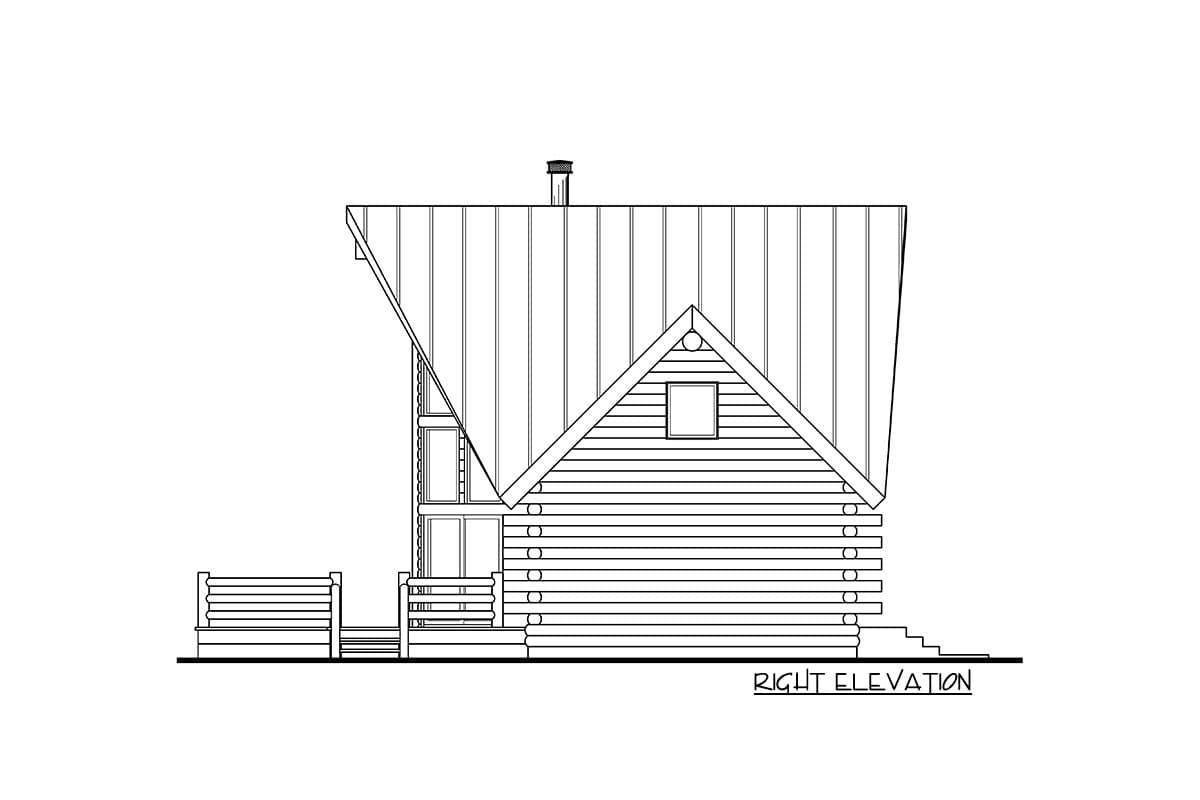

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
