Plan 80659PM

A Nature Lover's Dream House Plan

Name: Plan 80659PM: A Nature Lover's Dream House Plan
Brand: Architectural Designs
SKU: 80659PM
Price: 1350.0 USD
Availability: InStock

Heated S.F.

1,906

Beds

2 - 3

Baths

Stories

Floor Plan

Basement

Second Level

Lower Level

Plan Details

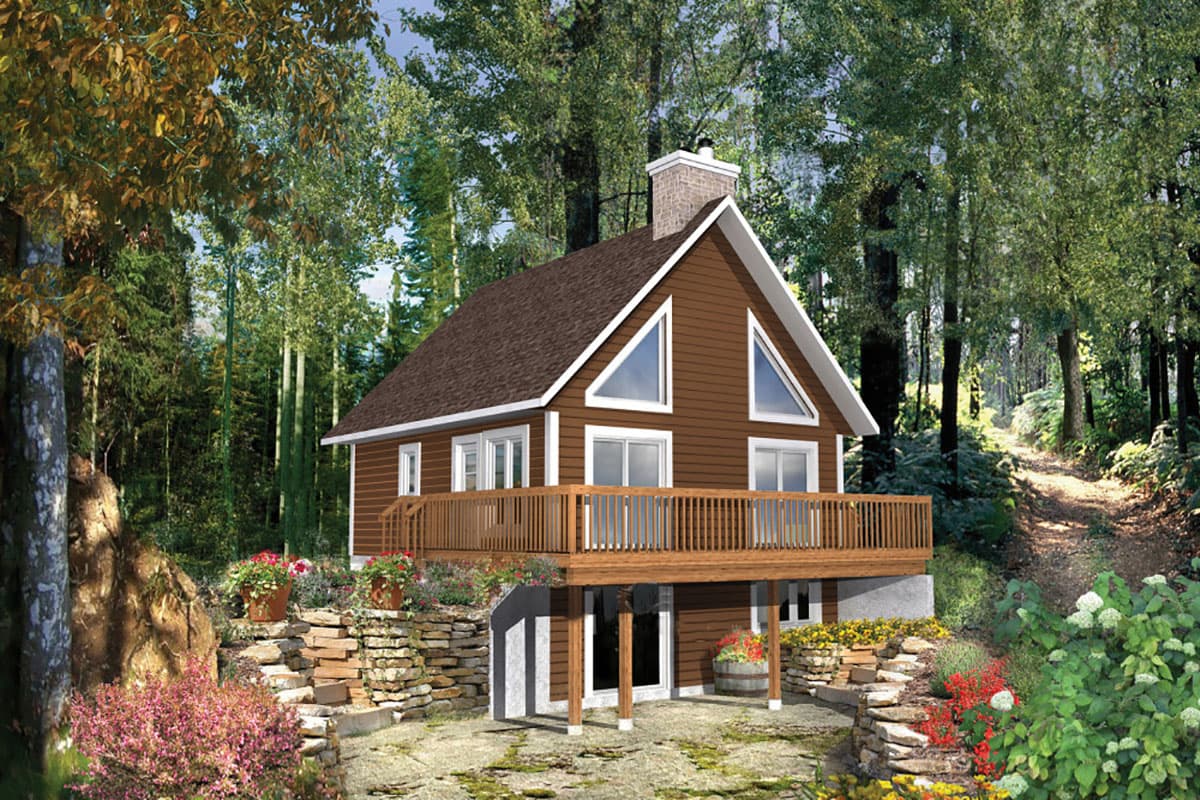

This beautiful cottage is ideally suited for a lakefront or mountaintop location.
The large rear wrapping porch is perfect for enjoying the views.
The house is 26 feet wide by 30 feet deep and provides 1,906 square feet of living space.

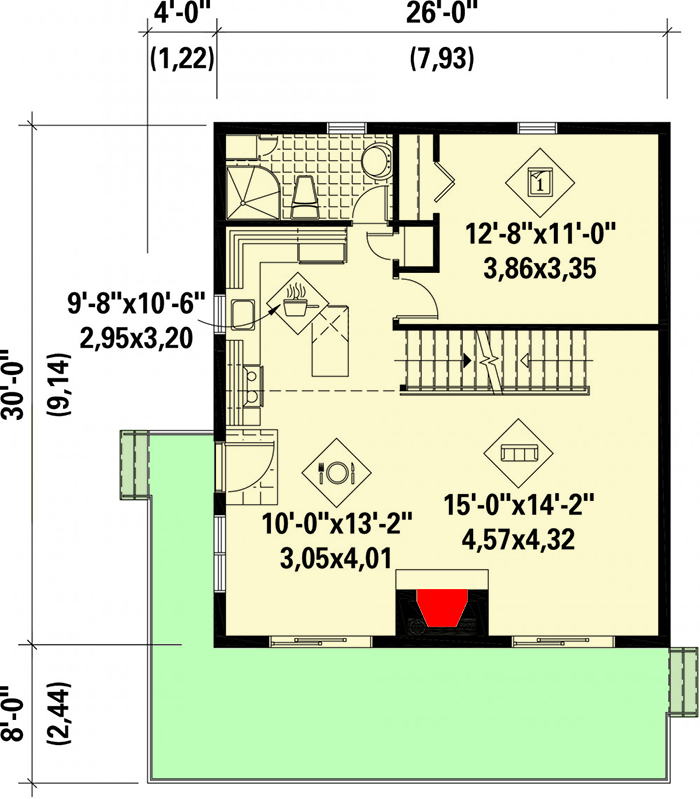

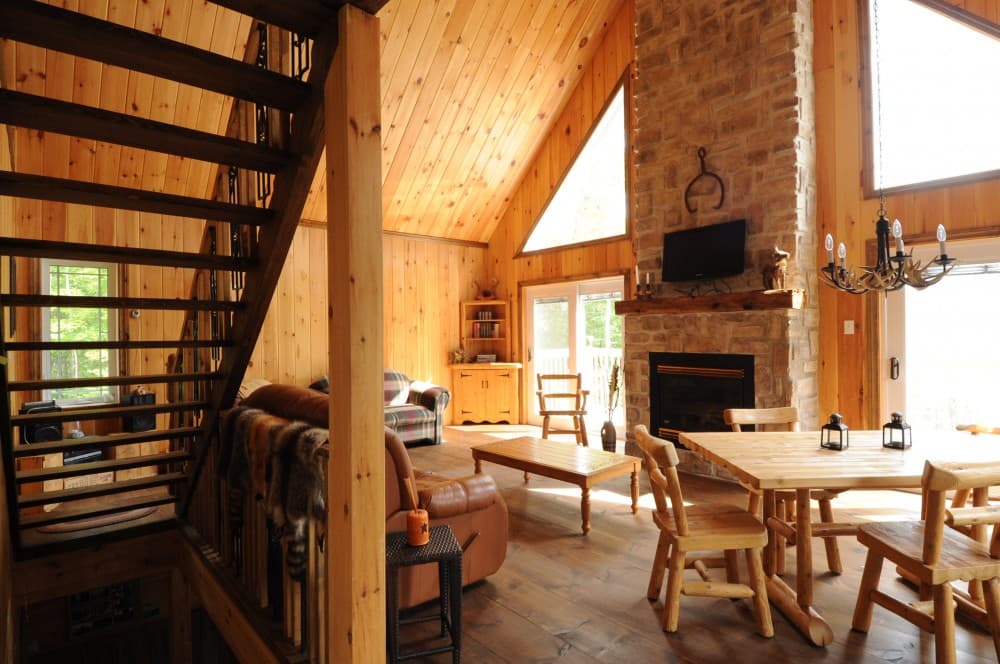

The ground floor consists of a 780 square foot open area with access to the terrace that includes a dining room and living room with a see through fireplace, a kitchen with an island, a bathroom and a master bedroom.

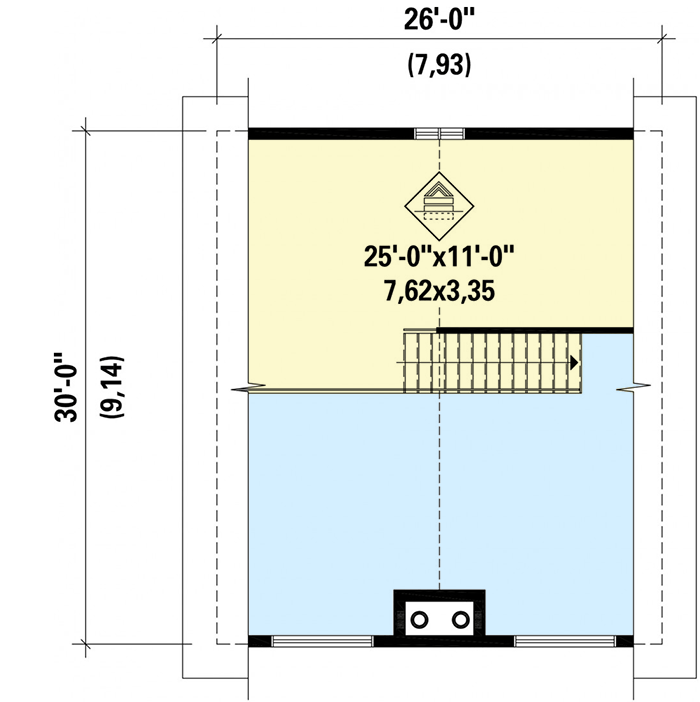

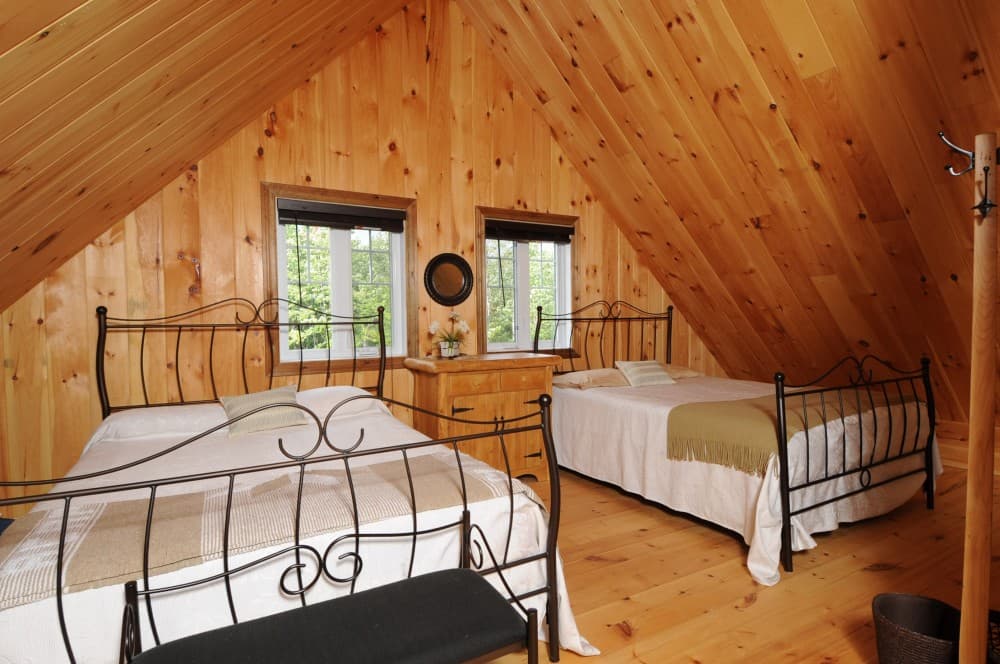

The 346 square foot mezzanine is a versatile room that can be used as a bedroom, a reading room or a den.

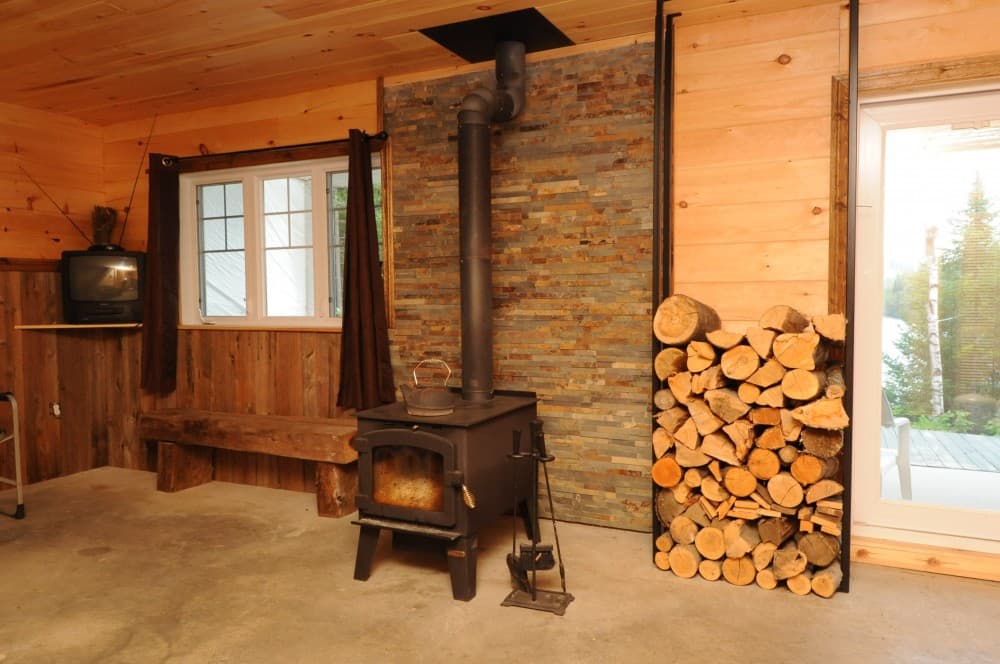

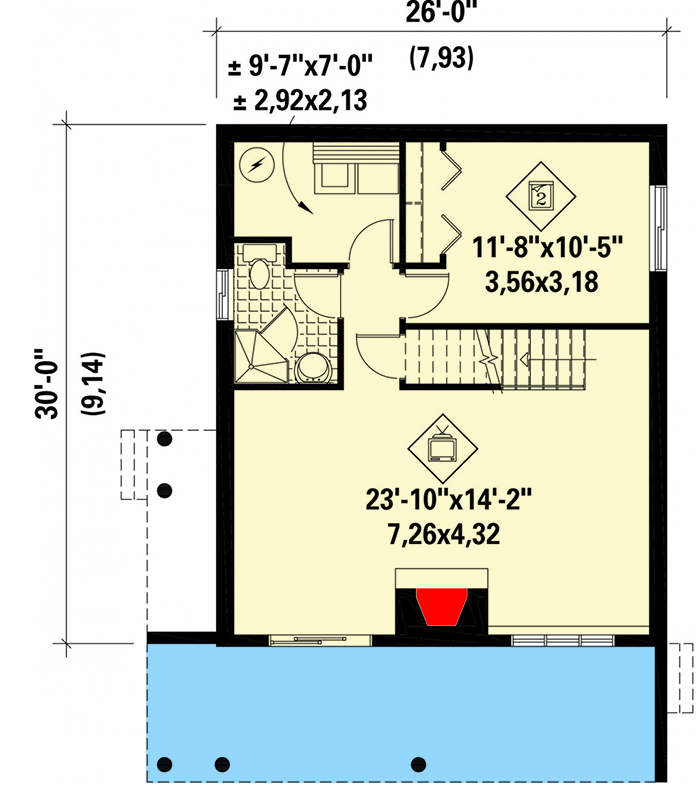

Added Bonus: Plans come with a 780 square foot basement featuring a large den with fireplace, a bedroom, a bathroom and a laundry room.

What's Included

Please note this plan is designed to the National Building Code of Canada.

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
