Plan 31823DN
A Study on Each Floor
Heated S.F.
4,080
Beds
4
Baths
5
Stories
2
Cars
3
Videos
What's Included
Plan Details
  • Bold, strong lines accent this Florida home plan that comes with two studies - one on each floor
  • Covered lanais in back give you shade and privacy with lots of room for a summer kitchen.
  • A pool bath keeps wet feet out of the main house.
  • The huge great room has a magnificent coffered ceiling that can be seen all the way to the kitchen.
  • The T-shaped island has seating for six people and offers tons of counter space.
  • Homeowners are pampered with a tray ceiling and their own wet bar plus his and her walk-in closets that close with pocket doors.
  • All three bedroom suites on the second floor open up to the covered balcony and sun deck.
  • The second floor study has a wet bar and nearby, a handy laundry closet has room for a stack washer/dryer.
  • HOUSE PLAN VIDEO: See this house plan from every angle in our YouTube video.
  • Related Plan: Get a different layout with house plan 31845DN (4,080 sq. ft.).
What's Included

  • Slab Plan
  • First Floor Notes
  • First Floor Dimensions
  • Second Floor Notes
  • Second Floor Dimensions
  • Door and Window Schedules
  • First Floor Electrical
  • Second Floor Electrical
  • First Floor Ceiling Plan
  • Second Floor Ceiling Plan
  • Front Elevation
  • Right Elevation
  • Rear Elevation
  • Left Elevation
  • Lower Roof Plan
  • Upper Roof Plan
  • Building Sections
  • Wall Sections
  • Fastener Requirements

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

A Study on Each Floor

  • 4,080

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

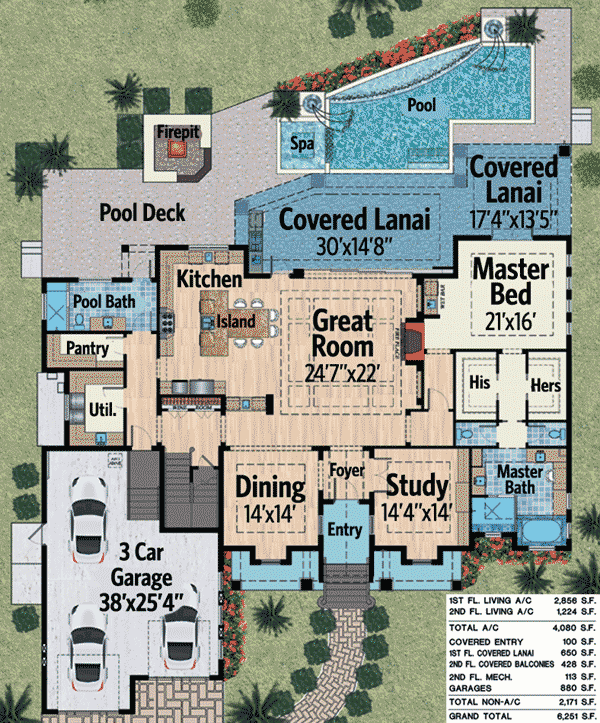

  • Main Level

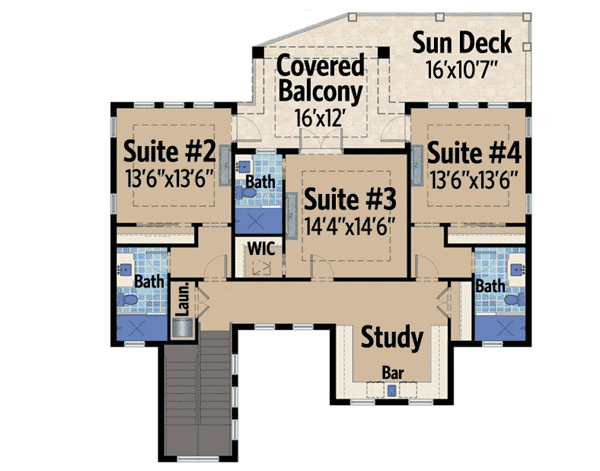

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,080 sq. ft.
  • 1st Floor: 2,856 sq. ft.
  • 2nd Floor: 1,224 sq. ft.

Dimensions

  • Width: 77' 10"
  • Depth: 76' 2"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5

Garage

  • Type: Attached
  • Area: 880 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"
