Plan 9366EL
EXCLUSIVE
A Touch of Tudor
Heated S.F.
3,784
Beds
4
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details
  • Brick, stone and stucco give this home a Tudor style exterior. A double arched entry with sloped roof and copper roof bay window make this design reminiscent of homes in the English countryside.
  • Once inside, the gallery leads to a spacious great room with fireplace. Enjoy the view from your covered terrace accessed through the great room or morning room.
  • The kitchen with center island has open flow to the great room and morning room and can easily service the formal dining room just across the gallery hall.
  • Another great feature of this home plan is the main level master suite with master bath, his and her walk-in closets and a spa tub.
  • The upper level has three additional bedrooms, two baths, a loft and bonus area for future expansion.
  • A three car garage completes this plan.
  • Related Plan: Need more room? See house plan 9374EL featuring a completed bonus room over the garage.
What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet

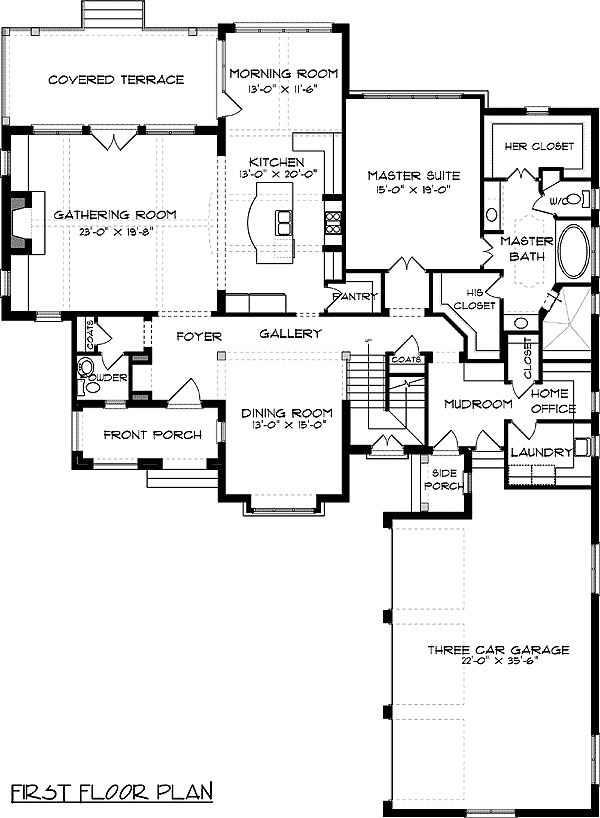

  • First Floor Plan

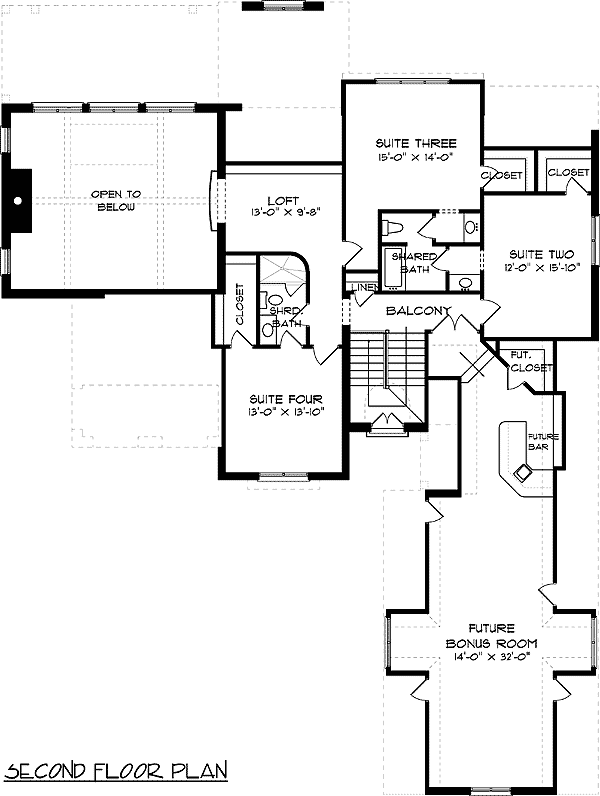

  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

A Touch of Tudor

  • 3,784

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,784 sq. ft.
  • 1st Floor: 2,573 sq. ft.
  • 2nd Floor: 1,211 sq. ft.

Dimensions

  • Width: 65' 9"
  • Depth: 87' 1"
  • Max ridge height: 34' 11"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 861 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
