All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

About this plan What's included

A Touch of Tudor

Plan 9369EL

This plan plants 3 trees

3,974
Heated s.f.
4-5
Beds
3.5 - 4.5
Baths
2
Stories
3
Cars

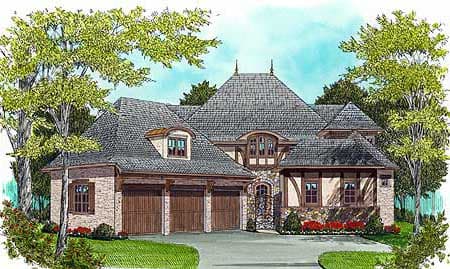

Stone and stucco give this home a Tudor style exterior. Windows with arched roof lines and decorative wood framing make this design reminiscent of homes in the English countryside.
An arched stone entry leads to a dramatic two story courtyard. Beyond the courtyard, an entry foyer and gallery direct you to a great room with fireplace. Two columns, lining each side of the gallery, create a formal space for the kitchen on the left and for the dining room on the right.
A main level master suite with master bath, spa tub and spacious walk-in closet is privately located in the right wing of this house.
The upper level has three additional bedrooms, two baths, and a game room. There is even a bonus area above the three car garage for future expansion.
Related Plan: For a smaller version of this house plan in reverse, see 9314EL.

Each plan set includes the following:

Cover Sheet
General Note Sheet
Foundation Sheet
First Floor Plan
Second Floor Plan (if applicable)
Roof Framing Plan
Front & Rear Elevation
Left & Right Elevation
Openings & Sections Sheet
Foundation Details
Cornice Details
First Floor Electrical
Second Floor Electrical (if applicable)

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

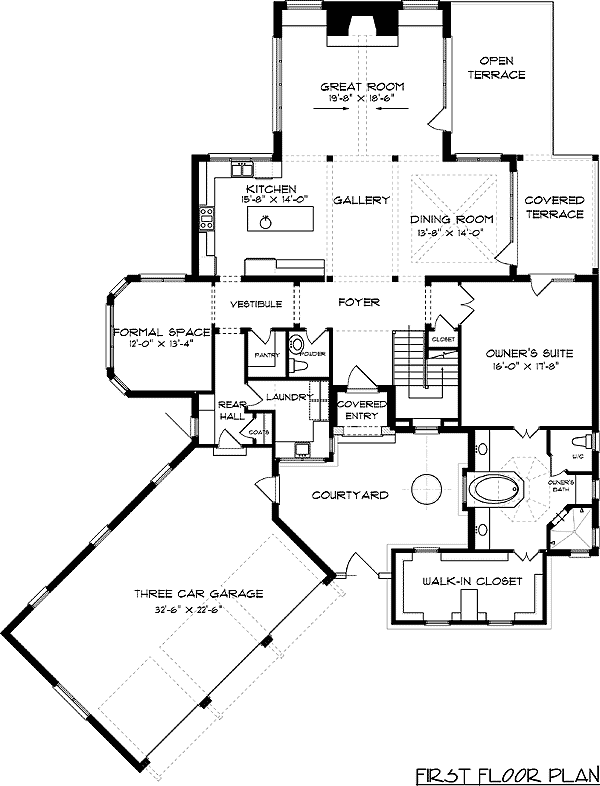

A Touch of Tudor - 9369EL floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

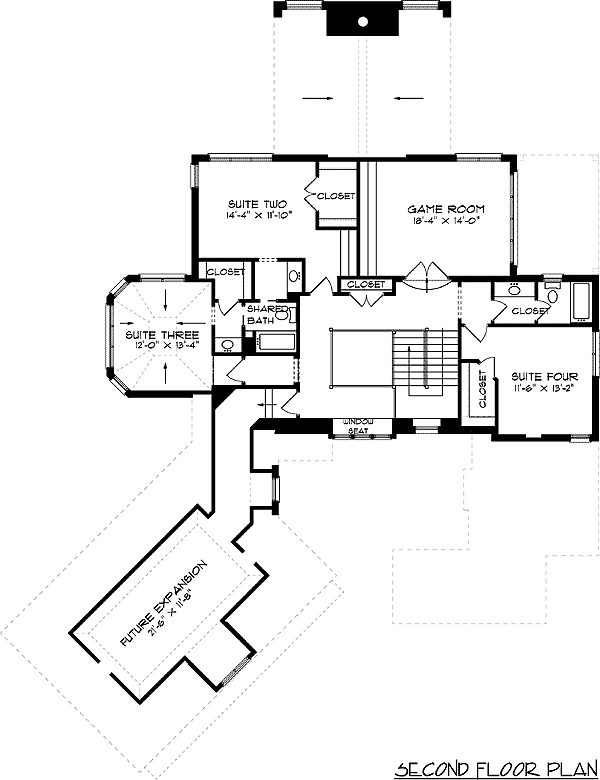

A Touch of Tudor - 9369EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 3,974 sq. ft.
1st Floor: 2,494 sq. ft.
2nd Floor: 1,480 sq. ft.

Beds/Baths

Bedrooms: 4 or 5

Full bathrooms: 3 or 4
Half bathrooms: 1

Foundation Type

Standard Foundations: Walkout

Optional Foundations: Basement, Slab, Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 71' 10"
Depth: 93' 4"
Max ridge height: 36' 1"

Garage

Type: Attached
Area: 732 sq. ft.
Count: 3 Cars
Entry Location: Courtyard

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 14 on 12

Architectural Style

Special features

Plan Collections
