A Touch of Tudor

Plan 9371EL

This plan plants 3 trees

4,069
Heated s.f.
4
Beds
4
Baths
2
Stories
3
Cars

The exterior of this home has a Tudor style design with stone, brick and stucco and is reminiscent of homes in the English countryside. The covered entry opens to an entrance hall and a great room with fireplace.
This home was designed for entertaining and has an open flow floor plan from the kitchen and great room to the formal dining area.
The master suite with his and her closets and master bath is located on the opposite side of the house for privacy. An additional room with bath for guests is also located here.
The upper level of this house plan has three additional bedrooms and two full baths. An optional fourth bedroom/study can be used for an office.
Related Plans: See these related house plans: 9368EL, 9375EL and 9377EL.

Each plan set includes the following:

Cover Sheet
General Note Sheet
Foundation Sheet
First Floor Plan
Second Floor Plan (if applicable)
Roof Framing Plan

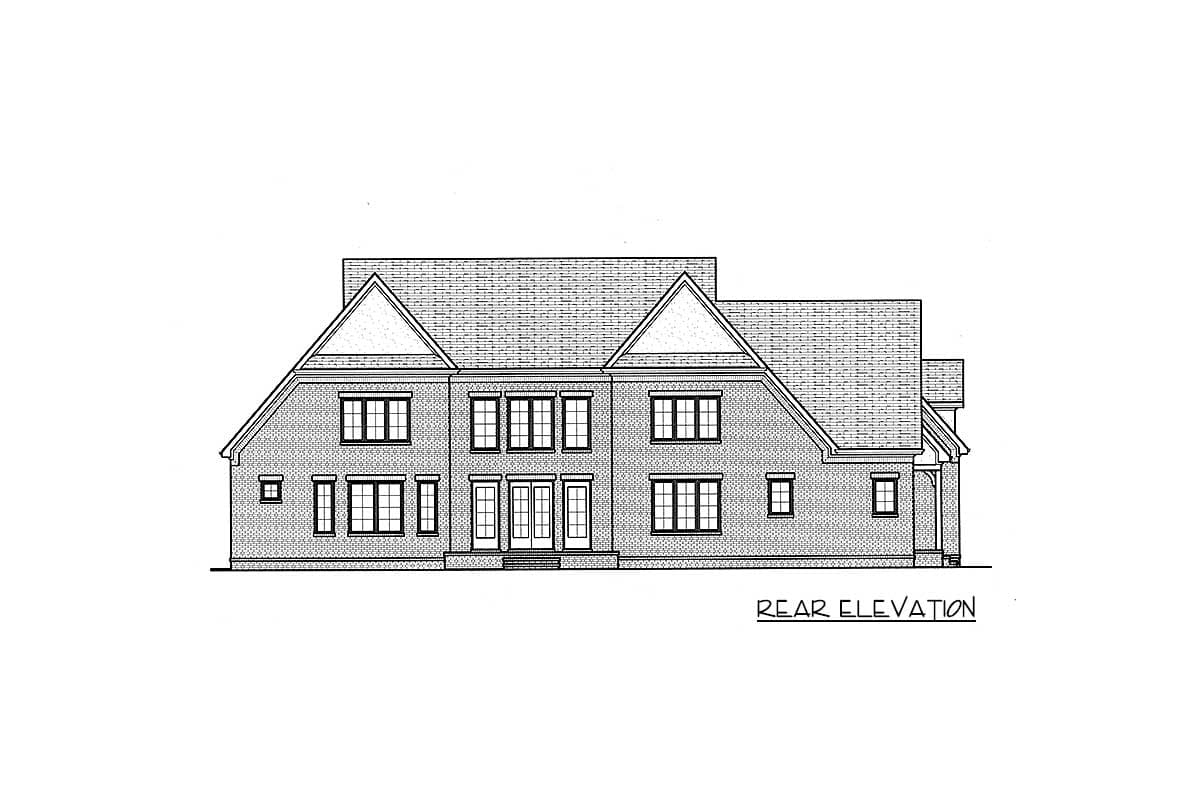

Front & Rear Elevation
Left & Right Elevation
Openings & Sections Sheet
Foundation Details
Cornice Details
First Floor Electrical
Second Floor Electrical (if applicable)

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

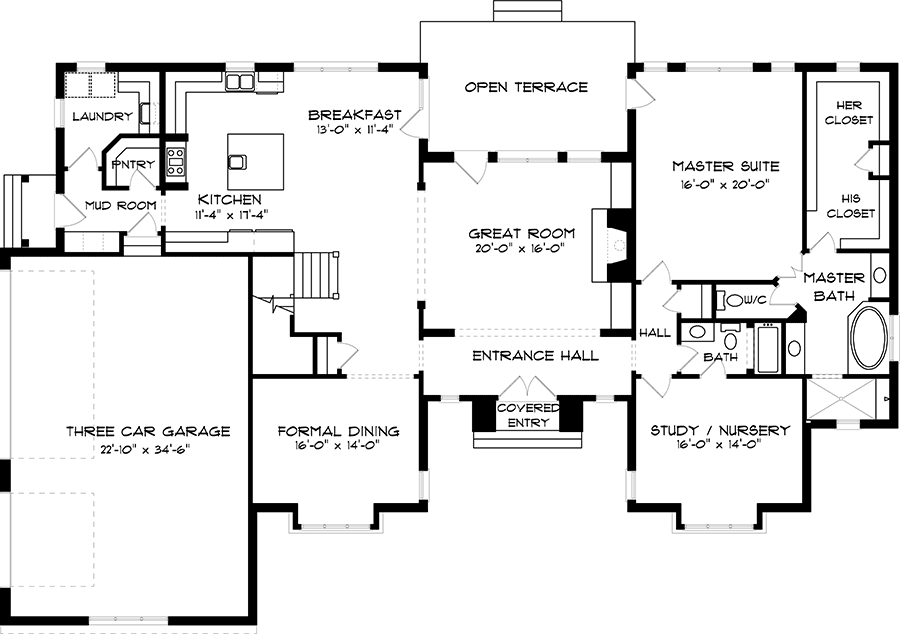

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

A Touch of Tudor - 9371EL floor plan - Main Level

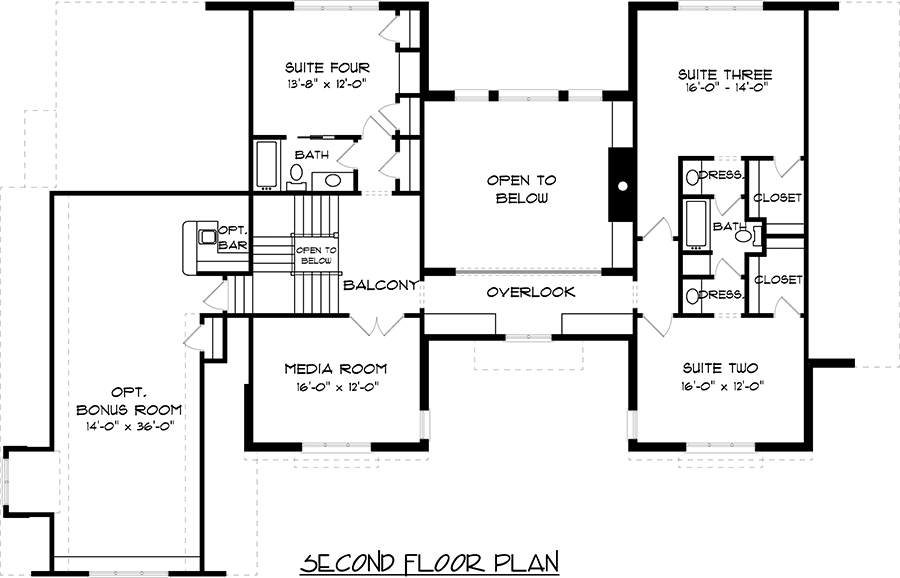

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

A Touch of Tudor - 9371EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 4,069 sq. ft.
1st Floor: 2,584 sq. ft.
2nd Floor: 1,485 sq. ft.

Entry: 31 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 4

Foundation Type

Standard Foundations: Crawl

Optional Foundations: Basement, Slab, Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 85' 0"
Depth: 57' 3"
Max ridge height: 35' 6"

Garage

Type: Attached
Area: 856 sq. ft.
Count: 3 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 12 on 12
Secondary Pitch: 8 on 12

Architectural Style

Special features

Plan Collections
