A Touch of Tudor

Plan 9377EL

  • 4,690

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

  • The exterior of this home has a Tudor style design with stone, brick and stucco and is reminiscent of homes in the English countryside. The covered entry opens to an entrance hall and a great room with fireplace.
  • This home was designed for entertaining and has an open flow floor plan from the kitchen and great room to the formal dining area.
  • The master suite with his and her closets and master bath is located on the opposite side of the house for privacy. An additional room with bath for guests is also located here.
  • The upper level of this house plan has three additional bedrooms and two full baths. An optional fourth bedroom/study can be used for an office.
  • Related Plan: Get alternate versions with house plans 9368EL, 9375EL and 9371EL.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

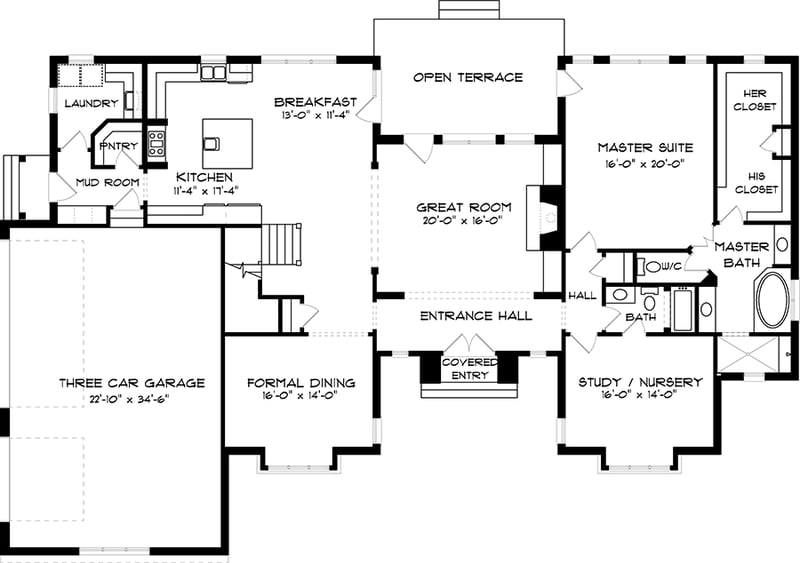

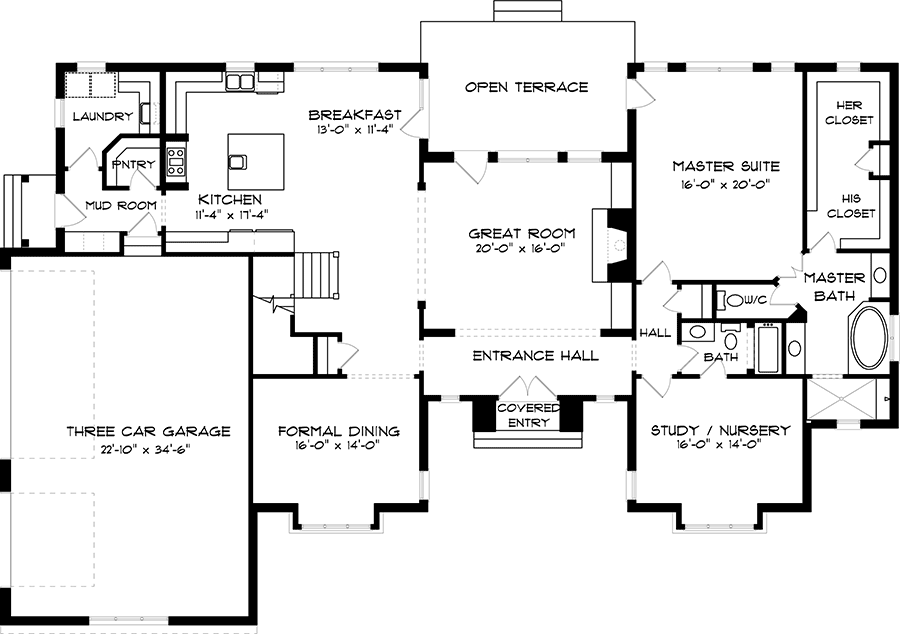

A Touch of Tudor - 9377EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

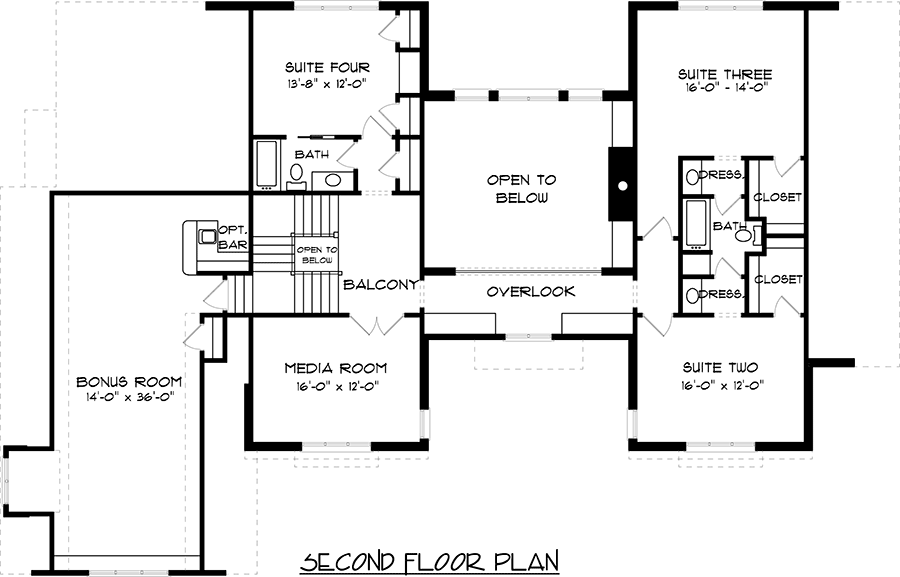

A Touch of Tudor - 9377EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,690 sq. ft.
  • 1st Floor: 2,584 sq. ft.
  • 2nd Floor: 2,106 sq. ft.
  • Entry: 31 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 85' 0"
  • Depth: 57' 3"
  • Max ridge height: 35' 6"

Garage

  • Type: Attached
  • Area: 856 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 on 12

Architectural Style

Special features

Plan Collections

A Touch of Tudor

  • 4,690

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,495
  • CAD+PDF - Single-Build $3,280
  • PDF - Unlimited Build $3,345
  • CAD - Unlimited Build $4,130
  • View all purchase option online

About This Plan

  • The exterior of this home has a Tudor style design with stone, brick and stucco and is reminiscent of homes in the English countryside. The covered entry opens to an entrance hall and a great room with fireplace.
  • This home was designed for entertaining and has an open flow floor plan from the kitchen and great room to the formal dining area.
  • The master suite with his and her closets and master bath is located on the opposite side of the house for privacy. An additional room with bath for guests is also located here.
  • The upper level of this house plan has three additional bedrooms and two full baths. An optional fourth bedroom/study can be used for an office.
  • Related Plan: Get alternate versions with house plans 9368EL, 9375EL and 9371EL.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,690 sq. ft.
  • 1st Floor: 2,584 sq. ft.
  • 2nd Floor: 2,106 sq. ft.
  • Entry: 31 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 85' 0"
  • Depth: 57' 3"
  • Max ridge height: 35' 6"

Garage

  • Type: Attached
  • Area: 856 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 on 12
Plan 9377EL
View this and more for this plan by visiting www.architechtecturaldesigns.com/9377EL
|
Need Help? 800-854-7852
|
Plan 9377EL
