Plan 970057VC

Adorable Three Bedroom Cottage

Heated S.F.
2,063
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 970057VC

Main Floor
Main Floor
Second Floor
Second Floor
Detached Garage
Detached Garage

Plan 970057VC

M-F 9am-5pm EST |

1-203-761-8500

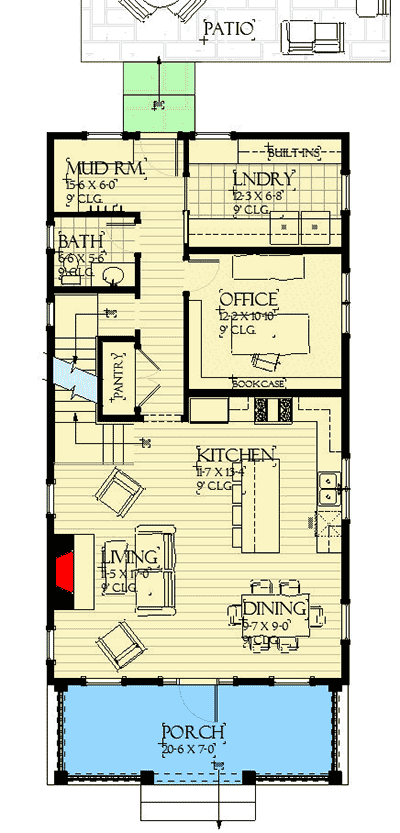

Main Floor

Plan 970057VC: Adorable Three Bedroom Cottage - Floor Plan - Main Floor - Cottage, Country, Craftsman, Traditional, Vacation

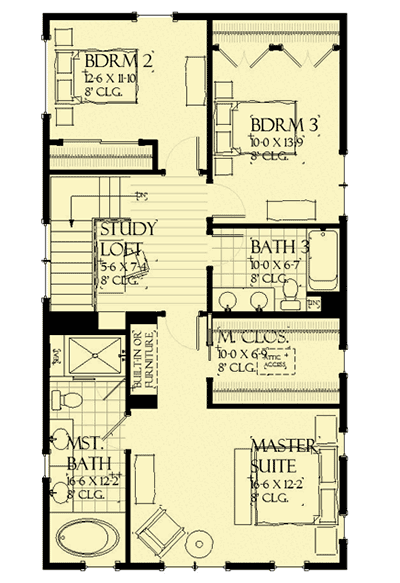

Second Floor

Plan 970057VC: Adorable Three Bedroom Cottage - Floor Plan - Second Floor - Cottage, Country, Craftsman, Traditional, Vacation

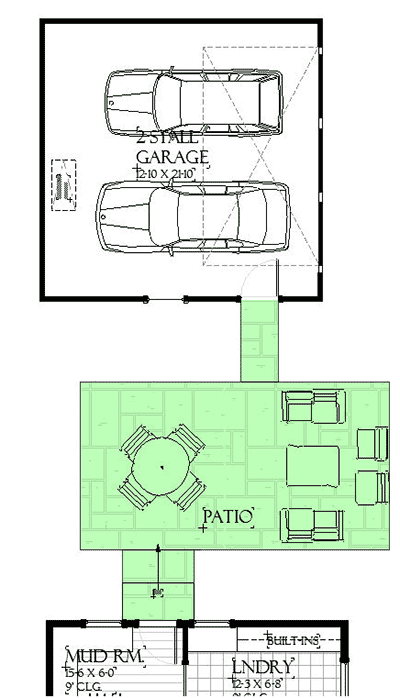

Detached Garage

Plan 970057VC: Adorable Three Bedroom Cottage - Floor Plan - Detached Garage - Cottage, Country, Craftsman, Traditional, Vacation

Plan Details

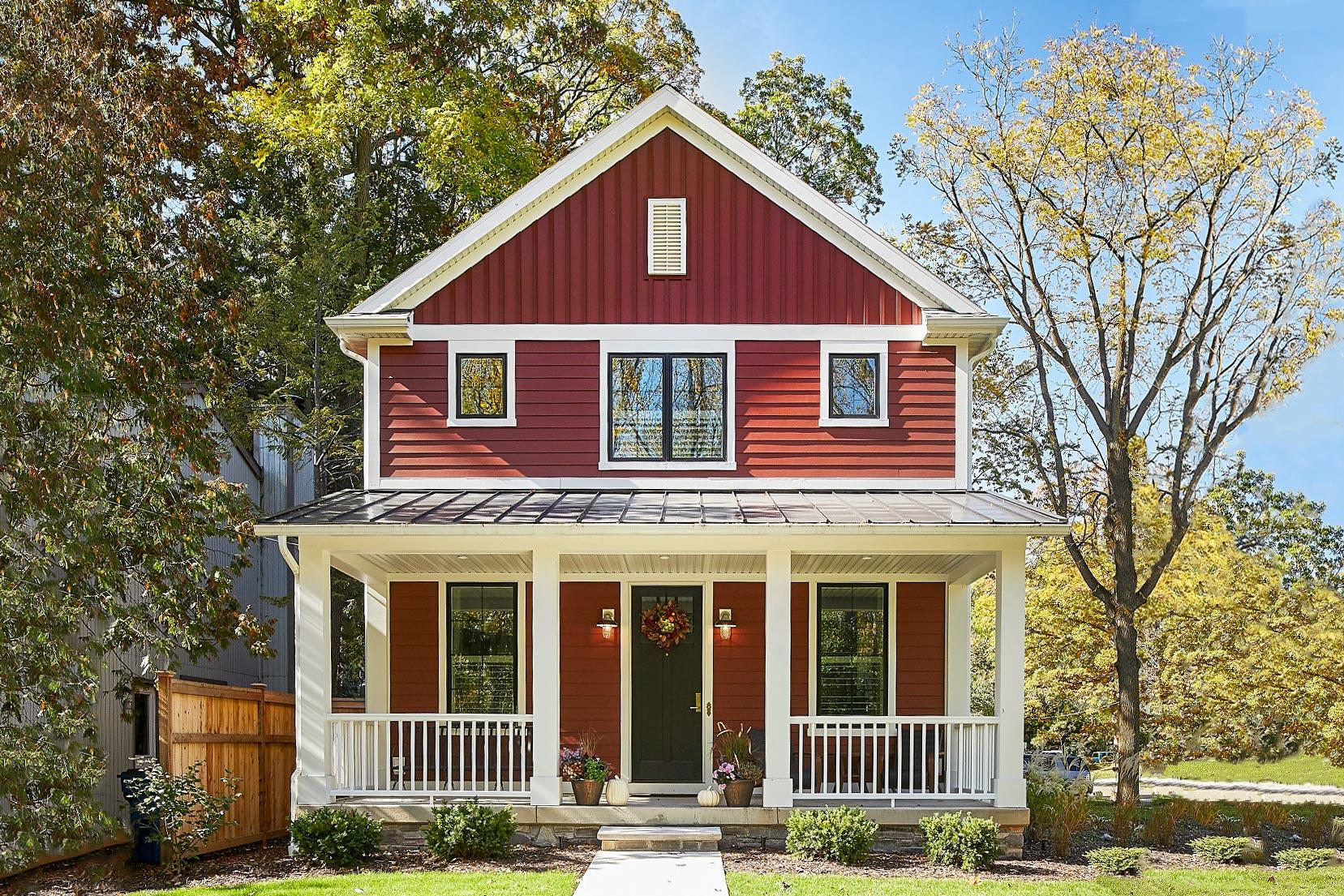

  • Narrow yet deep, this adorable Cottage house plan packs a lot into its narrow footprint.
  • The simple rectangular foundation shape and gable roof make it economical to build.

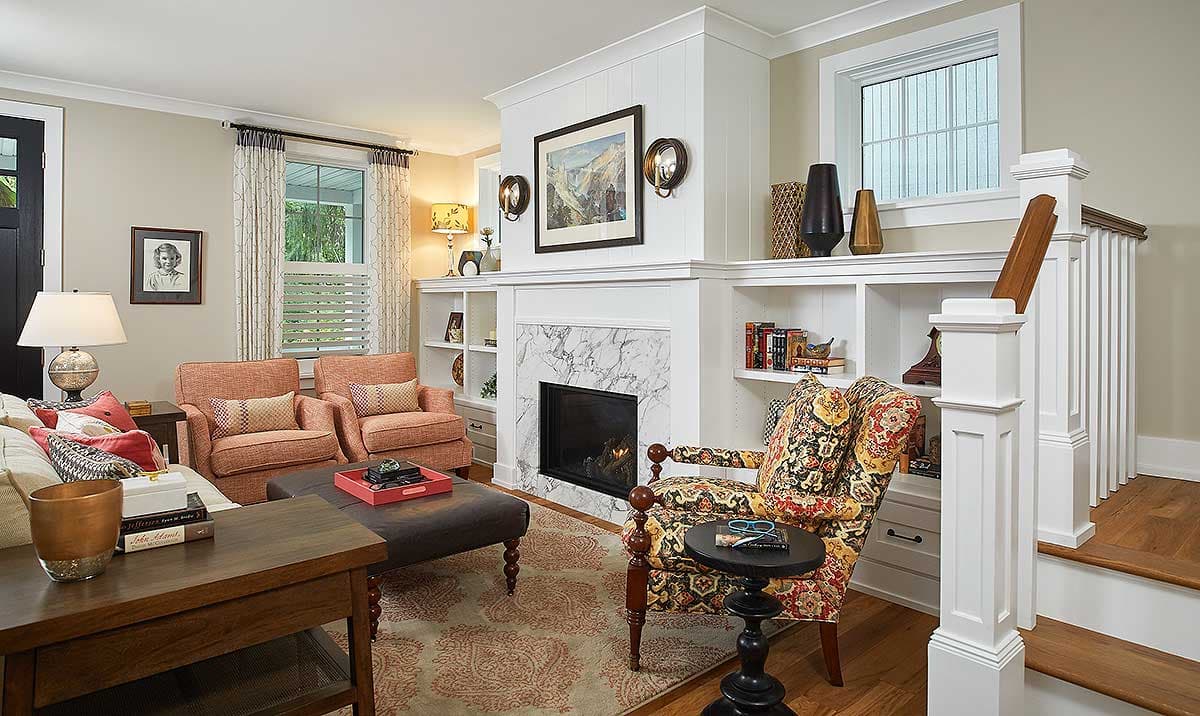

  • One big open living space unites the cooking, eating and living area of the home.
  • Get away to the large den that comes with bookshelves lining two walls.
  • An added plus is that the home comes with both a mud room and a separate laundry room with built-ins.
  • Bedrooms are up on the second floor with a study loft in the hall.

What's Included

  • Title Sheet. This page includes a color rendering of your home and an index of the complete set.
  • Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.

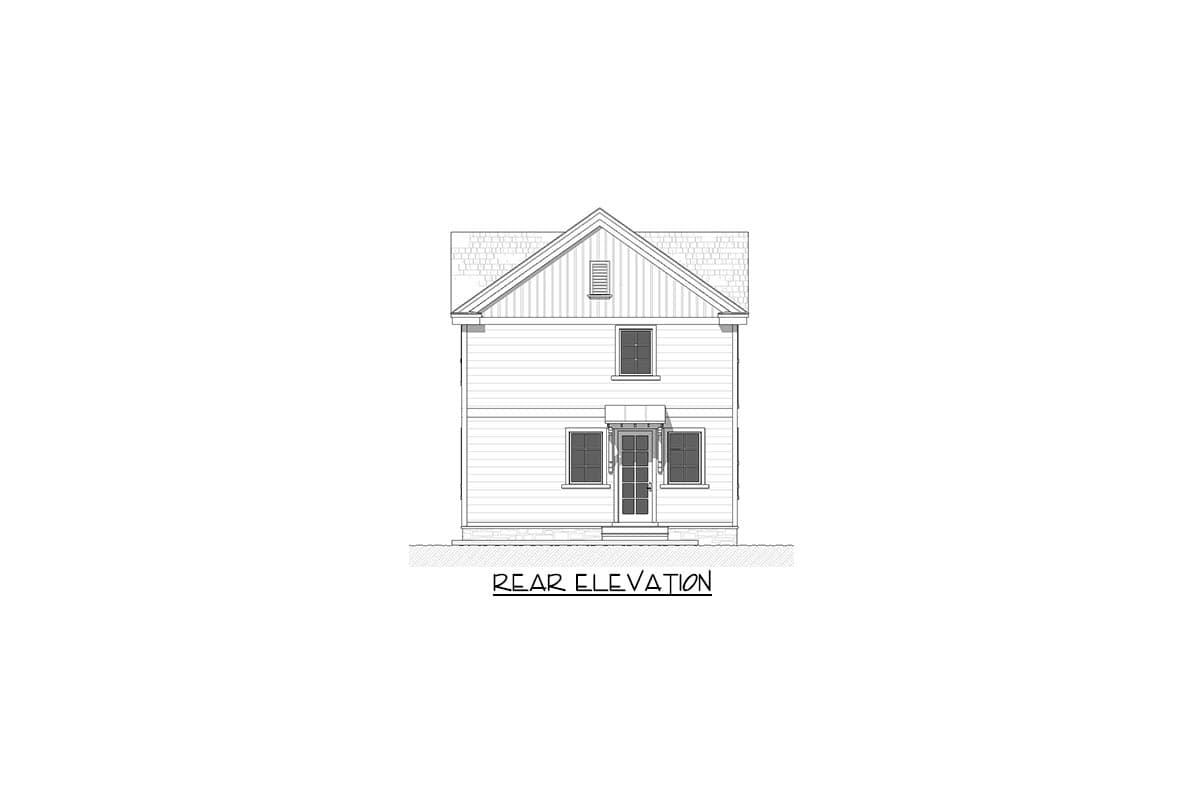

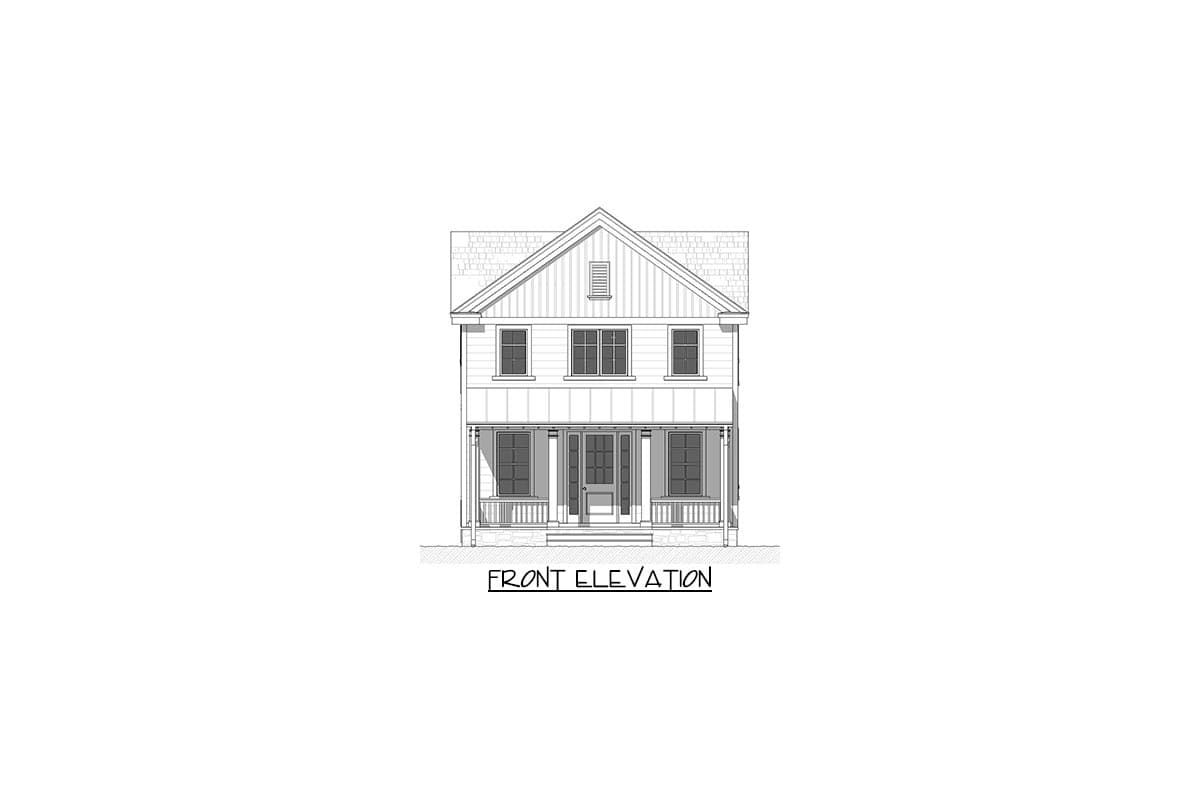

  • Exterior Elevations: front,rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
  • Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material call outs, eave detail, roof pitch and foundation construction.
  • Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,063 sq. ft.

1st Floor

1,056 sq. ft.

2nd Floor

1,007 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 0"

Depth

52' 0"

Max Ridge Height

29' 7"

Garage

Type

Detached

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Craftsman

Traditional

Vacation

Special Features

Den

Library/Study

Loft

Master Suite - Upstairs

Mudroom

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,063 sq. ft.

1st Floor

1,056 sq. ft.

2nd Floor

1,007 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 0"

Depth

52' 0"

Max Ridge Height

29' 7"

Garage

Type

Detached

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Craftsman

Traditional

Vacation

Special Features

Den

Library/Study

Loft

Master Suite - Upstairs

Mudroom

Plan Collections

Photo Gallery
