Plan 777014MTL

ADU with RV Garage with Modern Aesthetic - 1325 Sq Ft

Heated S.F.
1,325
Beds
1
Baths
2
Stories
2
Cars
2- 3

Floor Plan

Plan 777014MTL

Main Level
Main Level
2nd Floor
2nd Floor
Wall Framing Section
Wall Framing Section

Plan 777014MTL

M-F 9am-5pm EST |

1-203-761-8500

Main Level

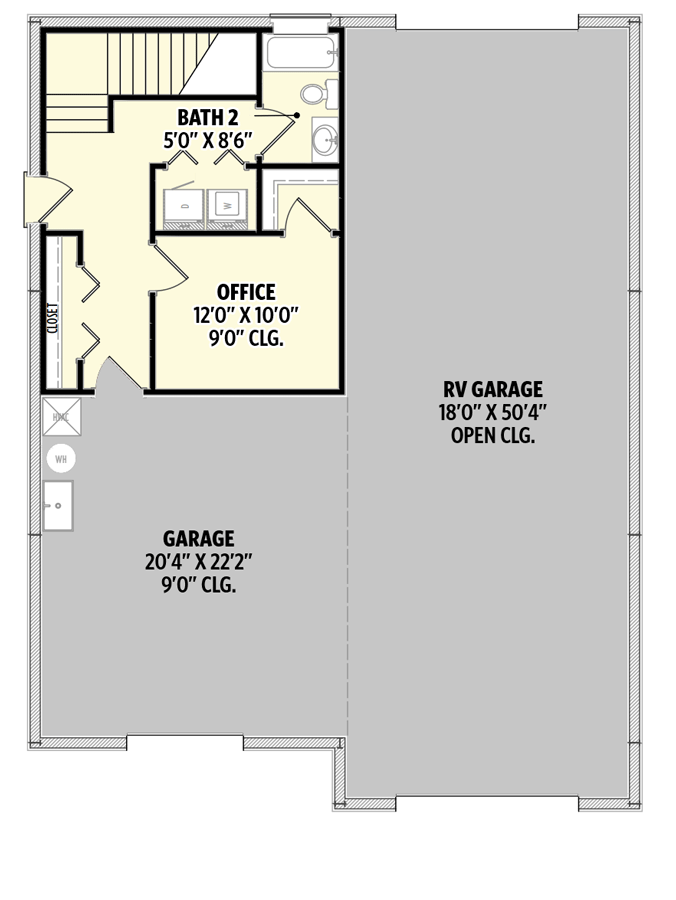

Plan 777014MTL: ADU with RV Garage with Modern Aesthetic - 1325 Sq Ft - Floor Plan - Main Level - Contemporary, Country, Rustic

2nd Floor

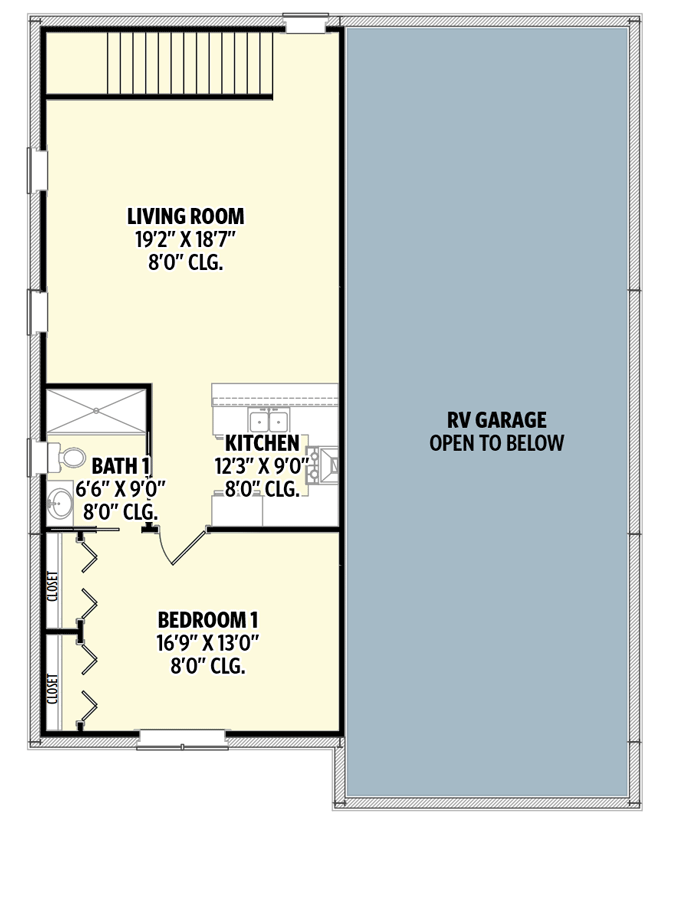

Plan 777014MTL: ADU with RV Garage with Modern Aesthetic - 1325 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Country, Rustic

Wall Framing Section

Plan 777014MTL: ADU with RV Garage with Modern Aesthetic - 1325 Sq Ft - Floor Plan - Wall Framing Section - Contemporary, Country, Rustic

Plan Details

  • This ADU provides a modern aesthetic with its simplistic exterior and contrasting color scheme.
  • The single garage bay neighbors the pass-thru RV bay with front and rear overhead doors.
  • On the main level you will find a coat closet in the entryway, along with a home office, laundry room, and full bathroom.
  • Upstairs, the living room flows into the kitchen where U-shaped cabinetry define the space.
  • The solo bedroom offers two closets and pocket-door access to the full bathroom.
  • This Metal House Plan was designed with a Pre-Engineered Metal Building (PEMB) in mind.  A PEMB is the most commonly used structure when building a barndominium.  A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it the Options menu.

What's Included

  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof Plan
  • Elevations with necessary sections

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
