Airy Contemporary Townhouse Plan

Plan 72734DA

  • 1,867

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

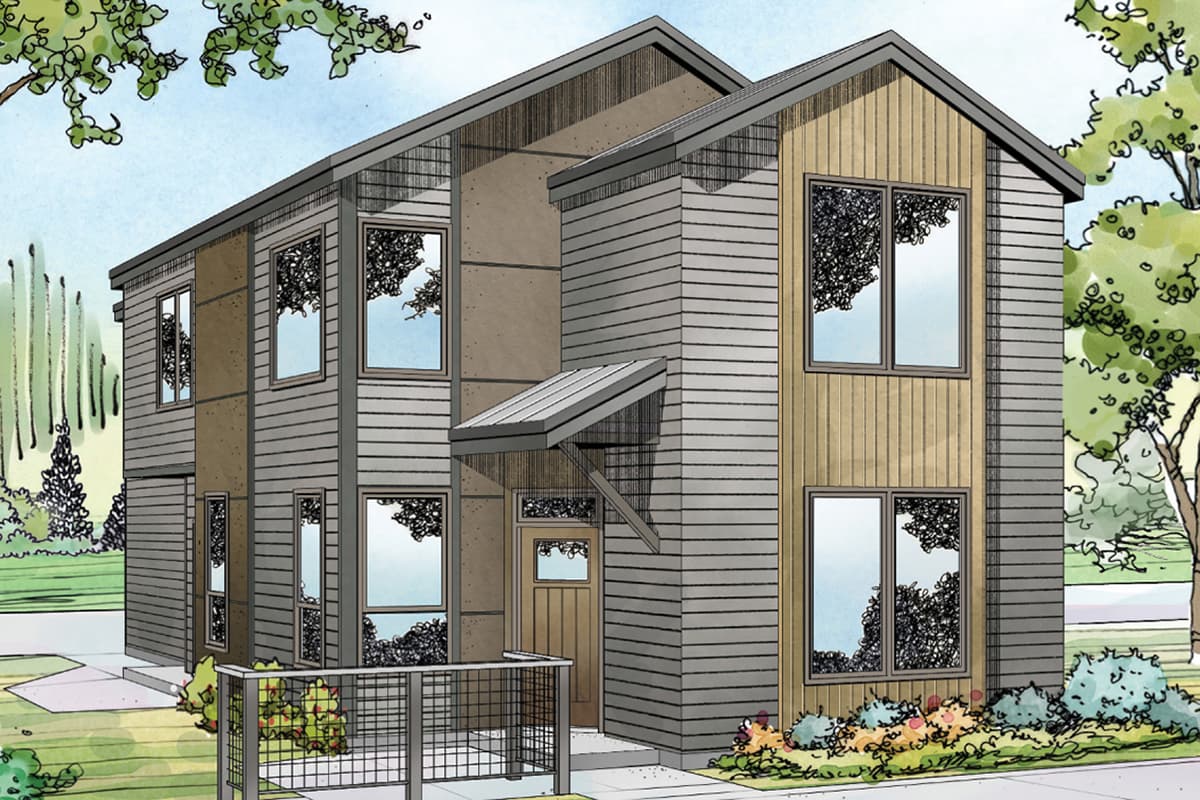

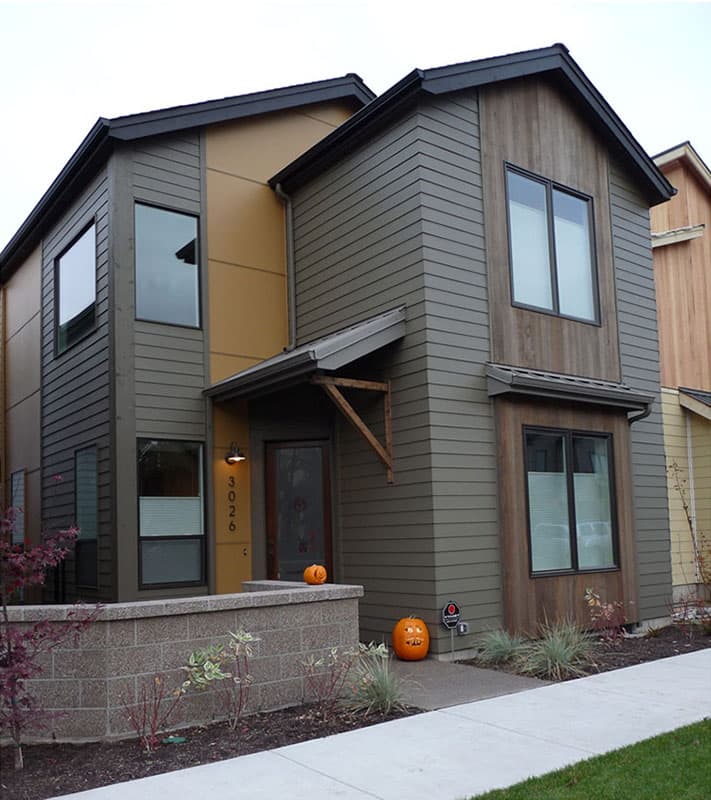

  • This contemporary townhouse plan is designed to fit into a fairly narrow footprint. Cedar siding highlights two of the large windows on the front faзade, as well as creating crisp vertical lines that run crosswise to the horizontal lap siding.
  • Natural light washes into rooms along the front and left through large expanses of glass, while the less-windowed right and rear maximize privacy. Set at a diagonal, the covered entry opens into the living room, where vertical windows flank a gas fireplace.

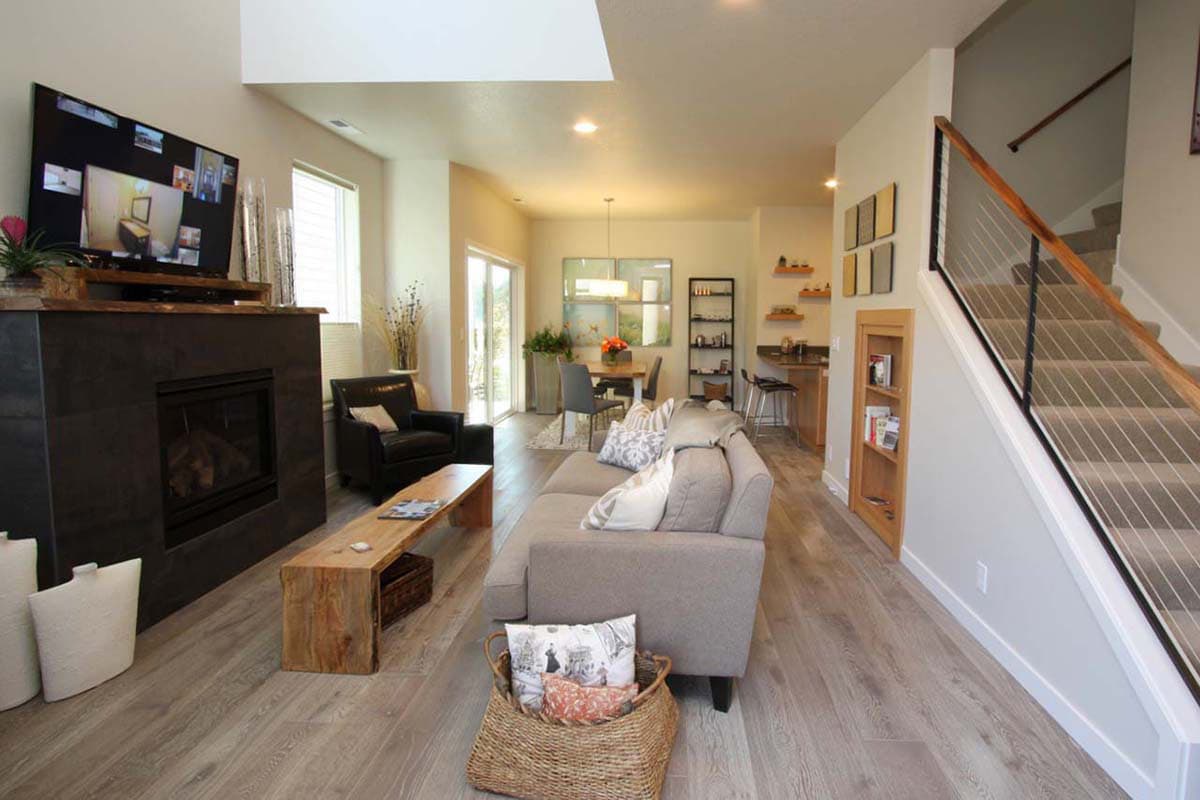

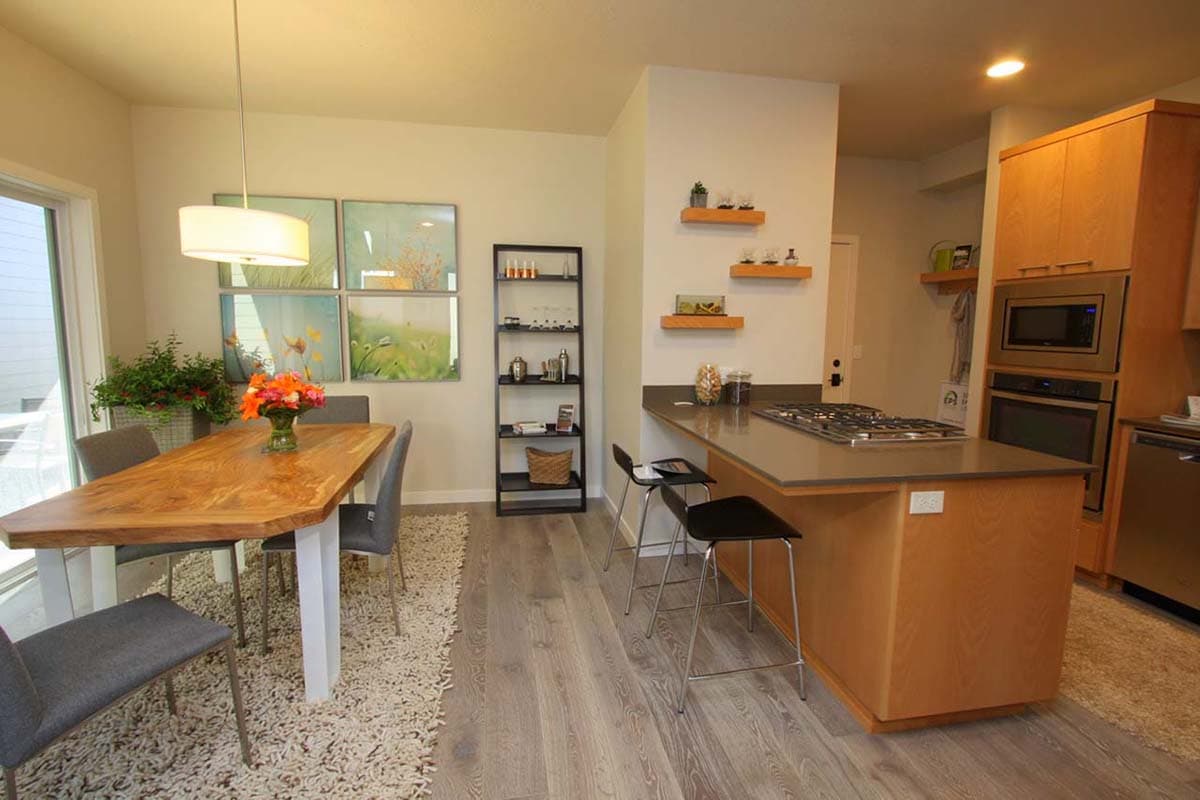

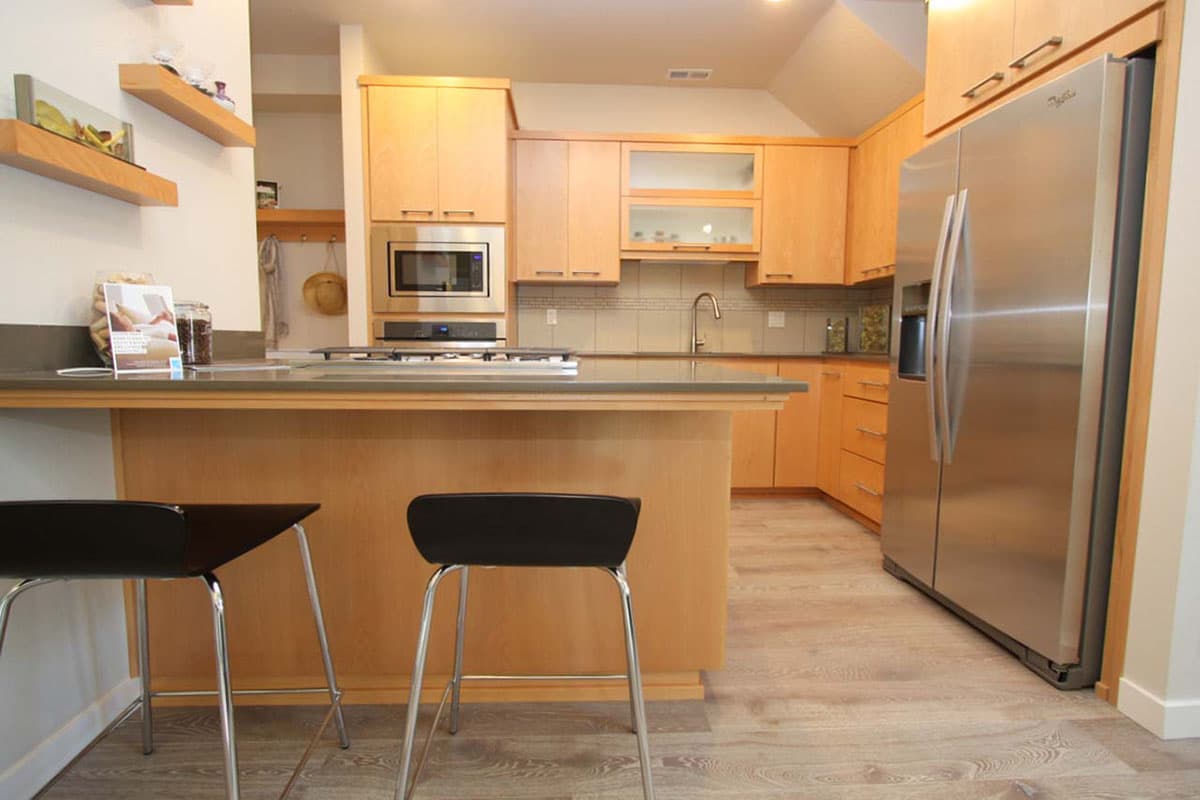

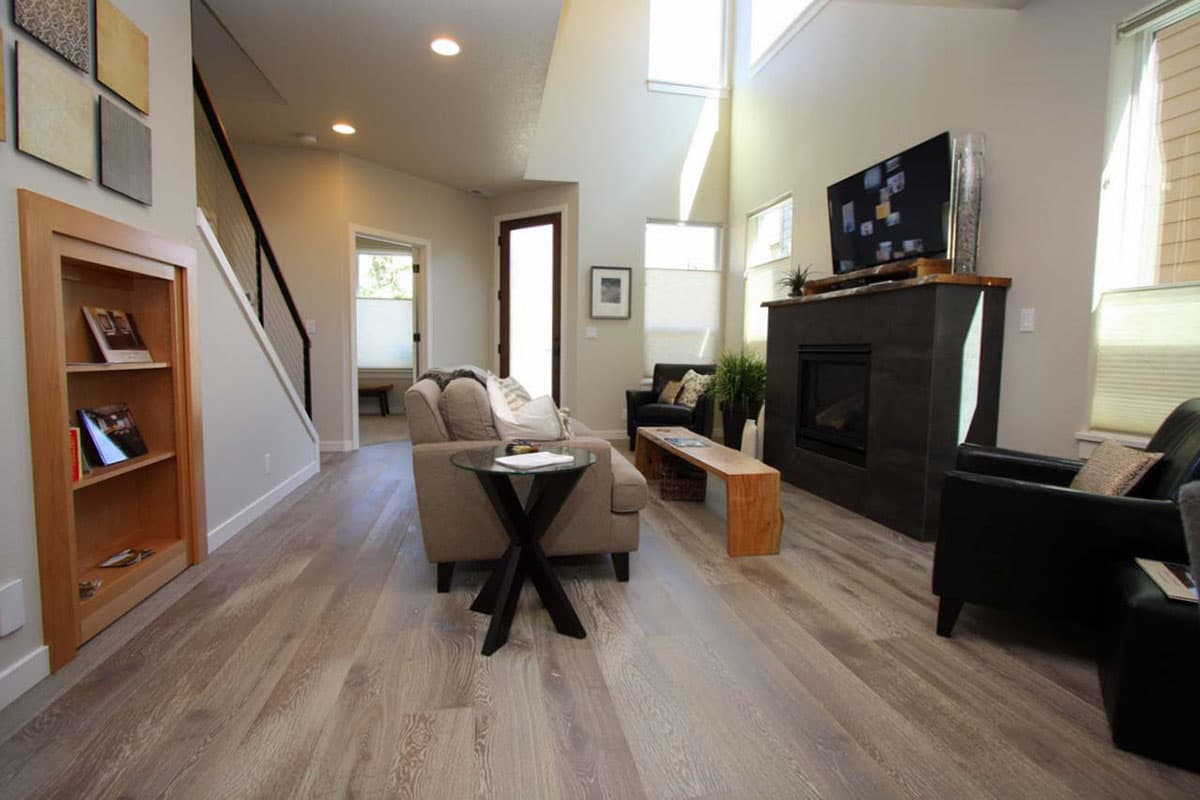

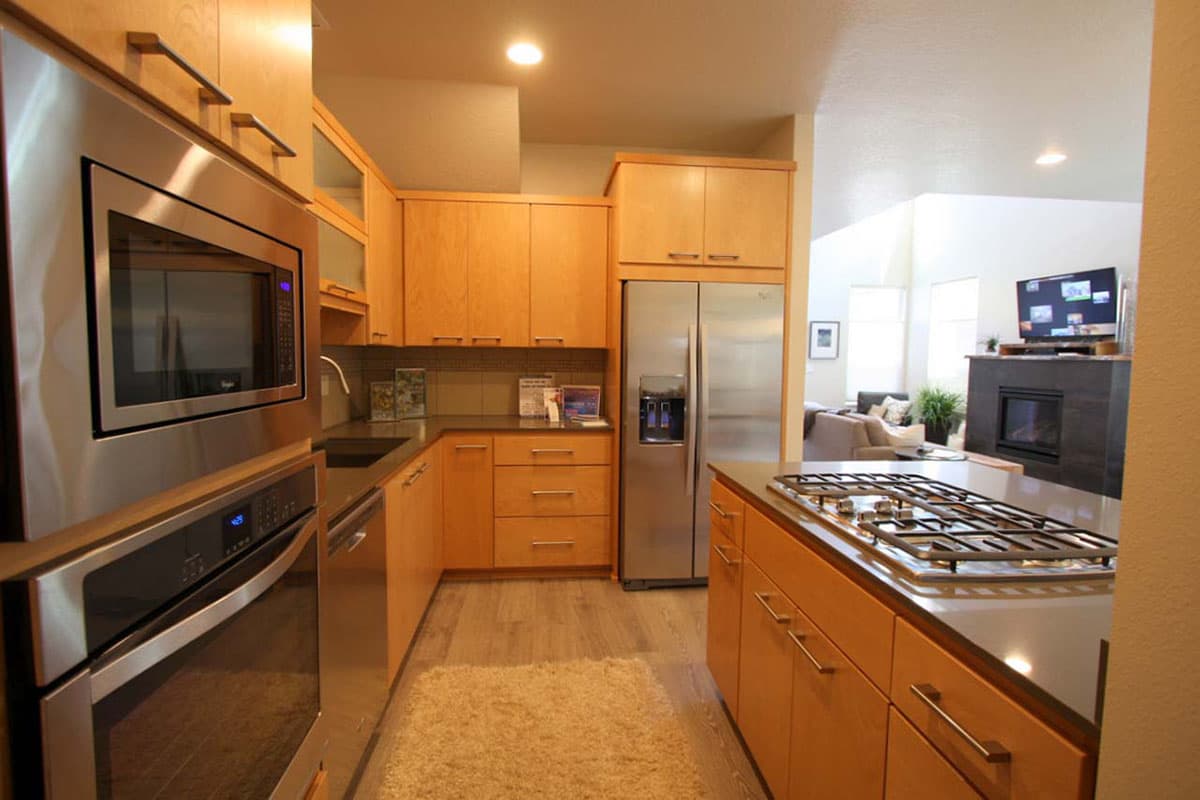

  • The naturally bright living room has an expansive feel, due to being partly open to the second floor loft. The living room flows unimpeded into the dining room, which is open to an efficiently designed kitchen across a flush eating bar. Kitchen workers can supervise eating or homework at the eating bar, while keeping tabs on the dining room, living room and patio. Direct access to the garage and hte groceries is at the rear of the kitchen.

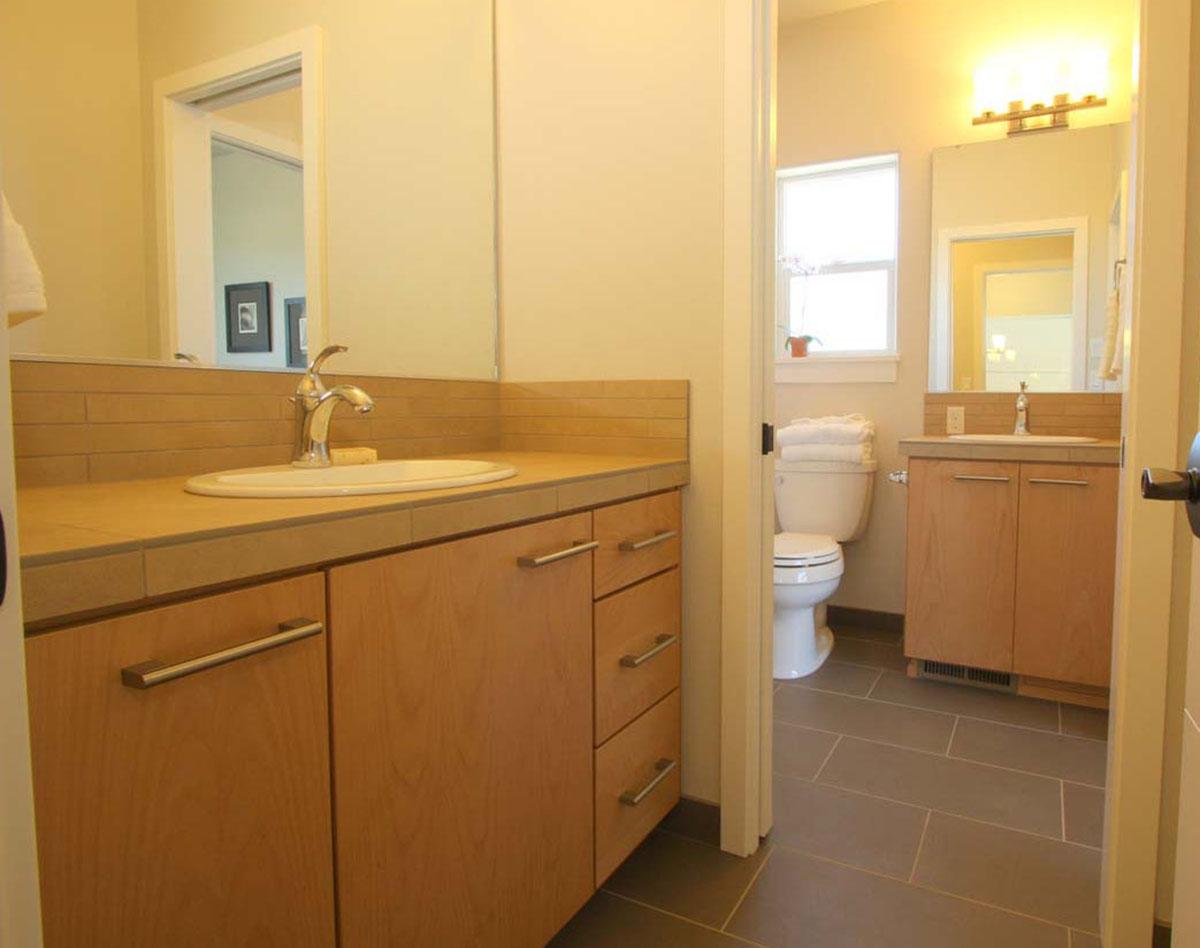

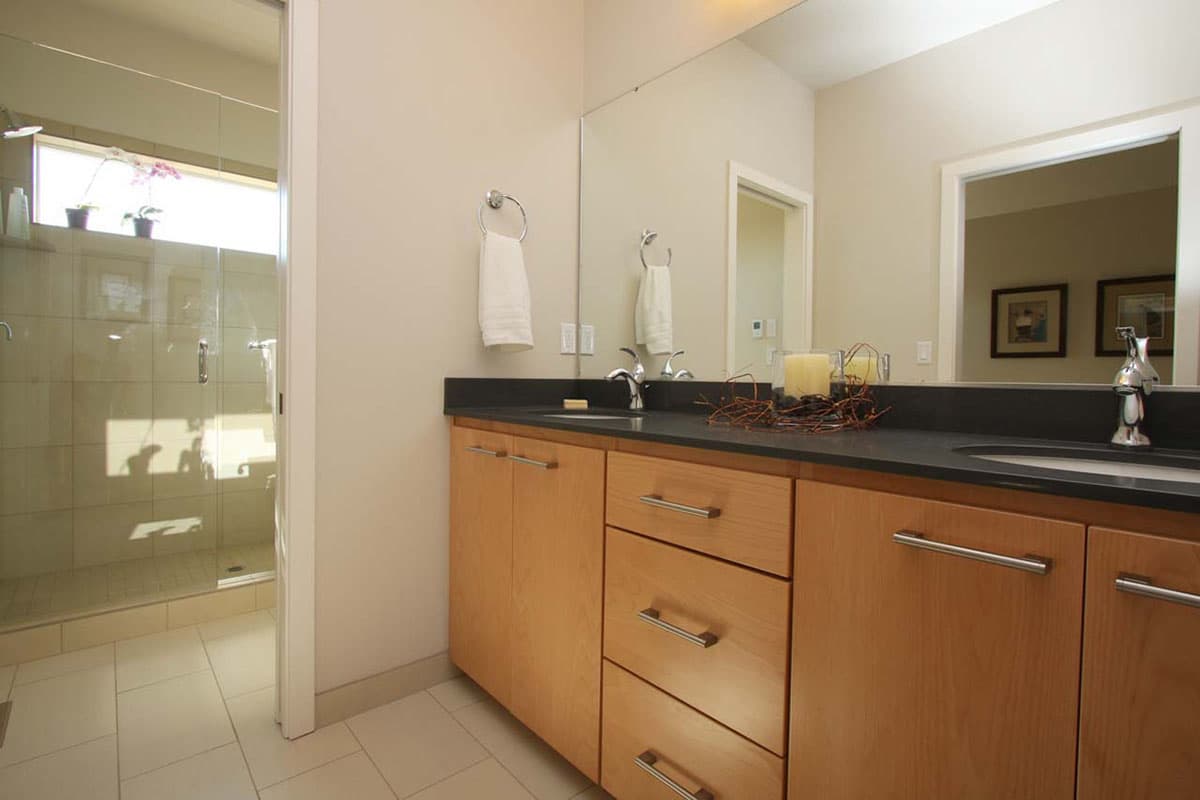

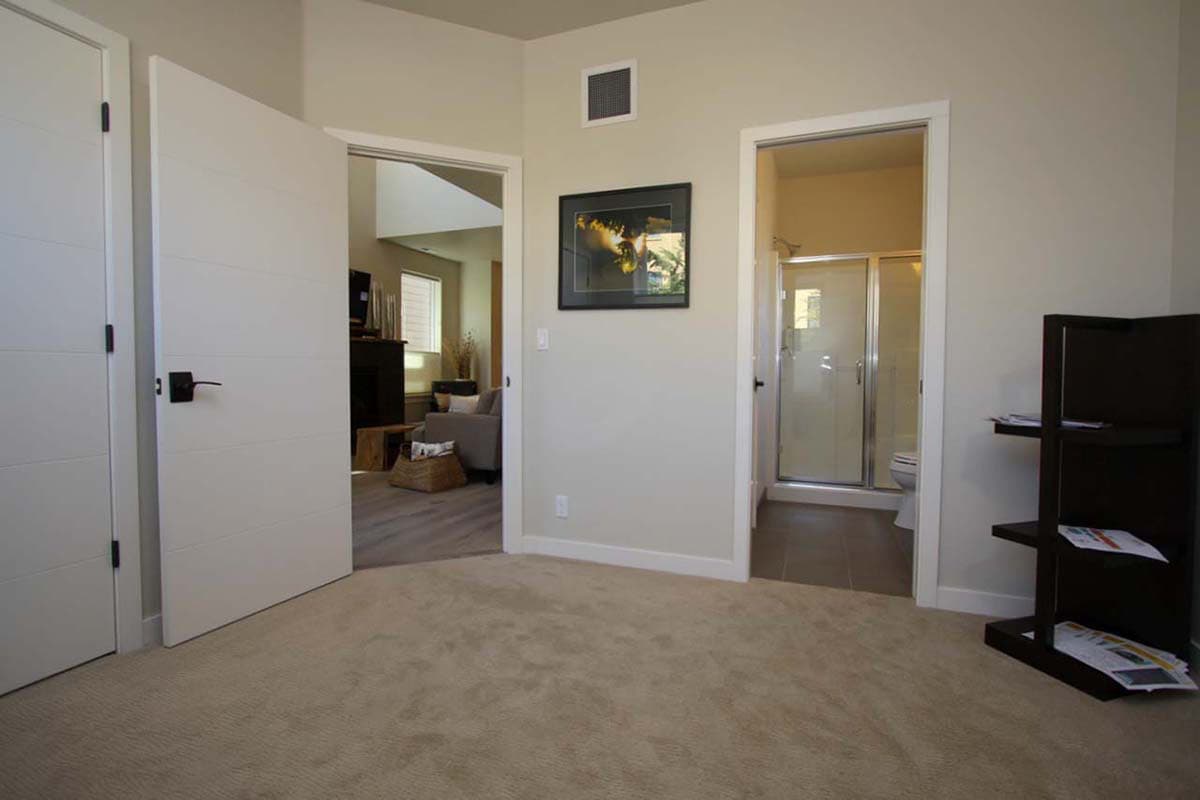

  • Stairs to the second floor, a small bathroom, and a den or guest room are just inside the entry, to the right. The bathroom can be accessed directly from the den, or through a door in the hallway at the bottom of the stairs. The bathroom boasts a large shower.

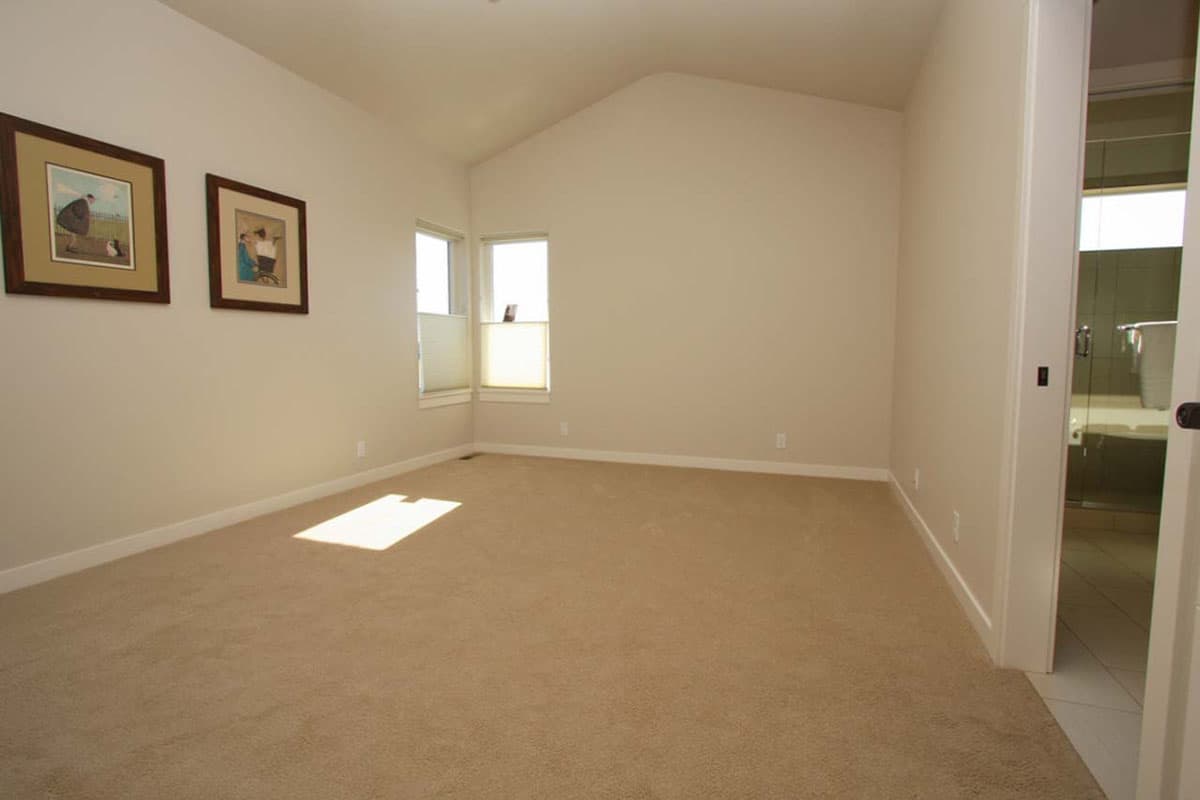

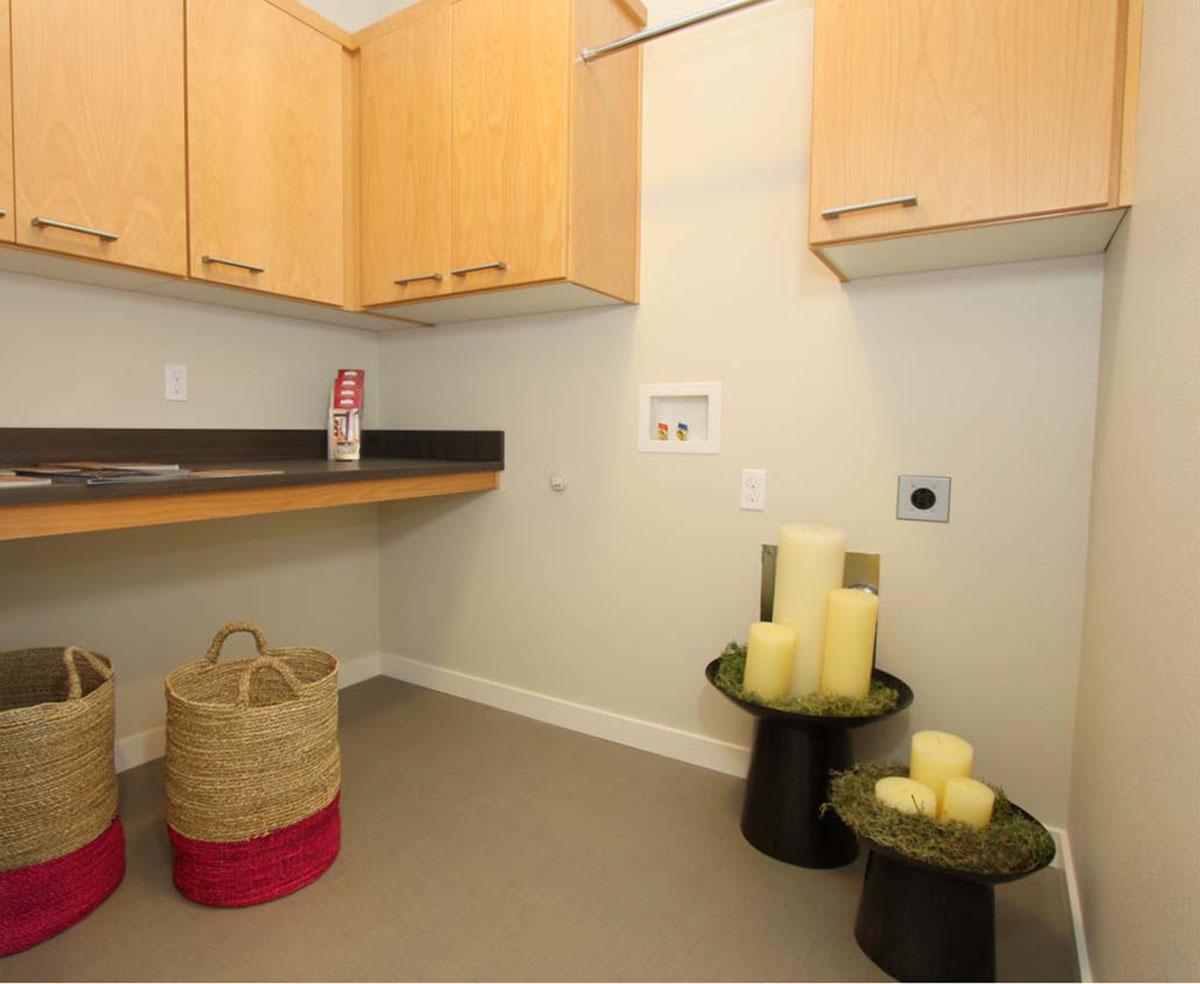

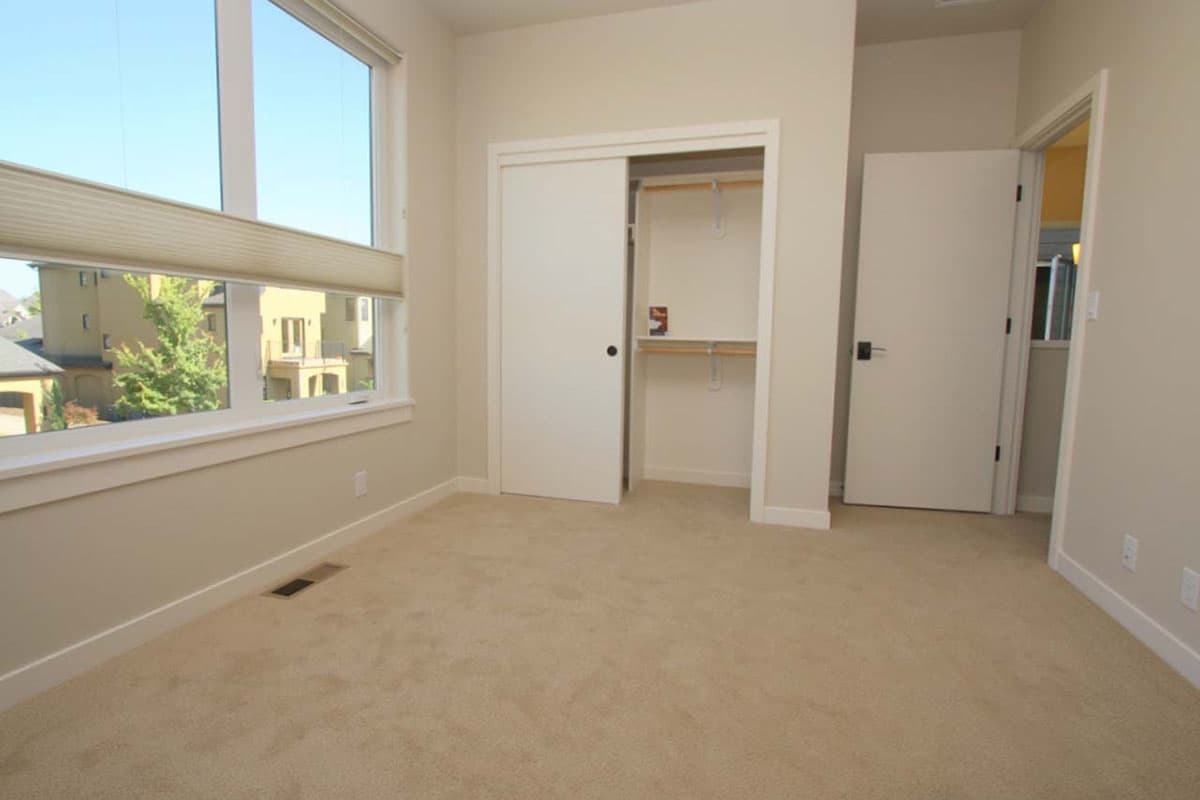

  • Three bedrooms and two more bathrooms are upstairs along with a spacious loft. The vaulted owners' suite is at the rear. Its walk-in closet and a hallway closet buffer sound from the other bedrooms. Storage cabinets line two walls of the utility room, next to the owners' suite.
  • The roof has a 6:12 pitch.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

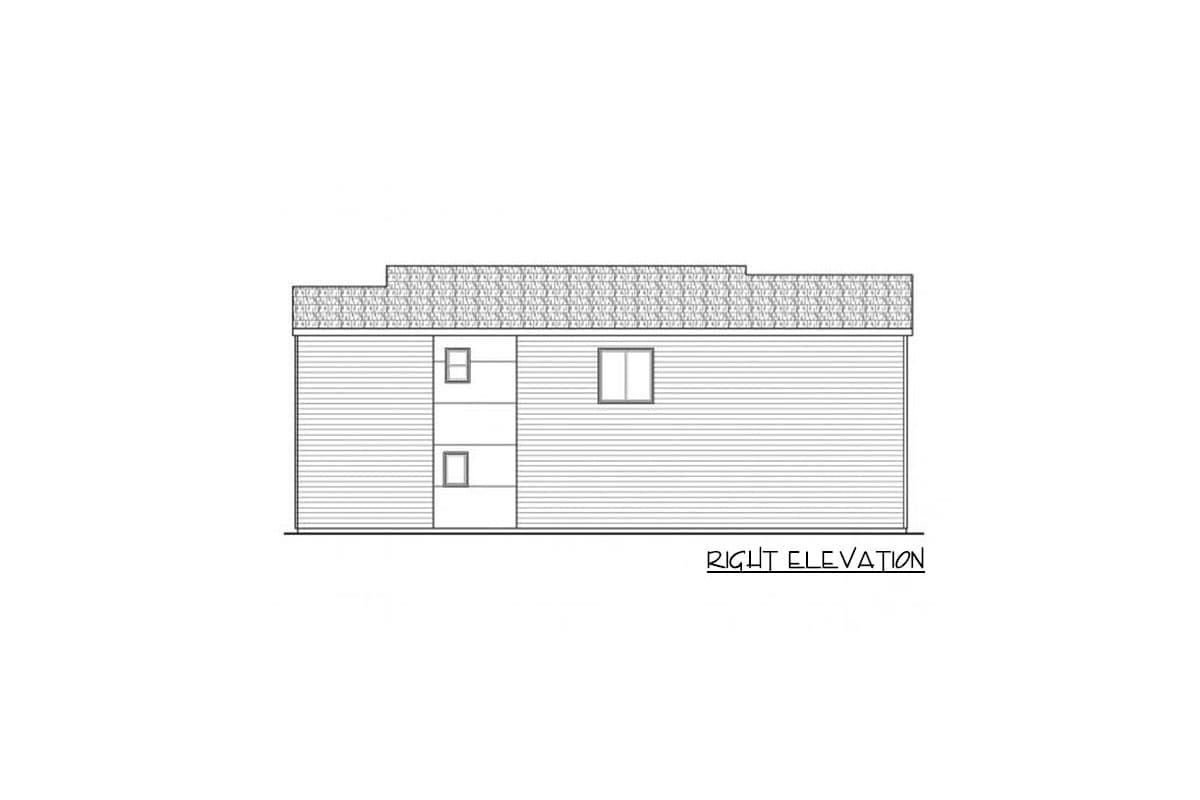

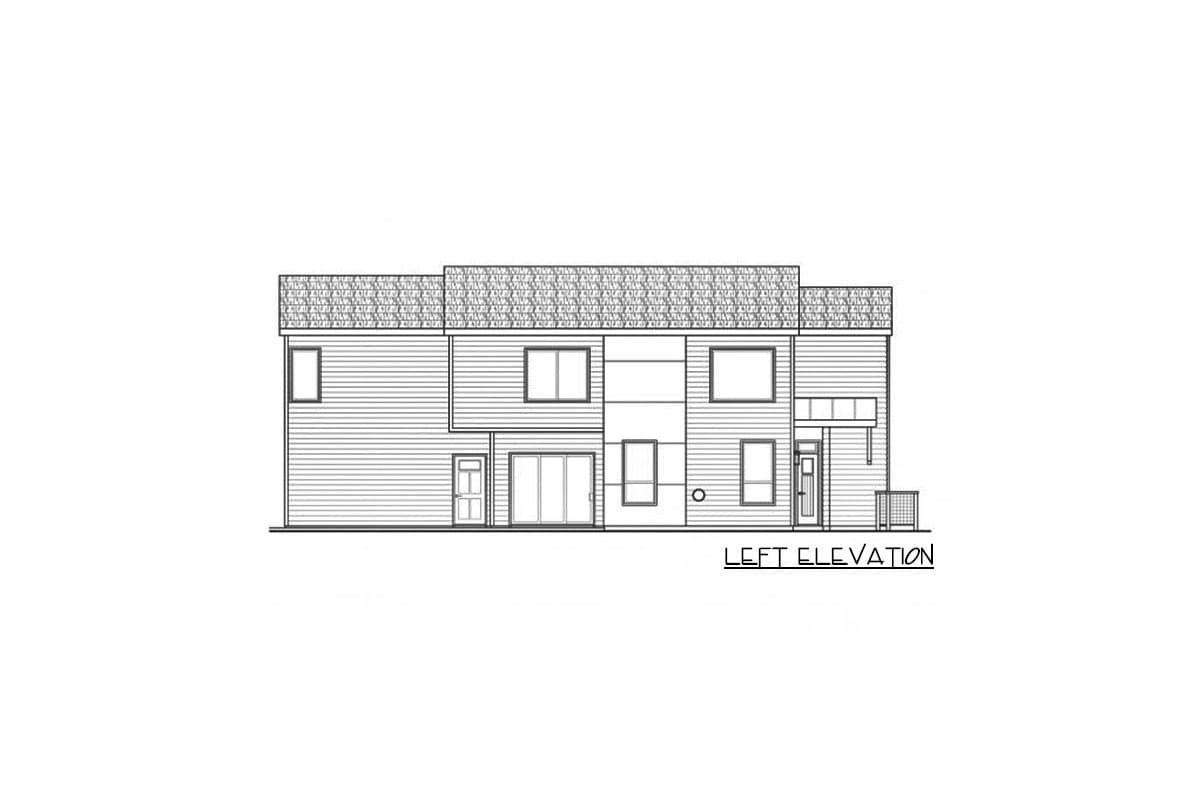

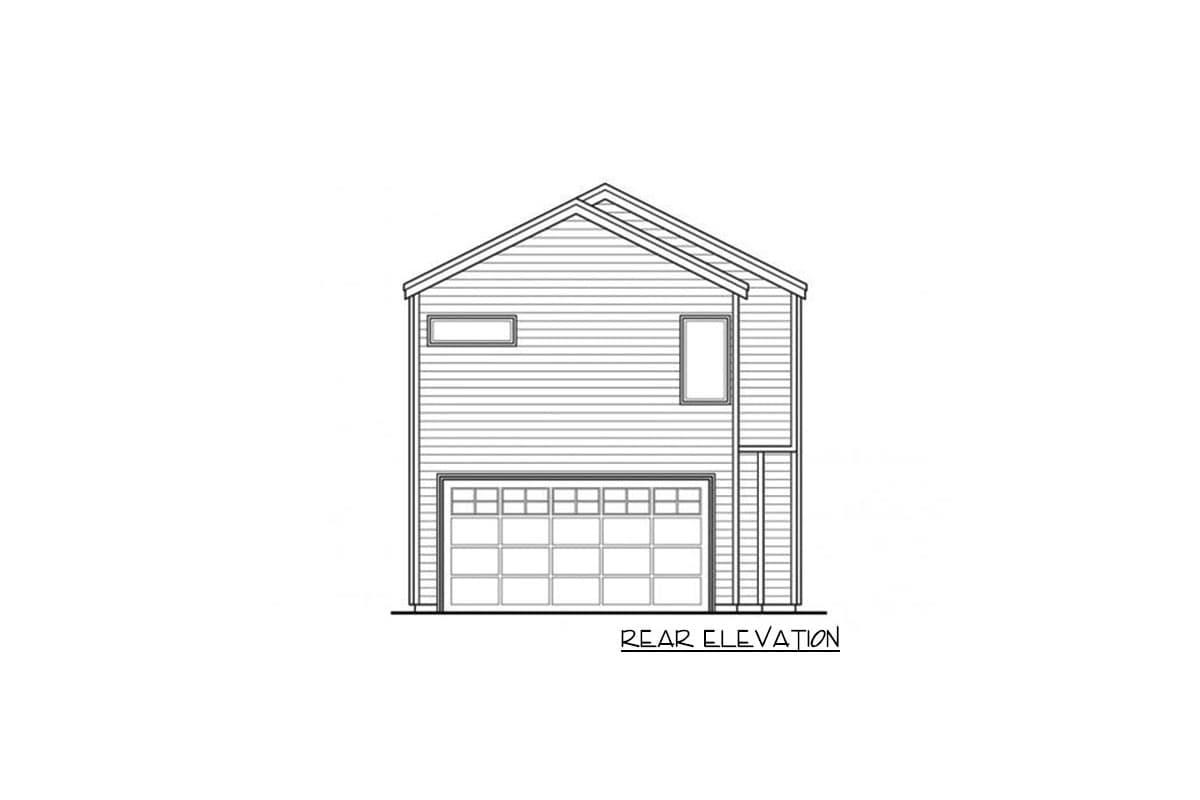

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details

Architectural Style

Plan Collections



Airy Contemporary Townhouse Plan

  • 1,867

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $700
  • PDF Light $915
  • 5 Sets $915
  • 5 Sets PLUS $1,020
  • 8 Sets $1,070
  • PDF - single-use $1,890
  • CAD $2,025
  • CAD - multi-use $2,245
  • View all purchase option online

About This Plan

  • This contemporary townhouse plan is designed to fit into a fairly narrow footprint. Cedar siding highlights two of the large windows on the front faзade, as well as creating crisp vertical lines that run crosswise to the horizontal lap siding.
  • Natural light washes into rooms along the front and left through large expanses of glass, while the less-windowed right and rear maximize privacy. Set at a diagonal, the covered entry opens into the living room, where vertical windows flank a gas fireplace.
  • The naturally bright living room has an expansive feel, due to being partly open to the second floor loft. The living room flows unimpeded into the dining room, which is open to an efficiently designed kitchen across a flush eating bar. Kitchen workers can supervise eating or homework at the eating bar, while keeping tabs on the dining room, living room and patio. Direct access to the garage and hte groceries is at the rear of the kitchen.

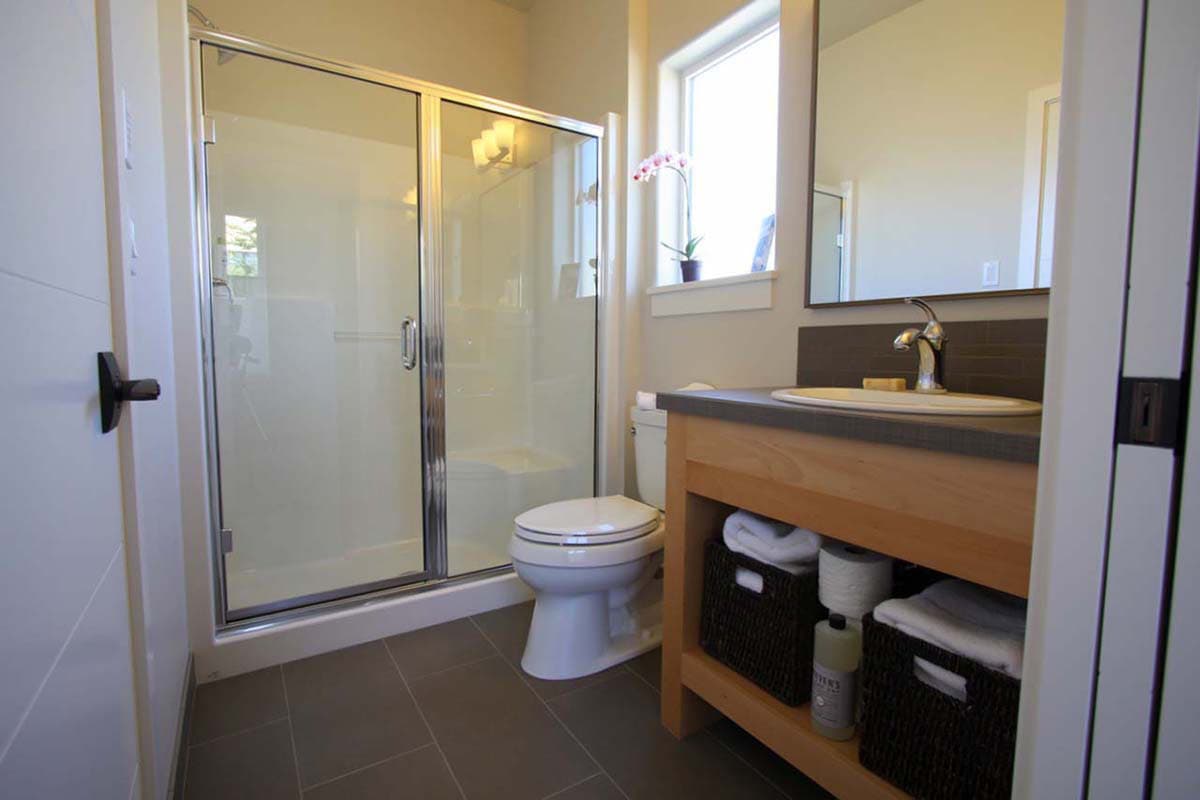

  • Stairs to the second floor, a small bathroom, and a den or guest room are just inside the entry, to the right. The bathroom can be accessed directly from the den, or through a door in the hallway at the bottom of the stairs. The bathroom boasts a large shower.

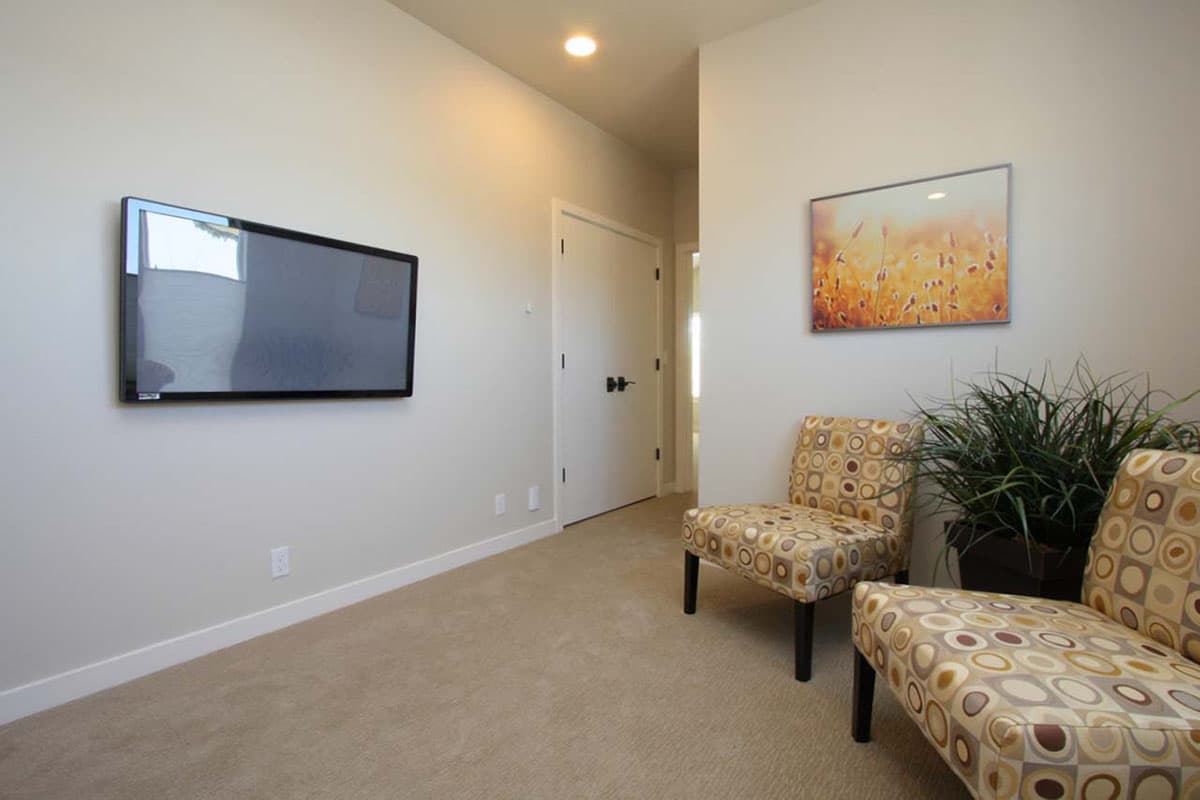

  • Three bedrooms and two more bathrooms are upstairs along with a spacious loft. The vaulted owners' suite is at the rear. Its walk-in closet and a hallway closet buffer sound from the other bedrooms. Storage cabinets line two walls of the utility room, next to the owners' suite.
  • The roof has a 6:12 pitch.

Floor Plans

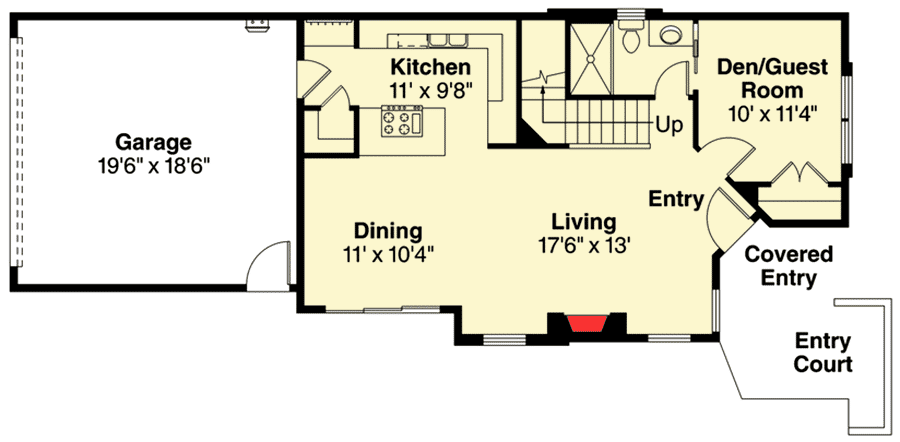

  • Main Level

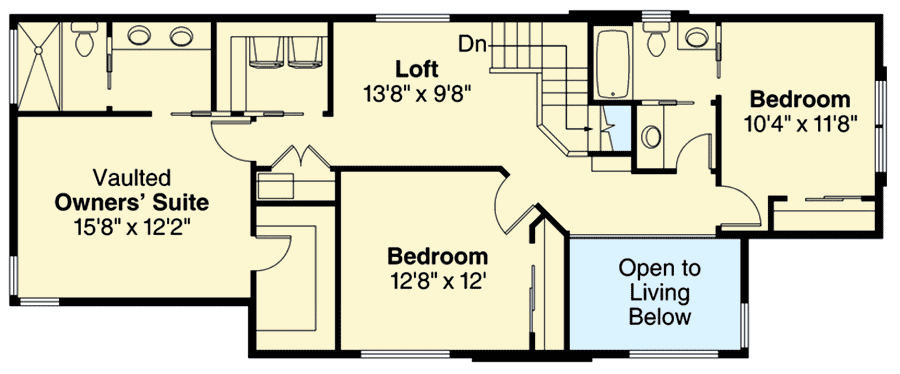

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,867 sq. ft.
  • 1st Floor: 793 sq. ft.
  • 2nd Floor: 1,074 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 23' 0"
  • Depth: 58' 6"
  • Max ridge height: 25' 9"

Garage

  • Type: Attached
  • Area: 390 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Roof

  • Primary Pitch: 6 on 12
