Airy Family Room with Fireplace

Plan 21815DR

  • 1,983

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Stories

  • Step in off the covered entry and you arrive in the split entry on the mezzanine overlooking the family room in the half-basement below. A coat closet in the entry reduces clutter.
  • A few steps up you find he dining room and kitchen with peninsula bar with seating. Two bedrooms with a walk-in closet in the master share a bath with spa tub and shower.
  • In the lower level, the family room has a fireplace and a partial two-story ceiling. Lots of windows bring in natural light.
  • Two bedrooms plus a lower level storage room complete this split level house plan.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

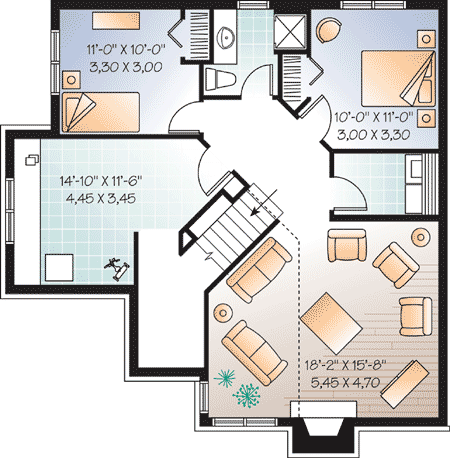

Airy Family Room with Fireplace - 21815DR floor plan - Basement

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

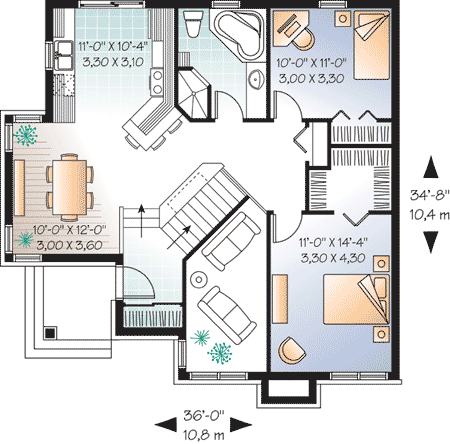

Airy Family Room with Fireplace - 21815DR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,983 sq. ft.
  • Lower Level: 999 sq. ft.
  • 1st Floor: 984 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 34' 8"
  • Max ridge height: 25' 11"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Stick

Special features

Plan Collections

Airy Family Room with Fireplace

  • 1,983

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,195
  • Reproducible Set $1,195
  • 5 Sets + PDF $1,320
  • CAD + PDF - Single-Build $1,795
  • View all purchase option online
