An Open Floor Plan Design

Plan 21158DR

  • 2,768

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Have it your way with this 2,768 sq. ft. home plan. Enter off the covered front porch and catch a glimpse of a very open floor plan. Work on your mind? Turn to your right and get some work done in your own stylish home office overlooking the covered porch.
  • The family room and dining room are open and provide great space for entertaining.
  • The kitchen has an eating nook and access to a private rear covered porch.
  • Upstairs, the master bedroom features French doors, a large walk-in closet and a unique angled private bath. Bedroom #2 has its own bath. Bedroooms #3 and #4 a great for guests or small children.
  • A side-entry two-car garage completes this home plan.
  • For an alternate three-bedroom floorplan, see house plan 21157DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
An Open Floor Plan Design - 21158DR floor plan - Main Level

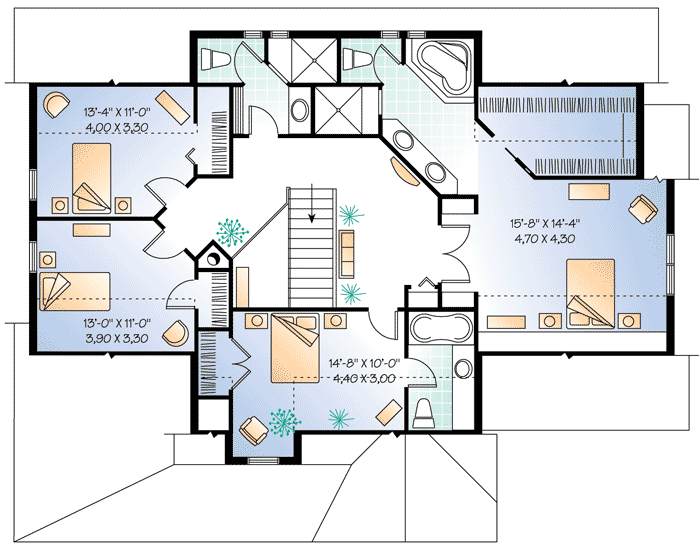

2nd Floor
