Angled Mountain Ranch with Loft

Plan 89969AH

2,516
Heated s.f.
2
Beds
2.5
Baths
1-2
Stories
2
Cars

This angled mountain-ranch home plan gives you great views out the back and an attractive exterior of stone and wood. The coverefd entry has sturdy columns and decorative trusses adding a rugged appeal.
A cathedral ceiling invites you inside and the great room has a 2-story ceiling ahead.
The kitchen and dining room lie adjacent to the great room and provide additional views and access to a screened porch. A large pantry and an island with seating are nice touches.
The bedrooms lie to the right of the entry. The master suite includes a step ceiling, spacious walk-in closet and dual sinks. The second bedroom enjoys a walk-in closet and direct access to a full bath off the hallway.
A loft above the kitchen and dining areas provides extra living space.

Plans include the following:

General Notes
Rendering
Elevations
Fully dimensioned floor plans
Foundation
Typical wall section & stair section
Cross section
Cabinet elevations
Electrical Plan
Roof plan

What is NOT included in the plans:

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Framing layouts with beam sizes and locations
Energy calculations

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

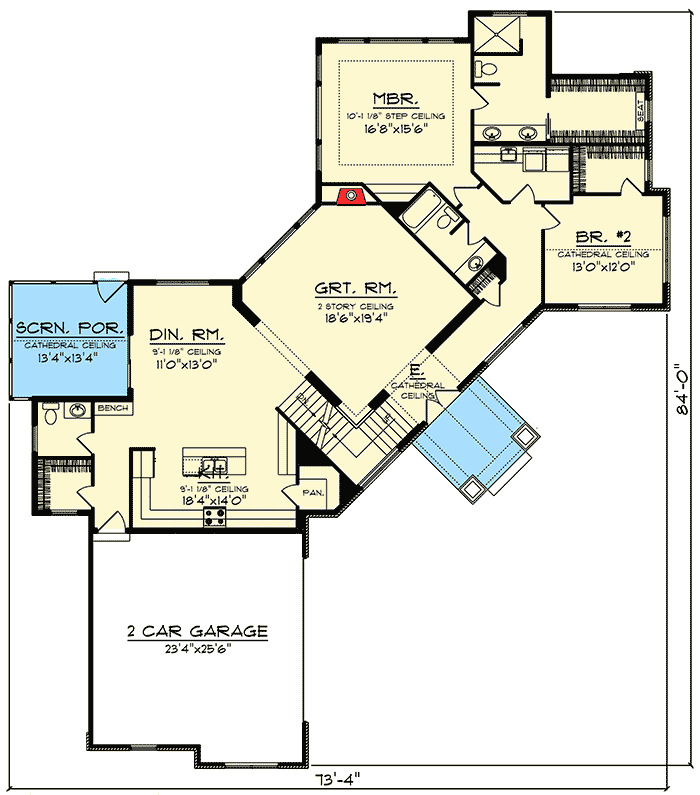

Angled Mountain Ranch with Loft - 89969AH floor plan - Main Level

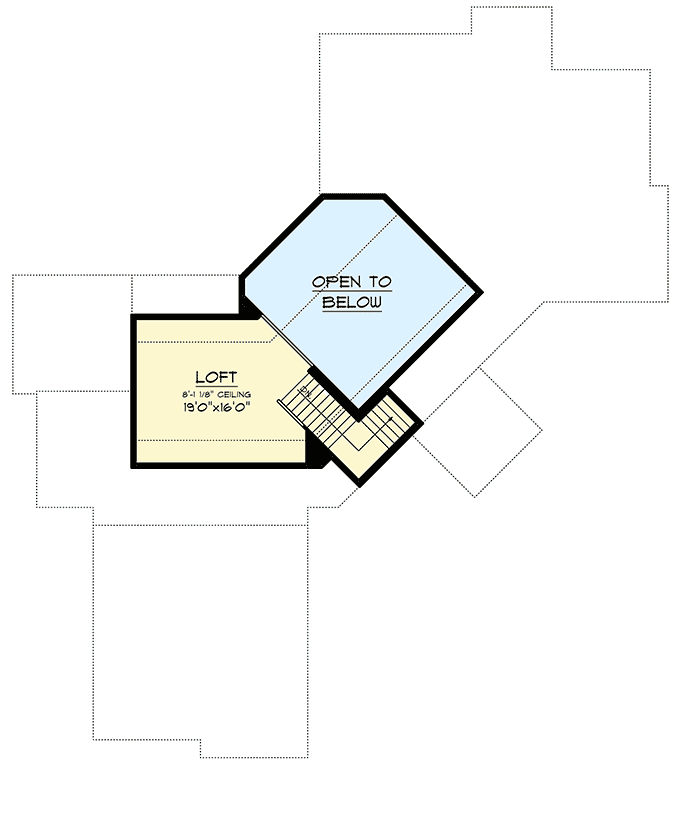

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Angled Mountain Ranch with Loft - 89969AH floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 2,516 sq. ft.
1st Floor: 2,202 sq. ft.
2nd Floor: 314 sq. ft.

Beds/Baths

Bedrooms: 2

Full bathrooms: 2
Half bathrooms: 1

Foundation Type

Standard Foundations: Basement

Optional Foundations: Slab, Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 73' 4"
Depth: 84' 0"
Max ridge height: 25' 2"

Garage

Type: Attached
Area: 595 sq. ft.
Count: 2 Cars
Entry Location: Courtyard

Ceiling Heights

Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch: 12 on 12
Secondary Pitch: 12 on 12

Framing Type: Truss

Architectural Style

Special features
