Plan 5716HA

Atrium Ranch with Rooms to Spare

Heated S.F.
1,978
Beds
4 - 6
Baths
2.5 - 4.5
Stories
1
Cars
3

Floor Plan

Plan 5716HA

Basement
Basement
Basement
Basement
Main Level
Main Level
Main Level
Main Level

Plan 5716HA

M-F 9am-5pm EST |

1-203-761-8500

Basement

Plan 5716HA: Atrium Ranch with Rooms to Spare - Floor Plan - Basement - Ranch

Basement

Plan 5716HA: Atrium Ranch with Rooms to Spare - Floor Plan - Basement - Ranch

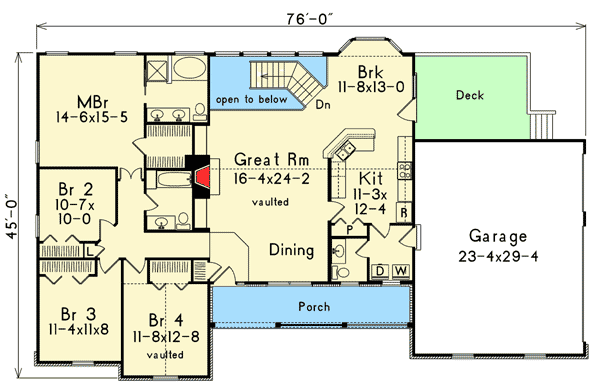

Main Level

Plan 5716HA: Atrium Ranch with Rooms to Spare - Floor Plan - Main Level - Ranch

Main Level

Plan 5716HA: Atrium Ranch with Rooms to Spare - Floor Plan - Main Level - Ranch

Plan Details

  • Classic traditional exterior always in style.
  • Spacious great room boasts a vaulted ceiling, dining area, atrium with elegant staircase and feature windows.
  • Atrium open to 1,416 square feet of optional living area below and consists of an optional family room, two bedrooms, two baths and study.
  • Related Plan: Build in reverse with house plan 57115HA (1,929 sq. ft.).

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

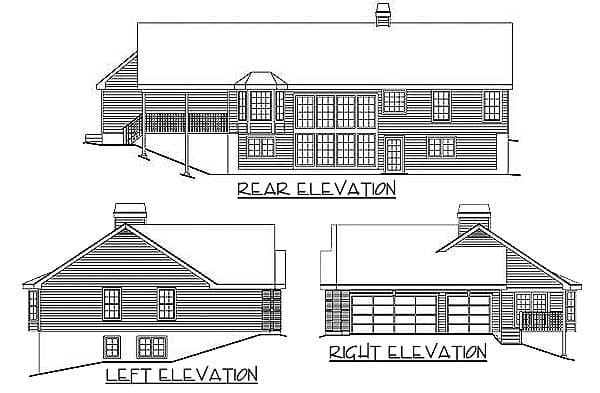

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,978 sq. ft.

1st Floor

1,978 sq. ft.

Optional Lower Level

1,295 sq. ft.

Porch, Front

168 sq. ft.

Deck

192 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

2, 3, or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 8"

Depth

47' 4"

Max Ridge Height

20' 4"

Garage

Type

Attached

Area

684 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

8'

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Ranch

Special Features

Bedrooms - Clustered

Library/Study

Master Suite - 1st Floor

Optionally Finished Bonus Room

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

1,978 sq. ft.

1st Floor

1,978 sq. ft.

Optional Lower Level

1,295 sq. ft.

Porch, Front

168 sq. ft.

Deck

192 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

2, 3, or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 8"

Depth

47' 4"

Max Ridge Height

20' 4"

Garage

Type

Attached

Area

684 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

8'

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Ranch

Special Features

Bedrooms - Clustered

Library/Study

Master Suite - 1st Floor

Optionally Finished Bonus Room

Plan Collections

Sloping Lot
