Plan 57115HA
This Ranch Home Plan Has It All
Heated S.F.
1,929
Beds
4
Baths
3
Stories
1
Cars
3
What's Included
Plan Details
  • A classic traditional exterior for timeless elegance.
  • More than a great room for this size home, the grand room features a vaulted ceiling, brick and wood mantle fireplace and double-doors to rear patio.
  • State-of-the-art U-shaped kitchen has a built-in pantry, computer desk, breakfast bar and breakfast room with bay window.
  • The master bedroom includes a vaulted ceiling, large walk-in closet, luxury bath and doors to rear patio.
  • Related Plan: Get a finished lower level with with house plan 5716HA (1,977 sq. ft.).
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

This Ranch Home Plan Has It All

  • 1,929

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

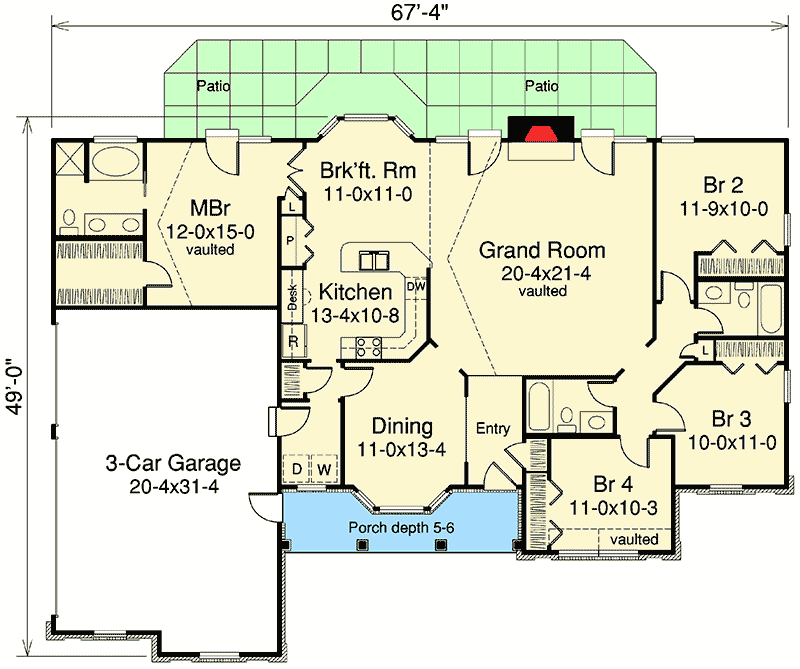

Floor Plan

  • Main Level

  • Optional

Plan Details

Square Footage Breakdown

  • Total: 1,929 sq. ft.
  • 1st Floor: 1,929 sq. ft.

Dimensions

  • Width: 67' 4"
  • Depth: 49' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 576 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Truss
