Attractive Split-Level Home

Plan 90250PD

  • 1,170

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • 1

    Cars

  • Metal roofing accents the front porch of this attractive split-level home.
  • The ground level foyer shares a door to the garage.
  • A short flight of stairs brings you to the main living area that has a marvelous open layout.
  • Add an optional fireplace to the living room and enjoy the warmth from the kitchen and dining room too.
  • Both bedrooms are down a hall and share a four piece bathroom.
  • You can also add an optional covered balcony in back.

Each plan set includes the following:

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

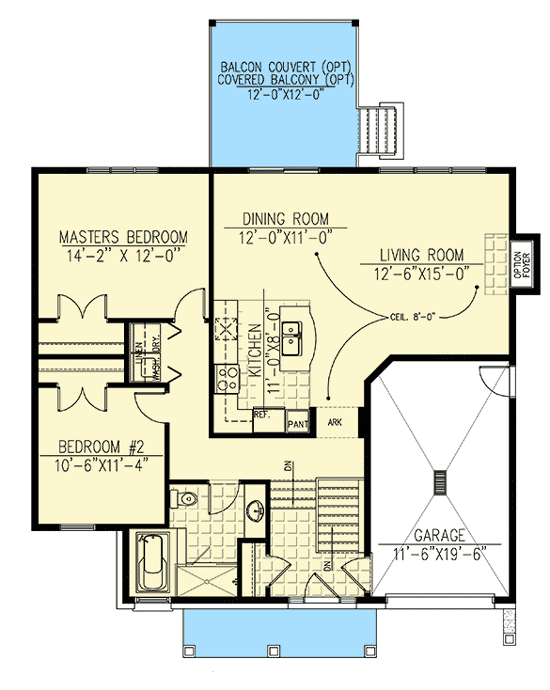

Attractive Split-Level Home - 90250PD floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,170 sq. ft.
  • 1st Floor: 1,170 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 36' 0"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 244 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Special features

Plan Collections

Attractive Split-Level Home

  • 1,170

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • 5 Sets $892
  • 8 Sets $935
  • PDF - Single-Build $1,273
  • CAD - Single-Build $1,897
  • View all purchase option online

About This Plan

  • Metal roofing accents the front porch of this attractive split-level home.
  • The ground level foyer shares a door to the garage.
  • A short flight of stairs brings you to the main living area that has a marvelous open layout.
  • Add an optional fireplace to the living room and enjoy the warmth from the kitchen and dining room too.
  • Both bedrooms are down a hall and share a four piece bathroom.
  • You can also add an optional covered balcony in back.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,170 sq. ft.
  • 1st Floor: 1,170 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 36' 0"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 244 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
Plan 90250PD
