Plan 68643VR Backwoods 3-Bed House Plan with Attached 1-Car Garage

2,447 3 2.5 2 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Backwoods 3-Bed House Plan with Attached 1-Car Garage

Plan 68643VR

  • 2,447

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 1

    Cars

  • A covered porch and two gables greet you to this 3-bed country vacation house plan with a 1-car garage with loft space above.
  • The main entry is off the front porch and takes you into the open floor plan. The kitchen has unimpeded views across the vaulted great room with corner fireplace and to the covered back porch beyond.
  • The dining room is vaulted and has windows on two walls.
  • The main floor master has a 4-fixture bath and a large walk-in closet. Upstairs, two bedrooms share a Jack-and-Jill bath.
  • Stairs in the garage lead to an open loft space that be used as an office, playroom or even storage.
  • Related Plans: Get a 2-car garage with house plans 68430VR and 68469VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Backwoods 3-Bed House Plan with Attached 1-Car Garage - 68643VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

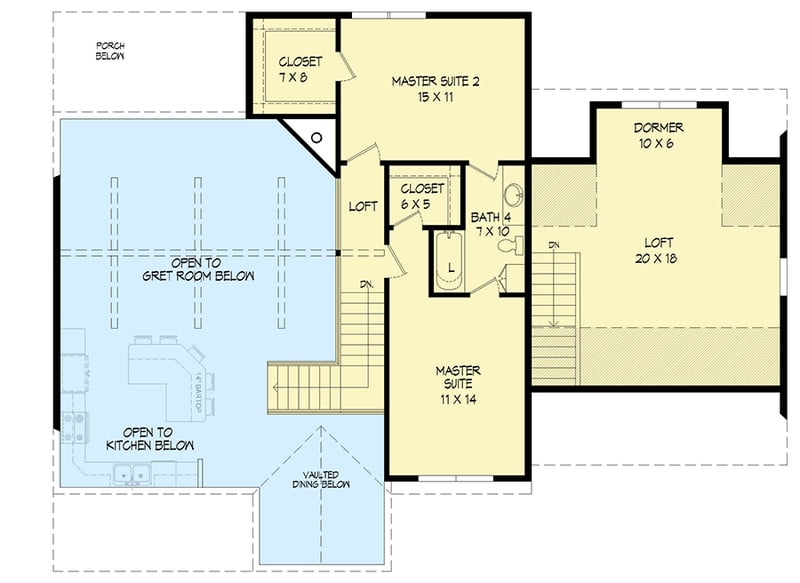

Backwoods 3-Bed House Plan with Attached 1-Car Garage - 68643VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,447 sq. ft.
  • 1st Floor: 1,389 sq. ft.
  • 2nd Floor: 1,058 sq. ft.
  • Porch, Combined: 274 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Basement, Slab, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 58' 7"
  • Depth: 44' 6"
  • Max ridge height: 25' 10"

Garage

  • Type: Attached
  • Area: 581 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Backwoods 3-Bed House Plan with Attached 1-Car Garage

  • 2,447

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $1,375
  • 5 Sets $1,460
  • 5 Sets + PDF $1,598
  • CAD + PDF - Single-Build $1,925
  • View all purchase option online

About This Plan

  • A covered porch and two gables greet you to this 3-bed country vacation house plan with a 1-car garage with loft space above.
  • The main entry is off the front porch and takes you into the open floor plan. The kitchen has unimpeded views across the vaulted great room with corner fireplace and to the covered back porch beyond.
  • The dining room is vaulted and has windows on two walls.
  • The main floor master has a 4-fixture bath and a large walk-in closet. Upstairs, two bedrooms share a Jack-and-Jill bath.
  • Stairs in the garage lead to an open loft space that be used as an office, playroom or even storage.
  • Related Plans: Get a 2-car garage with house plans 68430VR and 68469VR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,447 sq. ft.
  • 1st Floor: 1,389 sq. ft.
  • 2nd Floor: 1,058 sq. ft.
  • Porch, Combined: 274 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Basement, Slab, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 58' 7"
  • Depth: 44' 6"
  • Max ridge height: 25' 10"

Garage

  • Type: Attached
  • Area: 581 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
Plan 68643VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/68643VR
|
