Plan 150012HRP
EXCLUSIVE
Barn-like Modern Home Plan with Upstairs Master Suite and a Garage Shop
Heated S.F.
2,475
Beds
4
Baths
3
Stories
2
Cars
2
Flyer
What's Included
Plan Details

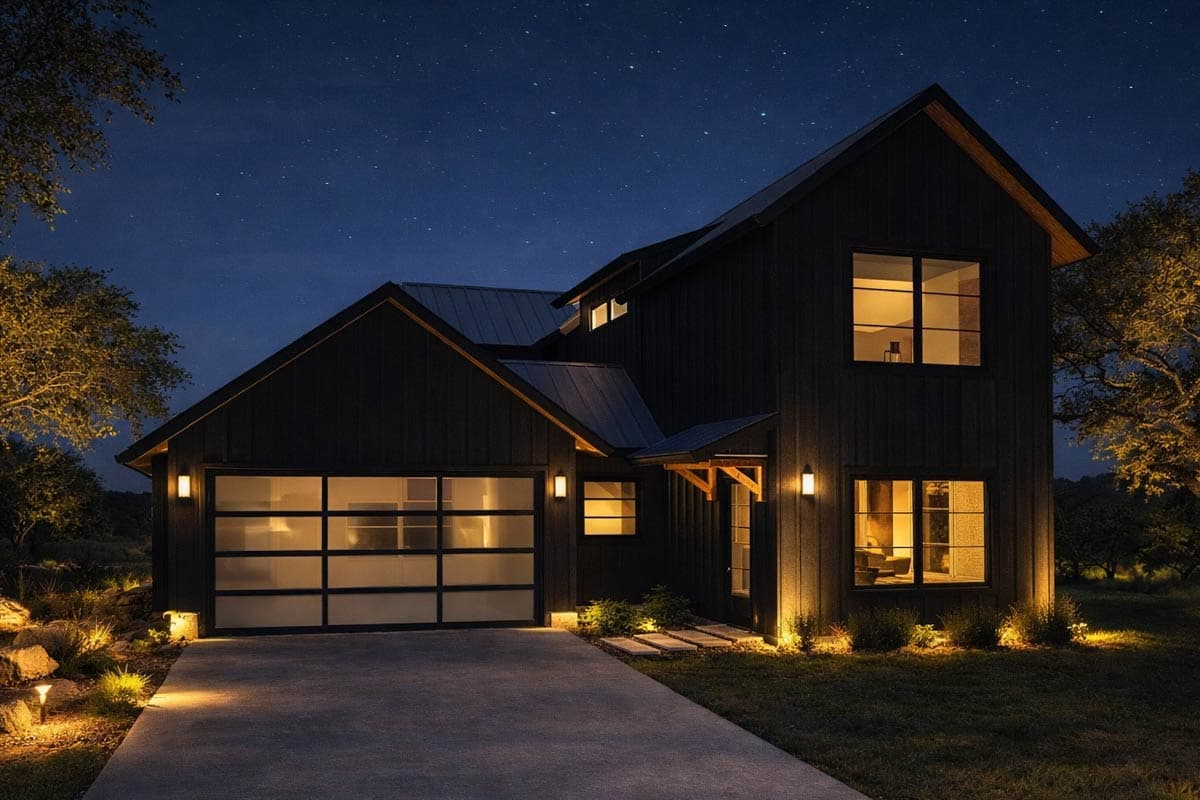

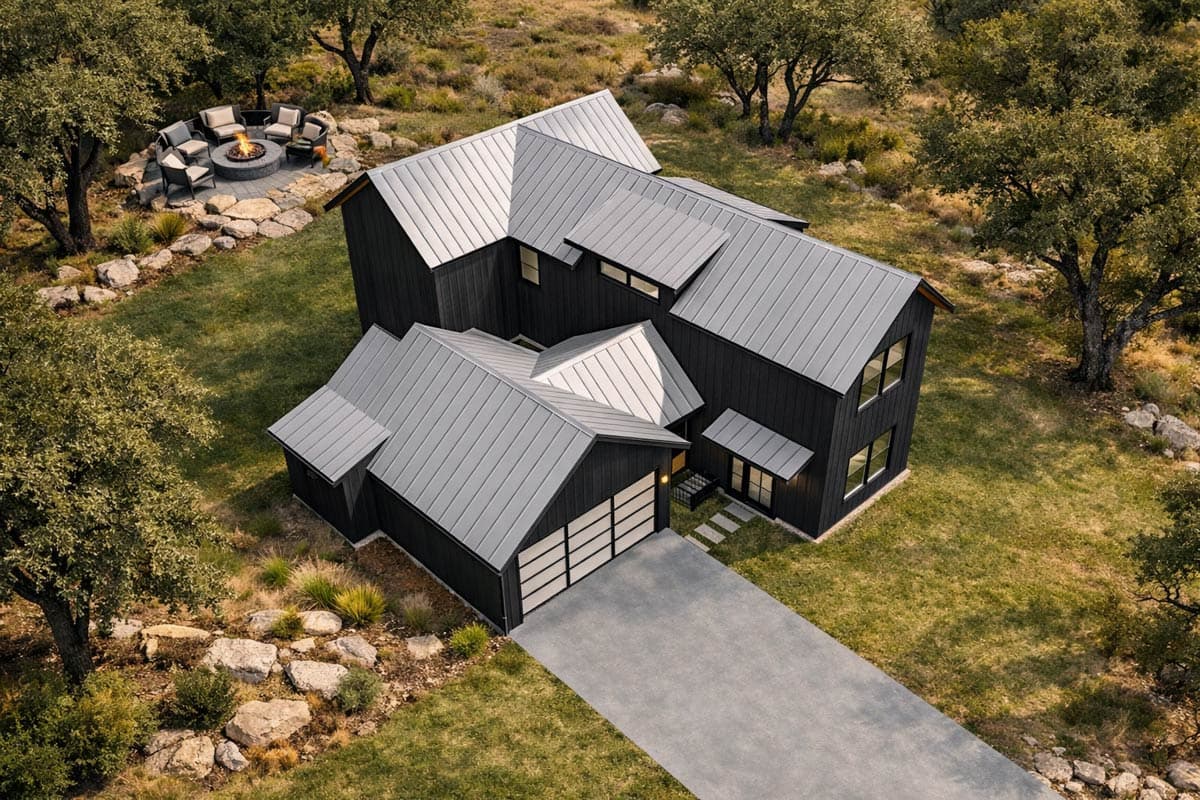

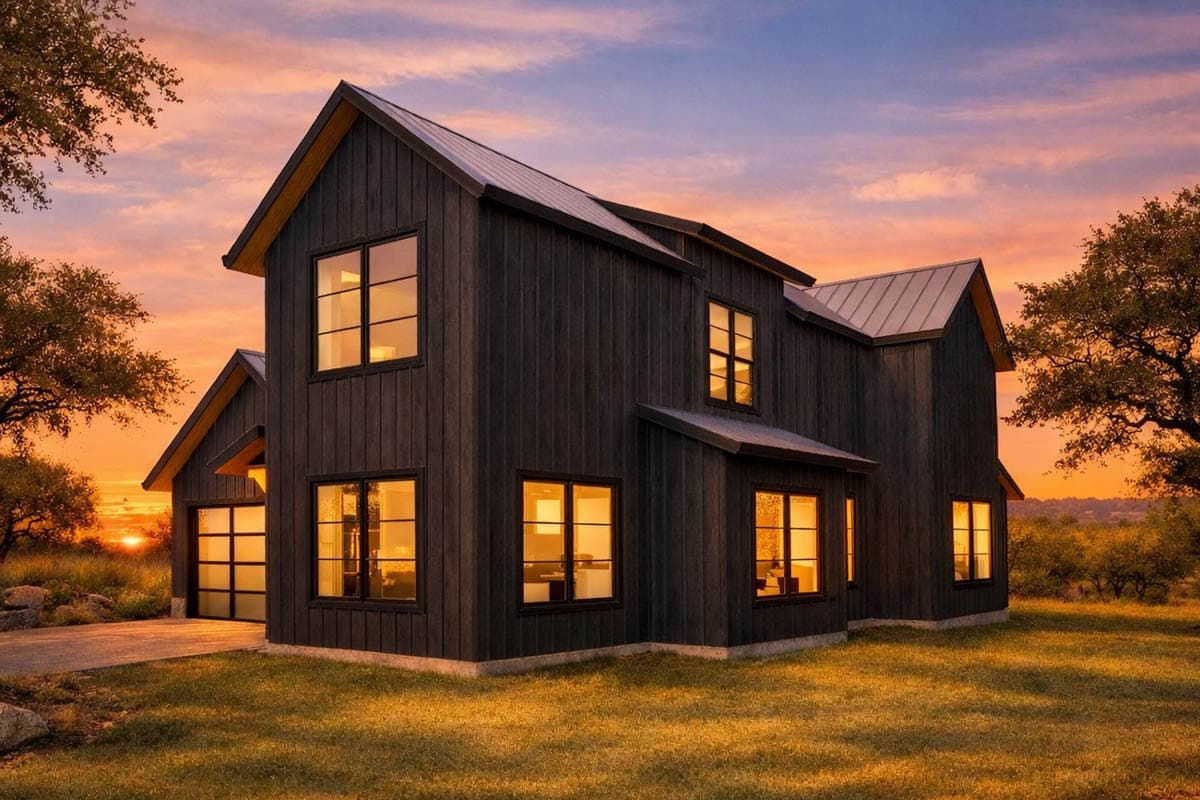

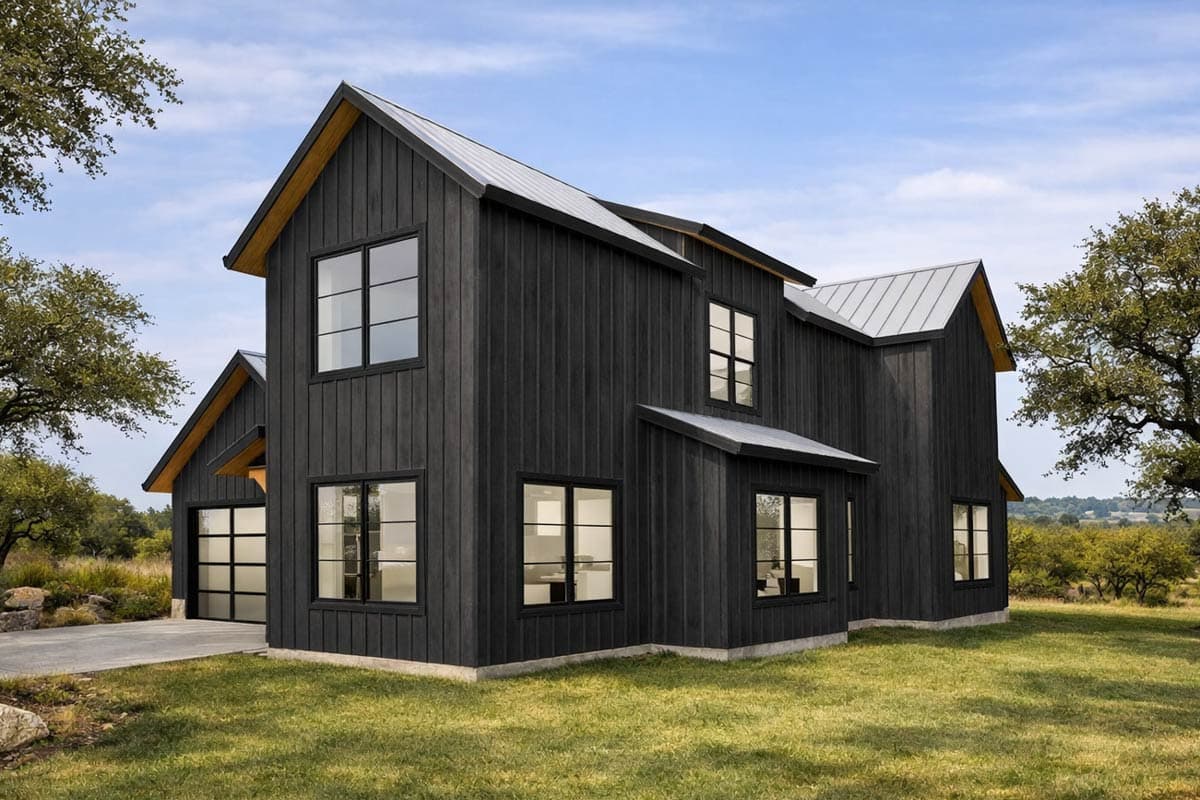

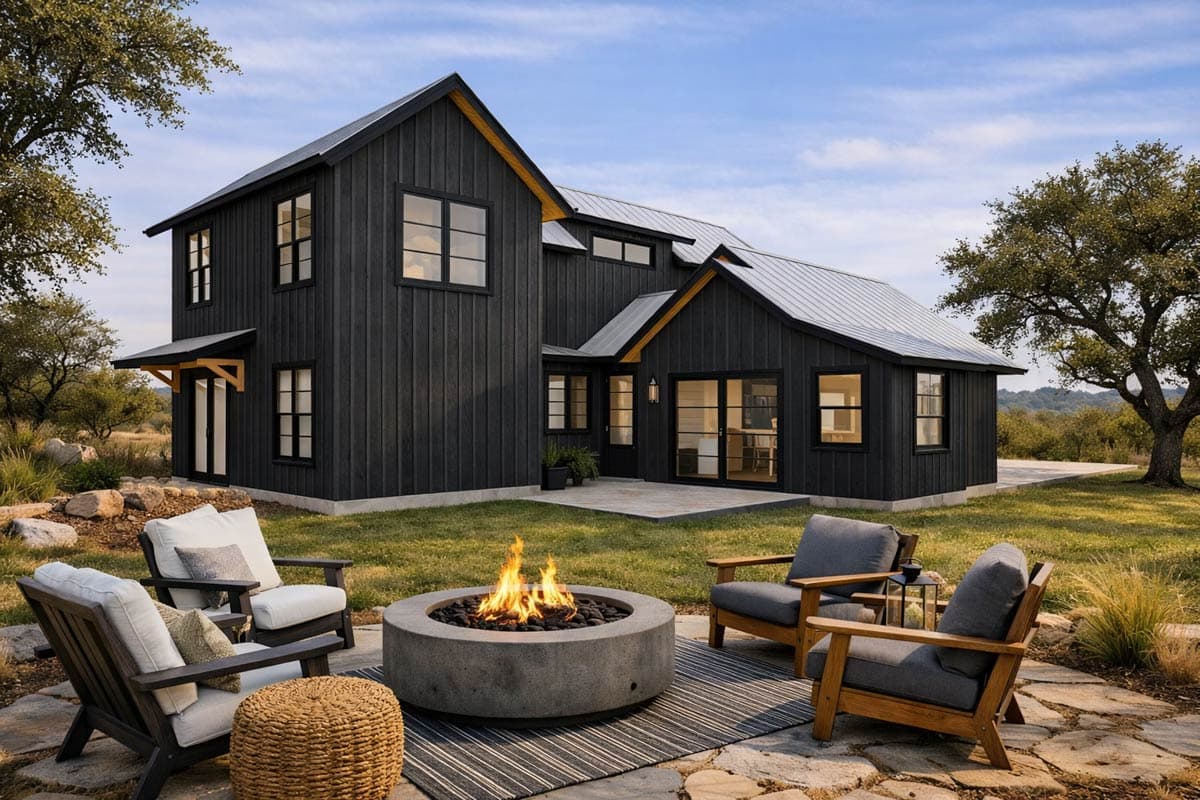

  • Classic barn-like architecture pairs with a modern exterior to create this fresh 4-bedroom home plan.

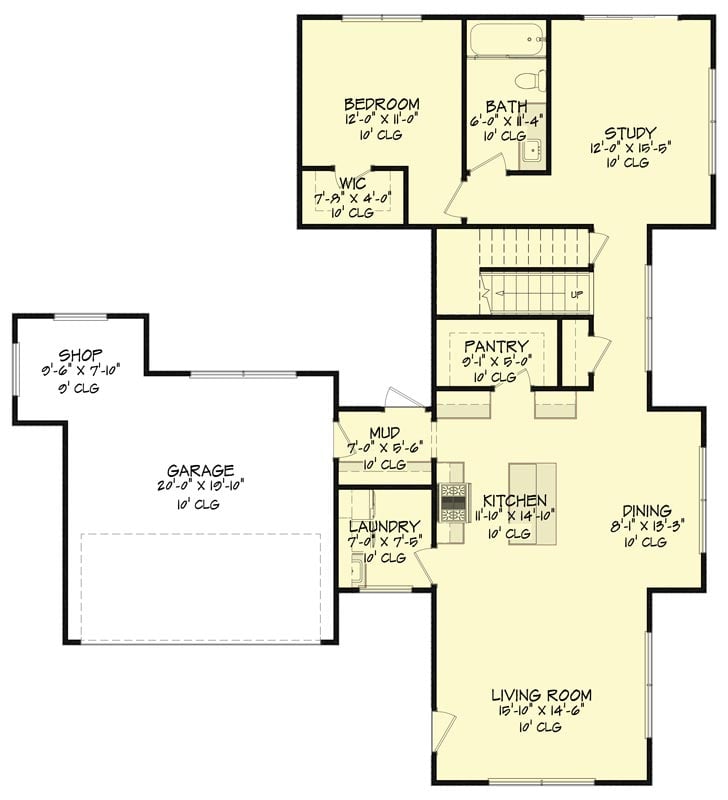

  • Large windows line the living room that seamlessly flows into the eat-in kitchen. A kitchen island offers additional workspace and eating bar, and a walk-in pantry is nearby to maximize storage space.
  • Towards the rear of the main level, a study neighbors a full bathroom and bedroom with a walk-in closet.

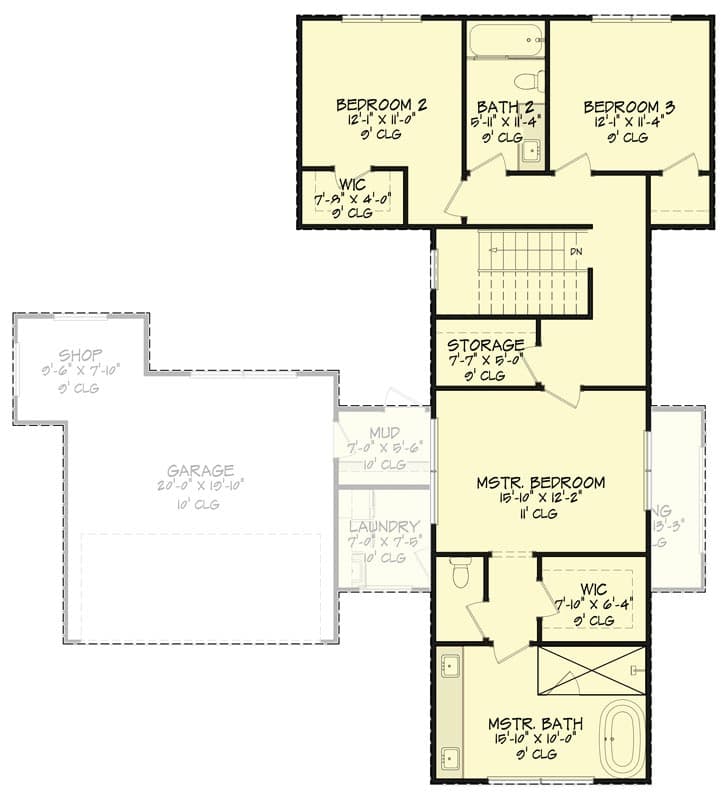

  • The second level consists of three bedrooms, including the master suite with a walk-in closet and 5-fixture bathroom.
  • The hobbyist will appreciate the workshop attached to the double garage and a mudroom just inside serves as a drop zone for bags and gear.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.

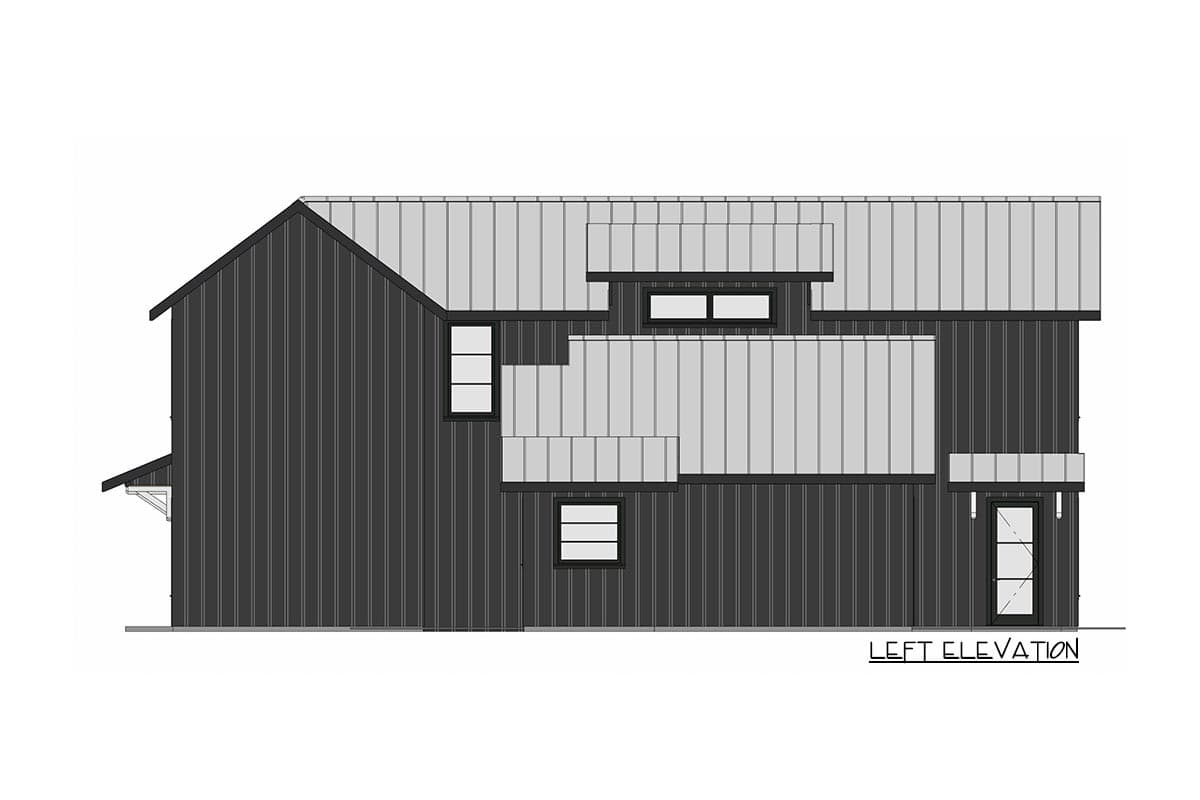

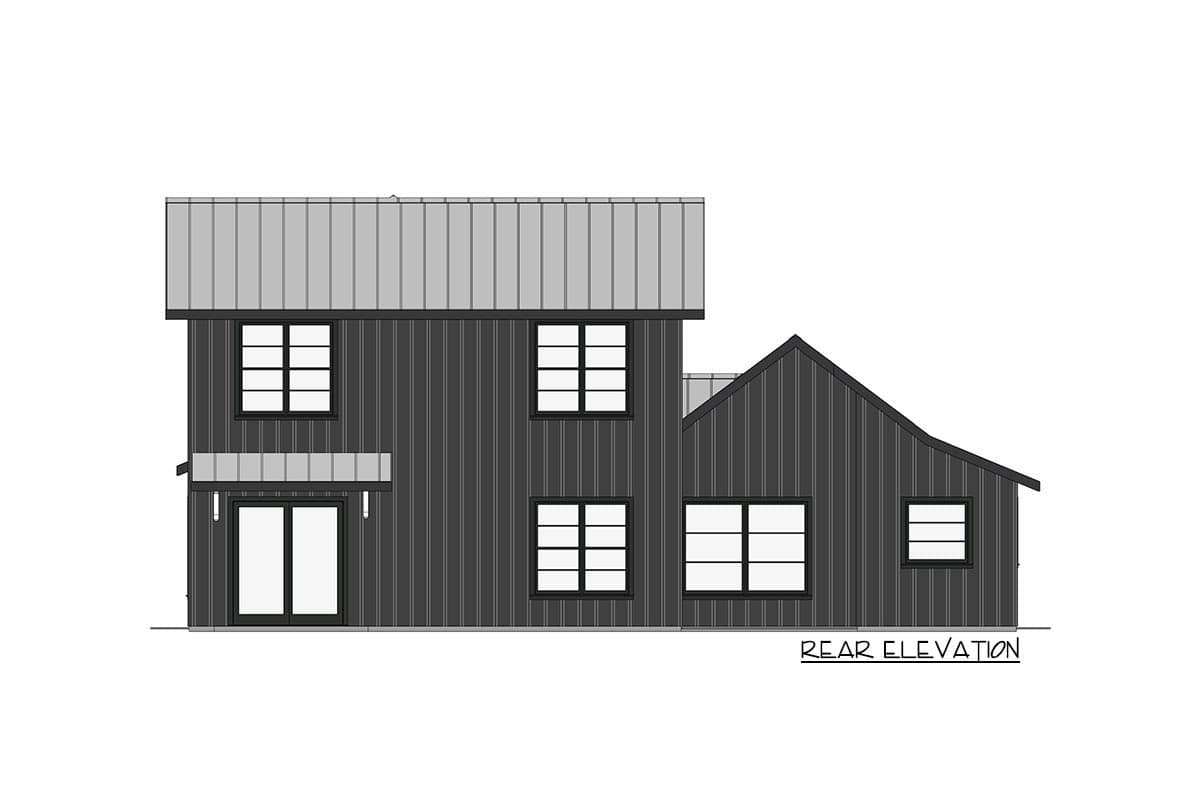

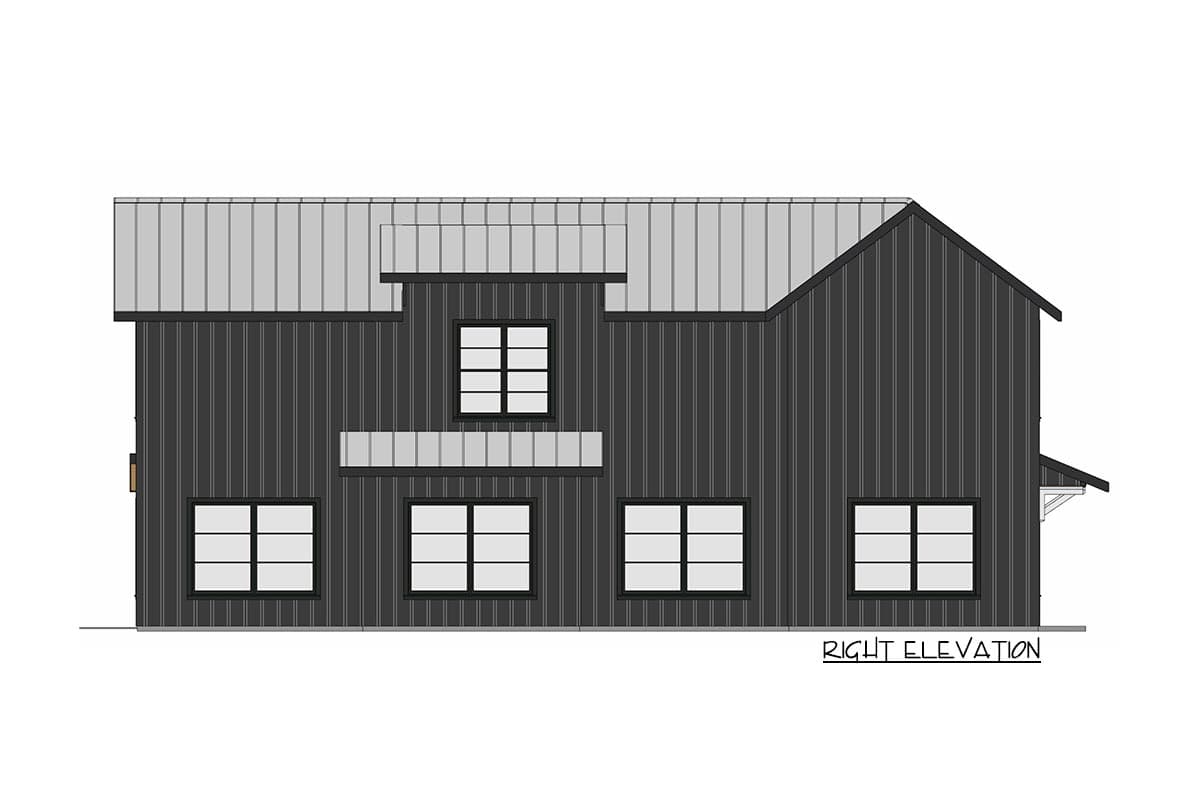

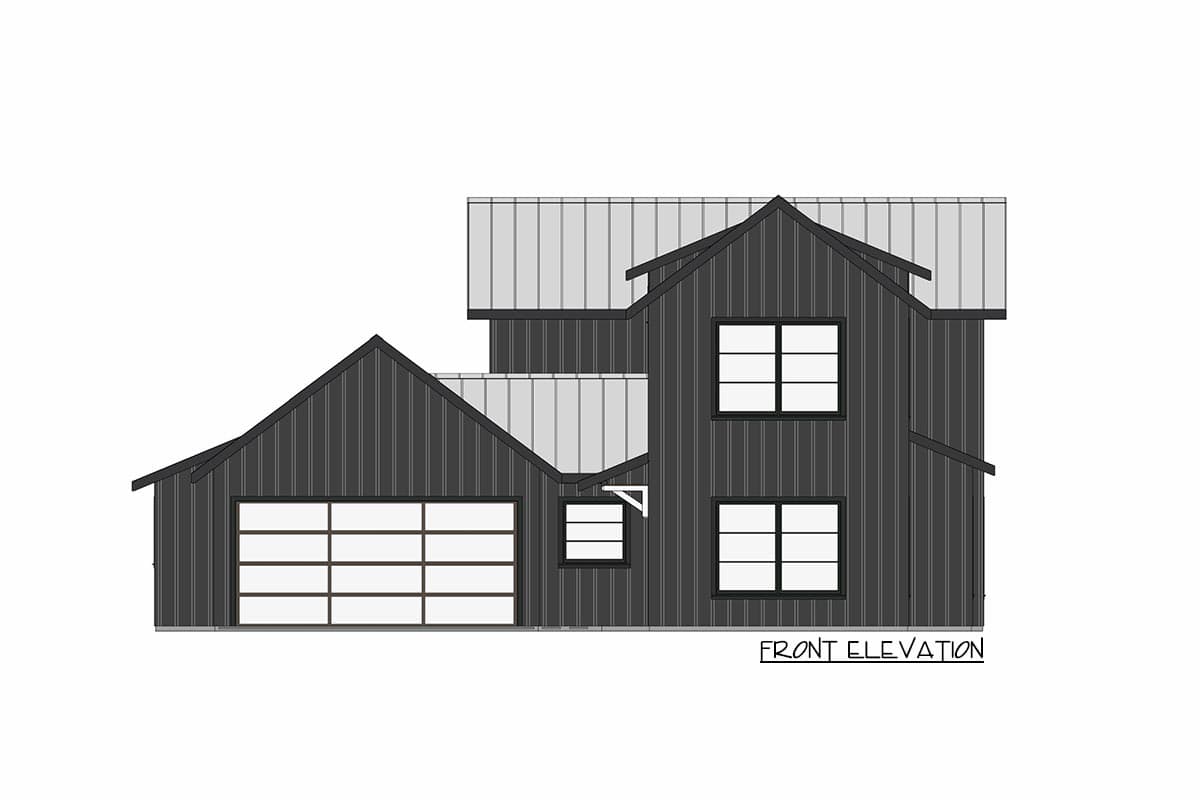

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Barn-like Modern Home Plan with Upstairs Master Suite and a Garage Shop

  • 2,475

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,475 sq. ft.
  • 1st Floor: 1,356 sq. ft.
  • 2nd Floor: 1,119 sq. ft.
  • SHOP: 83 sq. ft.

Dimensions

  • Width: 52' 10"
  • Depth: 57' 11"
  • Max ridge height: 27' 7"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 396 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 5 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

Barn-like Modern Home Plan with Upstairs Master Suite and a Garage Shop

  • 2,475

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Barn-like Modern Home Plan with Upstairs Master Suite and a Garage Shop

  • 2,475

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,475 sq. ft.
  • 1st Floor: 1,356 sq. ft.
  • 2nd Floor: 1,119 sq. ft.
  • SHOP: 83 sq. ft.

Dimensions

  • Width: 52' 10"
  • Depth: 57' 11"
  • Max ridge height: 27' 7"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 396 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 5 on 12

    Main Level

    2nd Floor
Plan 150012HRP
Plan 150012HRP
