Barndominium Duplex with 5 Garage Bays and a Ground Level Office

Heated S.F.
3,206
Units
2
Width
Depth

Floor Plan

Plan 68844VR

Main Level
Main Level
Upper Level
Upper Level

Plan 68844VR

M-F 9am-5pm EST |

1-203-761-8500

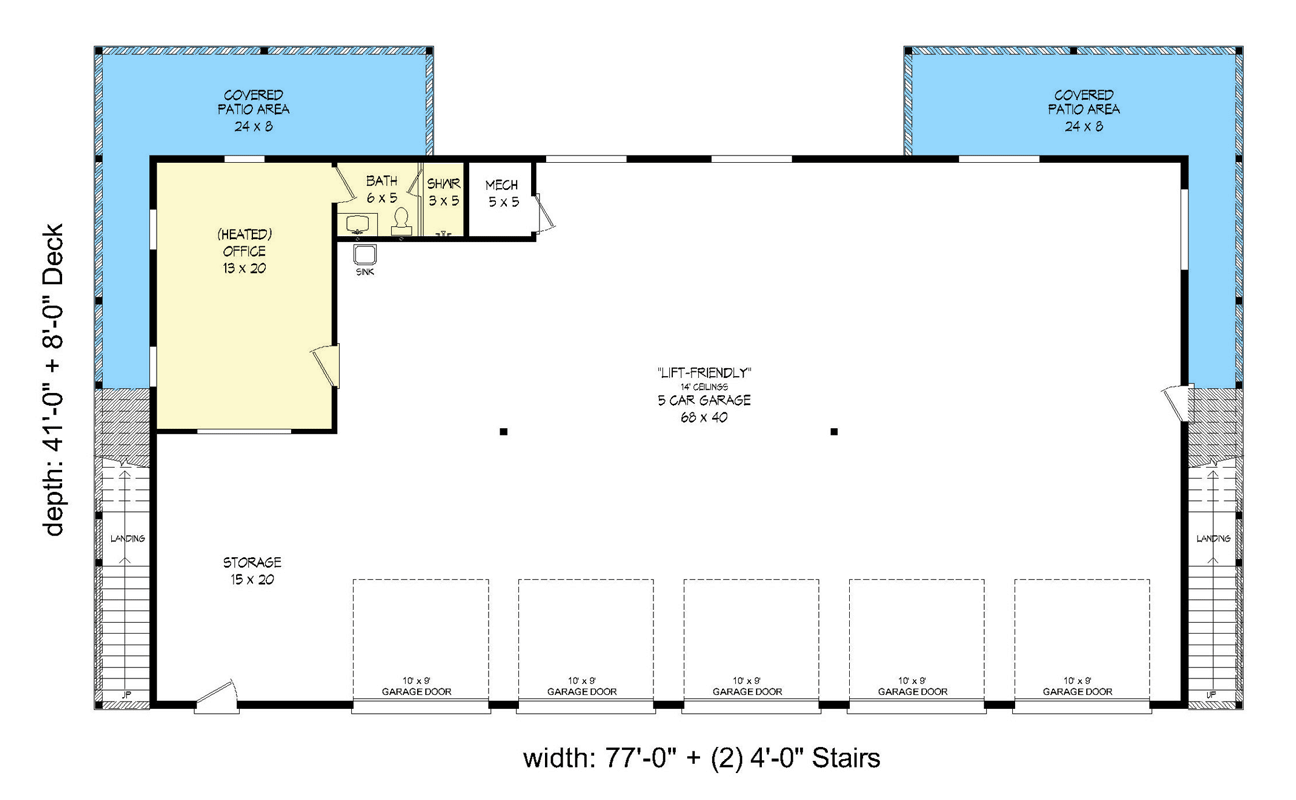

Main Level

Plan 68844VR: Barndominium Duplex with 5 Garage Bays and a Ground Level Office - Floor Plan - Main Level - Barndominium, Country

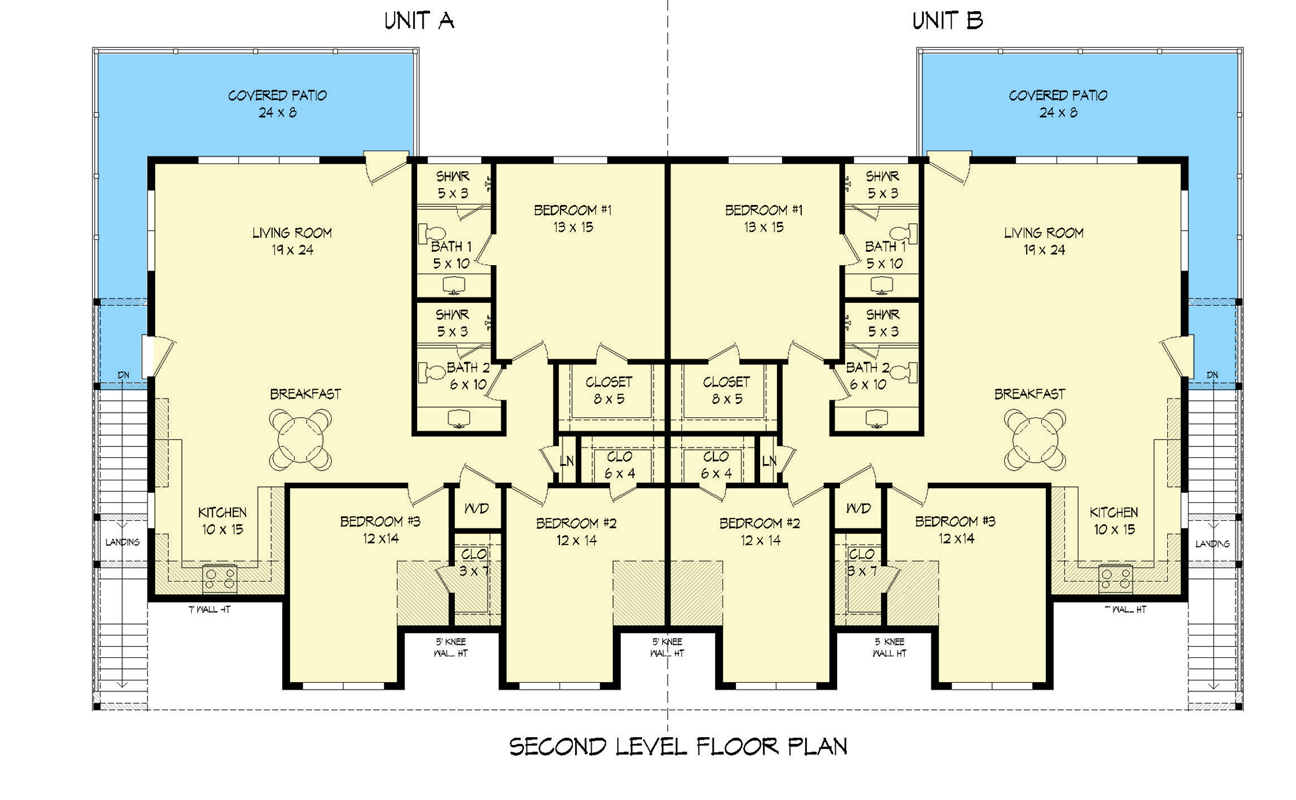

Upper Level

Plan 68844VR: Barndominium Duplex with 5 Garage Bays and a Ground Level Office - Floor Plan - Upper Level - Barndominium, Country

Plan Details

  • This spacious, 2-family barndominium offers matching 3 bed, 2 bath units which are above 5 garage bays and a home office in the back-left of the ground floor.
  • Upstairs, an open floor plan combines the living room, kitchen, and dining area, which extends outside onto a deck.
  • The U-shaped, kitchen counters surround a prep island, while providing counter-height seating.
  • Retreat to the master bedroom, complete with a wet room in the en suite and a walk-in closet. Beds 2 and 3 share a bath in the hall.
  • Related Plan: Get a single family version with house plan 68626VR.
Unit A
Heated Area
1,412Sq. Ft.
1412 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
1387 Sq. Ft.
Dimensions
42'width
49'depth
32'height
Unfinished Areas
1387 Sq. Ft. Garage
Unit B
Heated Area
1,412Sq. Ft.
1412 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
2774 Sq. Ft.
Dimensions
42'width
49'depth
32'height
Unfinished Areas
2774 Sq. Ft. Garage

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,206 sq. ft.

1st Floor

1,412 sq. ft.

Porch, Combined

742 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

85' 0"

Depth

49' 0"

Max Ridge Height

32' 3"

Garage

Type

Attached, Drive Under

Area

2774 sq. ft.

Count

5 Cars

Entry Location

Front

Ceiling Heights

Lower Level

14'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4.5 on 12

Framing Type

Stick

Architectural Style

Barndominium

Country

Special Features

Bedrooms - Clustered

Home Office

Master Suite - Upstairs

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

3,206 sq. ft.

1st Floor

1,412 sq. ft.

Porch, Combined

742 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

85' 0"

Depth

49' 0"

Max Ridge Height

32' 3"

Garage

Type

Attached, Drive Under

Area

2774 sq. ft.

Count

5 Cars

Entry Location

Front

Ceiling Heights

Lower Level

14'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4.5 on 12

Framing Type

Stick

Architectural Style

Barndominium

Country

Special Features

Bedrooms - Clustered

Home Office

Master Suite - Upstairs

Plan Collections

Home Office
