Plan 135238GRA Barndominium-Style House Plan with 2-Car Garage and Optionally Finished Lower Level

2,684 3-4 2.5 - 3.5 2 2
watch
video Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Barndominium-Style House Plan with 2-Car Garage and Optionally Finished Lower Level

Plan 135238GRA

  • 2,684

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 2,684 square foot barndominium-style house plan gives you 3-beds, 3.5 baths and a 2-car garage (722 sq. ft.) with the option to finish out the lower level.
  • As you walk through the spacious front porch and into the foyer, you'll be faced with double doors that lead straight into your home office with a coat closet nearby.
  • Further into the home, a two story great room with a cathedral ceiling neighbors a second covered porch to the left and a dining-room-kitchen combo to the right that merges into a mudroom with doors that lead directly to the 2-car garage, half bath and laundry room.
  • On the rear side of the home, your master suite complete with a private bath and walk-in closet are a barn door away from the laundry room granting you an uninterrupted path of travel throughout your home.
  • Upstairs, you'll find the remaining two beds and full bath adjacent a loft overlooking the great room below.
  • With the option to finish the lower level basement, you'll be able to gain an additional bedroom and bath, along with extra living space, wet bar and home theater.

  • All elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

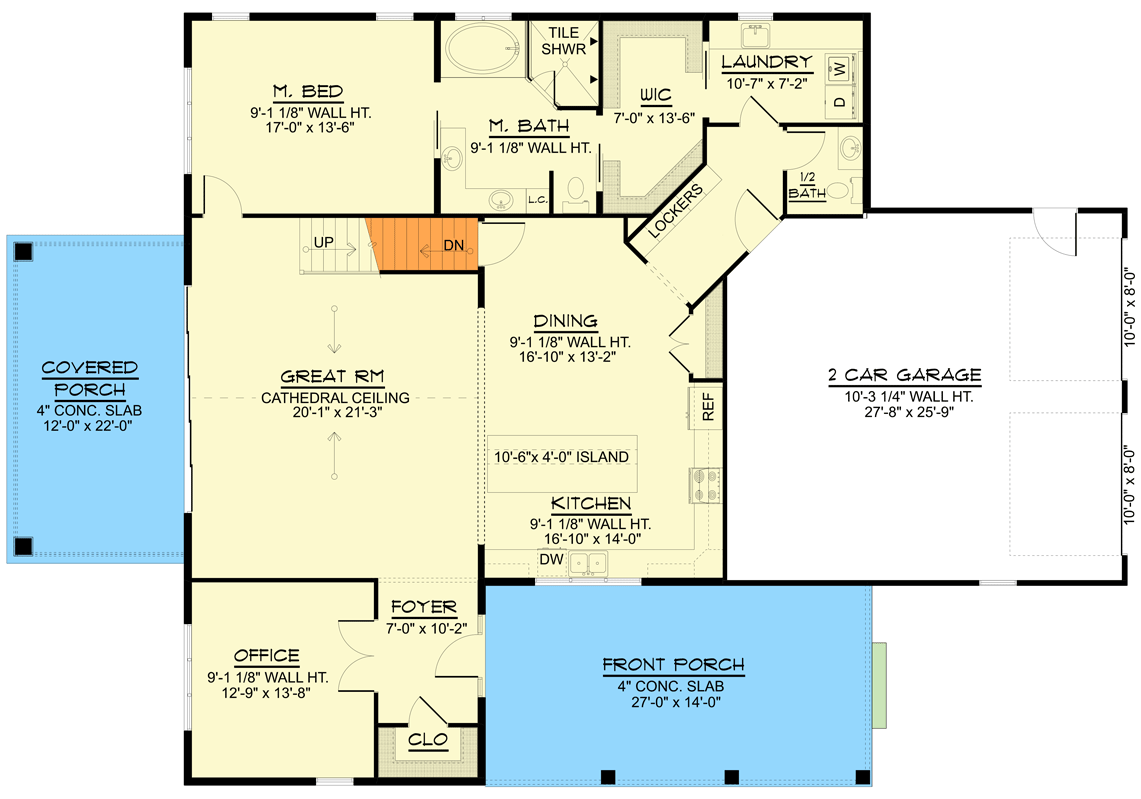

Barndominium-Style House Plan with 2-Car Garage and Optionally Finished Lower Level - 135238GRA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

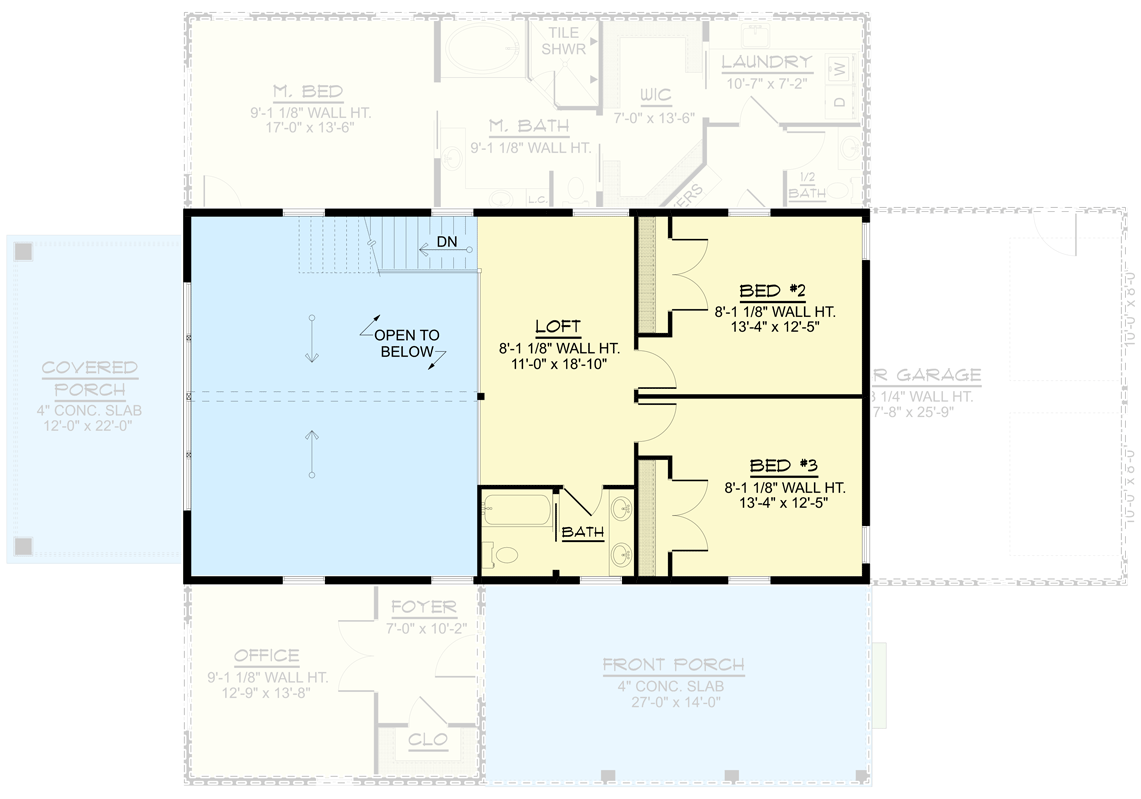

Barndominium-Style House Plan with 2-Car Garage and Optionally Finished Lower Level - 135238GRA floor plan - 2nd Floor

Optionally Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

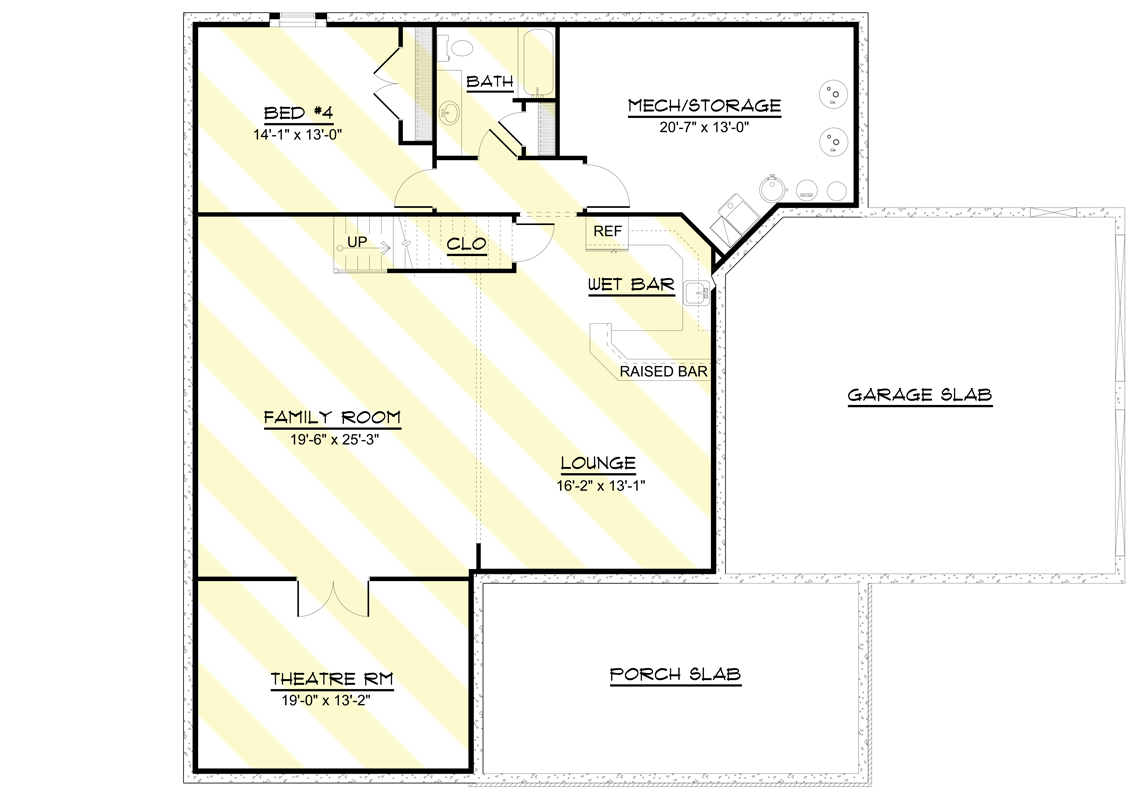

Barndominium-Style House Plan with 2-Car Garage and Optionally Finished Lower Level - 135238GRA floor plan - Optionally Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,684 sq. ft.
  • 1st Floor: 1,966 sq. ft.
  • 2nd Floor: 718 sq. ft.
  • Deck: 261 sq. ft.
  • Screened Porch: 378 sq. ft.
  • Optional Lower Level: 1,965 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 66' 0"
  • Depth: 54' 0"
  • Max ridge height: 27' 6"

Garage

  • Type: Attached
  • Area: 722 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Barndominium-Style House Plan with 2-Car Garage and Optionally Finished Lower Level

  • 2,684

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,350
  • 5 Sets $1,525
  • 5 Sets + PDF $1,600
  • PDF - Unlimited Build $1,850
  • CAD + PDF - Single-Build $2,600
  • CAD - Unlimited Build $3,100
  • View all purchase option online

About This Plan

  • This 2,684 square foot barndominium-style house plan gives you 3-beds, 3.5 baths and a 2-car garage (722 sq. ft.) with the option to finish out the lower level.
  • As you walk through the spacious front porch and into the foyer, you'll be faced with double doors that lead straight into your home office with a coat closet nearby.
  • Further into the home, a two story great room with a cathedral ceiling neighbors a second covered porch to the left and a dining-room-kitchen combo to the right that merges into a mudroom with doors that lead directly to the 2-car garage, half bath and laundry room.
  • On the rear side of the home, your master suite complete with a private bath and walk-in closet are a barn door away from the laundry room granting you an uninterrupted path of travel throughout your home.
  • Upstairs, you'll find the remaining two beds and full bath adjacent a loft overlooking the great room below.
  • With the option to finish the lower level basement, you'll be able to gain an additional bedroom and bath, along with extra living space, wet bar and home theater.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,684 sq. ft.
  • 1st Floor: 1,966 sq. ft.
  • 2nd Floor: 718 sq. ft.
  • Deck: 261 sq. ft.
  • Screened Porch: 378 sq. ft.
  • Optional Lower Level: 1,965 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 66' 0"
  • Depth: 54' 0"
  • Max ridge height: 27' 6"

Garage

  • Type: Attached
  • Area: 722 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
Plan 135238GRA
View this and more for this plan by visiting www.architechtecturaldesigns.com/135238GRA
|
