Plan 135171GRA
Barndominium-style House Plan with 2 RV Bays and Bonus Space
Heated S.F.
2,937
Beds
4
Baths
4.5
Stories
2
Cars
4
Flyer
What's Included
Plan Details
  • This Barndominium-style house plan gives you 4 beds, 2,937 square feet of living space, bonus expansion, and 2 RV bays.
  • The wraparound porch invites you inside to find a two-story living room, anchored by a fireplace and open to the eat-in kitchen.
  • Cooking and entertaining is a delight in this kitchen with its prep island, double ovens, and coffee bar. The neighboring mudroom provides easy access to a powder bath and laundry room.
  • The main-level master bedroom considers your future needs and is accompanied by a custom tile shower and water closet in the 5-fixture bathroom. A large bonus room (included in the total square footage) completes the first floor.
  • Upstairs, a flexible loft guides you to three more bedrooms, each with large closets.
  • The oversized garage offers front and rear overhead doors; a total of 1,745 square feet.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Barndominium-style House Plan with 2 RV Bays and Bonus Space

  • 2,937

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

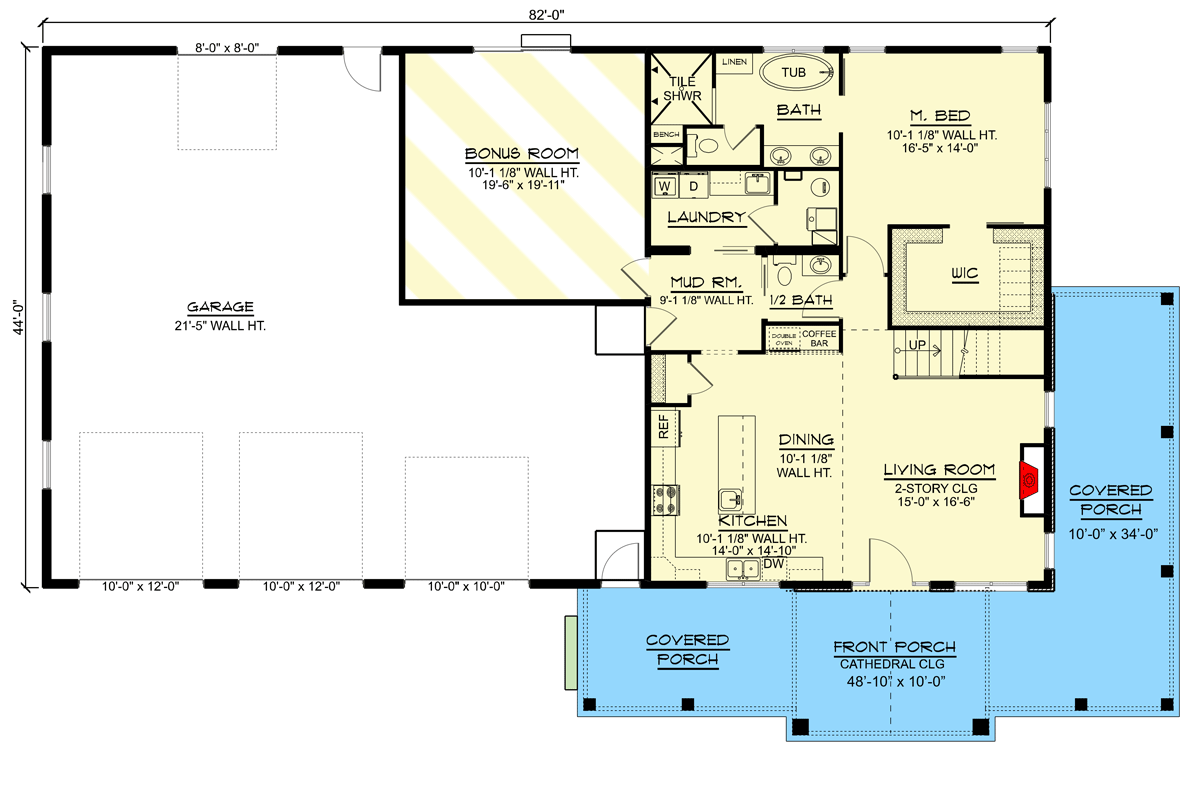

  • Main Level

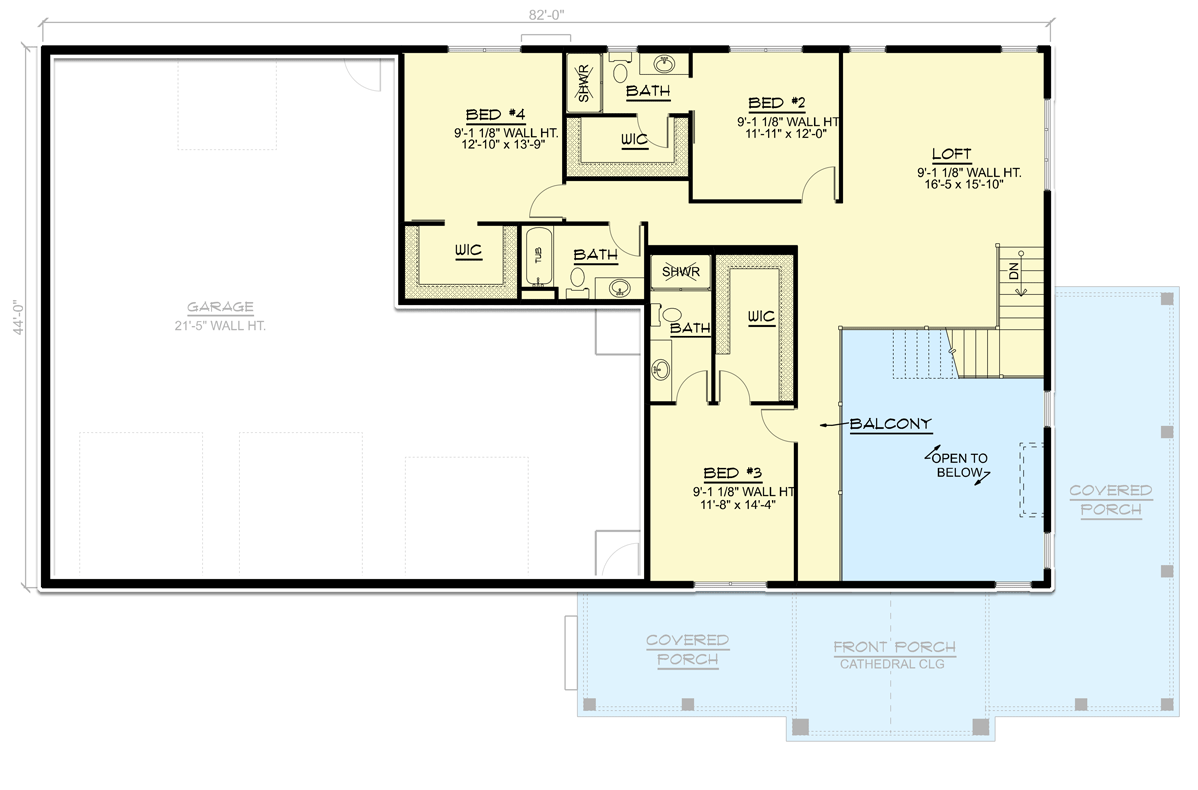

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,937 sq. ft.
  • 1st Floor: 1,452 sq. ft.
  • 2nd Floor: 1,485 sq. ft.

Dimensions

  • Width: 92' 0"
  • Depth: 54' 0"
  • Max ridge height: 29' 3"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: RV Garage, Attached
  • Area: 1745 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss
