Plan 623330DJ

Barndominium-Style House Plan with Master On Main and Two Upstairs Beds - 2519 Sq Ft

Heated S.F.
2,519
Beds
3
Baths
2.5
Stories
2
Cars
2
Tour

Floor Plan

Plan 623330DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 623330DJ

M-F 9am-5pm EST |

1-203-761-8500

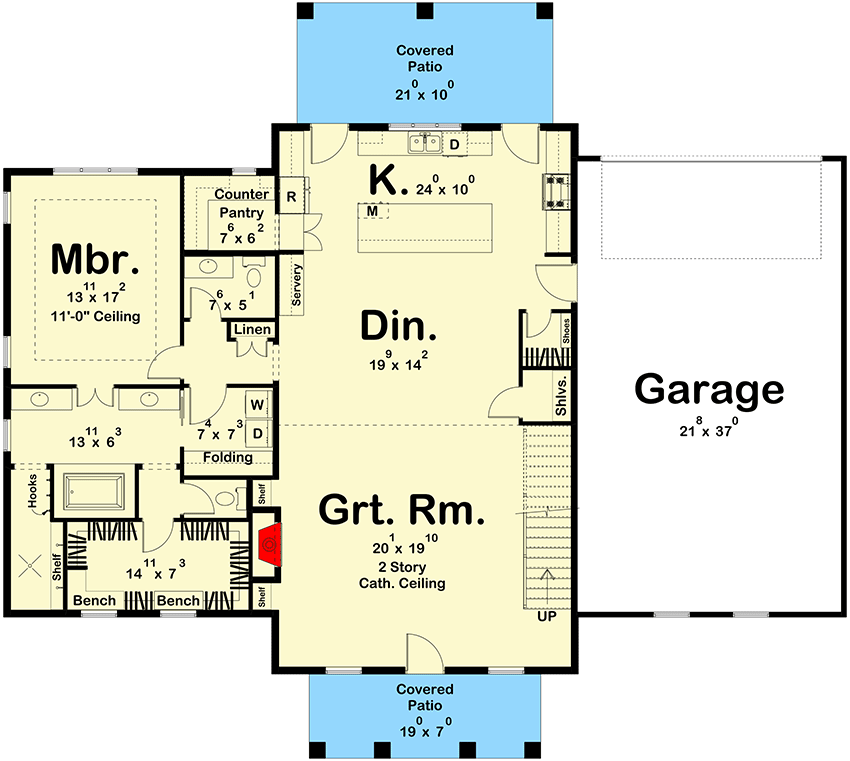

Main Level

Plan 623330DJ: Barndominium-Style House Plan with Master On Main and Two Upstairs Beds - 2519 Sq Ft - Floor Plan - Main Level - Barndominium, Country, Traditional

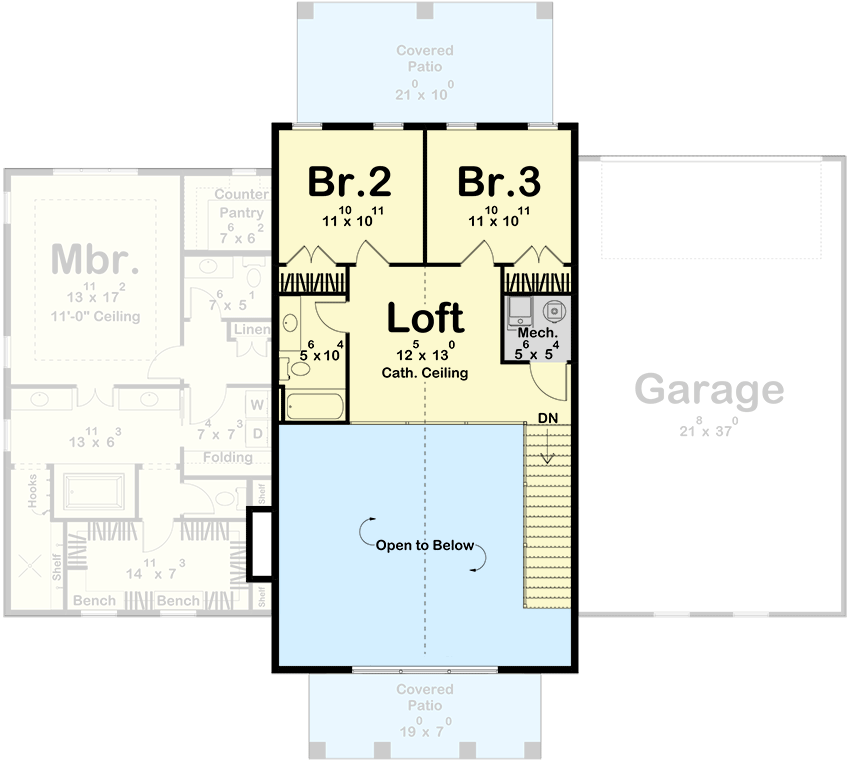

2nd Floor

Plan 623330DJ: Barndominium-Style House Plan with Master On Main and Two Upstairs Beds - 2519 Sq Ft - Floor Plan - 2nd Floor - Barndominium, Country, Traditional

Plan Details

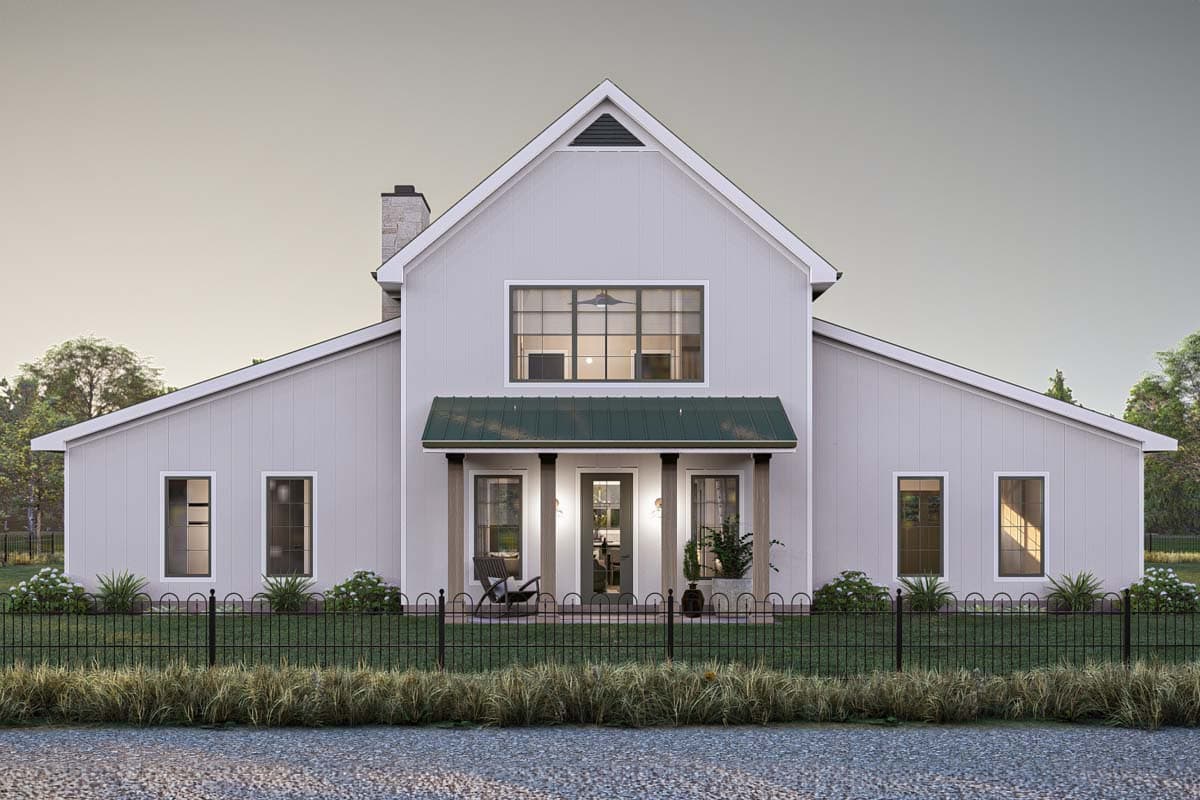

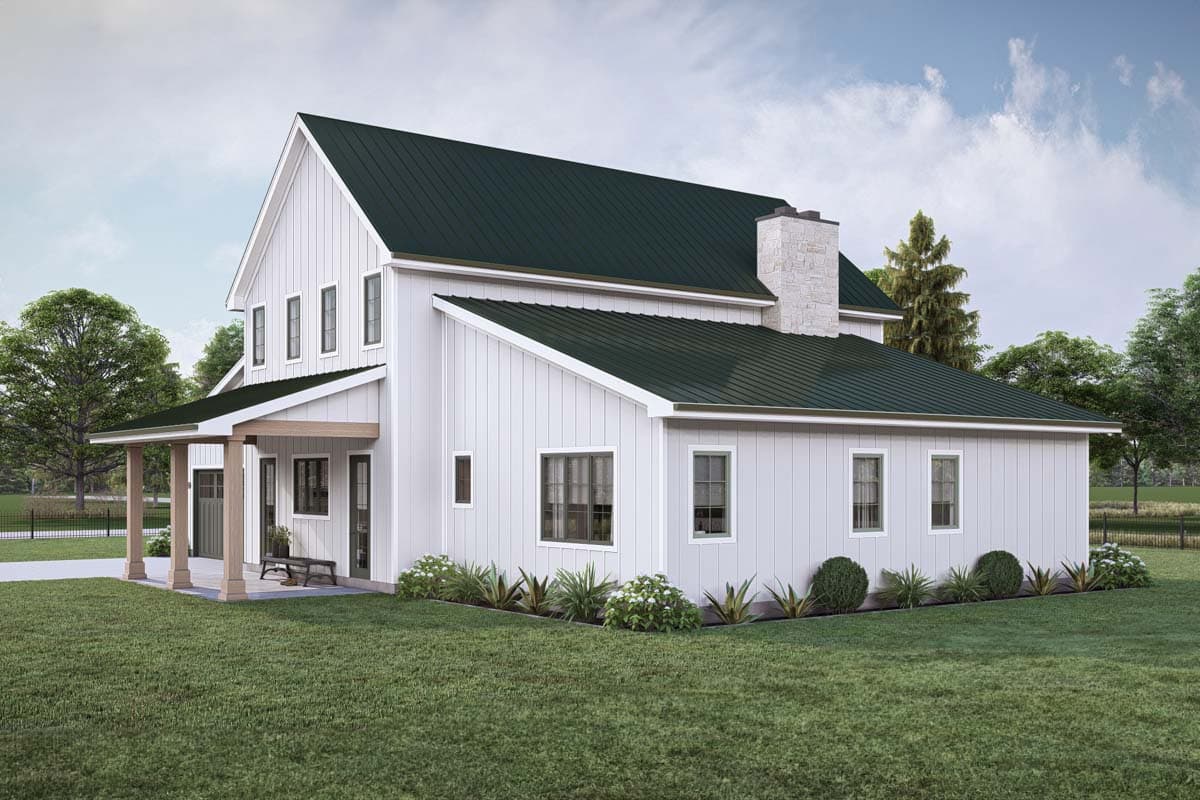

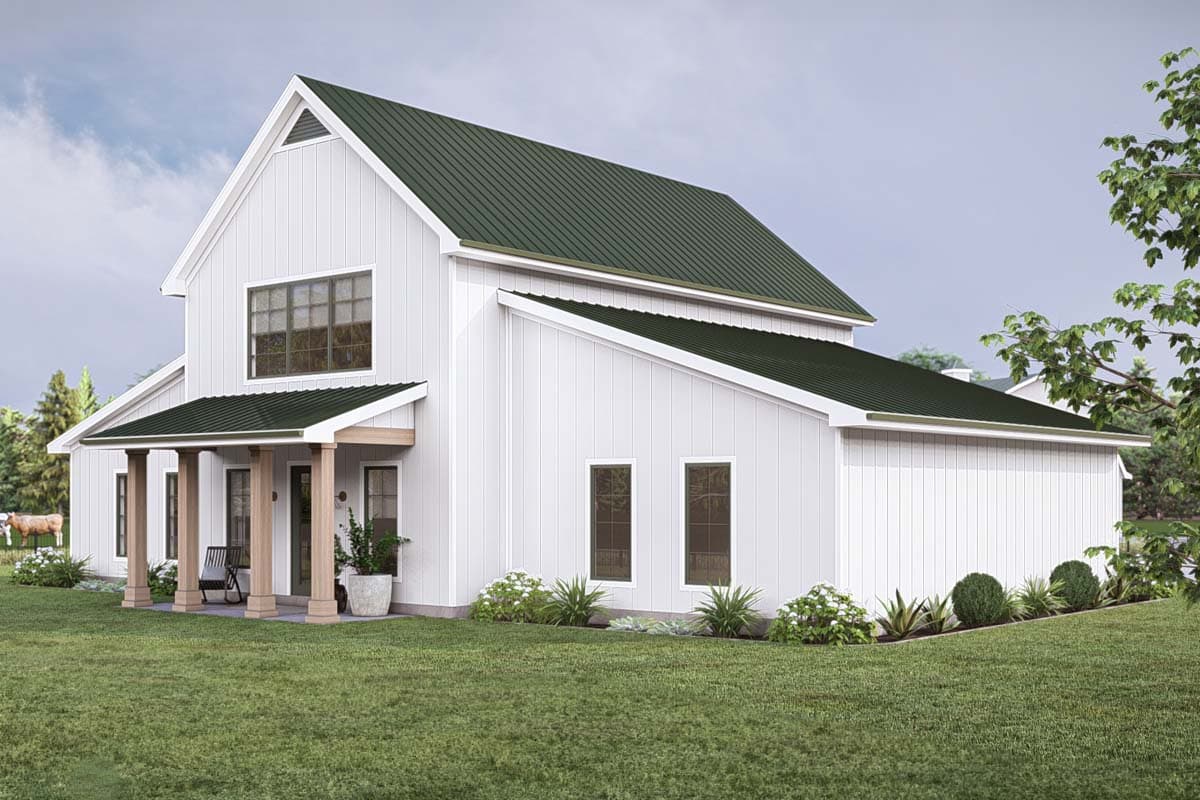

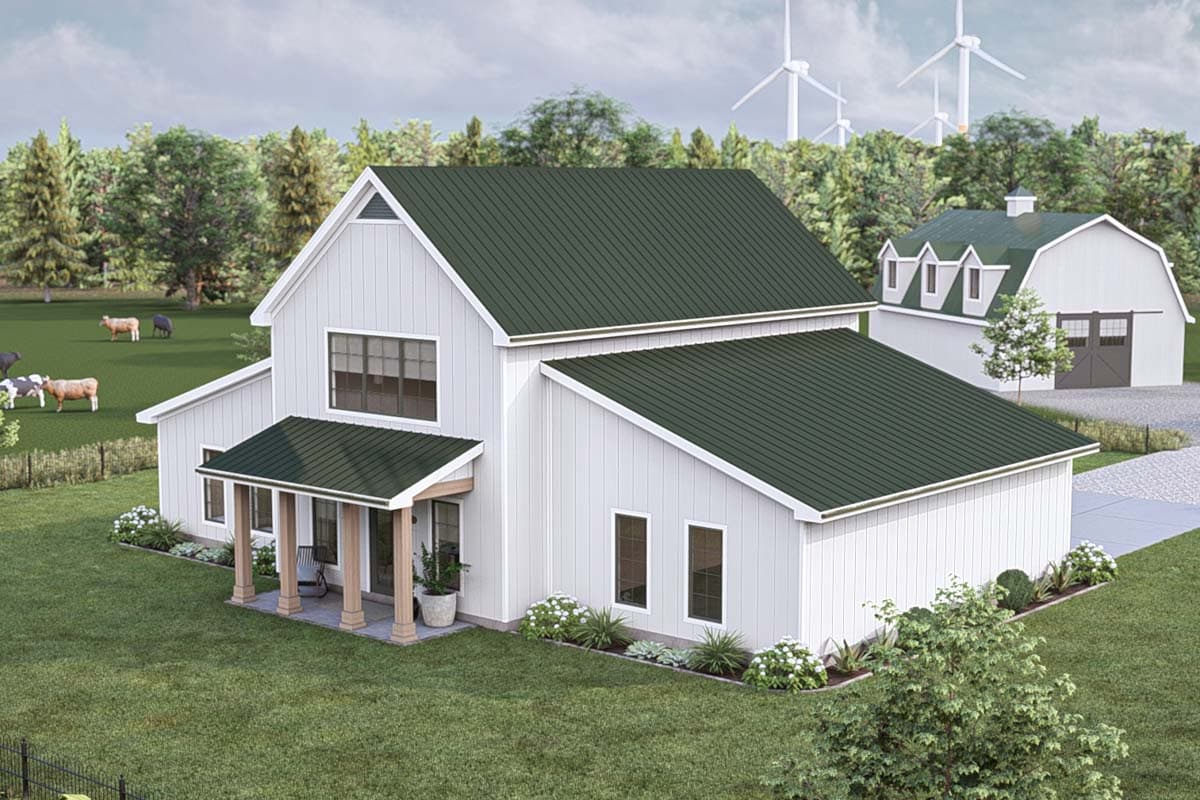

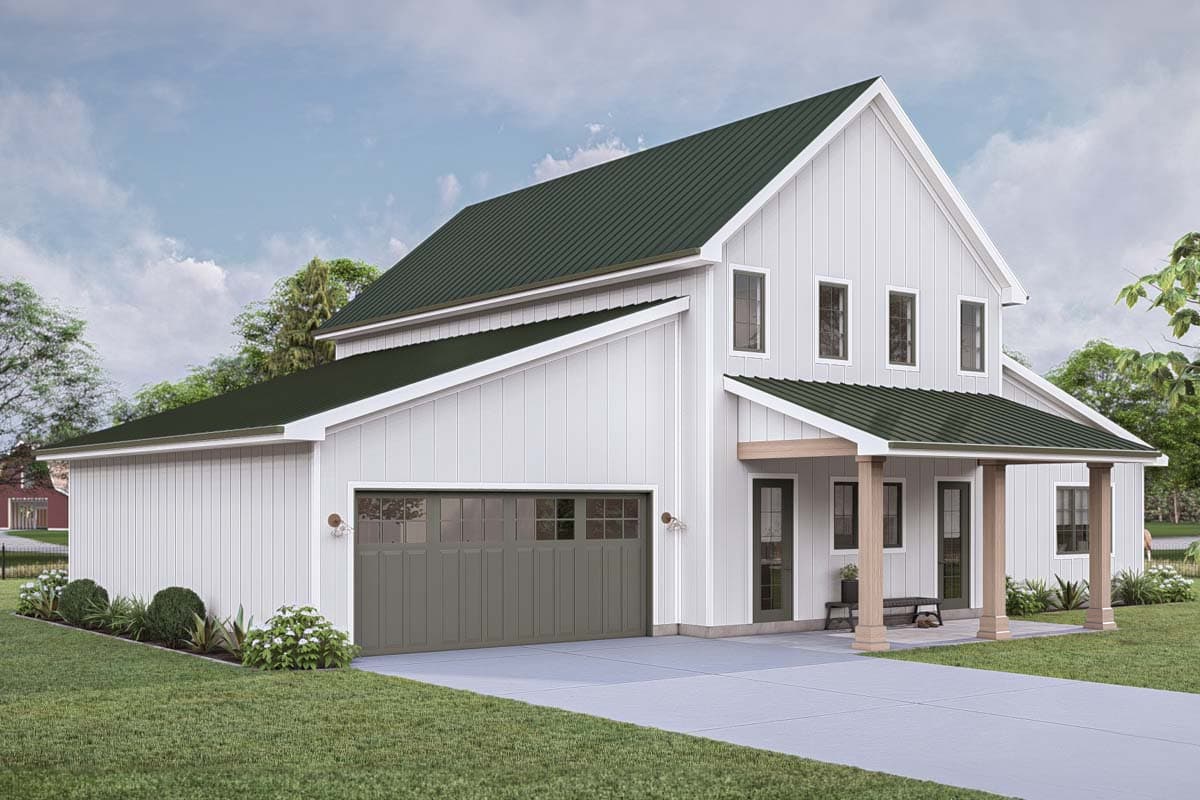

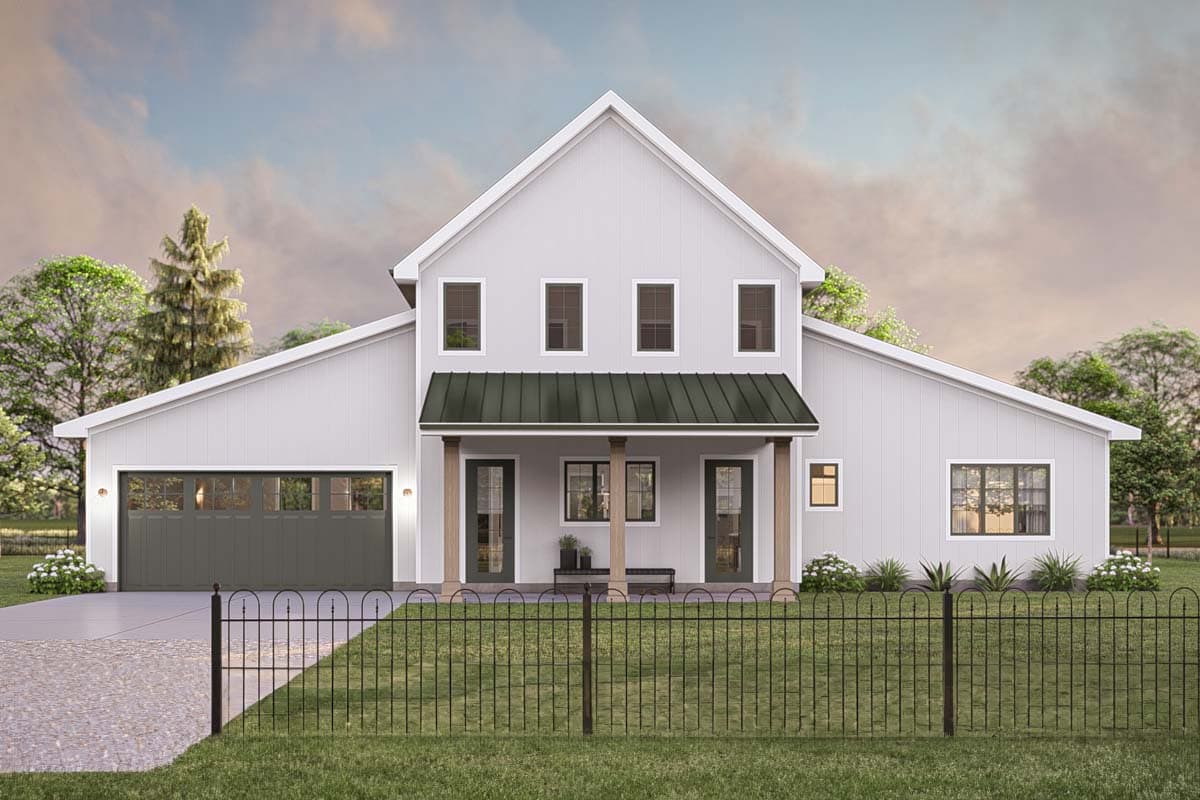

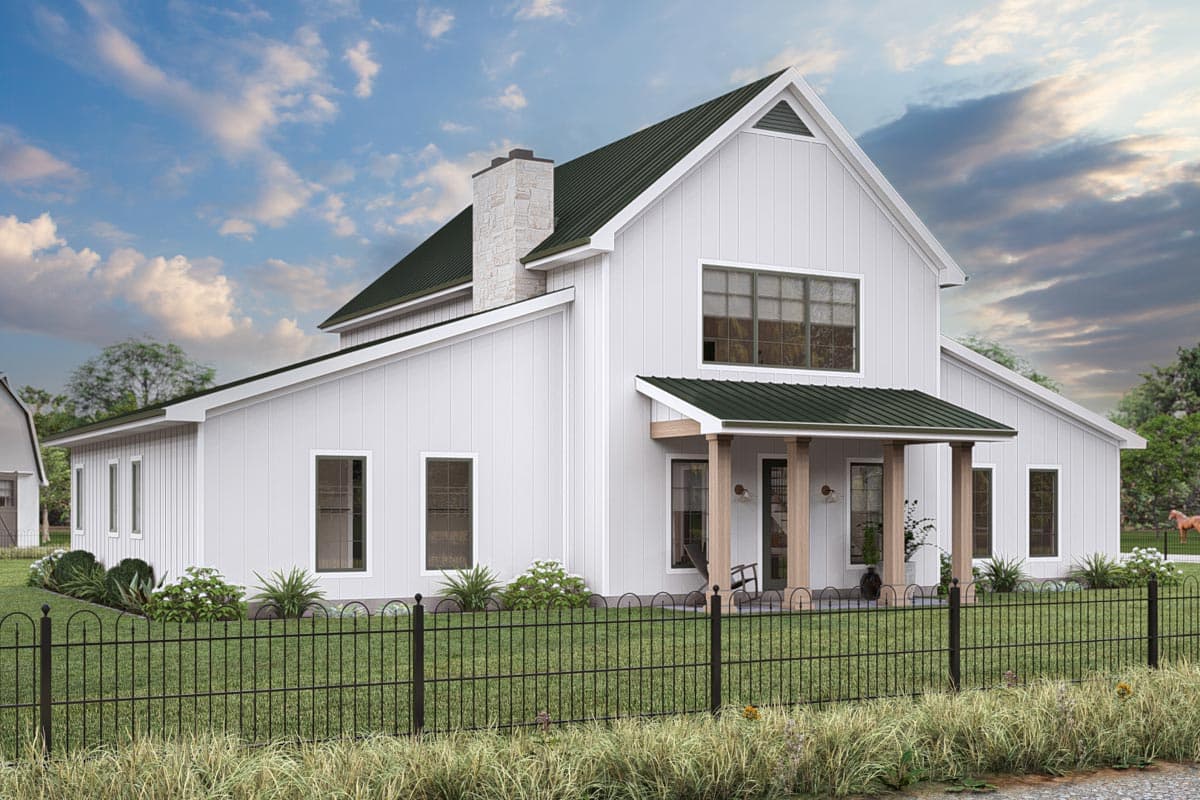

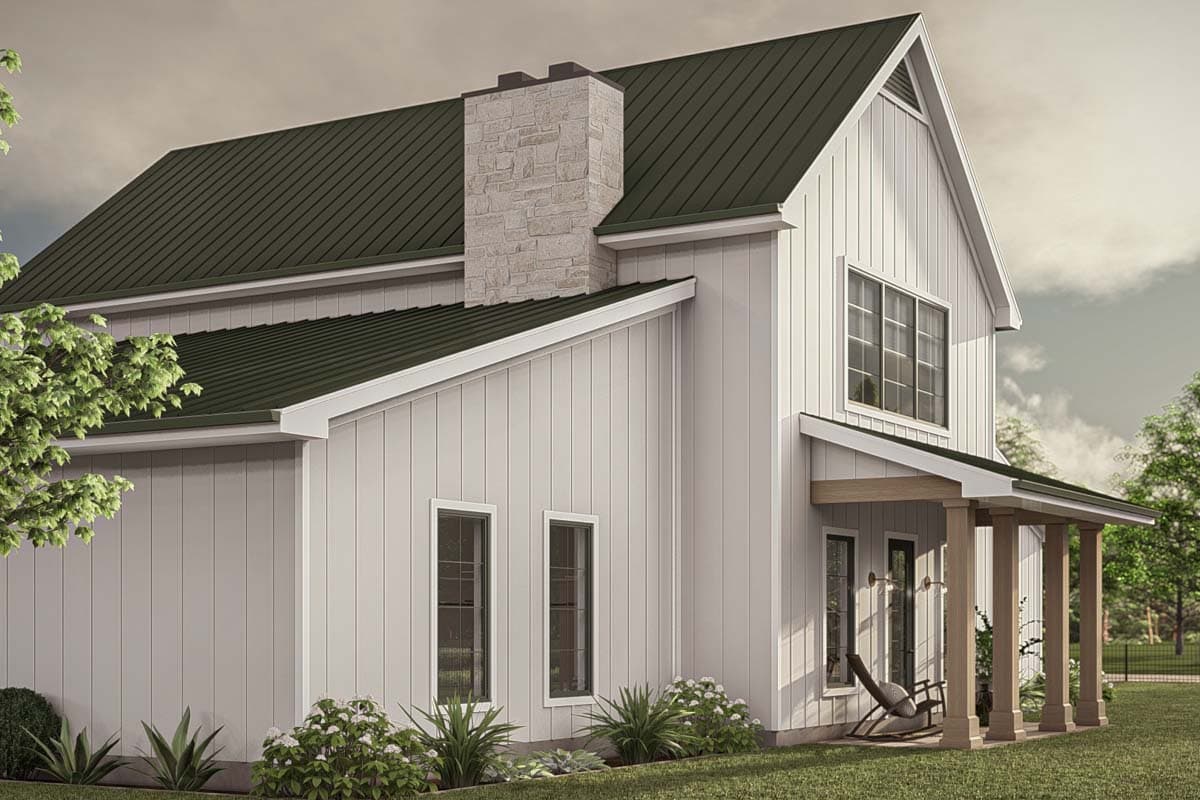

  • This barndominium-style house plan gives you 3 beds, 2.5 baths and 2,519 square feet of heated living space. The exterior is a classic barn-style design, accented by contemporary touches giving it a fresh look.

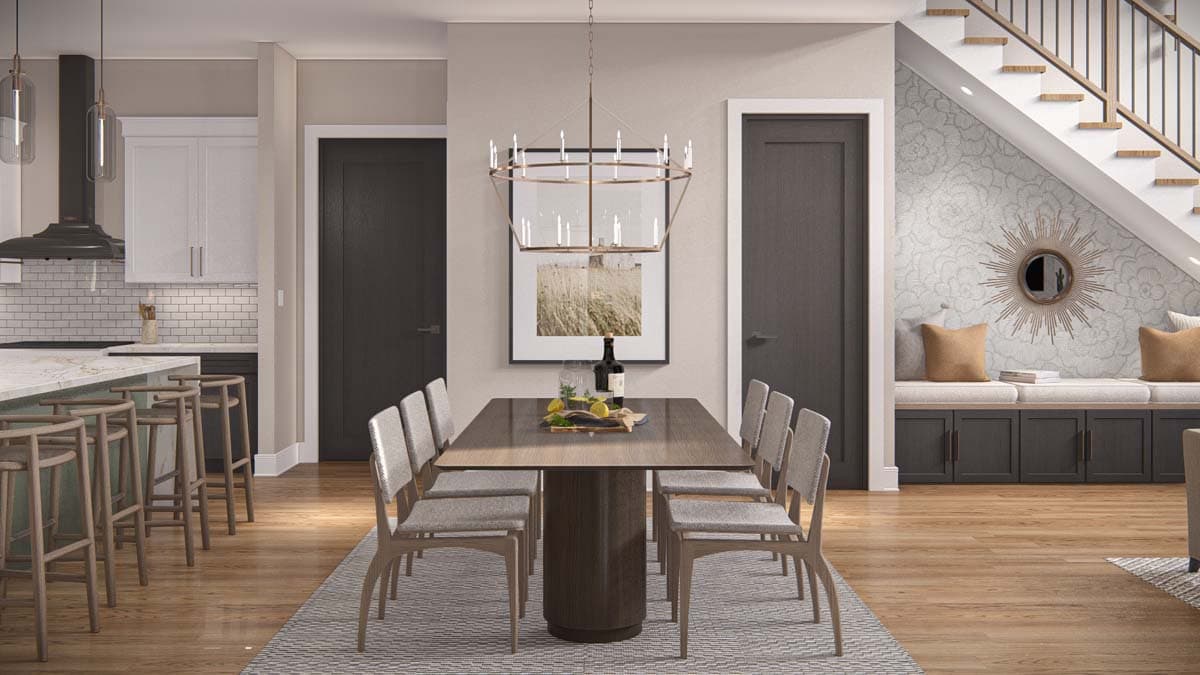

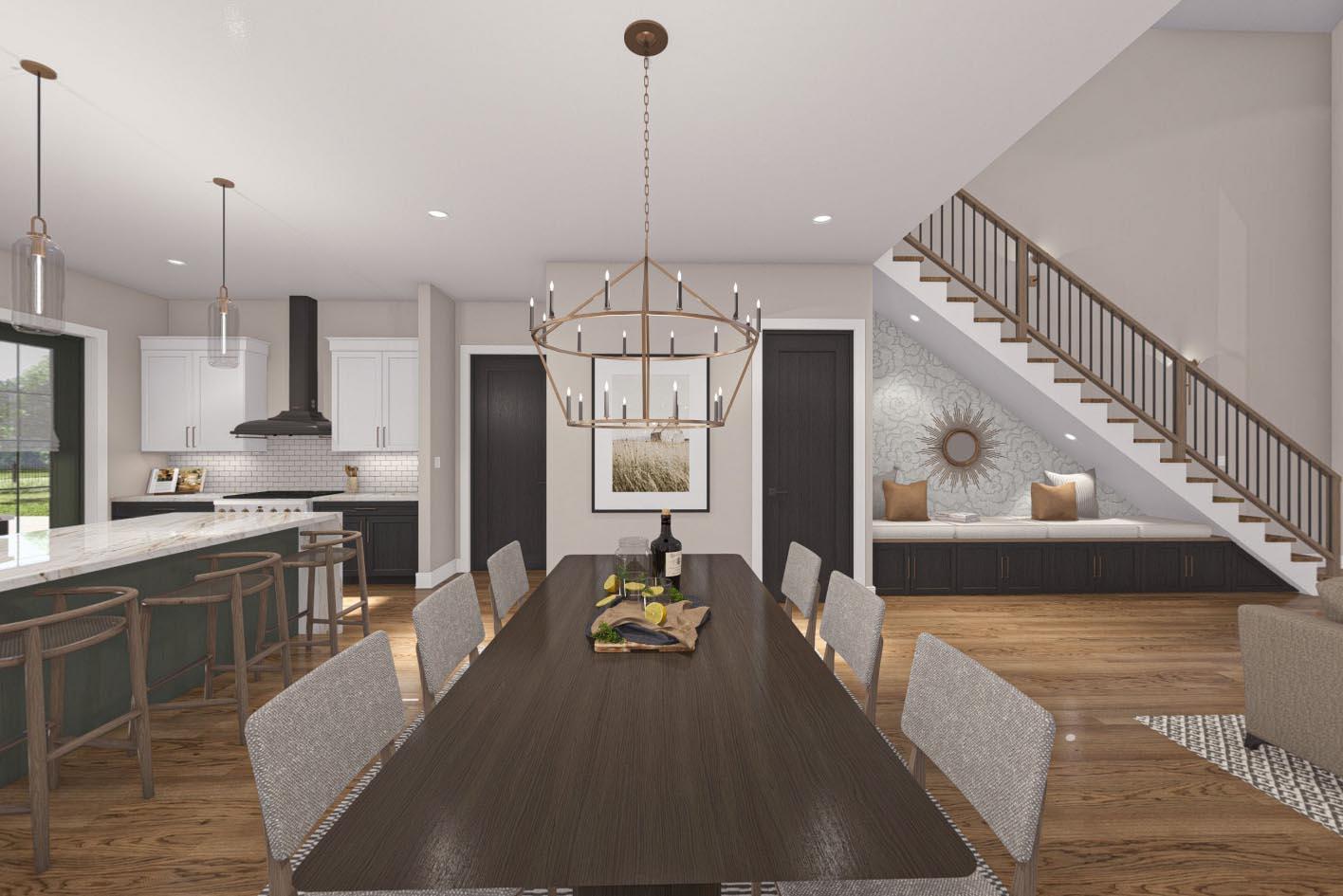

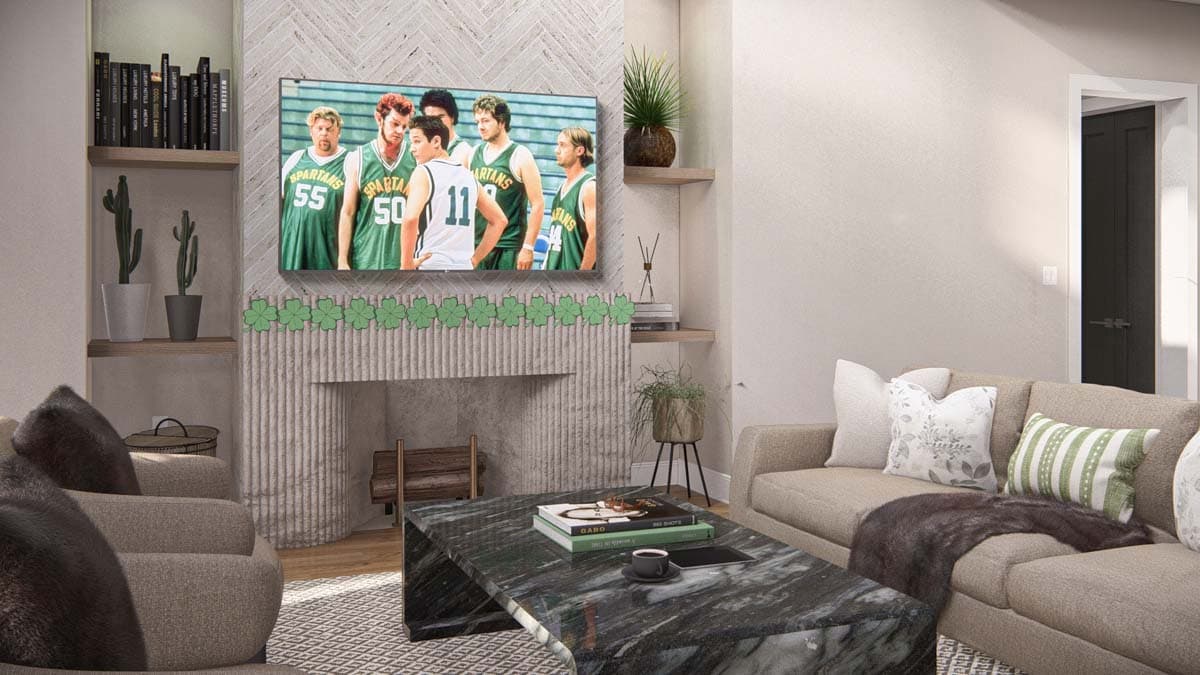

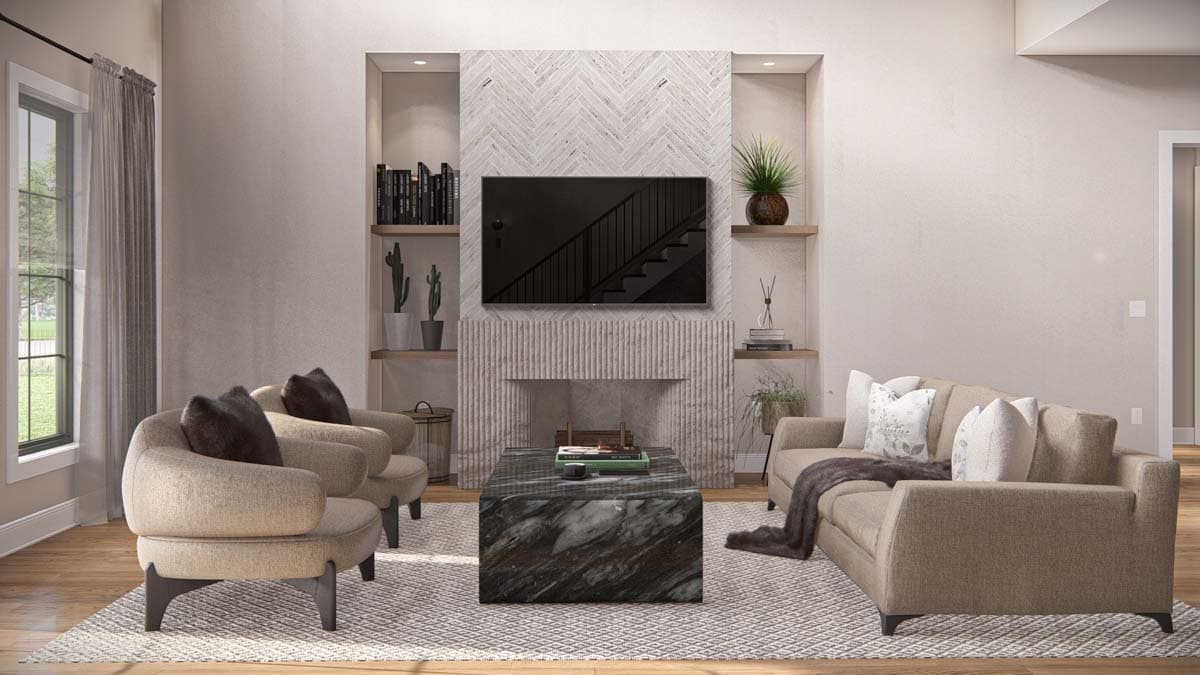

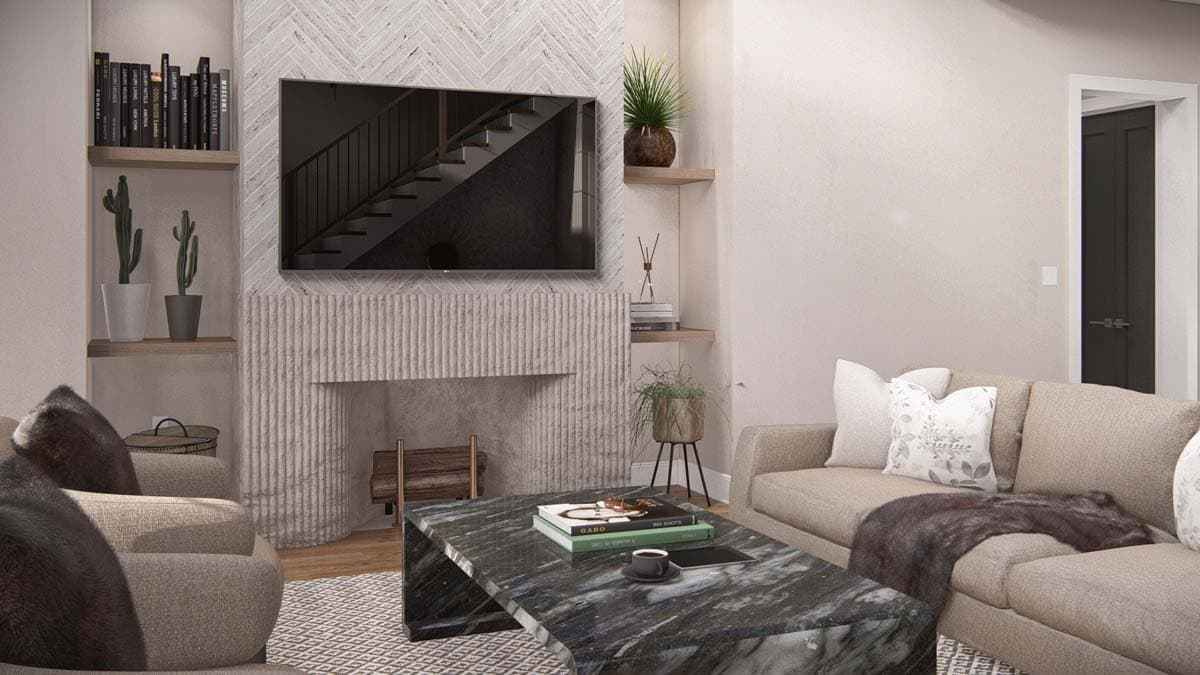

  • Inside, discover an open concept main area that seamlessly integrates the living, dining, and kitchen spaces. The 2-story ceiling in the great room with fireplace creates an airy atmosphere.

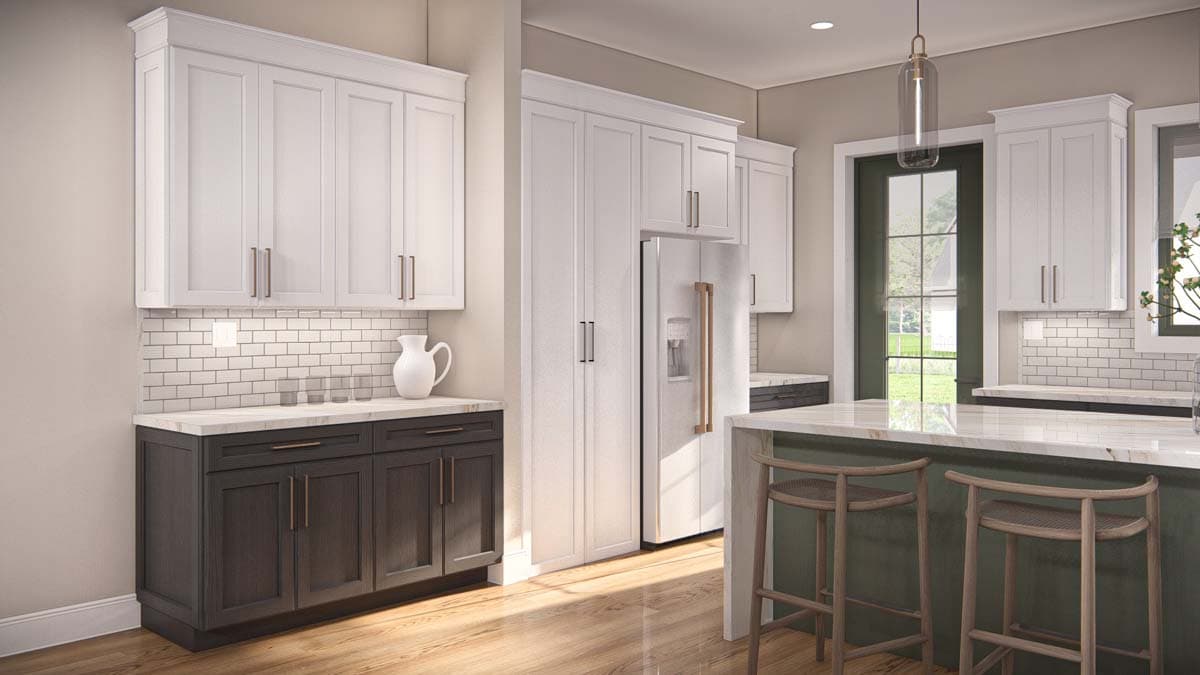

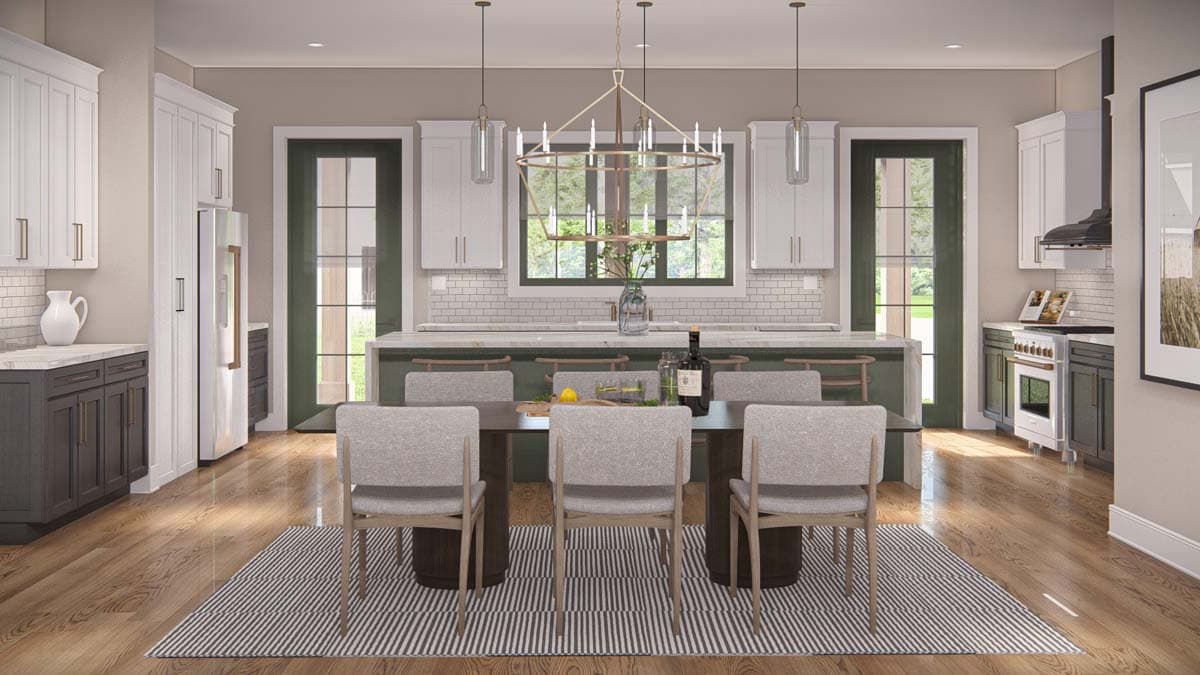

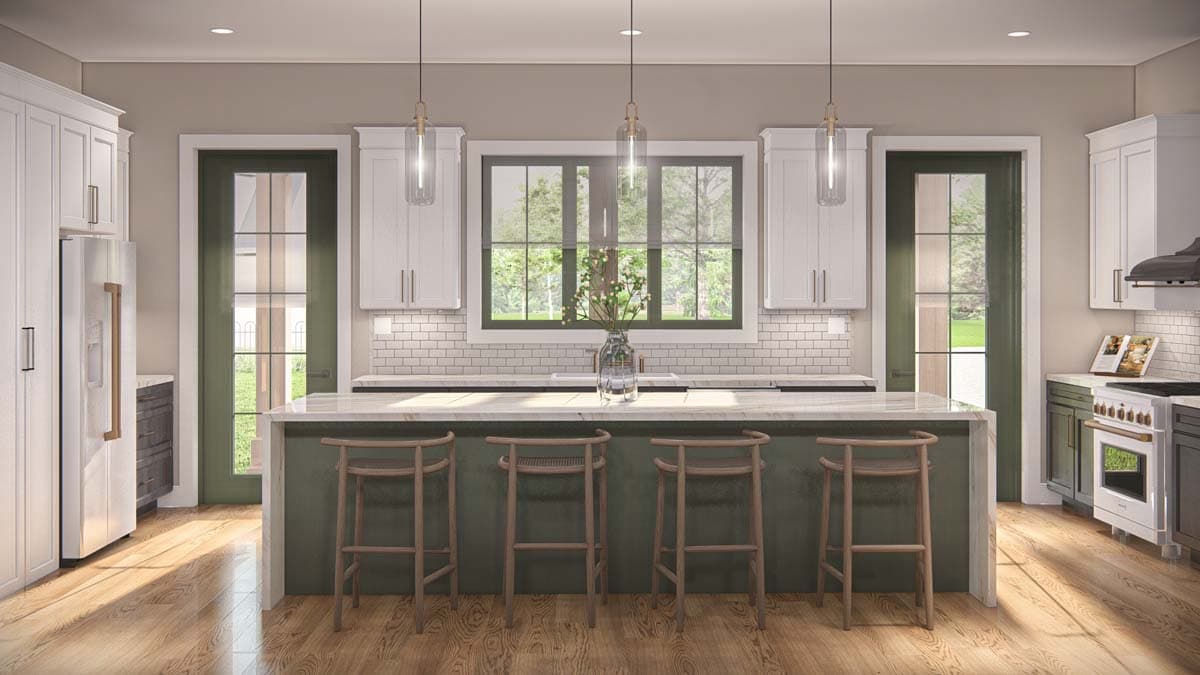

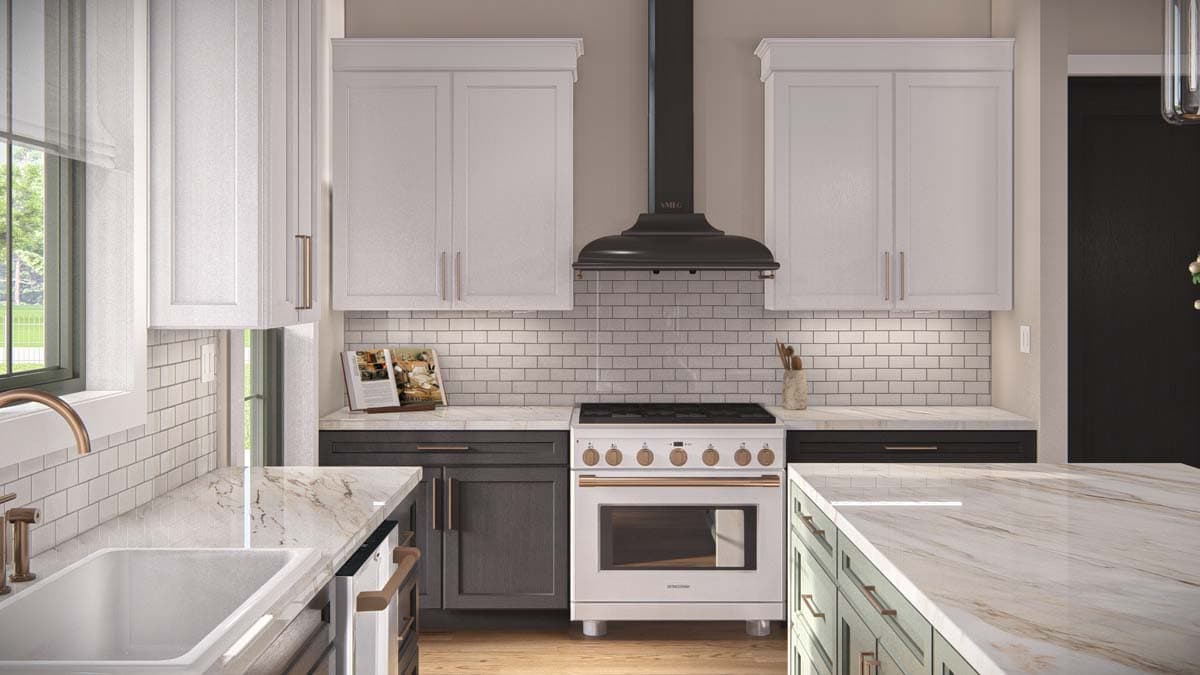

  • In back of the home, the kitchen has a double sink centered beneath windows looking out back with two doors taking you to the 21' by 10' covered patio. A large walk-in pantry has built-in counter space and a window.

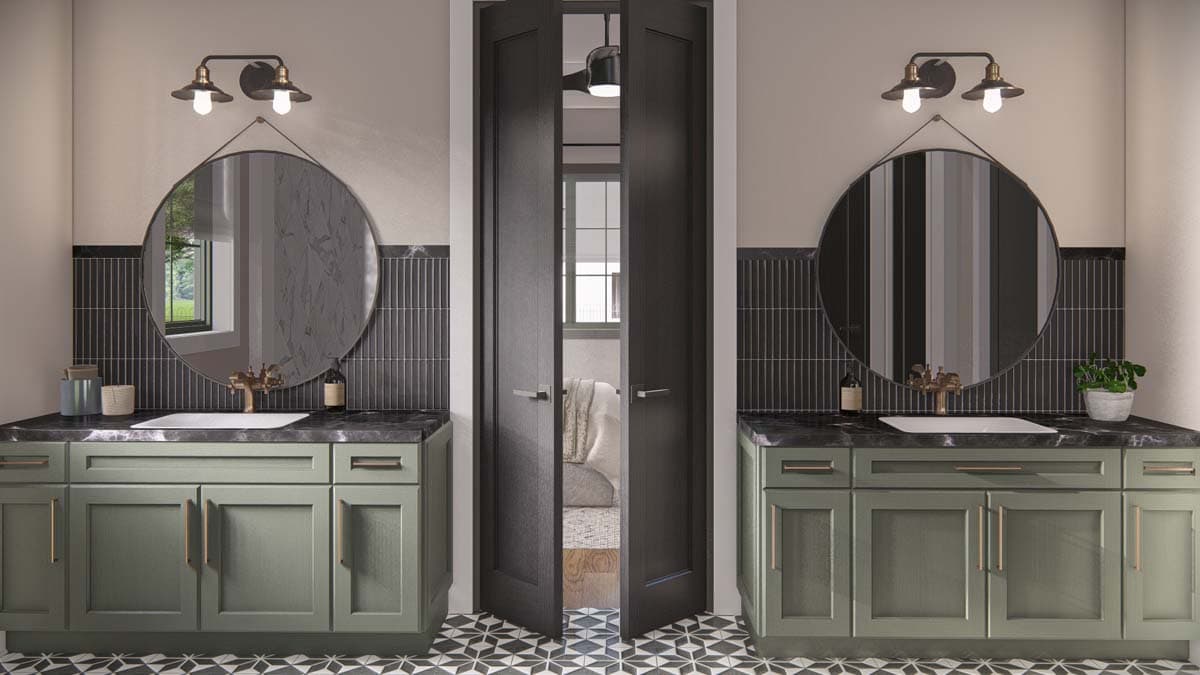

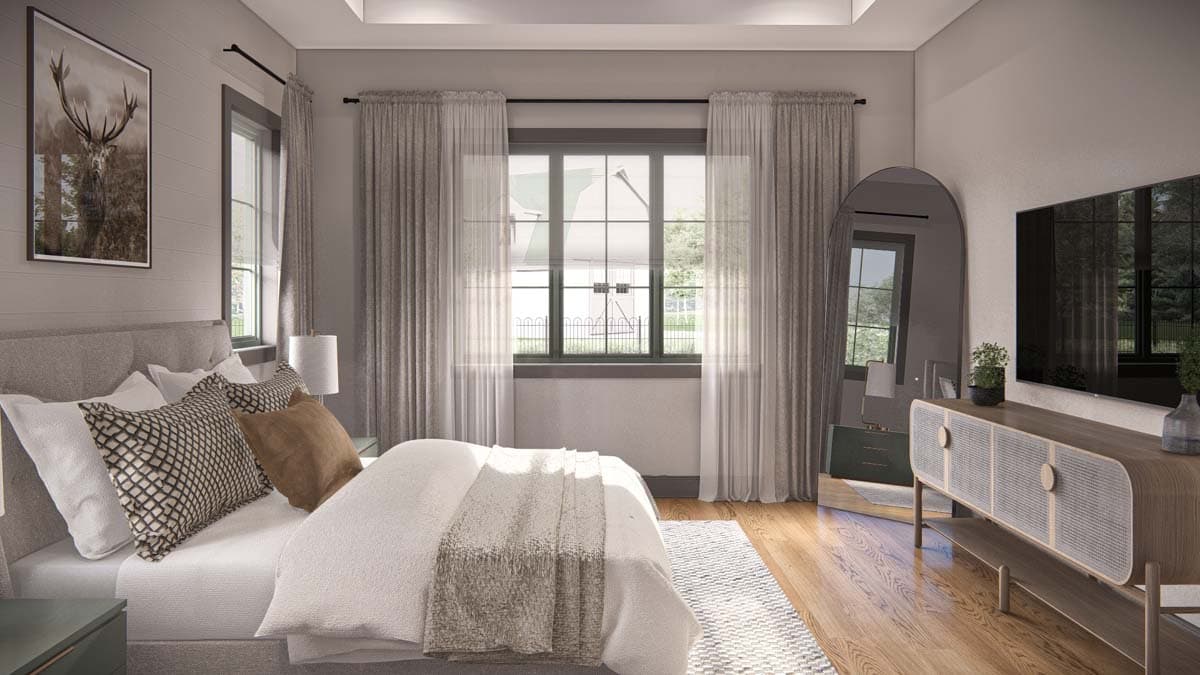

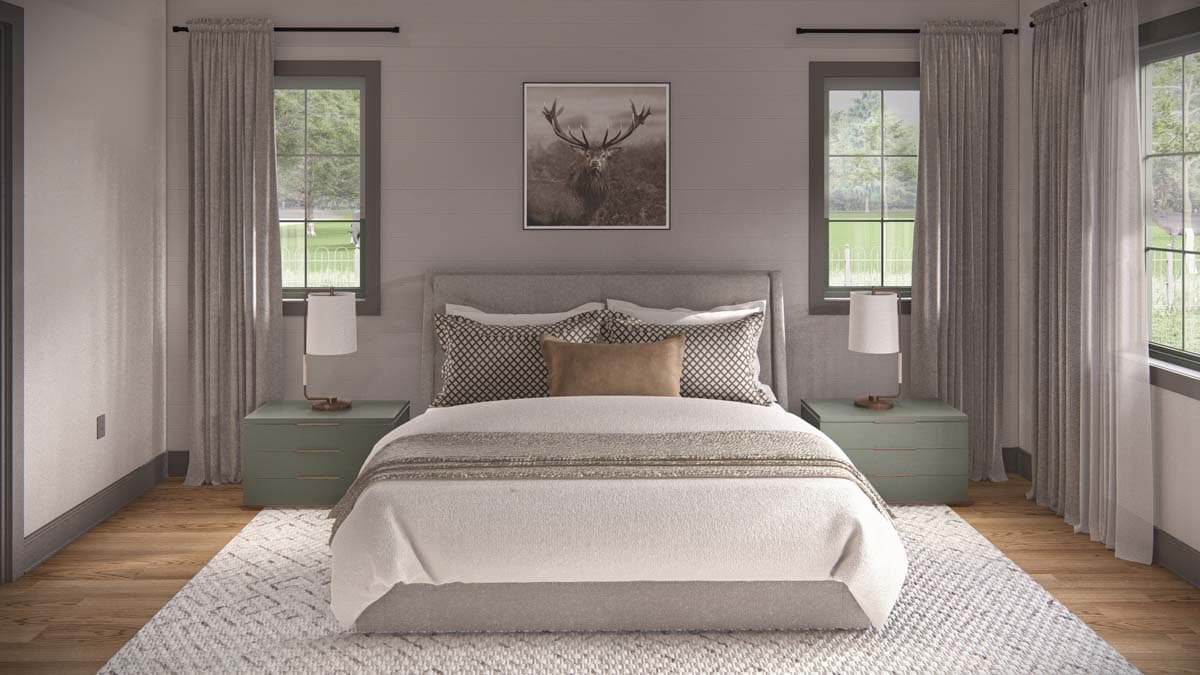

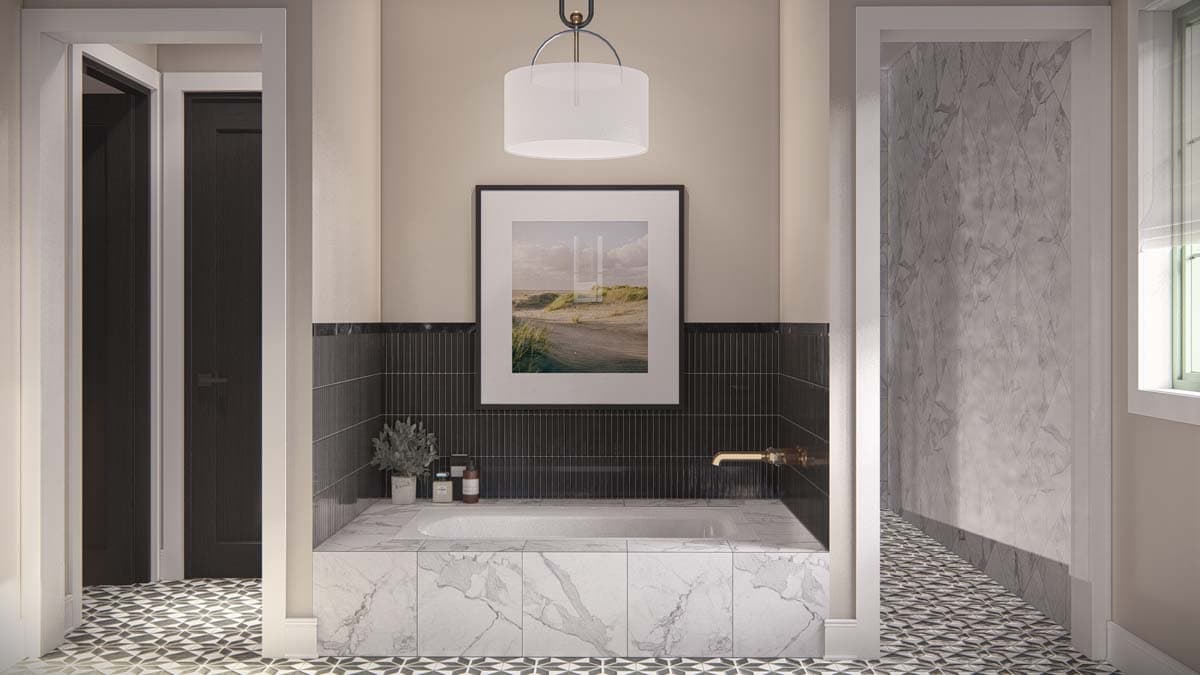

  • The main floor master suite has a spa-like ensuite bathroom with a soaking tub and walk-in shower, and a generous walk-in closet and direct laundry access. Upstairs, two beds share a bath and open to the loft overlooking the great room below.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,519 sq. ft.

1st Floor

1,932 sq. ft.

2nd Floor

587 sq. ft.

Porch, Combined

343 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

69' 0"

Depth

62' 0"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

829 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Architectural Style

Barndominium

Country

Traditional

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room

Walk-in Pantry

Square Footage Breakdown
