Plan 23787JD

Beautiful 5-Bed Mountain House Plan with Main-Level Guest Bed

Beautiful 5-Bed Mountain House Plan with Main-Level Guest Bed

Plan 23787JD

  • 3,556

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

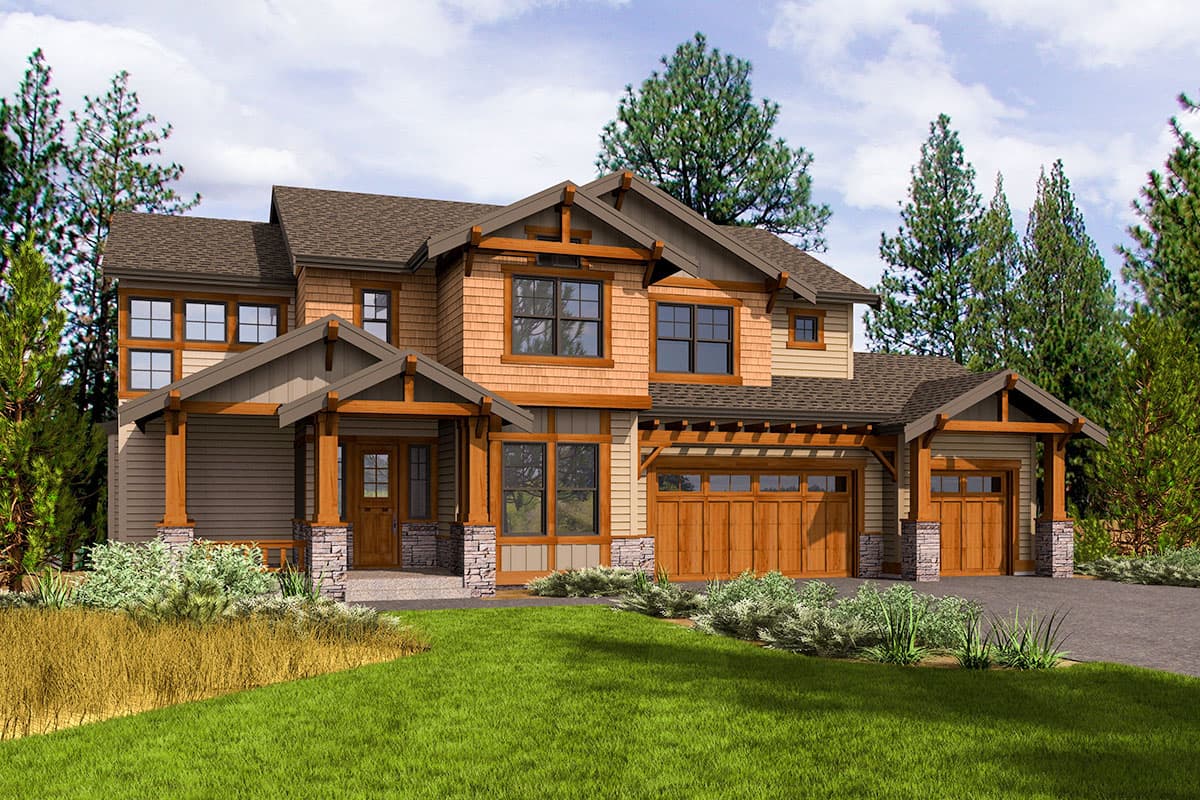

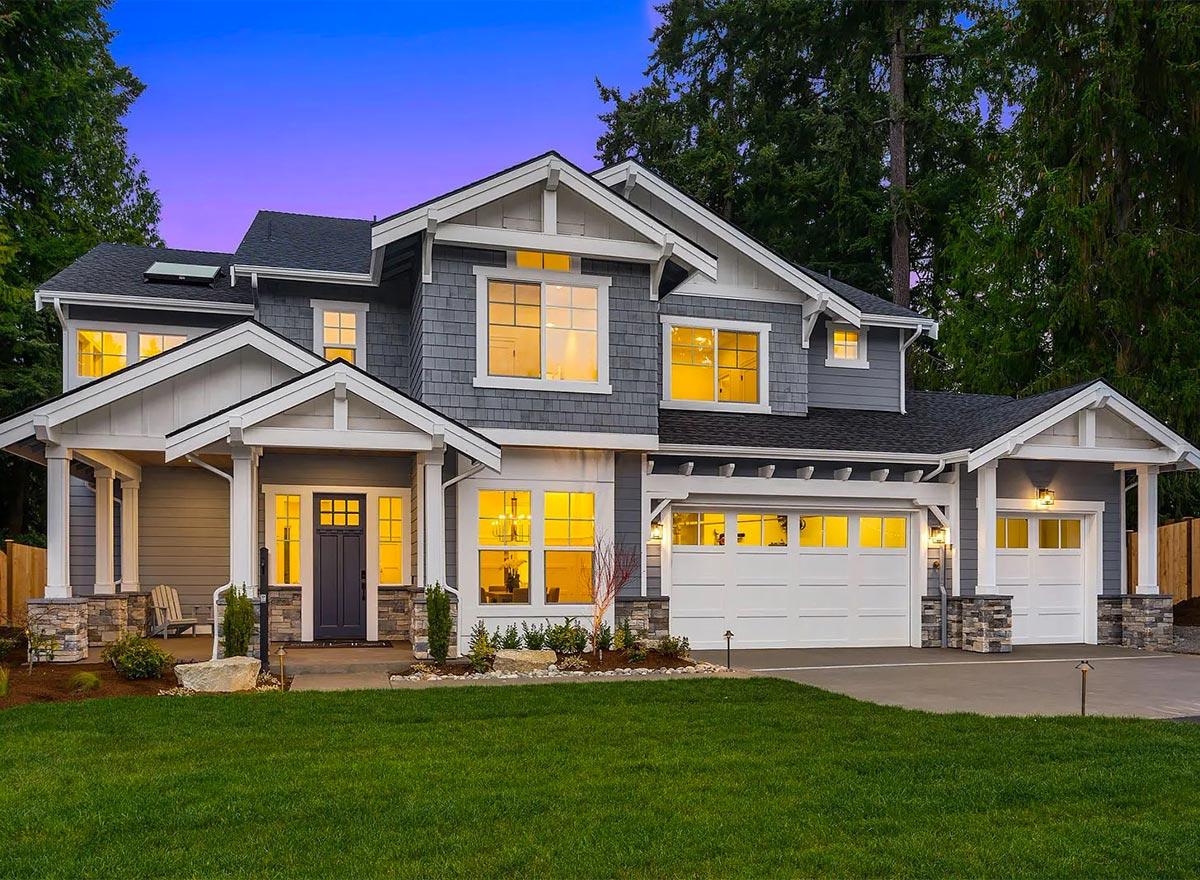

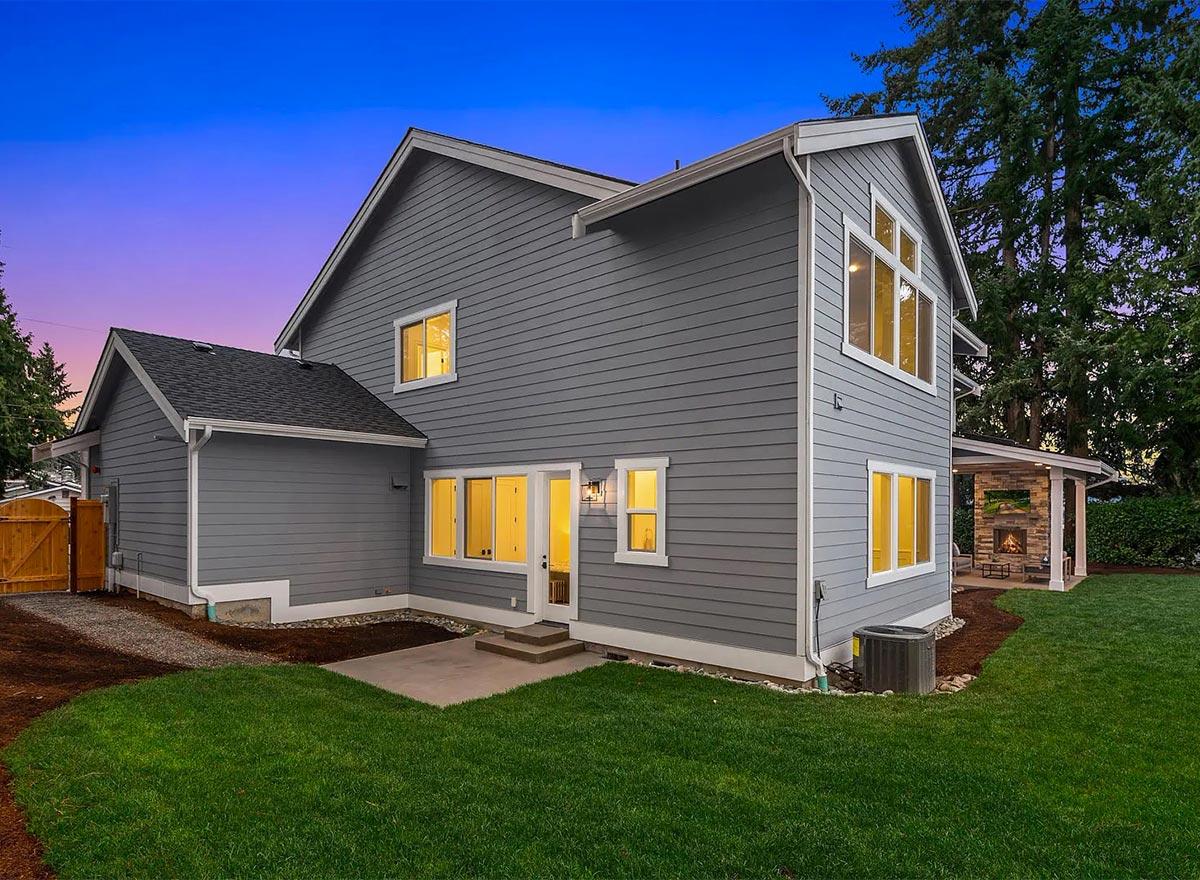

  • Shake siding, natural wood trim, and stone accents contribute to the beauty provided in this 5-bedroom mountain house plan. Timber-frame, gable roofs complete the design.

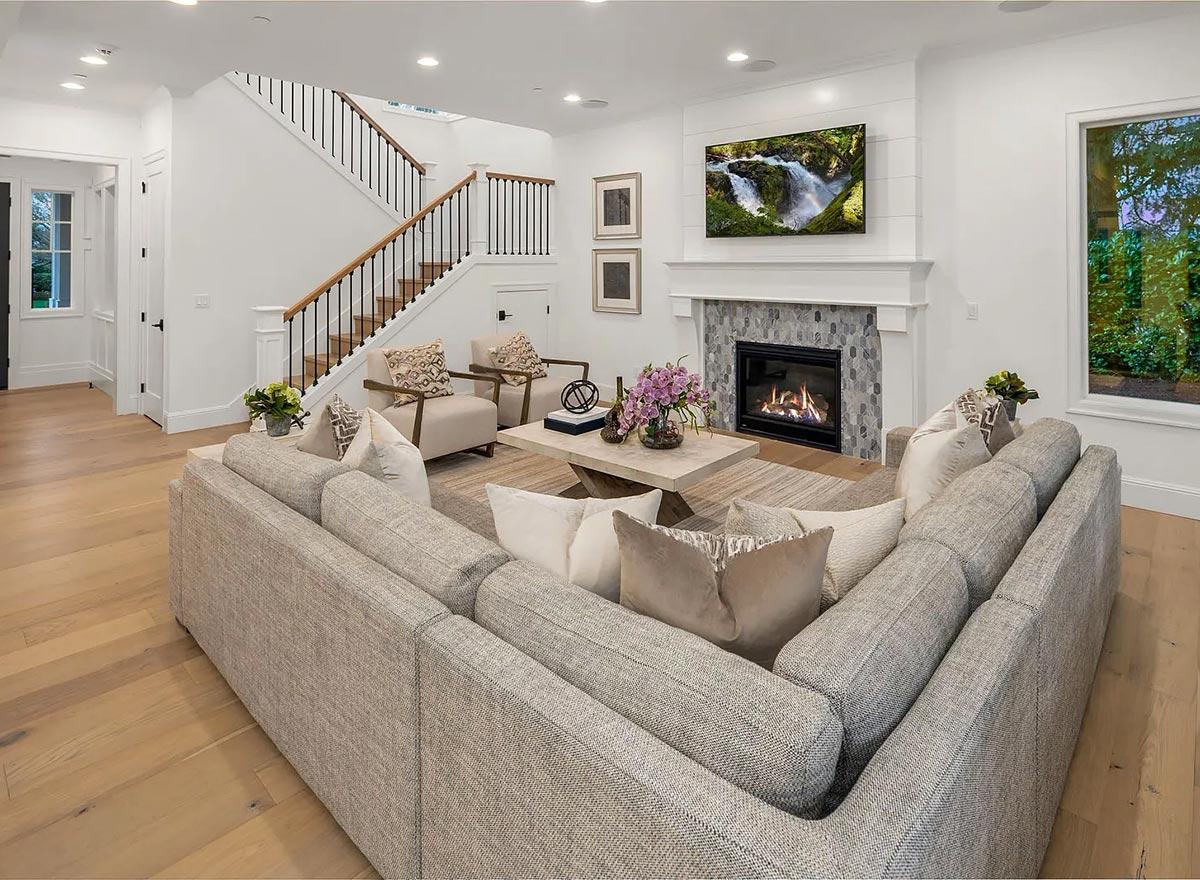

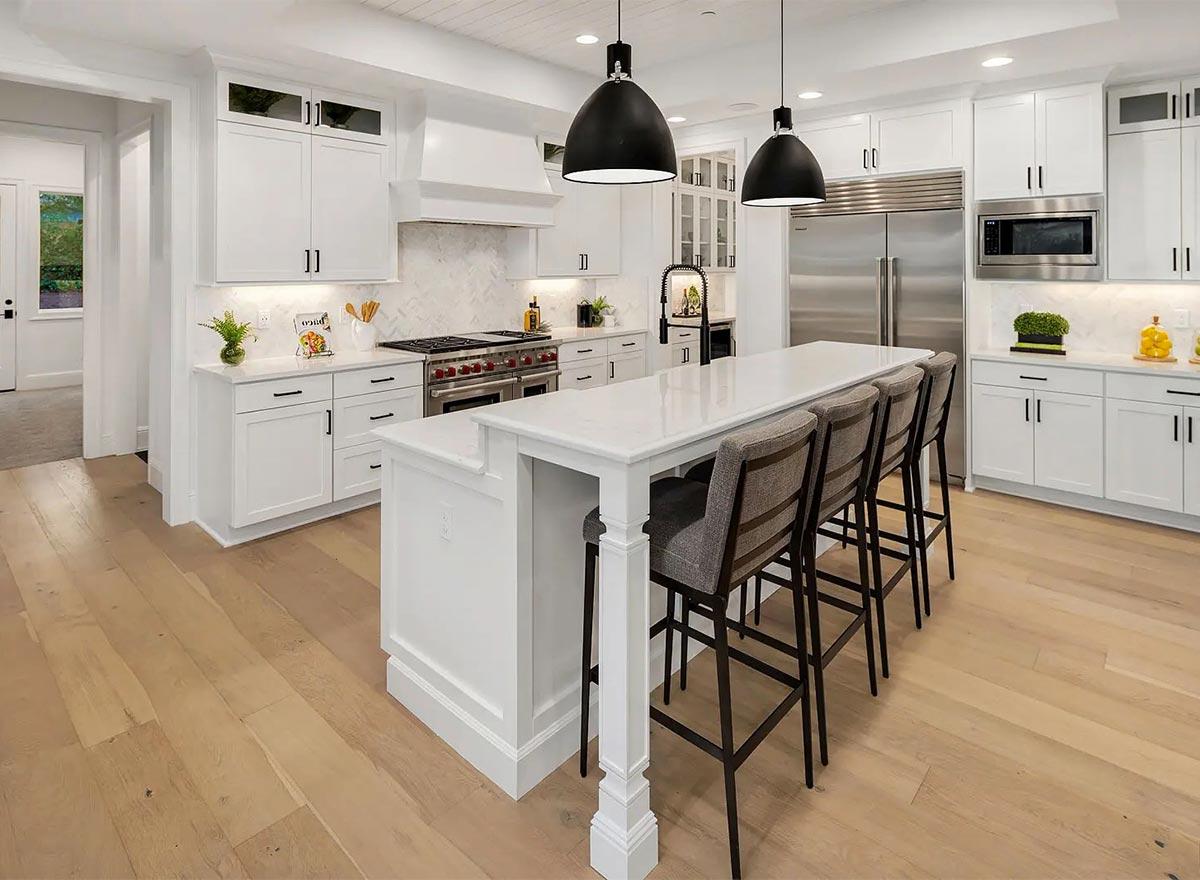

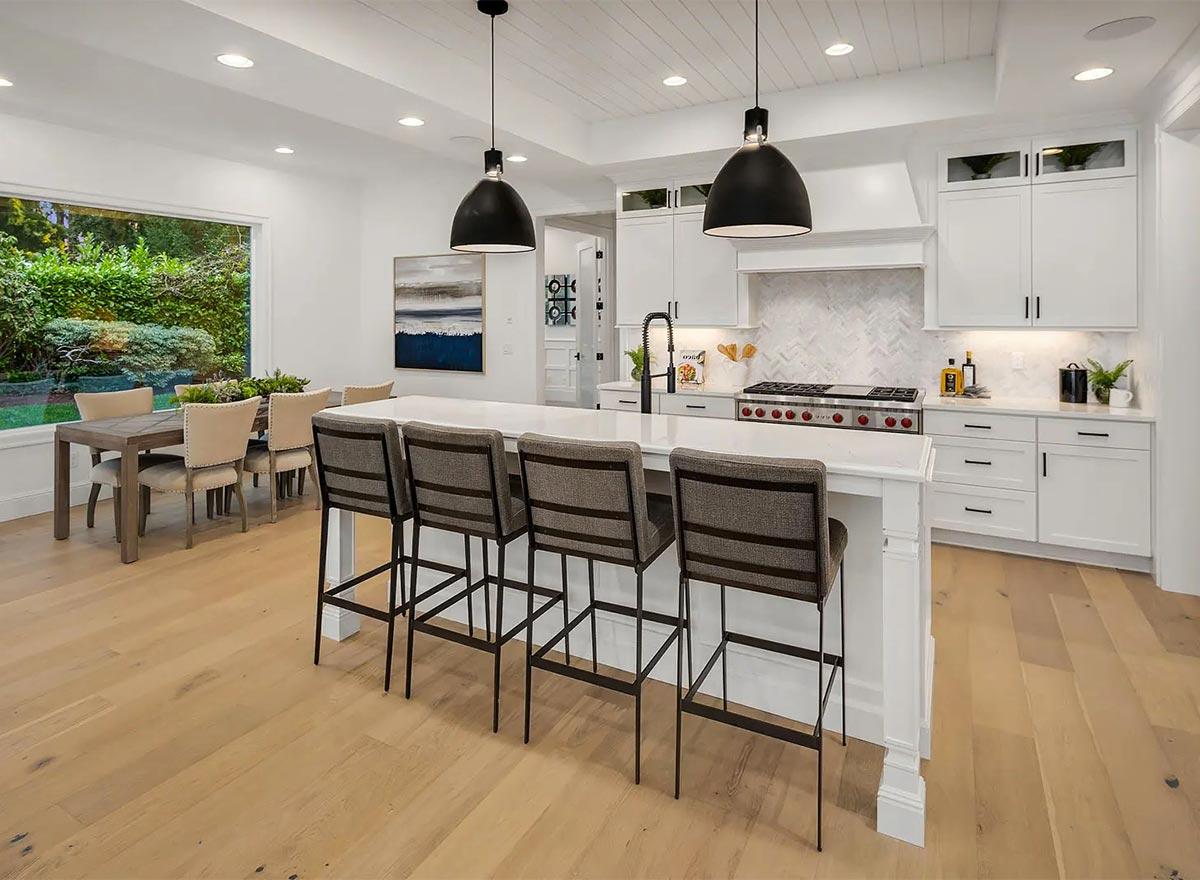

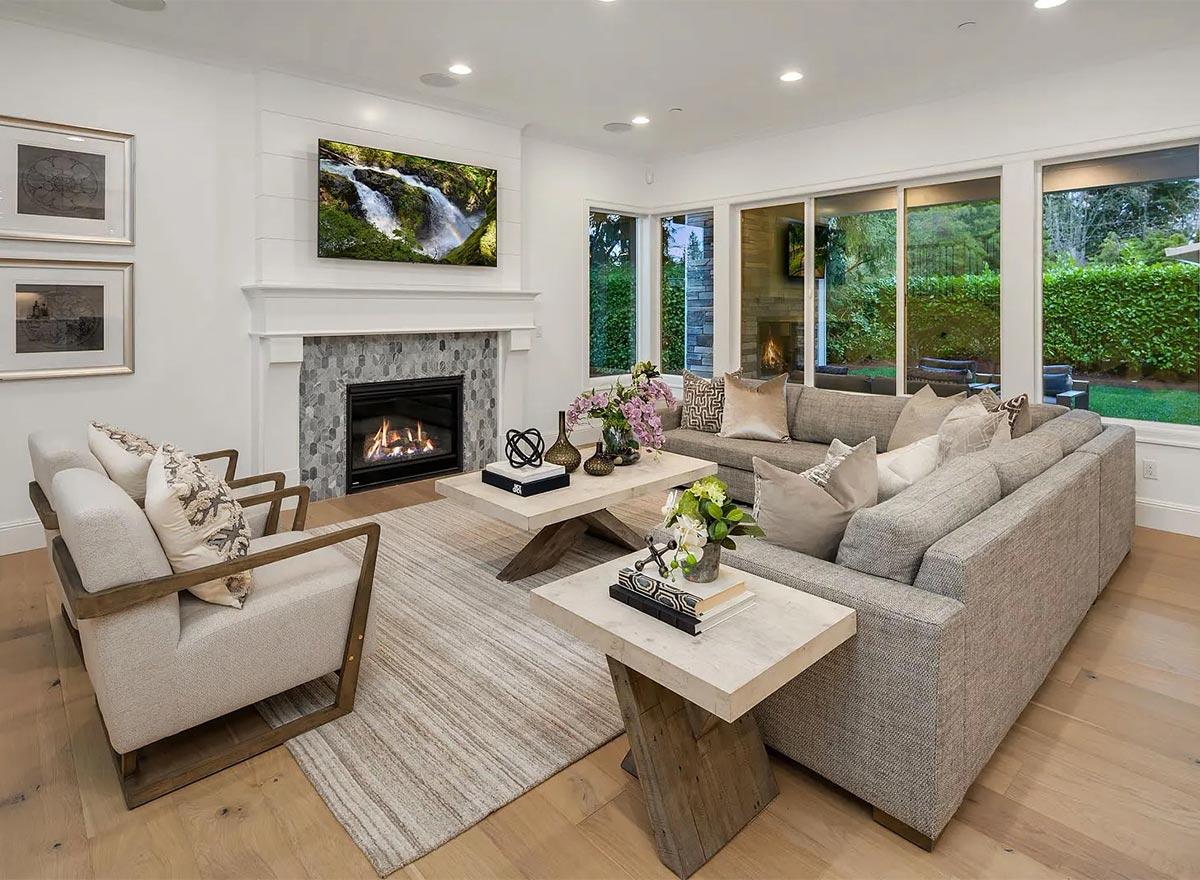

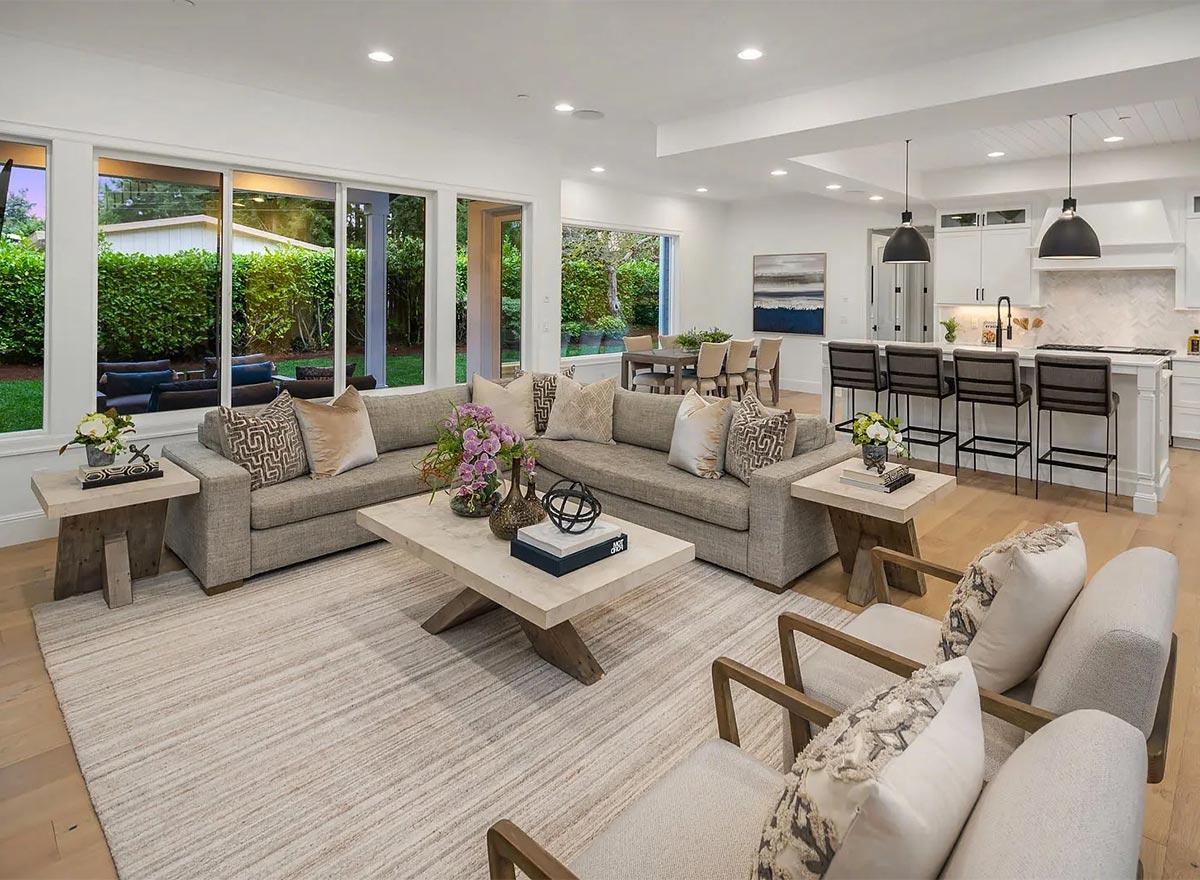

  • Beyond the private foyer and past a powder bathroom, you'll find yourself directly in the heart of the home where the great room opens to the kitchen and breakfast nook. Large windows supply ample natural light to permeate throughout the main level, along with a warm fireplace to be enjoyed by all.

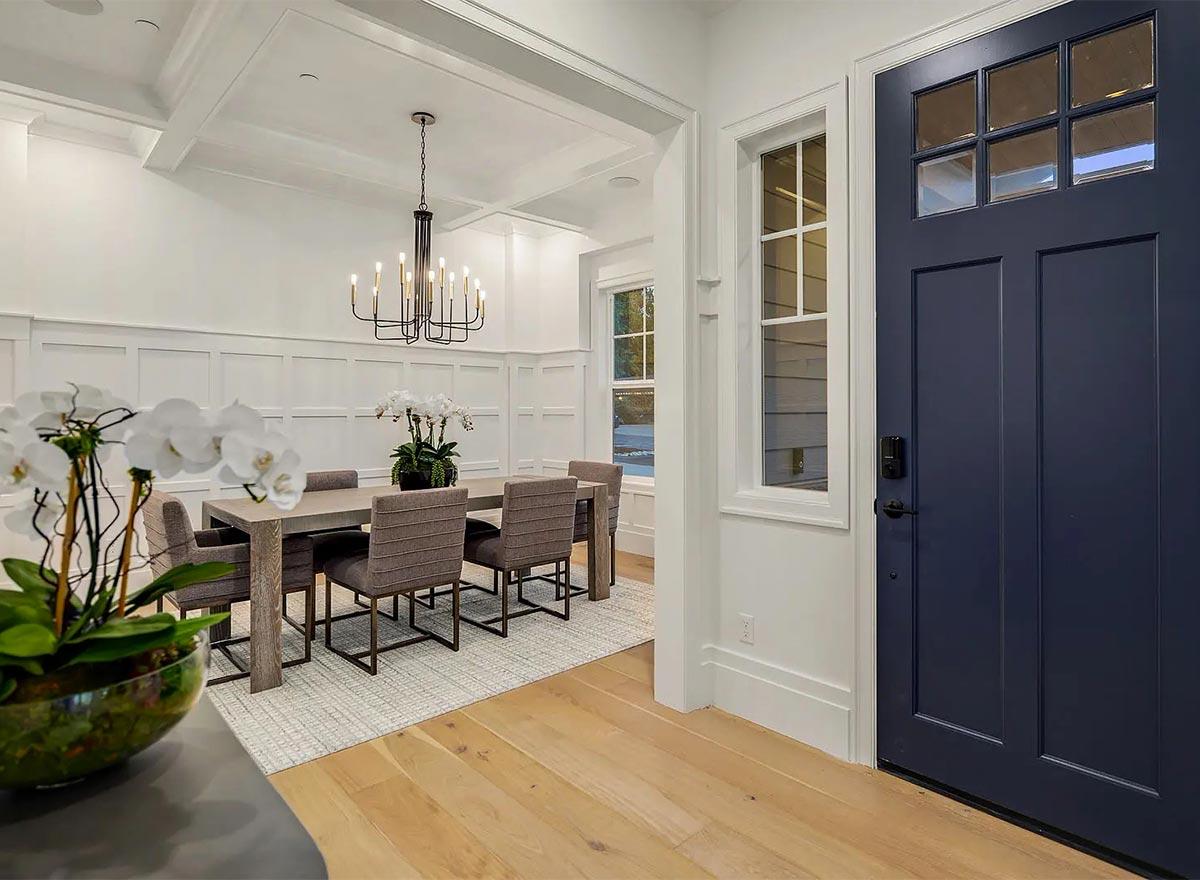

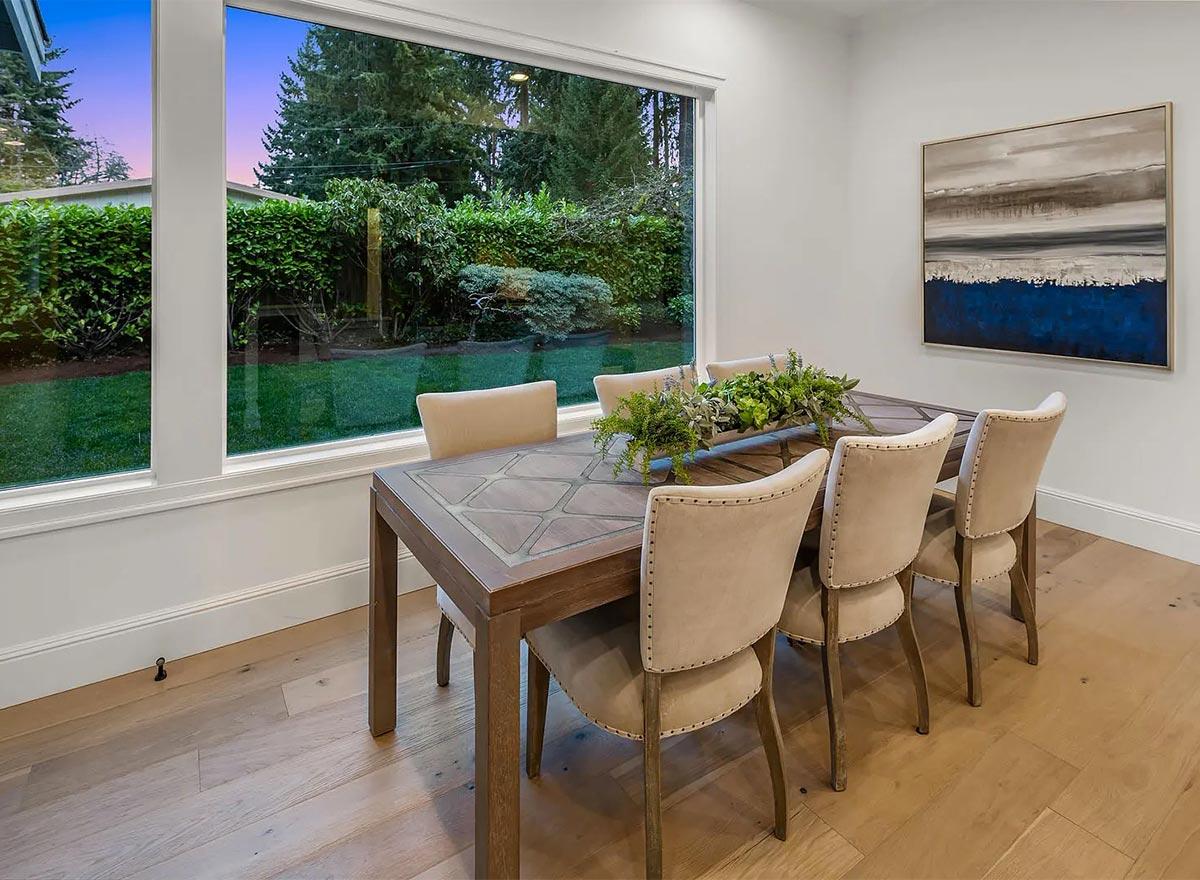

  • A butler's pantry sits across from a walk-in pantry and connects the kitchen to a quiet dining room located towards the front of the home.

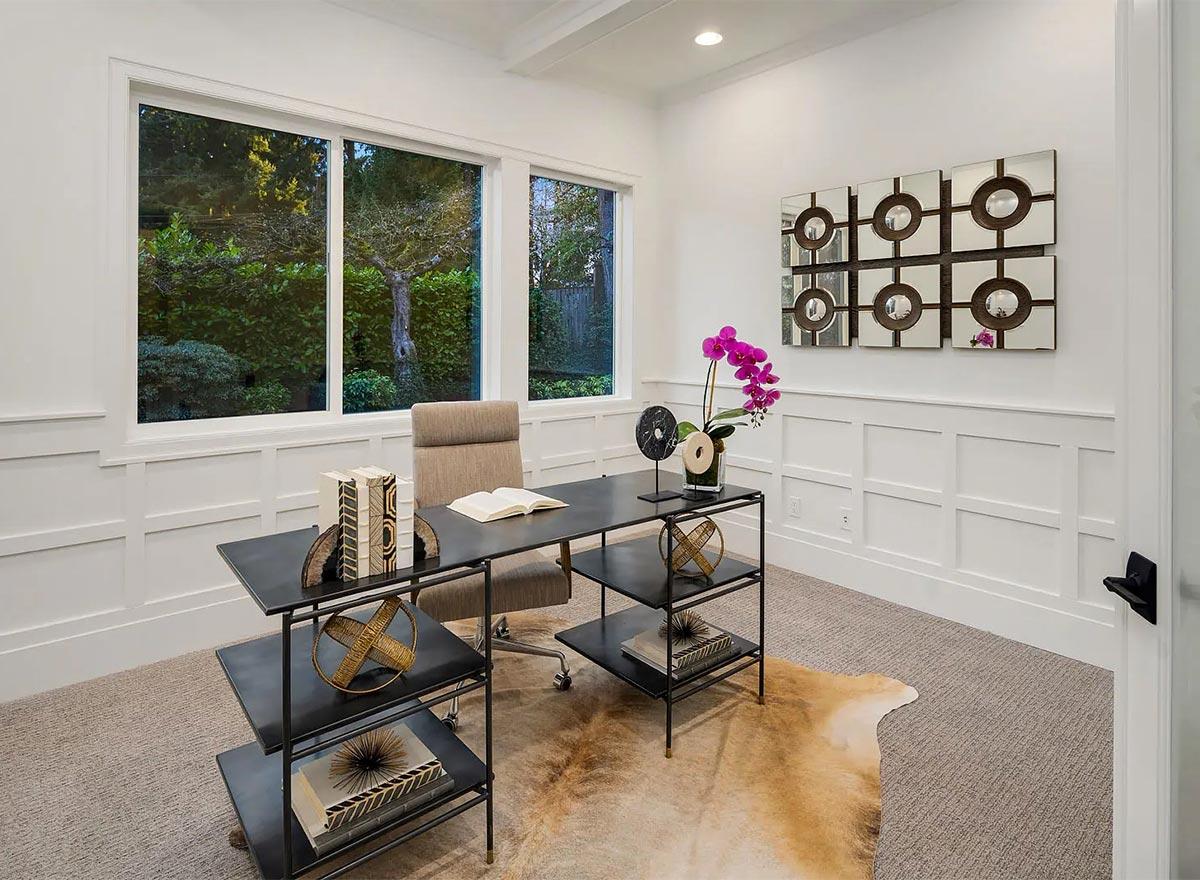

  • A private den and guest bedroom with a full bathroom also reside on the main level.

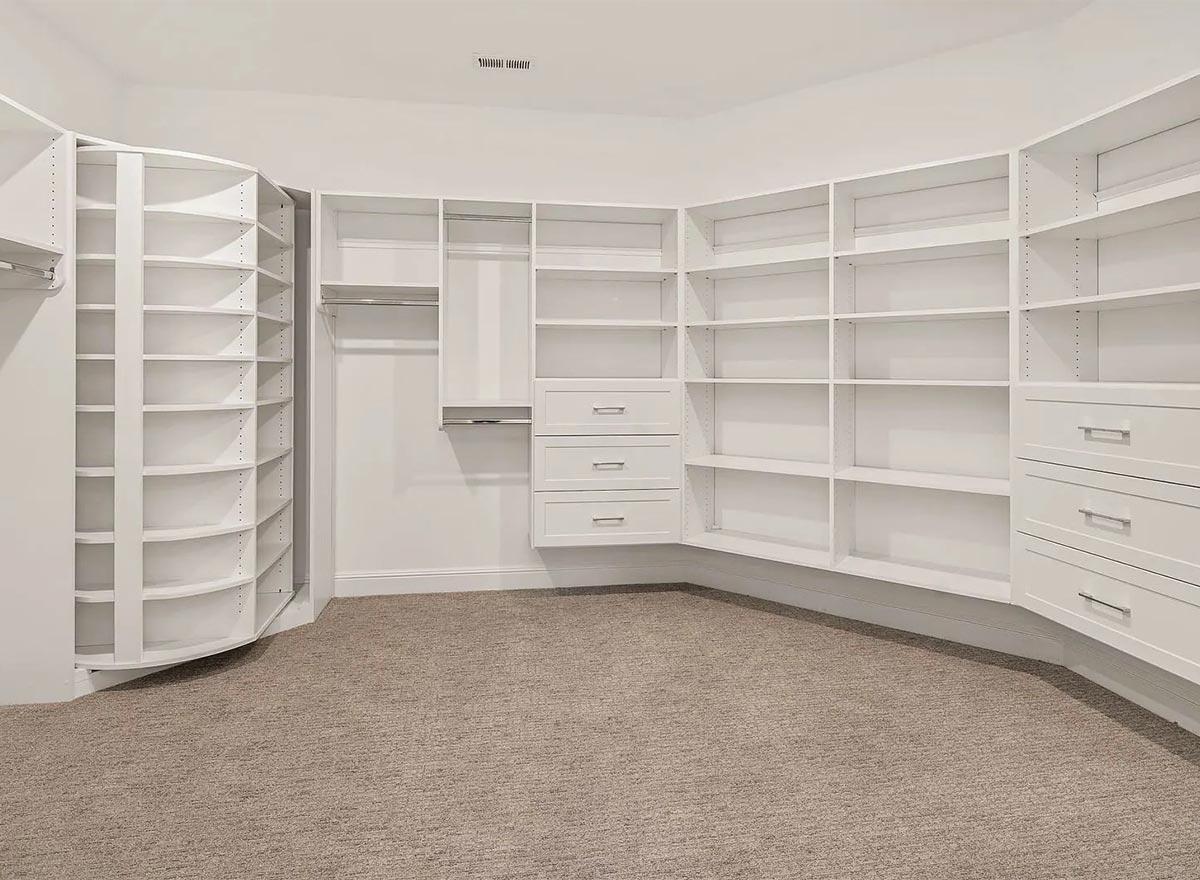

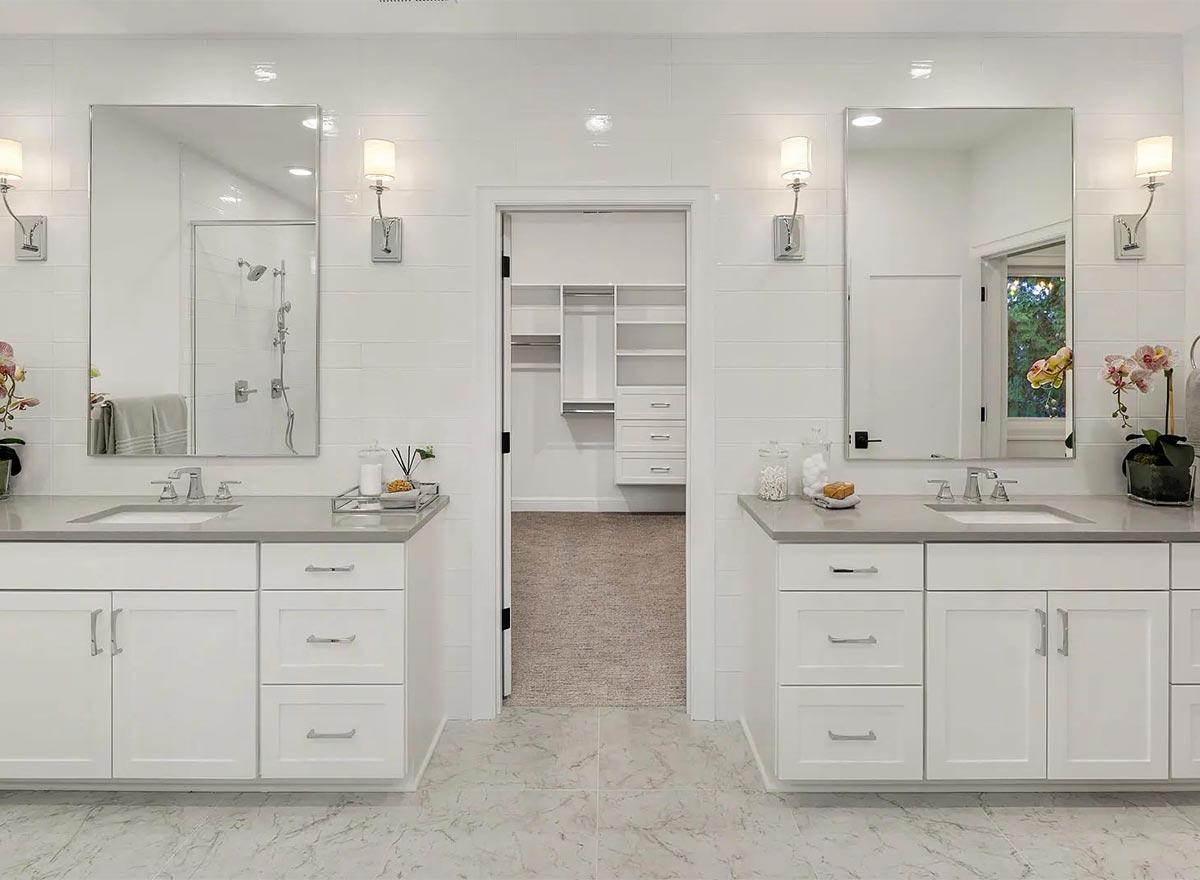

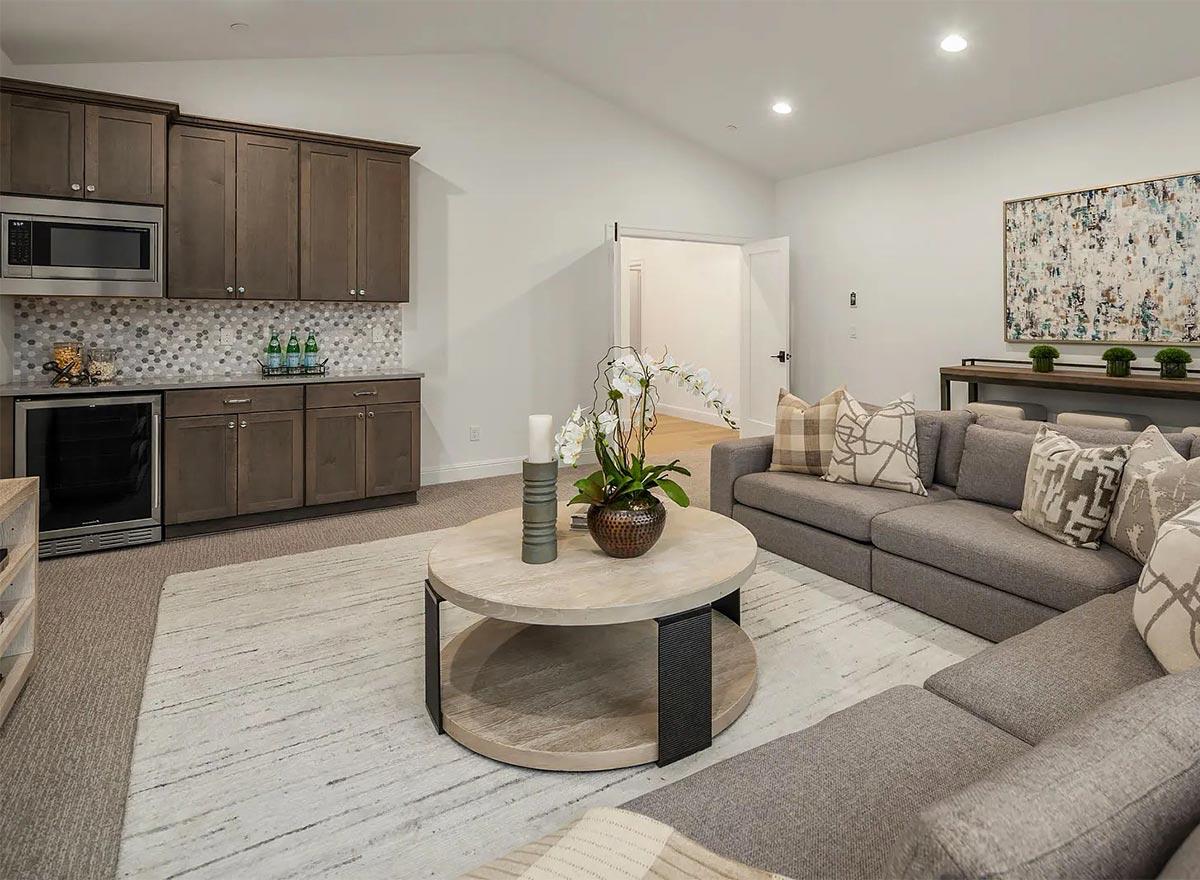

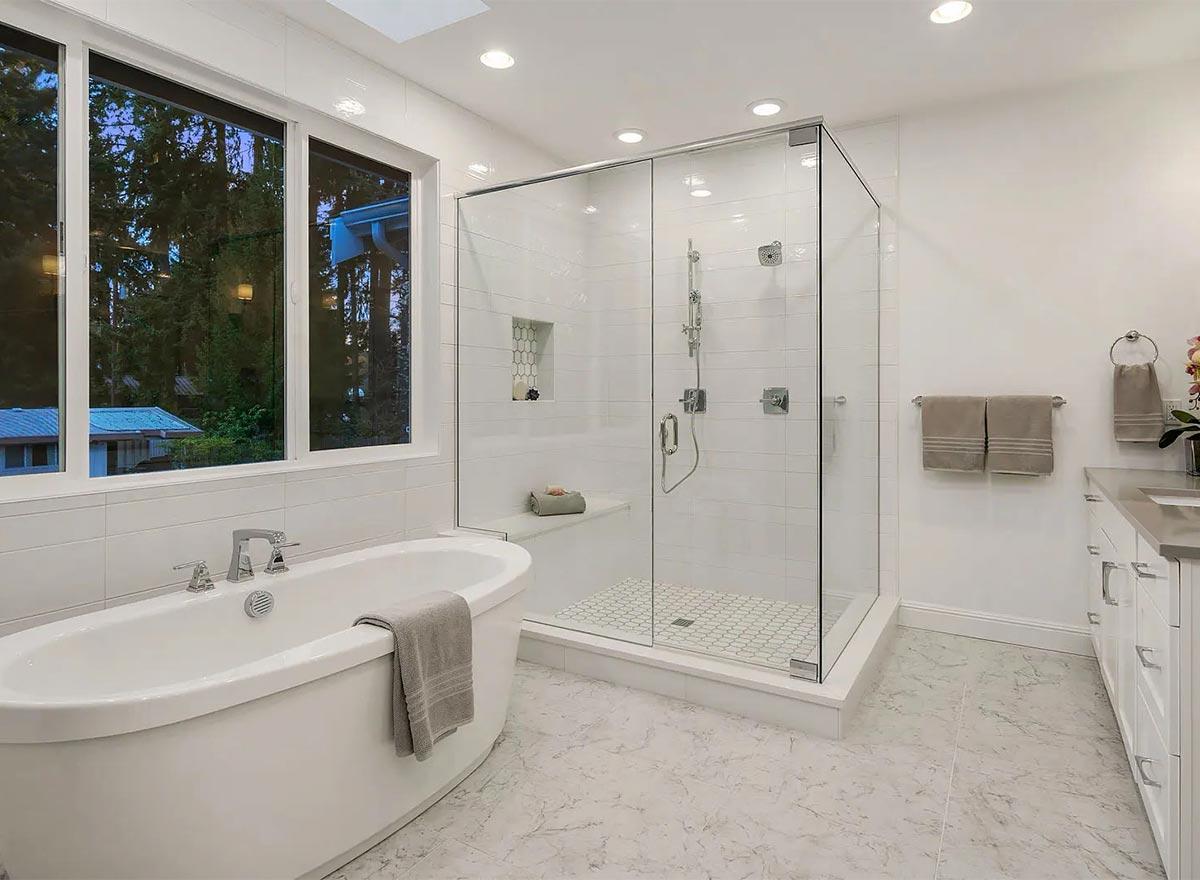

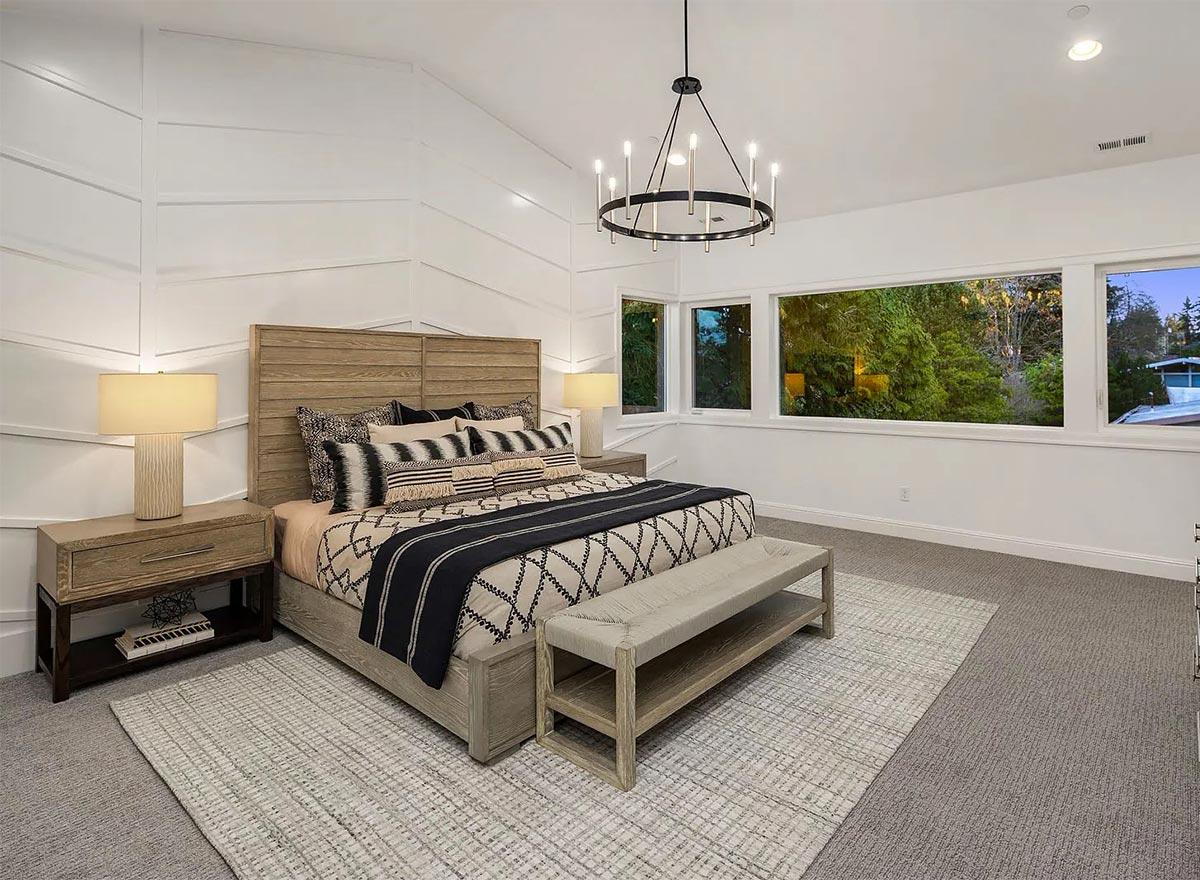

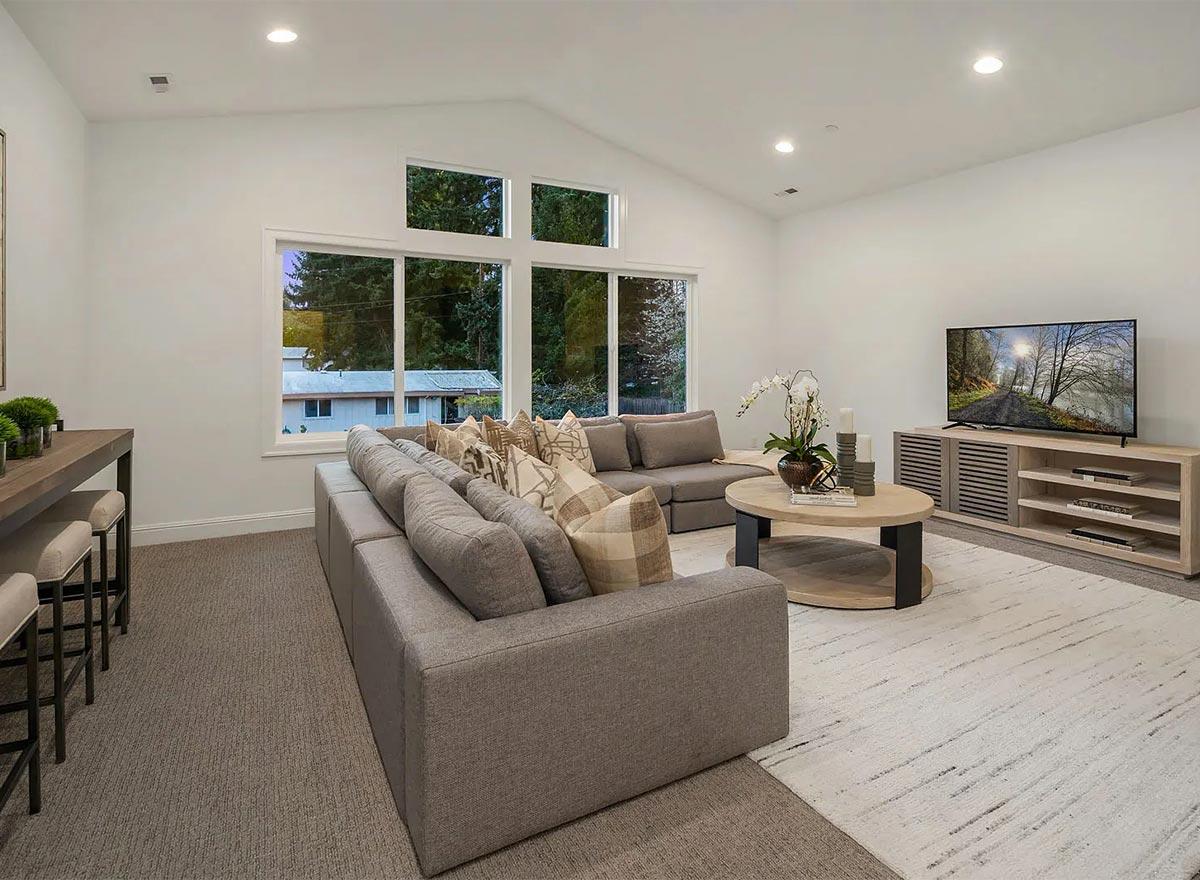

  • Upstairs, discover a master bedroom with a 5-fixture bathroom and a large walk-in closet. Two additional bedrooms share a Jack-and-Jill, 4-fixture bathroom and another bedroom has access to a full bathroom. A large, rearward facing bonus room features a vaulted ceiling.
  • A family foyer with built-ins sits just inside from the 3-car garage.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

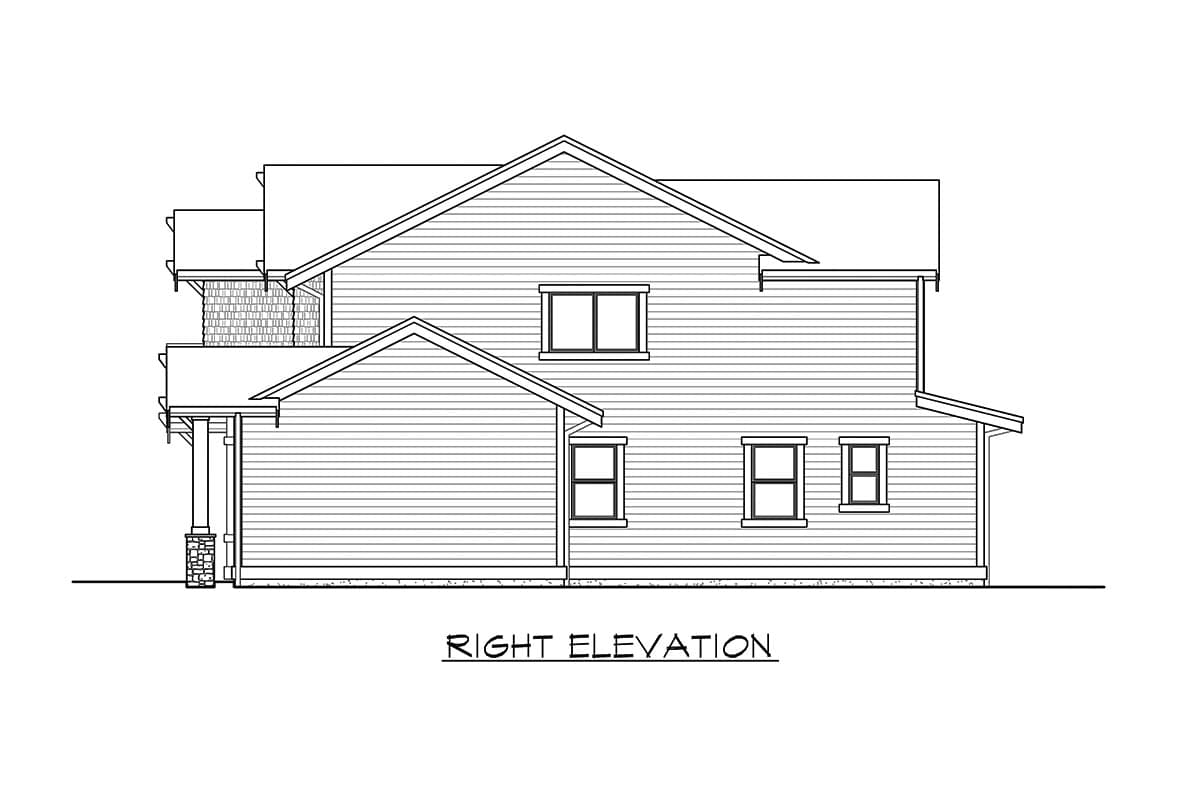

Elevation Sheet

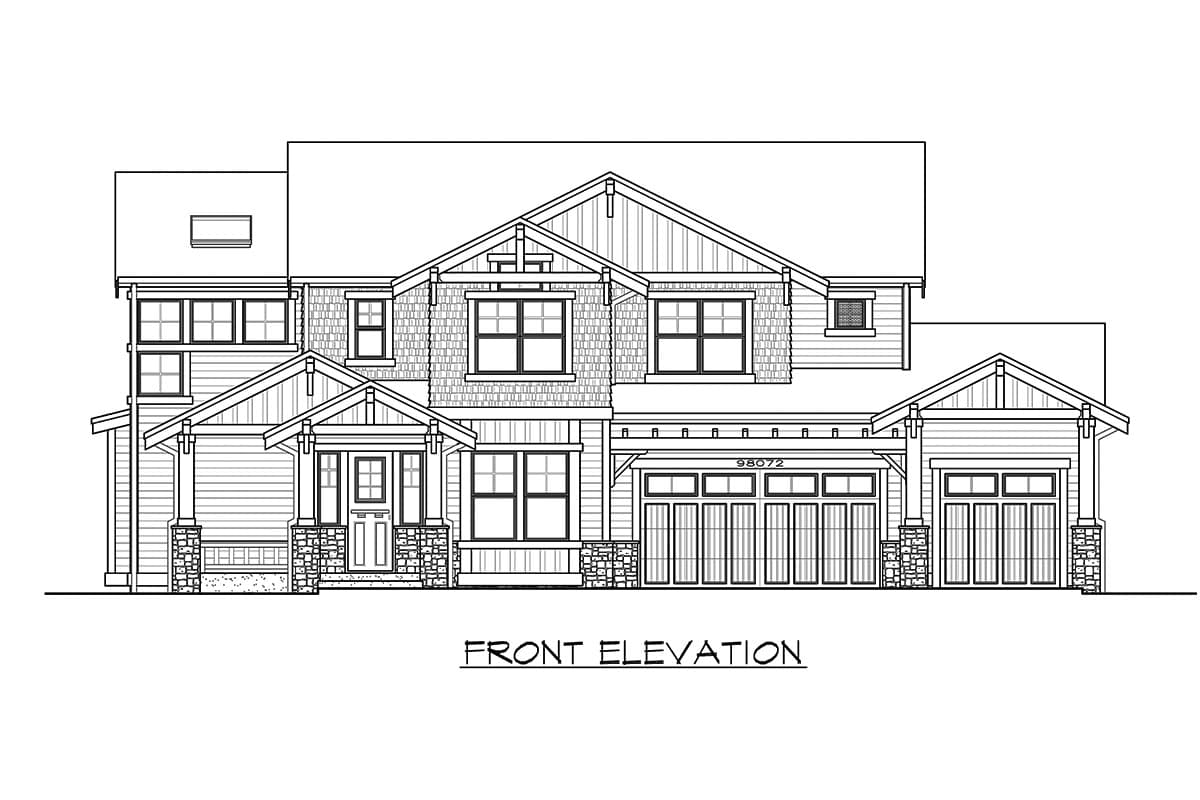

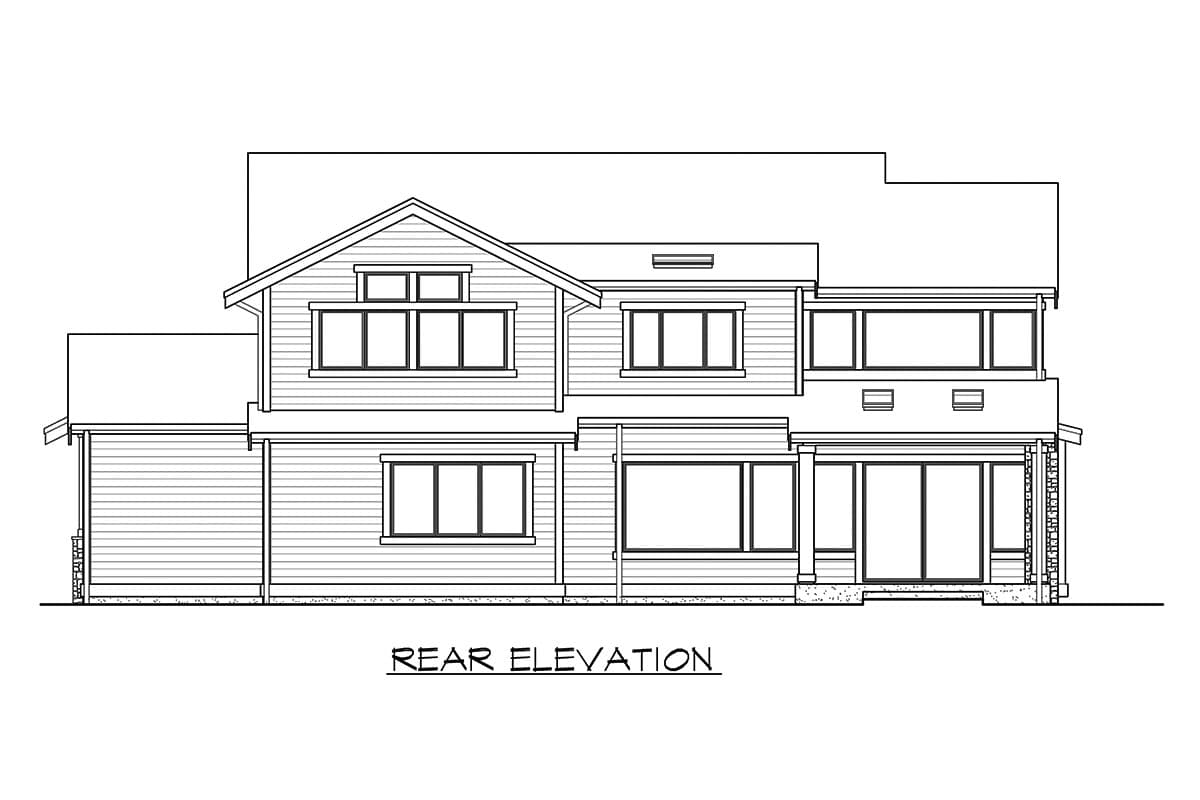

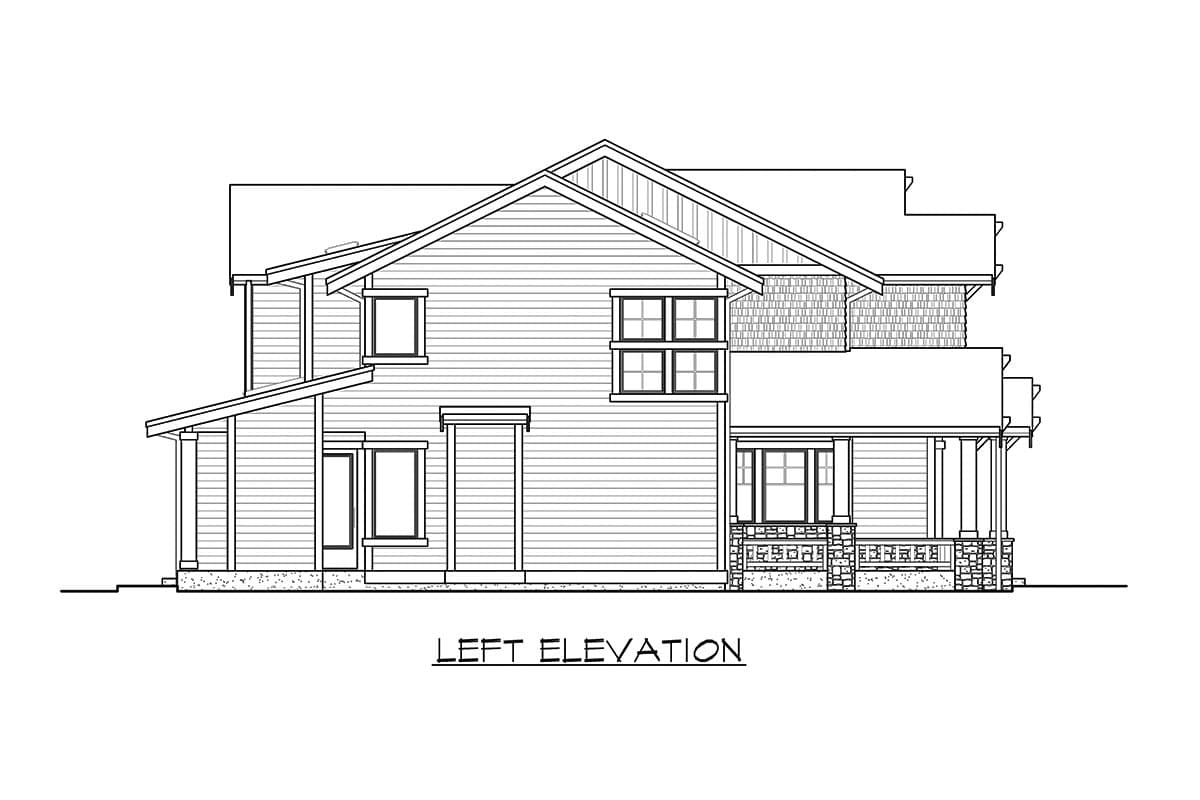

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

Plan details



Beautiful 5-Bed Mountain House Plan with Main-Level Guest Bed

  • 3,556

    Heated s.f.

  • 5

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,650
  • 5 Sets PLUS $1,800
  • CAD - multi-use $2,900
  • View all purchase option online

About This Plan

  • Shake siding, natural wood trim, and stone accents contribute to the beauty provided in this 5-bedroom mountain house plan. Timber-frame, gable roofs complete the design.
  • Beyond the private foyer and past a powder bathroom, you'll find yourself directly in the heart of the home where the great room opens to the kitchen and breakfast nook. Large windows supply ample natural light to permeate throughout the main level, along with a warm fireplace to be enjoyed by all.
  • A butler's pantry sits across from a walk-in pantry and connects the kitchen to a quiet dining room located towards the front of the home.
  • A private den and guest bedroom with a full bathroom also reside on the main level.
  • Upstairs, discover a master bedroom with a 5-fixture bathroom and a large walk-in closet. Two additional bedrooms share a Jack-and-Jill, 4-fixture bathroom and another bedroom has access to a full bathroom. A large, rearward facing bonus room features a vaulted ceiling.
  • A family foyer with built-ins sits just inside from the 3-car garage.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

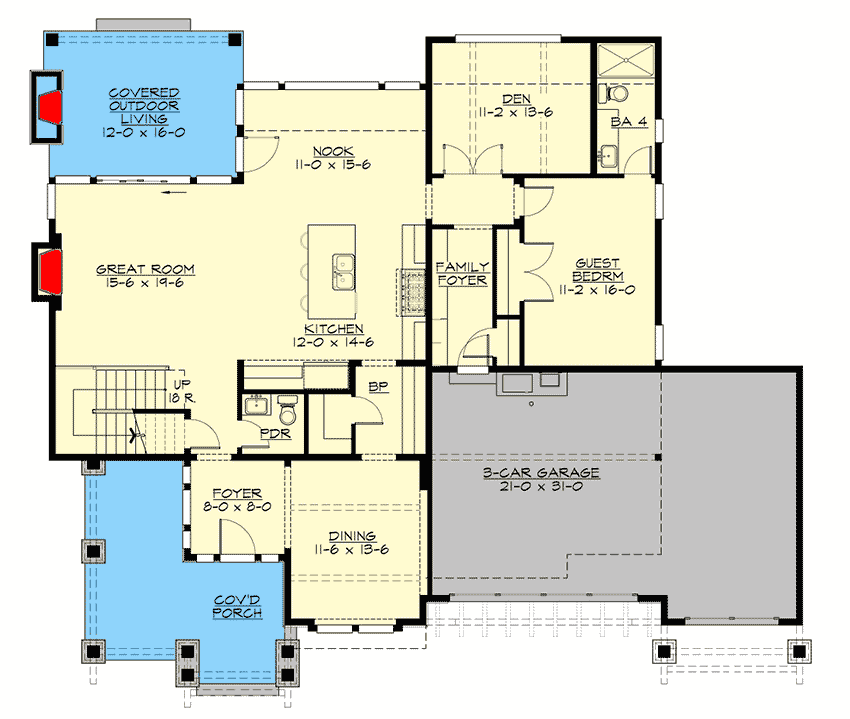

  • Main Level

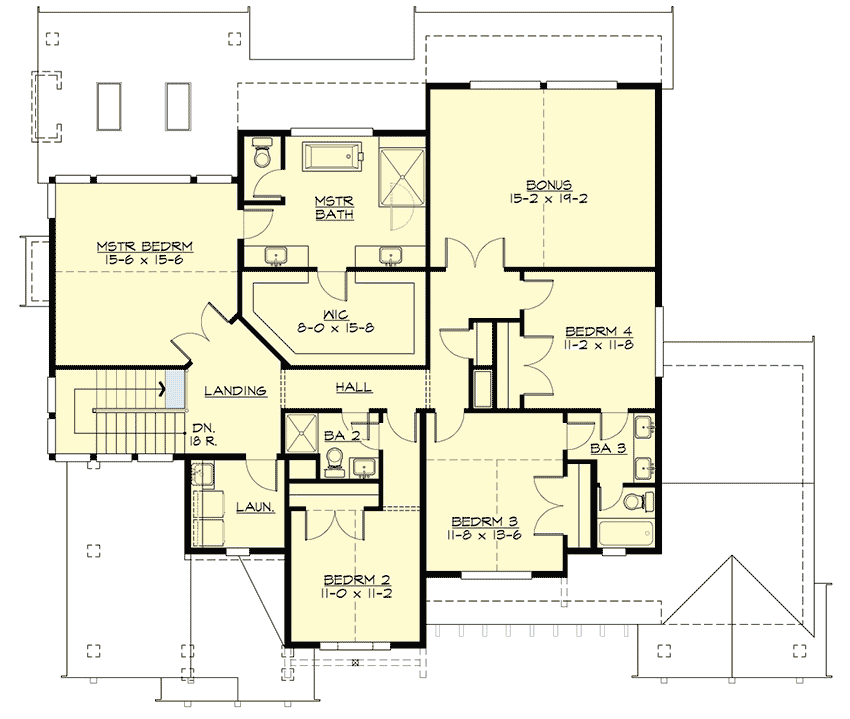

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,556 sq. ft.
  • 1st Floor: 1,728 sq. ft.
  • 2nd Floor: 1,828 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 64' 0"
  • Depth: 55' 0"
  • Max ridge height: 28' 6"

Garage

  • Type: Attached
  • Area: 644 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
