Plan 11783HZ
Beautiful Acadian With Flexibility Built In
Heated S.F.
1,853
Beds
3
Baths
2
Stories
1-2
Cars
2
What's Included
Plan Details
  • This beautiful Acadian house plan offers a wide open plan with huge ceilings and lots of space for entertaining.
  • The plan has a wonderful flex room that could be an office, playroom, or anything else that you can imagine.
  • The optional bonus room upstairs gives the house plan even more flexibility.
  • Related Plan: Get an alternate exterior and garage layout with house plan 11792HZ (1,792 sq. ft.).
What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

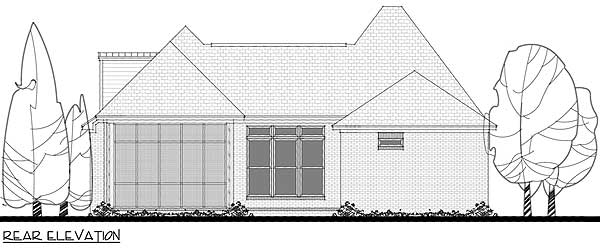

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Beautiful Acadian With Flexibility Built In

  • 1,853

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Floors

  • 2

    Car garage

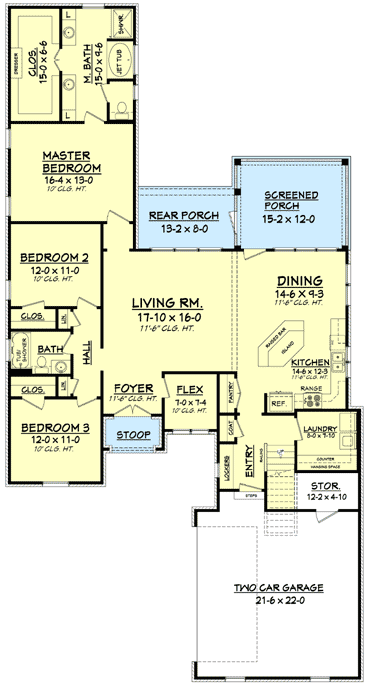

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 1,853 sq. ft.
  • 1st Floor: 1,853 sq. ft.

Dimensions

  • Width: 47' 0"
  • Depth: 89' 8"
  • Max ridge height: 23' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 513 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
