Plan 33231ZR Beautiful Coastal Contemporary House Plan with Pocketing Sliders Going to Covered Lanai

3,624 3 3.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Beautiful Coastal Contemporary House Plan with Pocketing Sliders Going to Covered Lanai

Plan 33231ZR

  • 3,624

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

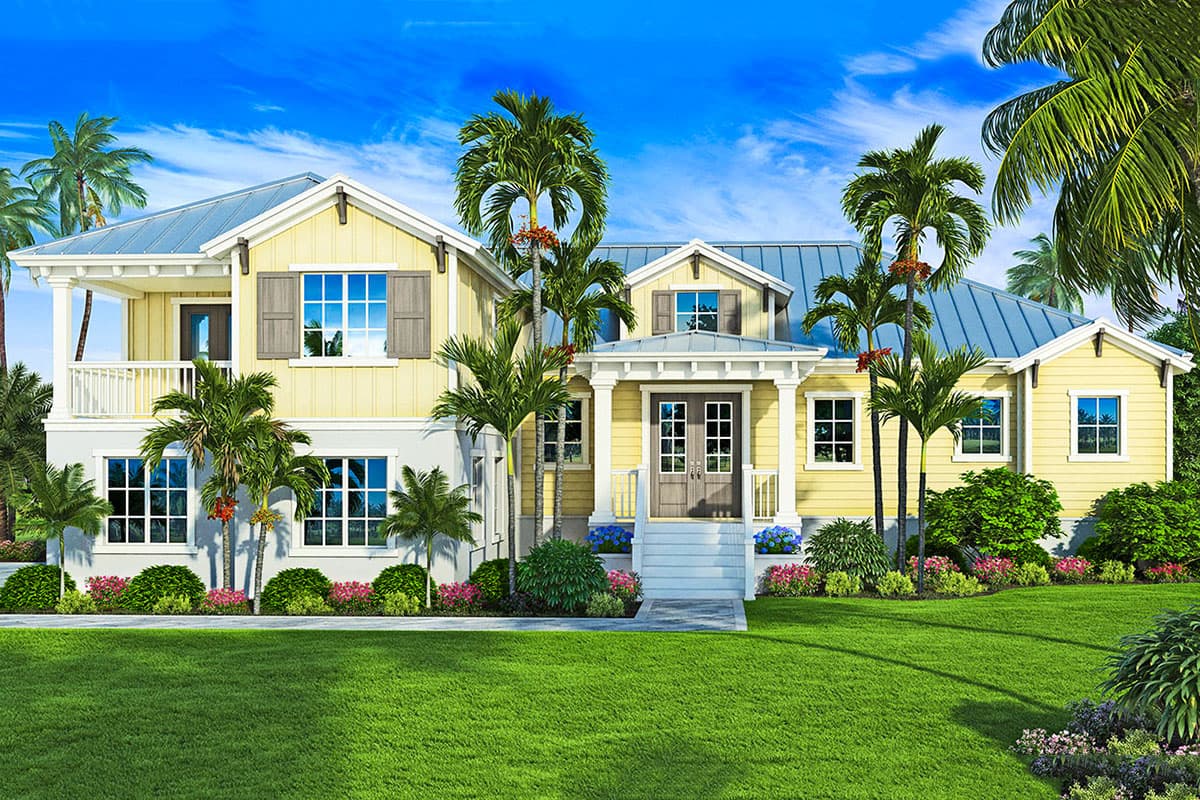

  • This beautiful house plan was designed to take full advantage of a corner lot with water views. Rafter tails and brackets line the eaves of the metal seamed roof, while steps take you to up to the quaint covered entry. Inside, the foyer brings your eyes straight through the grand living area, holding tropical views beyond the rear sliders.
  • The great room, kitchen and dining and owner’s suite, all surround the covered lanai and pool areas. The gourmet kitchen offers easy serving from the large kitchen island, and is only steps away from a generous walk-in pantry next to the laundry room. Additional closet space and a built-in desk provide room to get organized.
  • The great rooms built-in wall provides every entertainment source. While plenty of sunshine streams in from walls of glass and front facing windows. Pocketing sliders give you access to the covered lanai which offers both an outdoor kitchen and cozy fireplace.
  • The owner’s suite is secluded from the public spaces by a window-lined hallway and private entrance. More glass sliders open the suite to the covered lanai. The generous owner’s closet is through the owner’s bath with both a shower and standing tub — and all the amenities.
  • On the opposite side of the home is the study with built-in shelving and access to the powder room. The second floor stairs takes you to two guest suites, each with their own full bath and access to the front balcony.
  • The oversized two-car garage with golf cart bay offers plenty of room for a workshop and extra storage.
  • Exclusive energy-saving techniques are designed into the house plan. When built to our specs, you can achieve energy-cost savings up to 50% when compared to other new homes and 60-70% when compared to older homes.

COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.



WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.



EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.



CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)



ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

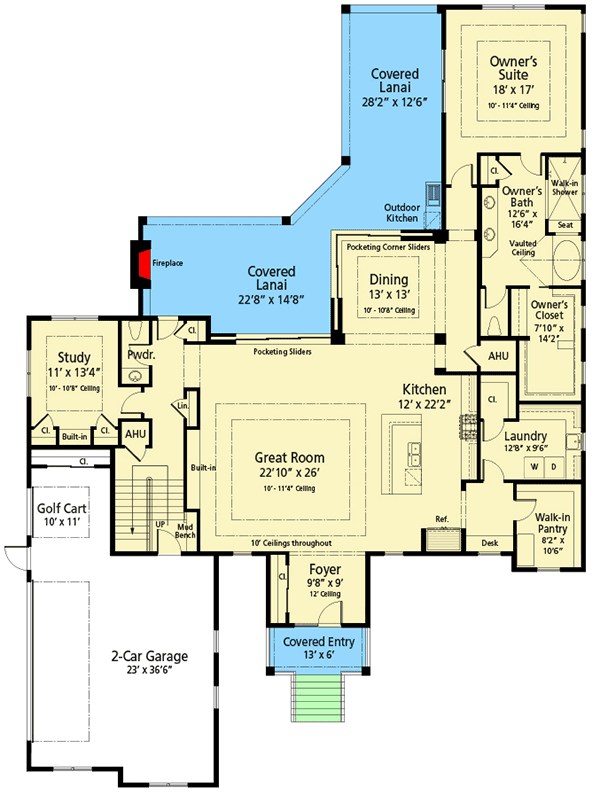

Beautiful Coastal Contemporary House Plan with Pocketing Sliders Going to Covered Lanai - 33231ZR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

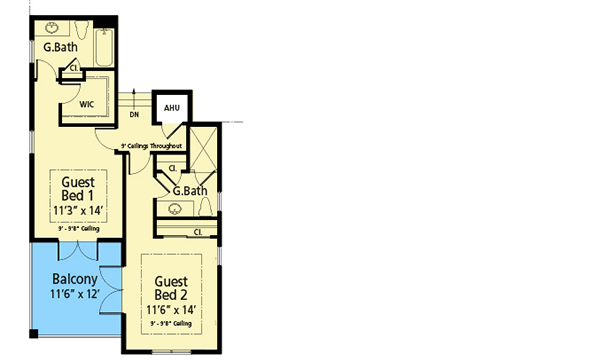

Beautiful Coastal Contemporary House Plan with Pocketing Sliders Going to Covered Lanai - 33231ZR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,624 sq. ft.
  • 1st Floor: 2,918 sq. ft.
  • 2nd Floor: 710 sq. ft.
  • Lanai: 710 sq. ft.
  • Porch, Front: 78 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 98' 0"

Garage

  • Type: Attached
  • Area: 814 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12

Architectural Style

Special features

Plan Collections

Beautiful Coastal Contemporary House Plan with Pocketing Sliders Going to Covered Lanai

  • 3,624

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,495
  • CAD + PDF - Single-Build $2,995
  • View all purchase option online

About This Plan

  • This beautiful house plan was designed to take full advantage of a corner lot with water views. Rafter tails and brackets line the eaves of the metal seamed roof, while steps take you to up to the quaint covered entry. Inside, the foyer brings your eyes straight through the grand living area, holding tropical views beyond the rear sliders.
  • The great room, kitchen and dining and owner’s suite, all surround the covered lanai and pool areas. The gourmet kitchen offers easy serving from the large kitchen island, and is only steps away from a generous walk-in pantry next to the laundry room. Additional closet space and a built-in desk provide room to get organized.
  • The great rooms built-in wall provides every entertainment source. While plenty of sunshine streams in from walls of glass and front facing windows. Pocketing sliders give you access to the covered lanai which offers both an outdoor kitchen and cozy fireplace.
  • The owner’s suite is secluded from the public spaces by a window-lined hallway and private entrance. More glass sliders open the suite to the covered lanai. The generous owner’s closet is through the owner’s bath with both a shower and standing tub — and all the amenities.
  • On the opposite side of the home is the study with built-in shelving and access to the powder room. The second floor stairs takes you to two guest suites, each with their own full bath and access to the front balcony.
  • The oversized two-car garage with golf cart bay offers plenty of room for a workshop and extra storage.
  • Exclusive energy-saving techniques are designed into the house plan. When built to our specs, you can achieve energy-cost savings up to 50% when compared to other new homes and 60-70% when compared to older homes.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,624 sq. ft.
  • 1st Floor: 2,918 sq. ft.
  • 2nd Floor: 710 sq. ft.
  • Lanai: 710 sq. ft.
  • Porch, Front: 78 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 98' 0"

Garage

  • Type: Attached
  • Area: 814 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
