Plan 51093MM

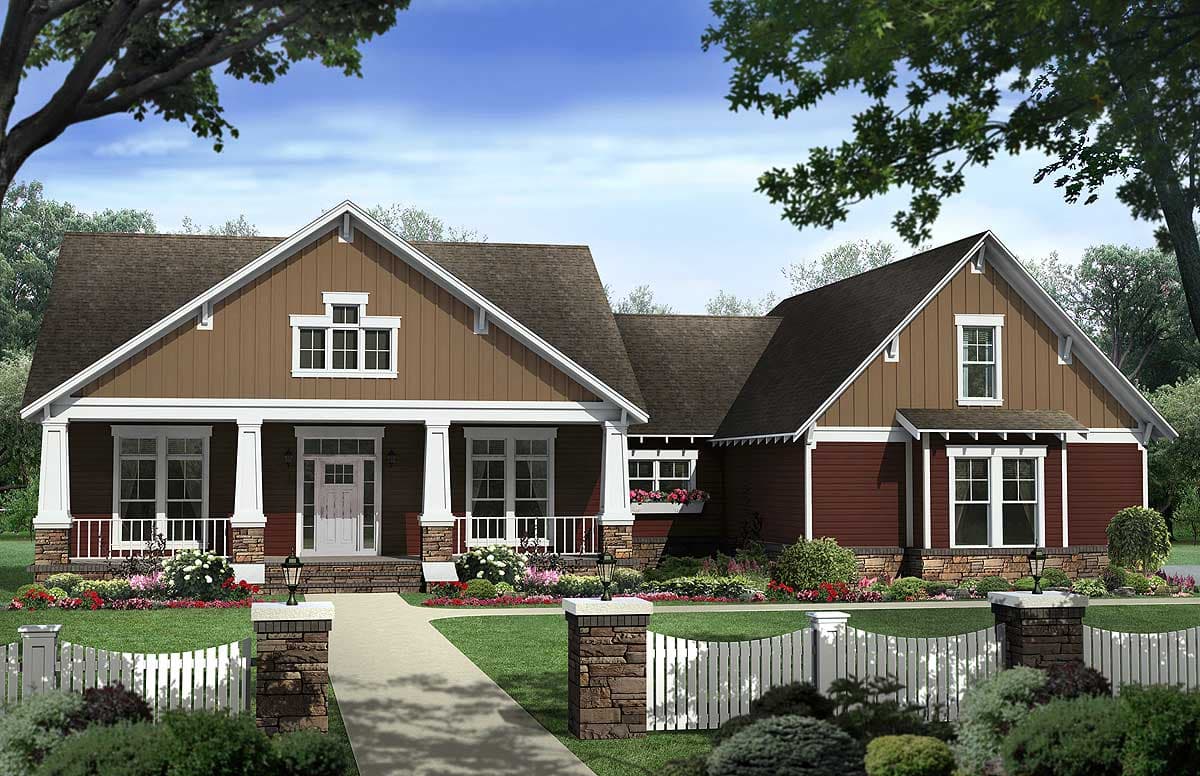

Beautiful Craftsman Design with Options
Heated S.F.
2,447
Beds
4
Baths
2.5 - 3.5
Stories
1-2
Cars
2
What's Included
Plan Details

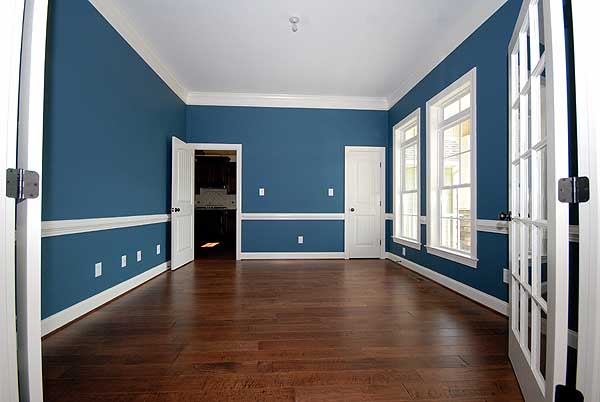

  • Four over-sized bedrooms are complimented by large walk-in closets, and the flex space provides a perfect spot for that home office, playroom, or dining room.

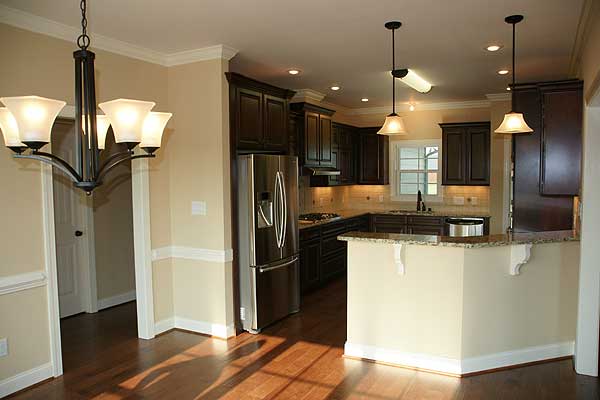

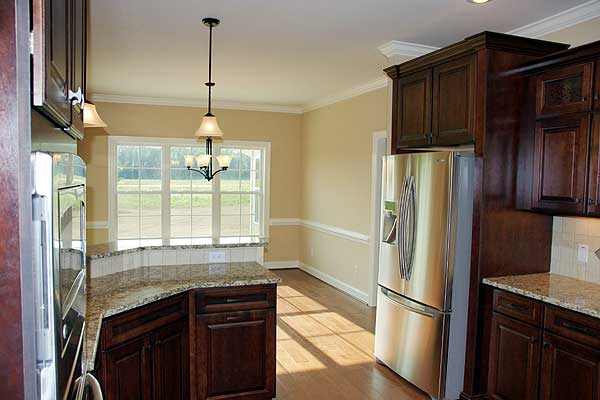

  • A breakfast area, and raised bar all provide spaces for those family meals with close access to the fully equipped kitchen.

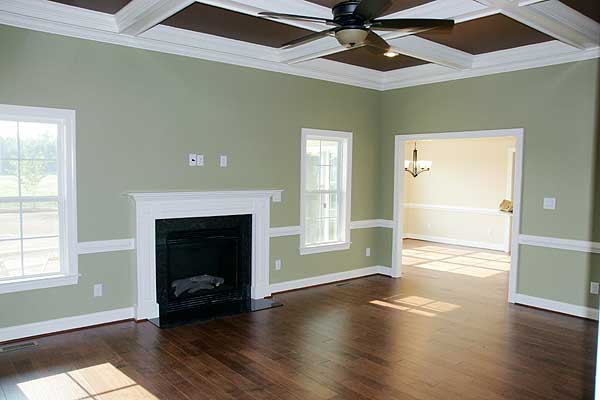

  • The great room includes gas logs, a coffered ceiling, and beautiful views to the covered rear porch beyond.

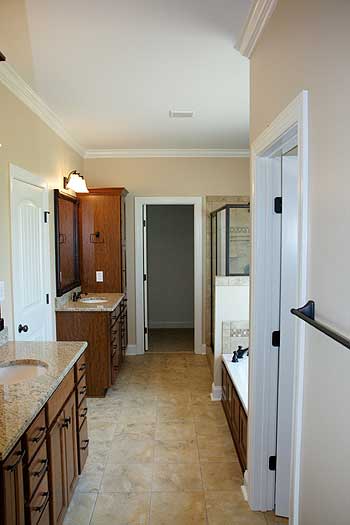

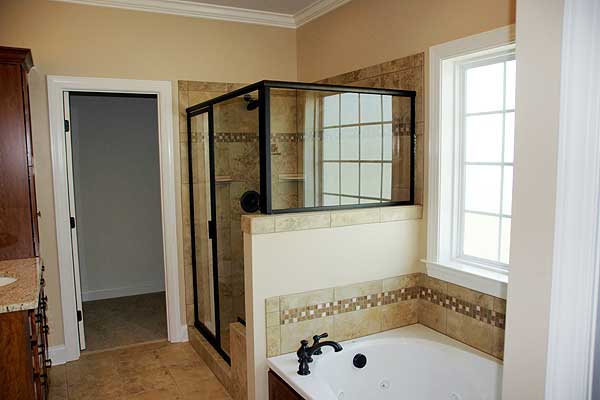

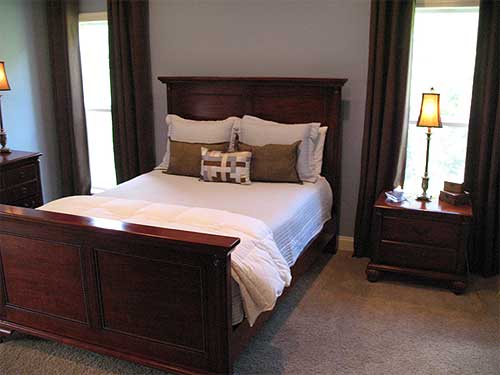

  • The master bedroom also features trayed ceilings and the master bathroom leaves nothing to be desired.
  • The expansive garage provides plenty of room for oversized trucks and SUV's and also includes a large storage area. The bonus room as well as the full basement provide excellent spaces for future expansion or for additional storage.
  • Related Plans: Get a crawlspace or slab foundation with house plan 51085MM.
  • Get more room with house plan 51136MM (2,800 sq. ft.).
  • Downsize with house plans 51084MM (2,118 sq. ft.) and 51082MM (3 bedrooms, 1,919 sq. ft.).
What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

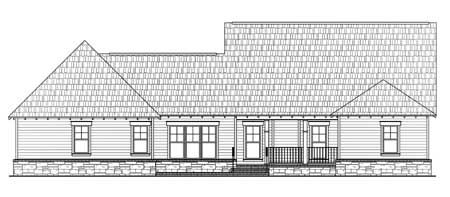

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Beautiful Craftsman Design with Options

  • 2,447

    Heated s.f.

  • 4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

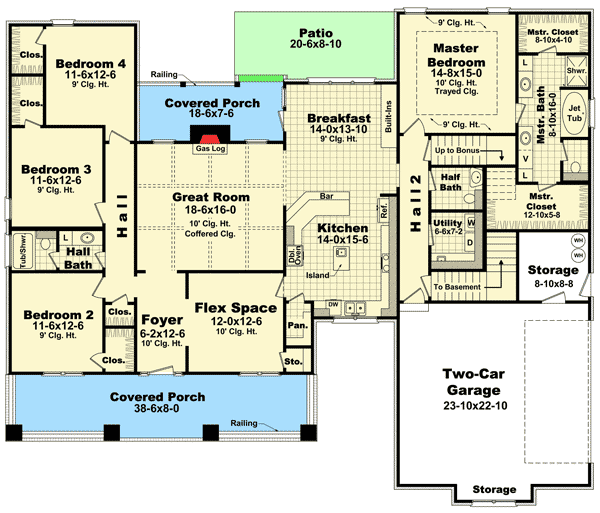

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,447 sq. ft.
  • 1st Floor: 2,447 sq. ft.

Dimensions

  • Width: 73' 6"
  • Depth: 62' 0"
  • Max ridge height: 24' 11"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 773 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Beautiful Craftsman Design with Options

  • 2,447

    Heated s.f.

  • 4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Beautiful Craftsman Design with Options

  • 2,447

    Heated s.f.

  • 4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,447 sq. ft.
  • 1st Floor: 2,447 sq. ft.

Dimensions

  • Width: 73' 6"
  • Depth: 62' 0"
  • Max ridge height: 24' 11"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 773 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
