Plan 51136MM

Craftsman Show-Stopper

Heated S.F.
2,800
Beds
4
Baths
3.5
Stories
1
Cars
3

Floor Plan

Plan 51136MM

Main Level
Main Level

Plan 51136MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

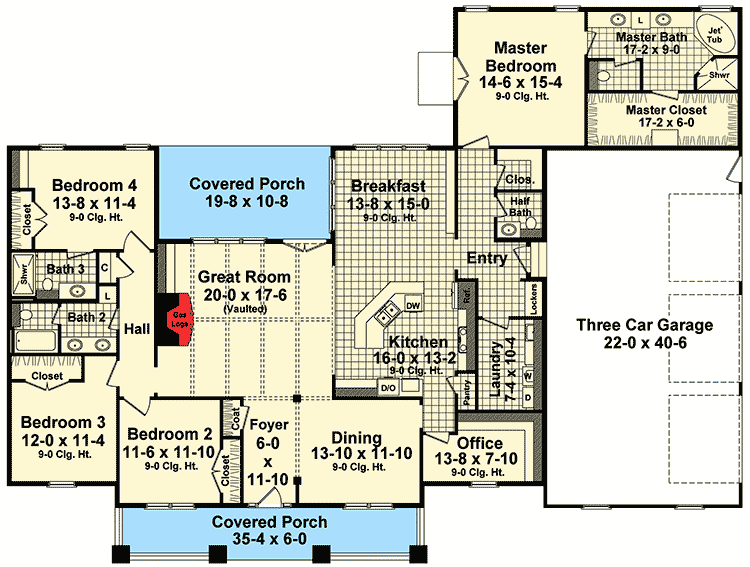

Plan 51136MM: Craftsman Show-Stopper - Floor Plan - Main Level - Craftsman, Northwest

Plan Details

  • This home plan features an attractive Craftsman exterior. With a split-bedroom layout, this plan is perfect for a growing family. Large front and rear covered porches compliment the livability of this home.
  • Each bedroom has its own bath and a half bath by the ki8tchen is a plus. The master bath includes a large jet tub and a custom built shower.
  • The kitchen is fully-equipped with a wraparound raised bar and a large pantry.
  • The expansive great room features a vaulted ceiling and a gas log fireplace.
  • An oversized 3-car garage is provided for larger vehicles.
  • Related Plans: Get a basement with house plan 51168MM. Downsize with house plan 51085MM (2,400 sq. ft. and a 2-car garage), 51128MM (2,284 sq. ft.), 51084MM (2,118 sq. ft.) and 51082MM (3 bedrooms, 1,919 sq. ft). Get an alternate exterior with house plan 5198MM (2,755 sq. ft. with bonus room).

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,800 sq. ft.

1st Floor

2,800 sq. ft.

Porch, Front

212 sq. ft.

Porch, Rear

210 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

84' 0"

Depth

63' 2"

Max Ridge Height

26' 2"

Garage

Type

Attached

Area

920 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Plan Collections

Photo Gallery

USDA Approved

Square Footage Breakdown

Total Heated Area

2,800 sq. ft.

1st Floor

2,800 sq. ft.

Porch, Front

212 sq. ft.

Porch, Rear

210 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

84' 0"

Depth

63' 2"

Max Ridge Height

26' 2"

Garage

Type

Attached

Area

920 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Plan Collections

Photo Gallery

USDA Approved
