Plan 51043MM

Beautiful Craftsman House Plan

2,067 3 2.5 1-2 2
Pageloader

Beautiful Craftsman House Plan

Plan 51043MM

  • 2,067

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • This beautiful Craftsman home plan features all the things that make a house a home. Three over-sized bedrooms are complimented by large closets, and the flex space provides a perfect spot for that home office, playroom, or dining room.
  • A breakfast area, and raised bar all provide spaces for those family meals with close access to the fully equipped kitchen.
  • The great room includes gas logs, a trayed ceiling, and beautiful views to the covered rear porch beyond.
  • The master bedroom also features trayed ceilings and the master bathroom leaves nothing to be desired.
  • An expansive garage provides plenty of room for oversized trucks and SUV's and also includes a large storage area.
  • The bonus room provides space for future expansion or for additional storage.
  • Related Plans: Get a basement with house plan 51144MM. Get 4 bedrooms with house plan 51116MM (2,199 s.f.). Get 3 bedrooms with house plans 51064MM (1,924 s.f.), 51041MM (1,800 s.f.) and 51040MM (1,509 s.f.). Get an alternate layout with house plan 51065MM (2,108 s.f.).

Cover Sheet: Showing architectural rendering of residence.

Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.

Foundation Plan and Details: In general, each house plan set includes one foundation type.

Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.

Foundation types typically offered: (each type may or may not be available for a given design)

·       Slab: Slab is a type of foundation consisting of a structural concrete slab poured directly on the grade. No accessible space exists in slab construction. Slab foundations are popular in areas (i.e. the Southern United States) where there is a relatively high water table (i.e. the "water table" refers to the depth in the soil at which you find water). Traditionally, the slab foundation is the least expensive foundation type when building on a relatively flat lot.

·       Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.

·       Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.



Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.

Roof Drainage Plan:
In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

Exterior Elevations:

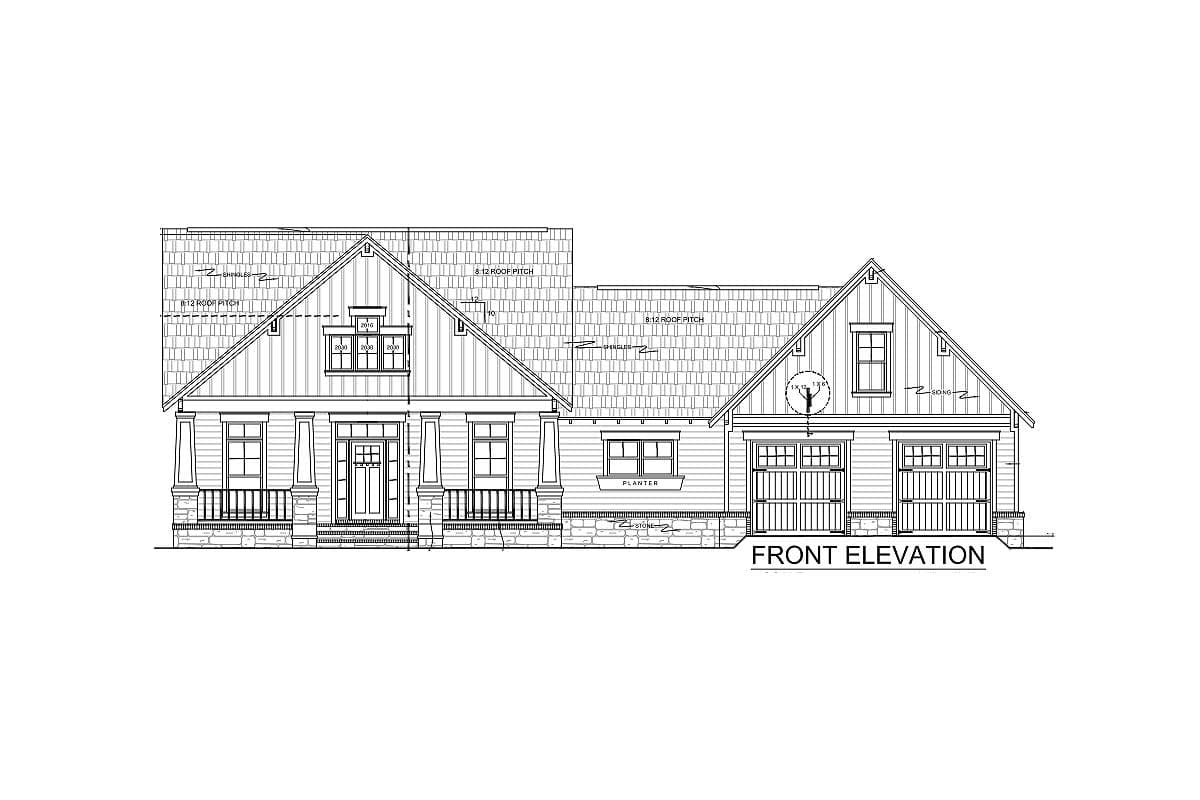

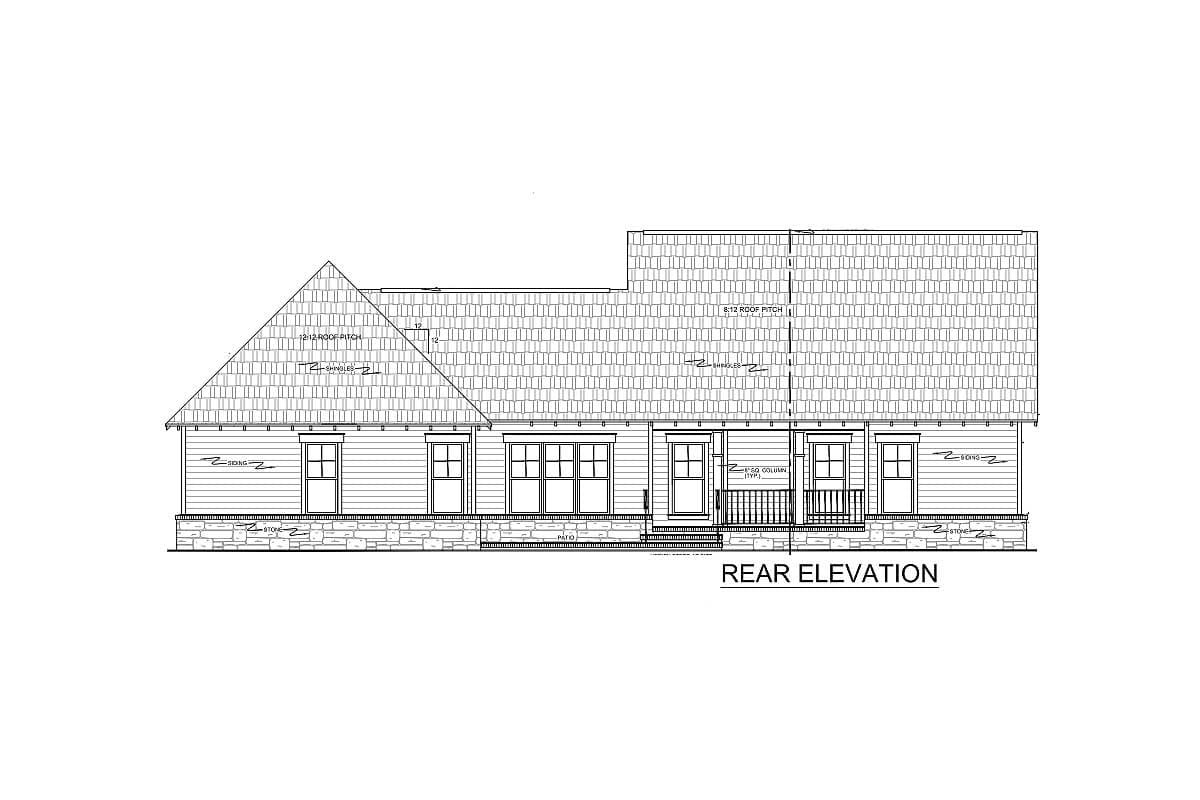

In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.

Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.

Specifications Form:
In general, each house plan set includes a blank short-form FHA/VA specifications document for your reference.

License to Build: Each set of construction plans include ONE license to build.

Plans include relevant building sections and details.

Plumbing diagrams and HVAC plans are not available for these homes since each county's code will vary and a licensed plumber and/or electrician must follow the codes.

Plan details



Beautiful Craftsman House Plan

  • 2,067

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $990
  • 5 Sets $1,060
  • PDF - single-use $1,200
  • 8 Sets $1,240
  • Reproducible Set $1,270
  • 5 Sets PLUS $1,285
  • CAD $1,820
  • View all purchase option online

About This Plan

  • This beautiful Craftsman home plan features all the things that make a house a home. Three over-sized bedrooms are complimented by large closets, and the flex space provides a perfect spot for that home office, playroom, or dining room.
  • A breakfast area, and raised bar all provide spaces for those family meals with close access to the fully equipped kitchen.
  • The great room includes gas logs, a trayed ceiling, and beautiful views to the covered rear porch beyond.
  • The master bedroom also features trayed ceilings and the master bathroom leaves nothing to be desired.
  • An expansive garage provides plenty of room for oversized trucks and SUV's and also includes a large storage area.
  • The bonus room provides space for future expansion or for additional storage.
  • Related Plans: Get a basement with house plan 51144MM. Get 4 bedrooms with house plan 51116MM (2,199 s.f.). Get 3 bedrooms with house plans 51064MM (1,924 s.f.), 51041MM (1,800 s.f.) and 51040MM (1,509 s.f.). Get an alternate layout with house plan 51065MM (2,108 s.f.).

Floor Plans

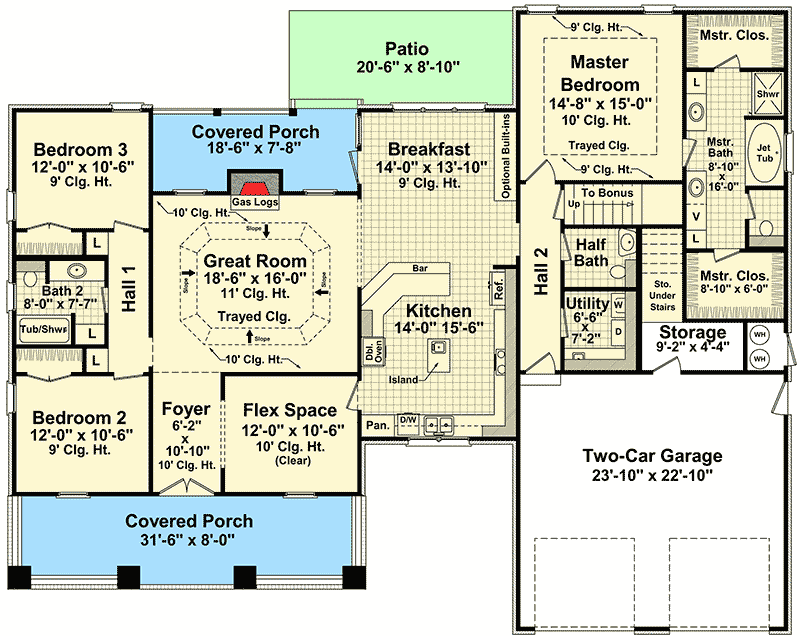

  • Main Level

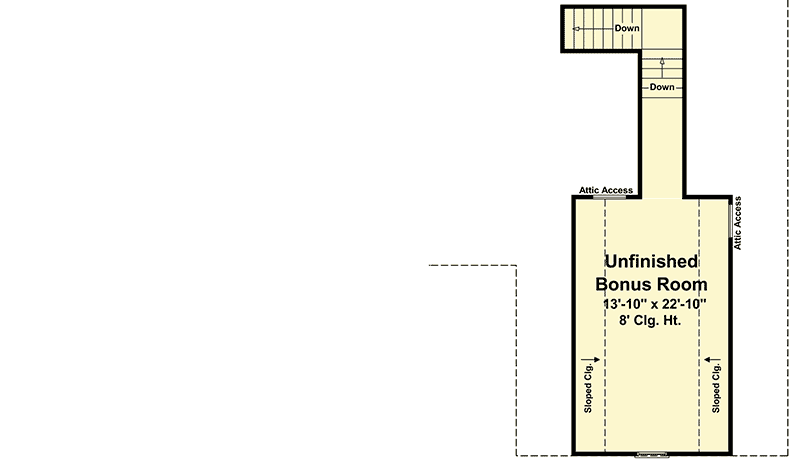

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,067 sq. ft.
  • 1st Floor: 2,067 sq. ft.
  • Porch, Rear: 129 sq. ft.
  • Porch, Front: 189 sq. ft.
  • Bonus: 379 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 56' 0"
  • Max ridge height: 24' 3"

Garage

  • Type: Attached
  • Area: 699 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
