Plan 51064MM

Craftsman Home Plan with Class

Heated S.F.
1,924
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 51064MM

Main Level
Main Level

Plan 51064MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

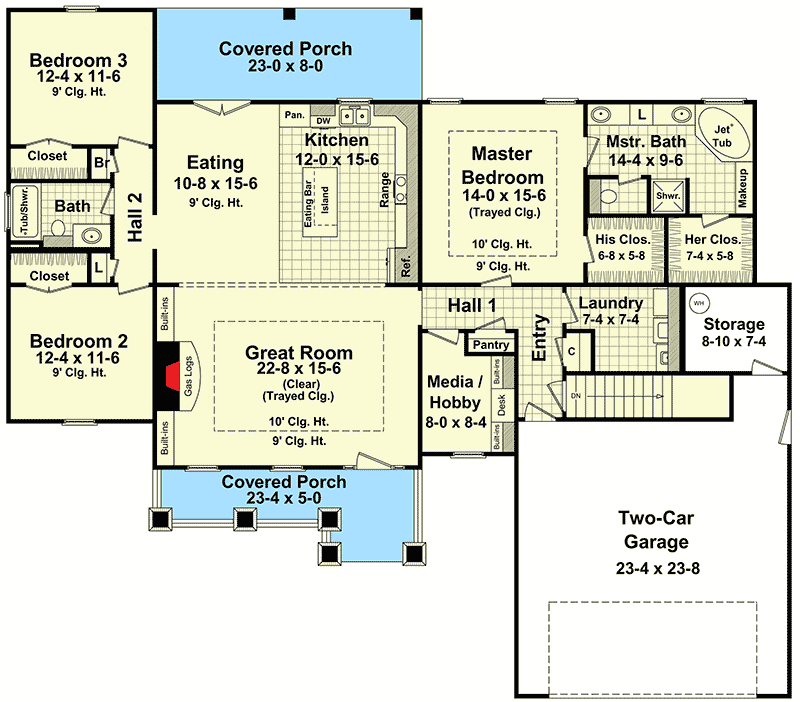

Plan 51064MM: Craftsman Home Plan with Class - Floor Plan - Main Level - Craftsman, Northwest

Plan Details

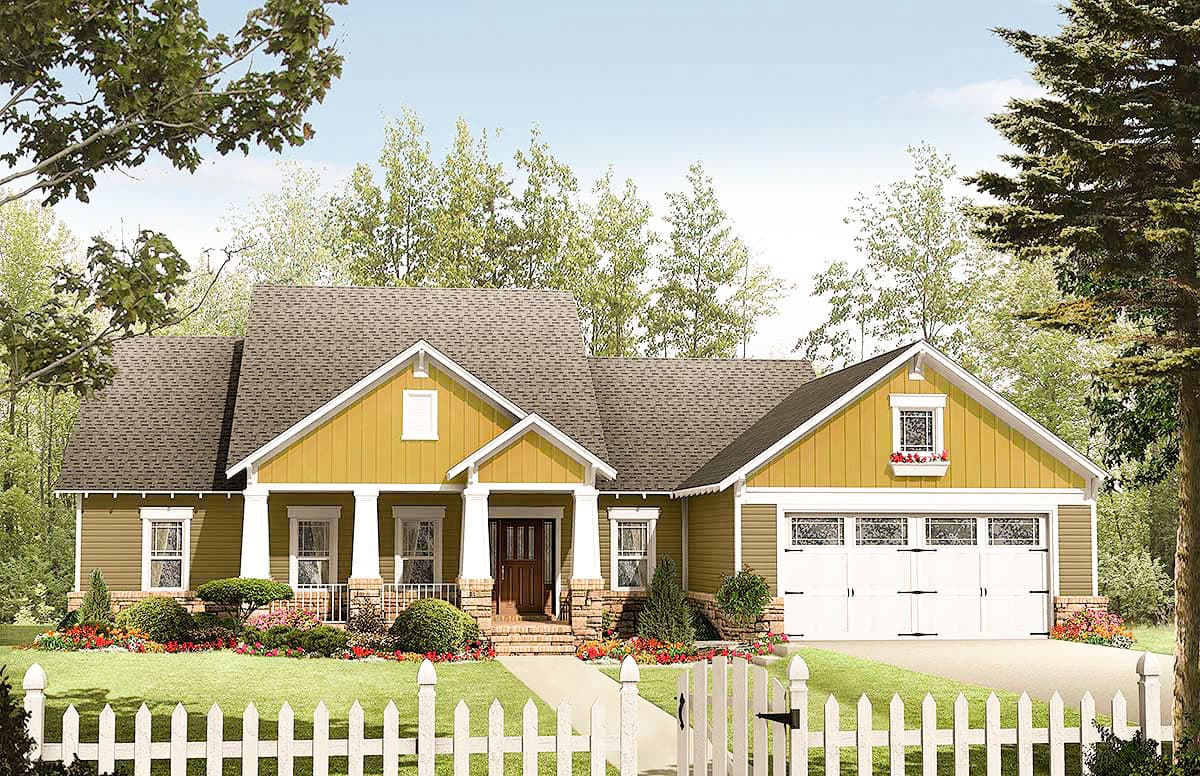

  • This home features beautiful craftsman styling. The expansive master suite includes trayed ceilings, large his and her walk-in closets, an oversized jet tub, separate shower, compartmentalized toilet and dual vanities.
  • The trayed ceiling in the great room makes the home feel larger than it actually is. The open floorplan of this home includes a split-bedroom layout, and features the much-requested gas logs or conventional fireplace.
  • Enjoy the rear covered porch, perfect for those family barbeques.

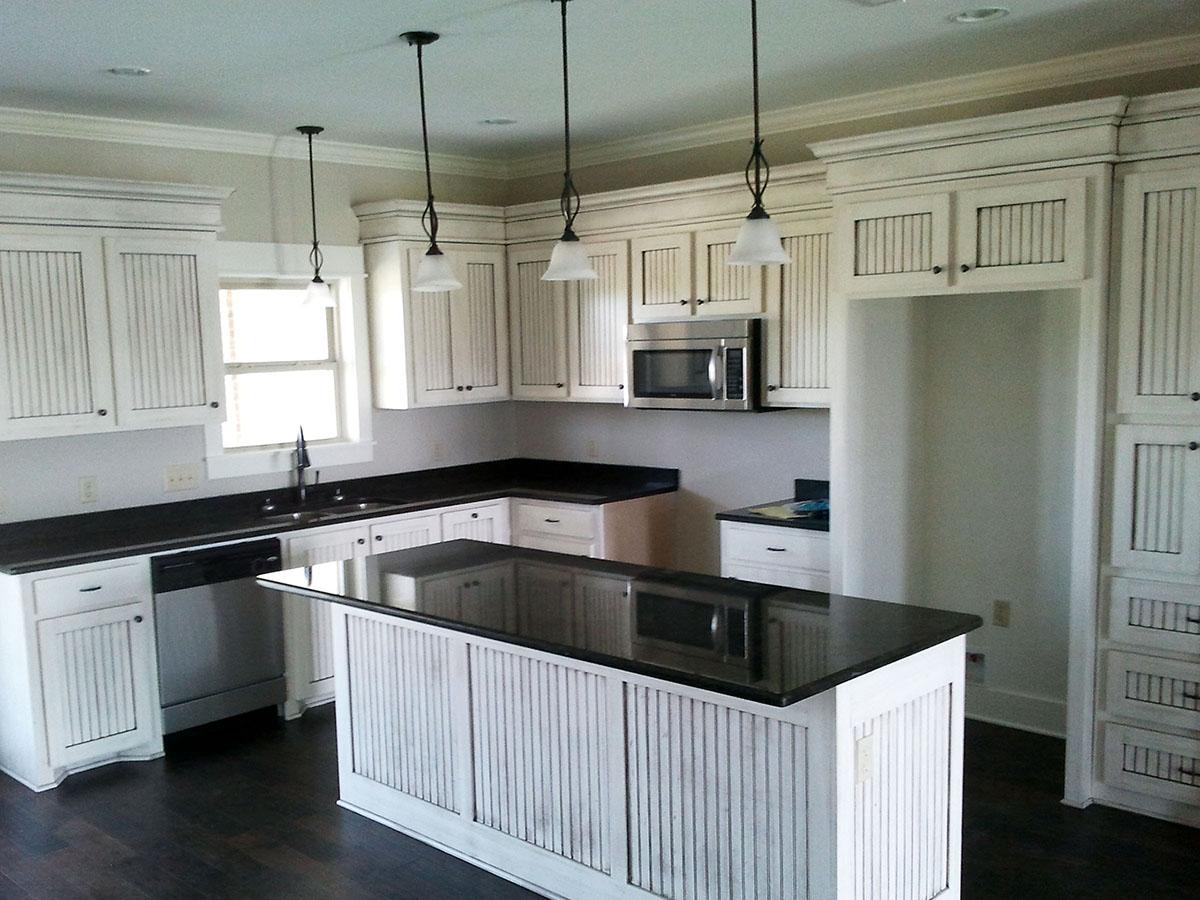

  • The large kitchen features a raised bar for meals and conversations with family.
  • Related Plans: Get a slab or crawlspace foundation with house plan 51057MM. Get more space with house plan 51102MM (2,140 sq. ft.). Get an alternate layout with house plans: 51088MM (expanded master bath), 51043MM (2,067 sq. ft.) and 51041MM (1,800 sq. ft.).

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,924 sq. ft.

1st Floor

1,924 sq. ft.

Porch, Front

143 sq. ft.

Porch, Rear

184 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

68' 0"

Depth

59' 10"

Max Ridge Height

24' 11"

Garage

Type

Attached

Area

725 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery

USDA Approved
