Plan 81703AB

Beautiful Craftsman House Plan

Heated S.F.

3,212

Beds

3

Baths

2.5+

Stories

2

Cars

3

Floor Plan

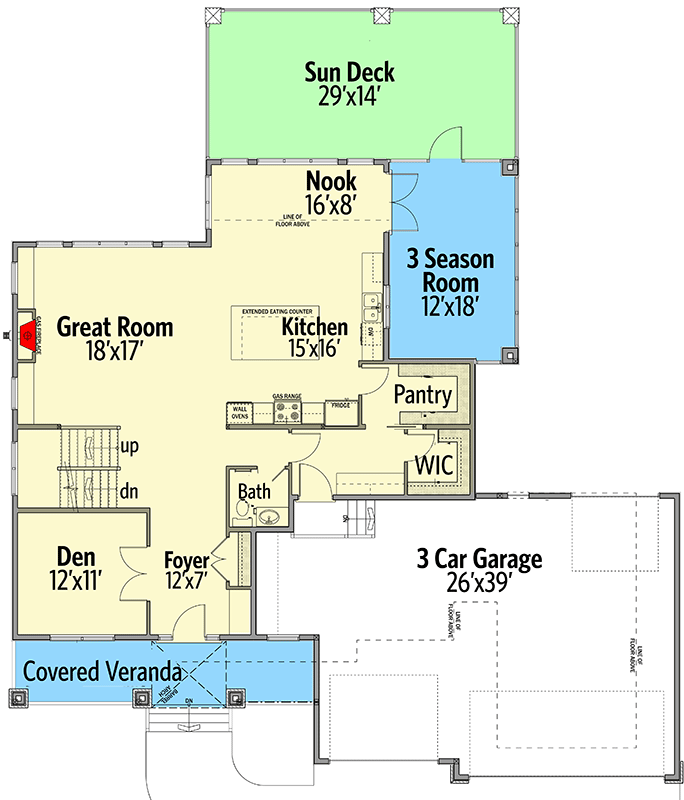

Main Level

floor plan image Main Level

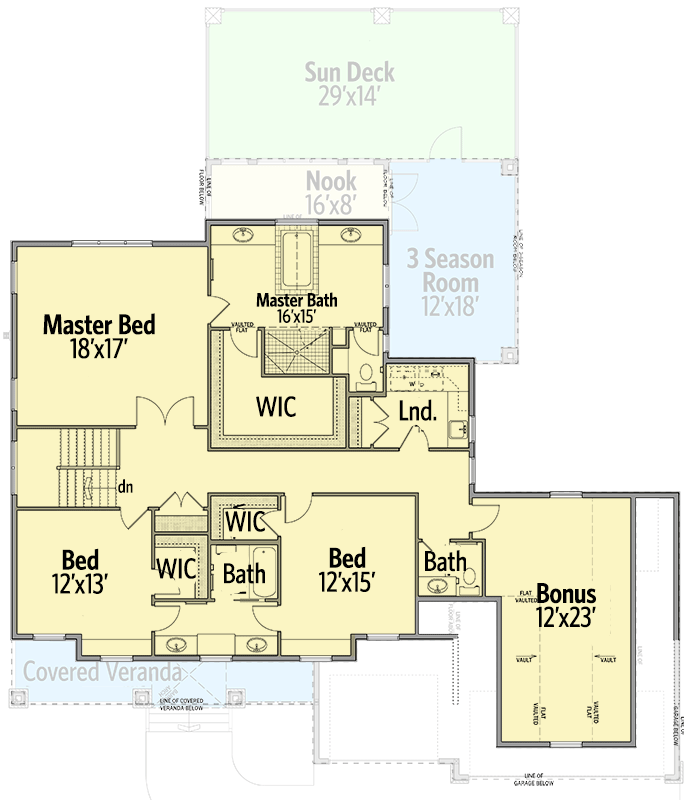

2nd Floor

floor plan image 2nd Floor

Plan Details

This beautiful Craftsman house plan comes with a den, a 3 season room and a sun deck so you can enjoy the outdoors.
Another popular feature is the open floor plan that lets the whole family be together in one large space.
Built-ins flank the great room fireplace and there's a large walk-in coat closet off the garage entry to the home.
You can walk right through the pantry too on your way to the kitchen.
The over-sized garage has room for bikes and lawn equipment off the the left.
Upstairs, all the bedrooms are grouped together and there's a second floor laundry room to save you steps on washing day.
Bonus space comes with a vaulted ceiling and windows front and back.

What's Included

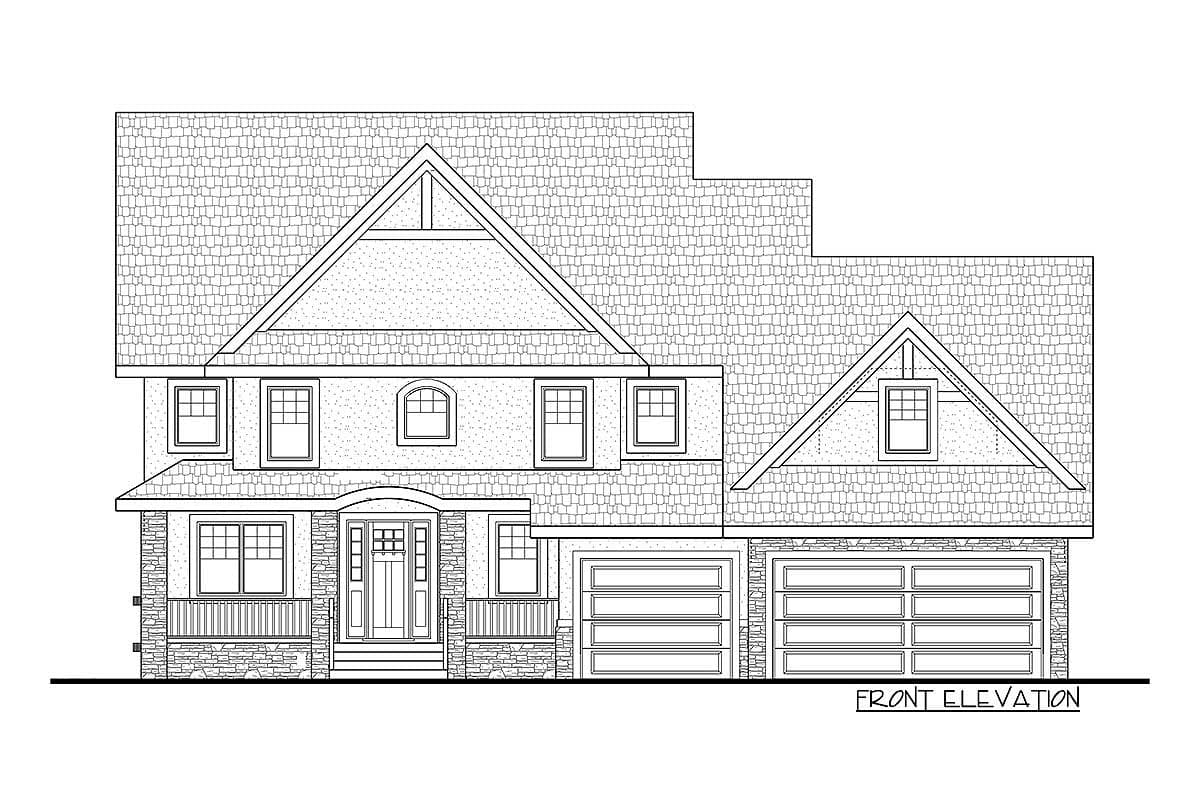

Elevations (Front, Rear, Left and Right)
Floor plans
Foundation plan
Cross section
Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

Electrical plan
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,212 sq. ft.

1st Floor

1,381 sq. ft.

2nd Floor

1,831 sq. ft.

Deck

403 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

58' 0"

Max Ridge Height

38' 2"

Garage

Type

Attached

Area

936 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

3,212 sq. ft.

1st Floor

1,381 sq. ft.

2nd Floor

1,831 sq. ft.

Deck

403 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

58' 0"

Max Ridge Height

38' 2"

Garage

Type

Attached

Area

936 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans
