Plan 3974ST
Beautiful Siding Combination
Heated S.F.
1,775
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Color and texture are showcased on the exterior with the beautiful combination of stone, brick and siding. Wood trim accents and arches decorate the windows, while the covered porch, supported by four columns, adds to the warm inviting atmosphere.
  • The foyer boasts a 10' ceiling height while the overall ceilings are framed at 8'. Two windows, 7'6" tall, stand next to the zero clearance gas fireplace on the rear wall and are visible from the foyer.
  • Two 10" wood columns introduce the great room where a slope ceiling peaks at 14'. A peninsula, with seating offers interaction with the kitchen and views to the great room.
  • A cantilever bay window is a beautiful accent for the dining area and sliding glass doors lead to the wonderfully spacious screened porch.
  • The master bedroom suite enjoys amenities such as a raised center ceiling height to 9' and a luxurious bath with a double bowl vanity, whirlpool tub, and separate shower enclosure.
  • Split stairs lead to an unfinished walk-out basement.
  • Related Plans: Get a front-facing garage with house plan 3947ST.
  • Go smaller with these 1,611 sq. ft. house plans: 3917ST (stone and siding) and 39018ST (brick).
What's Included
  • General notes and specifications

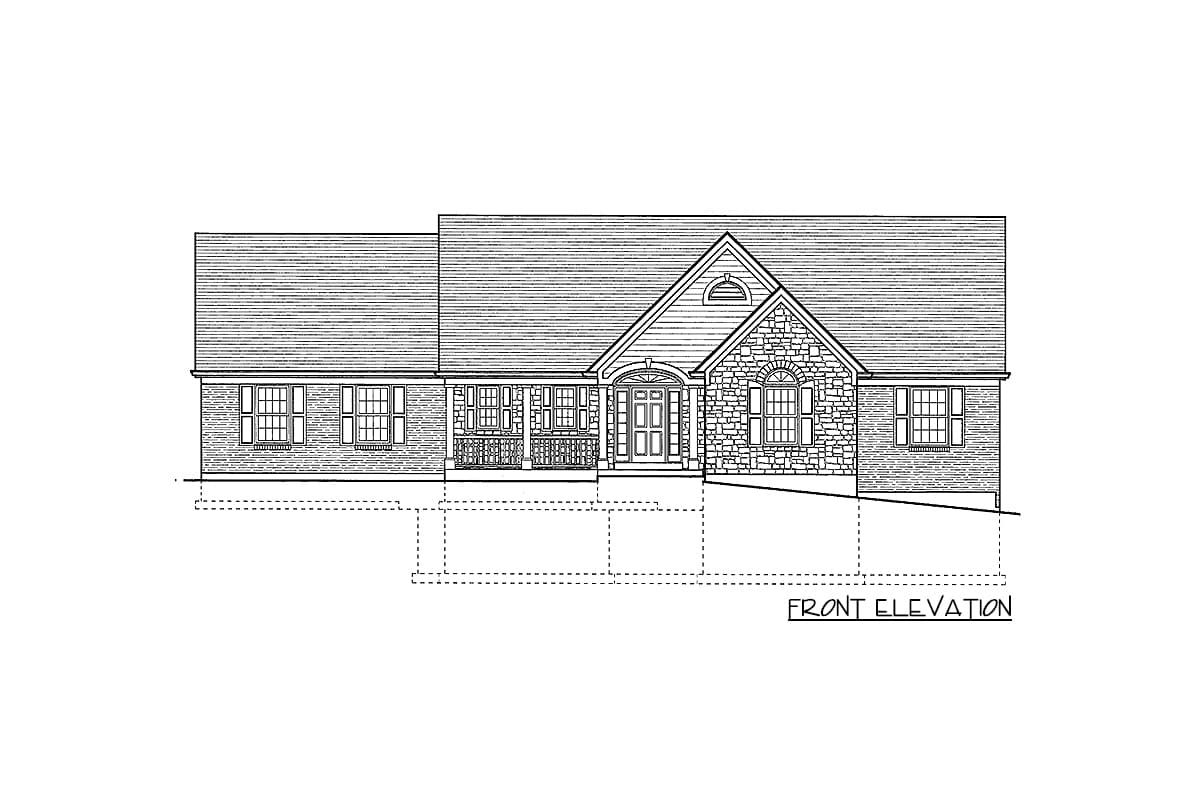

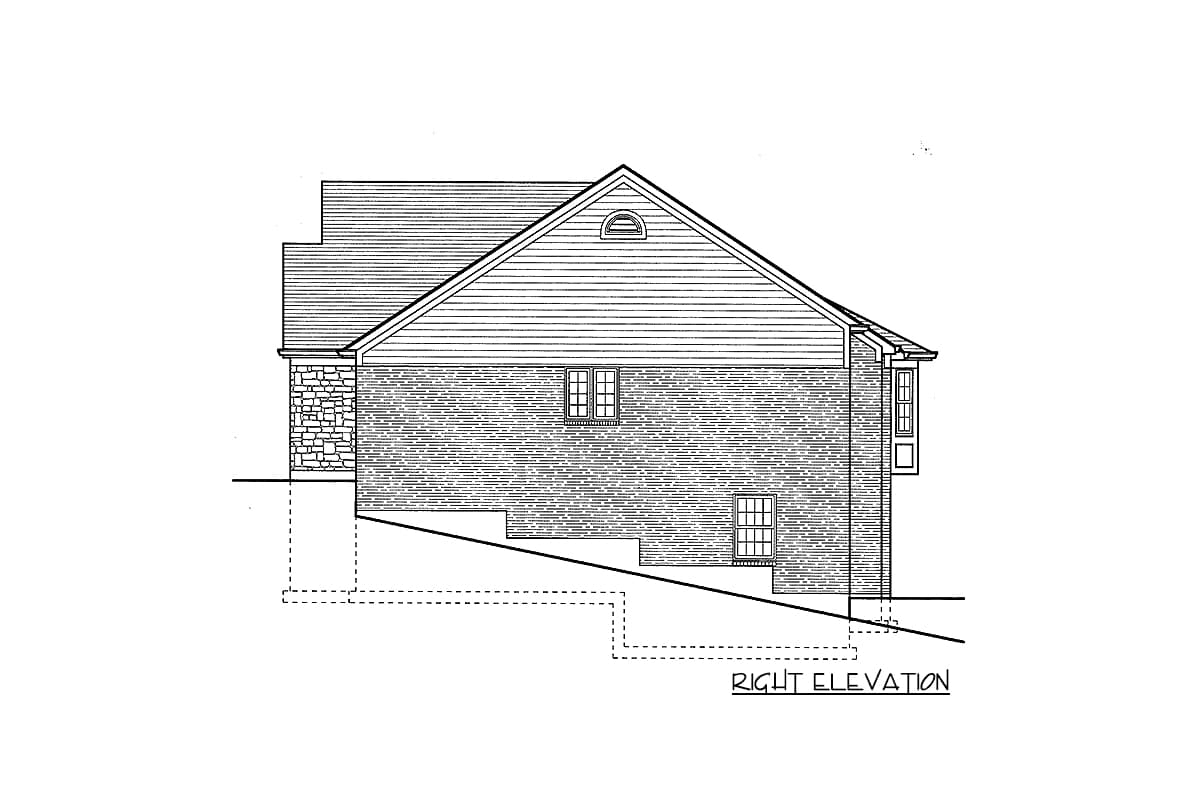

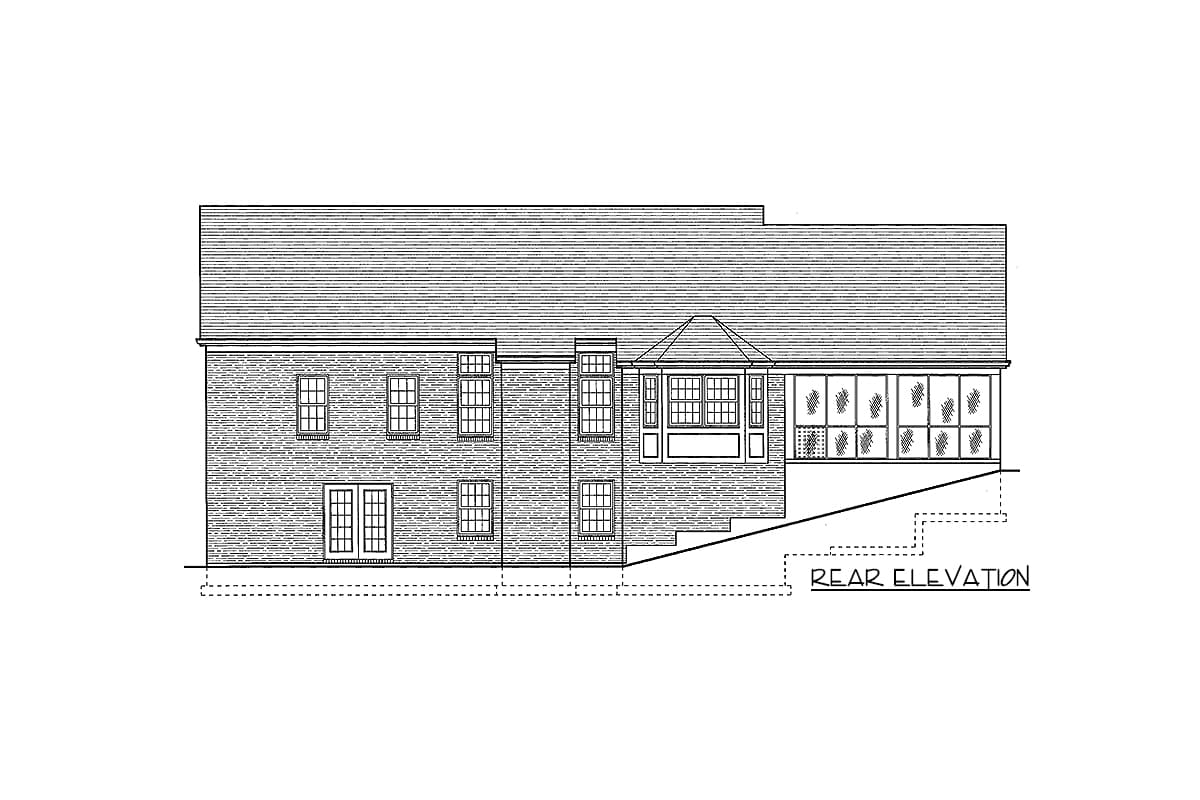

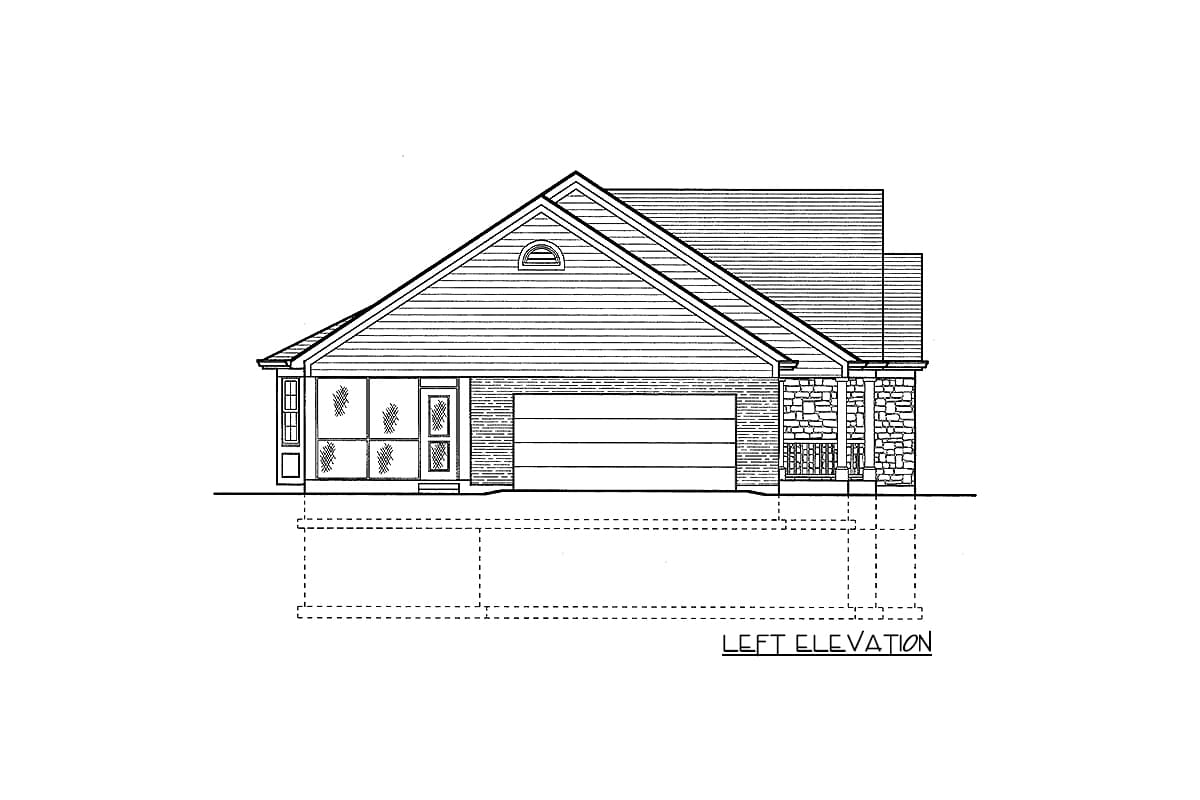

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Beautiful Siding Combination

  • 1,775

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

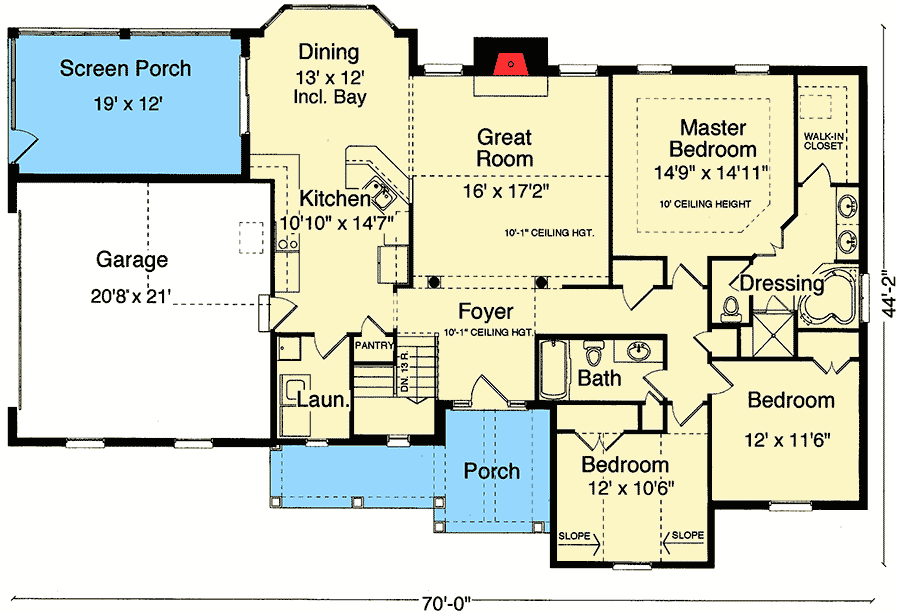

  • Main Level

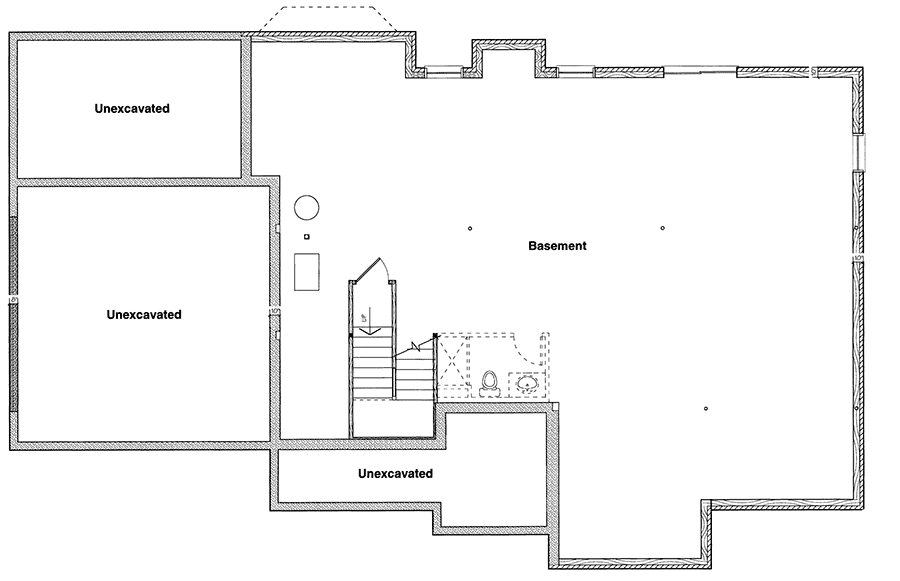

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,775 sq. ft.
  • 1st Floor: 1,775 sq. ft.

Dimensions

  • Width: 70' 0"
  • Depth: 44' 2"
  • Max ridge height: 22' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 435 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
