Plan 5121MM

Beautiful Split Bedroom House Plan

Heated S.F.
1,855
Beds
3
Baths
2.5 - 3.5
Stories
1
Cars
2
Client Photos

Floor Plan

Plan 5121MM

Main Level
Main Level
Bonus Level
Bonus Level

Plan 5121MM

M-F 9am-5pm EST |

1-203-761-8500

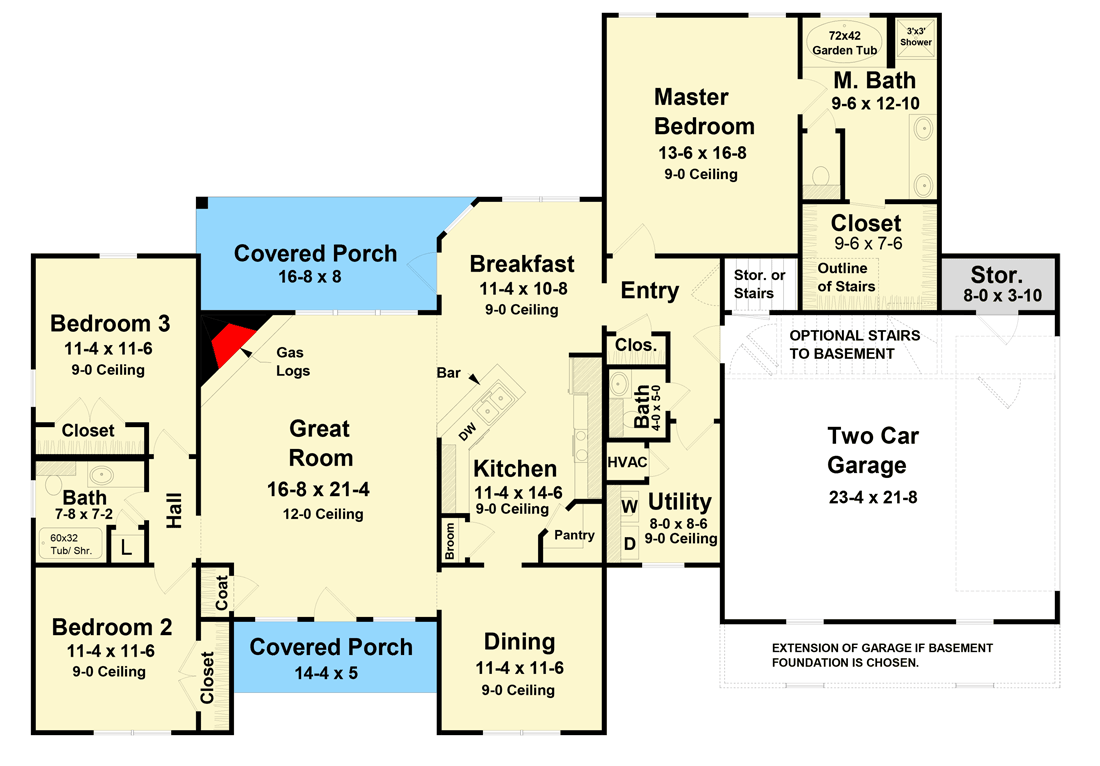

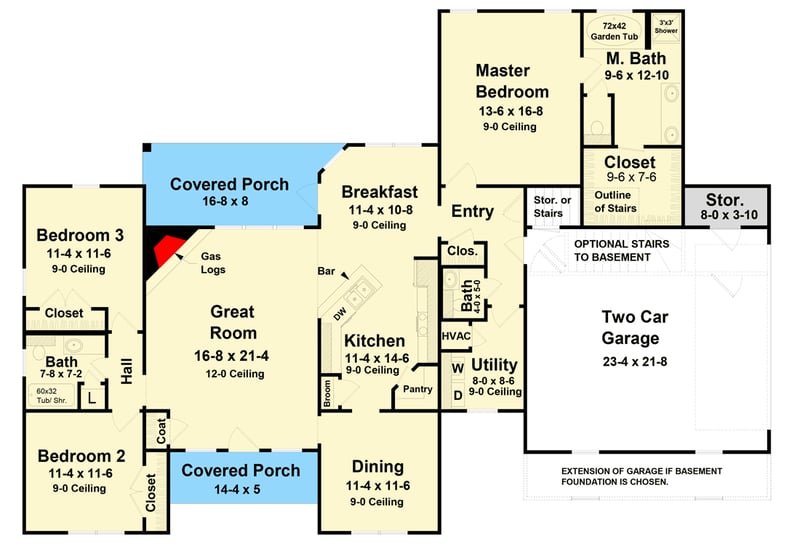

Main Level

Plan 5121MM: Beautiful Split Bedroom House Plan - Floor Plan - Main Level - Country, Ranch, Southern, Traditional

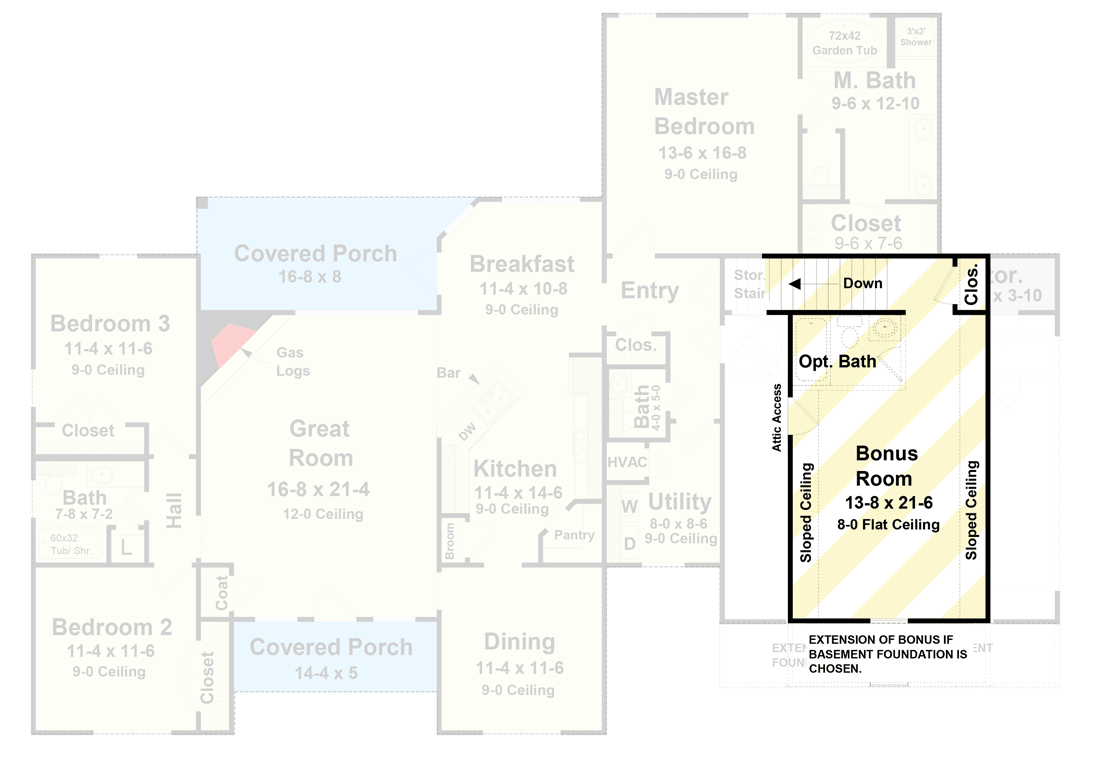

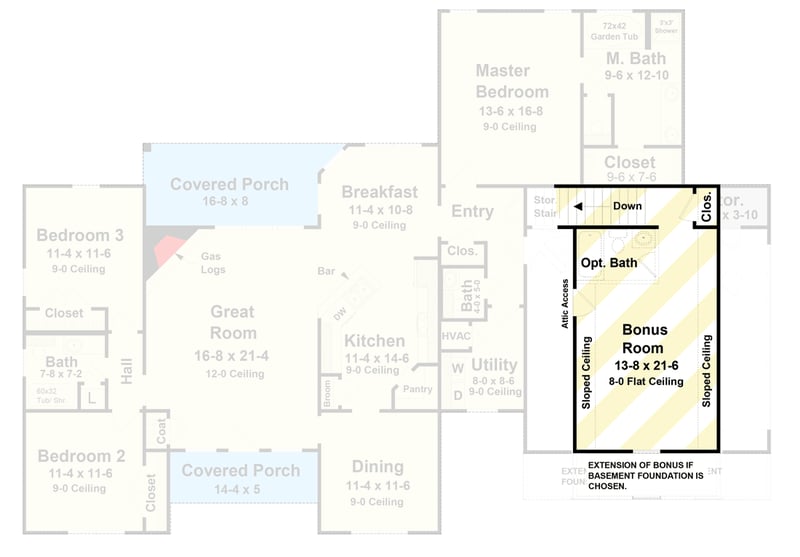

Bonus Level

Plan 5121MM: Beautiful Split Bedroom House Plan - Floor Plan - Bonus Level - Country, Ranch, Southern, Traditional

Plan Details

  • This beautiful split bedroom house plan with three bedrooms can be built with two, two and a half, three or three and a half baths.

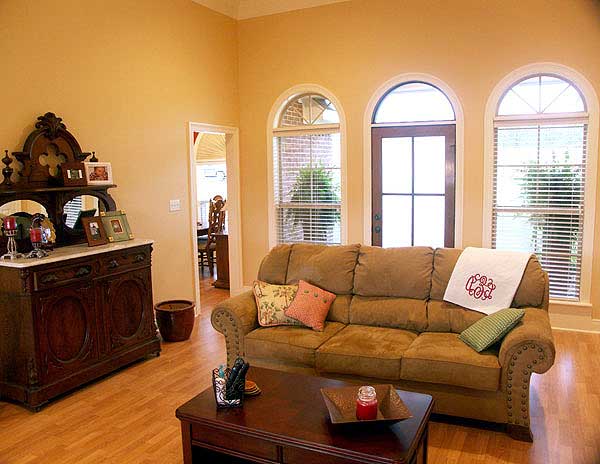

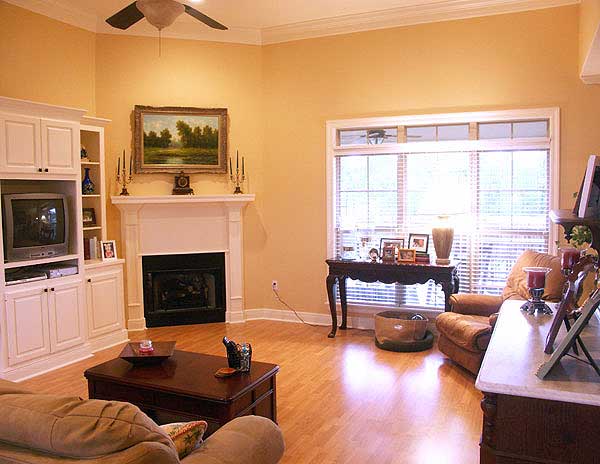

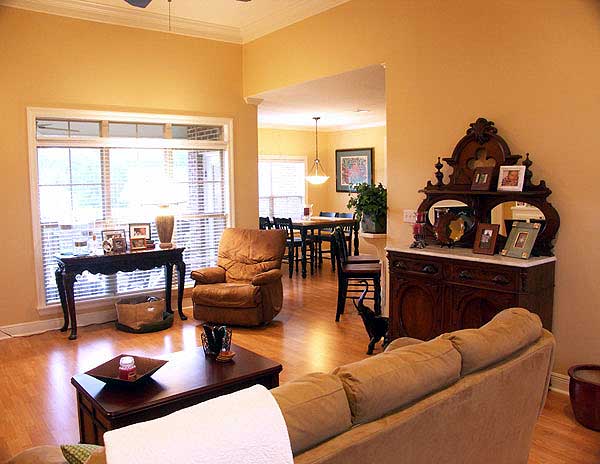

  • The great room features 12-foot ceilings, a fireplace with gas logs and transoms above the windows.

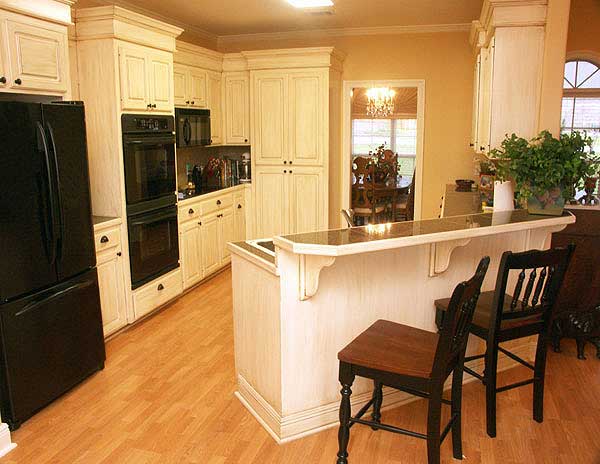

  • You'll find great views of of the great room and back yard from the kitchen.

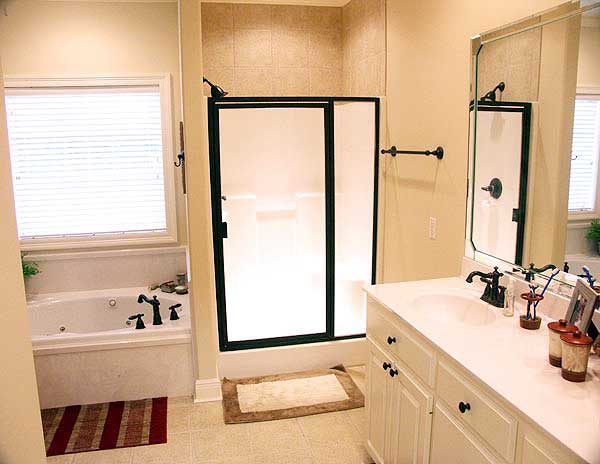

  • A large master bedroom features a jet tub and shower in the master bath.
  • Other key features include walk-in pantry, large utility room, wet wear closet and large two-car garage.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

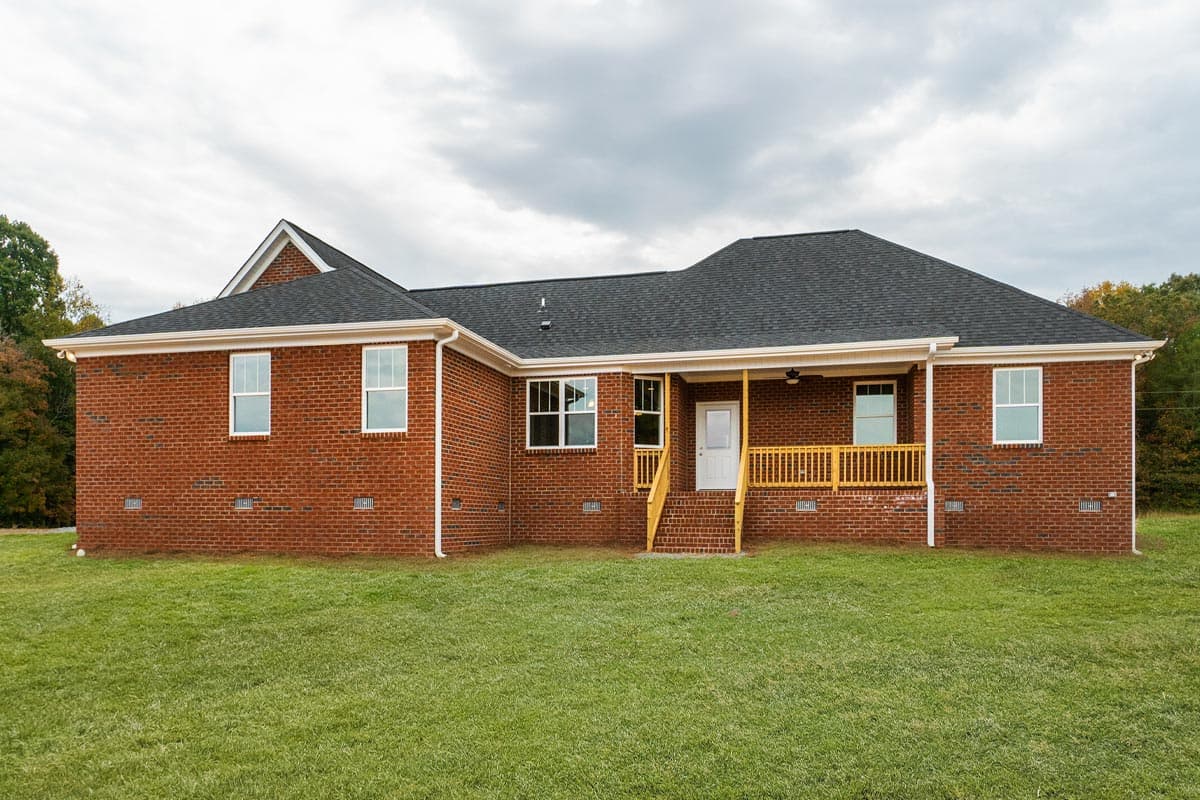

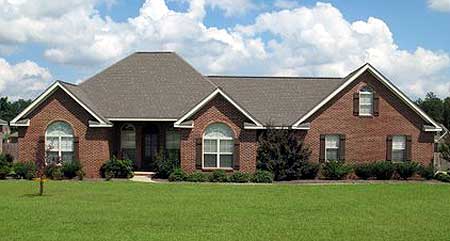

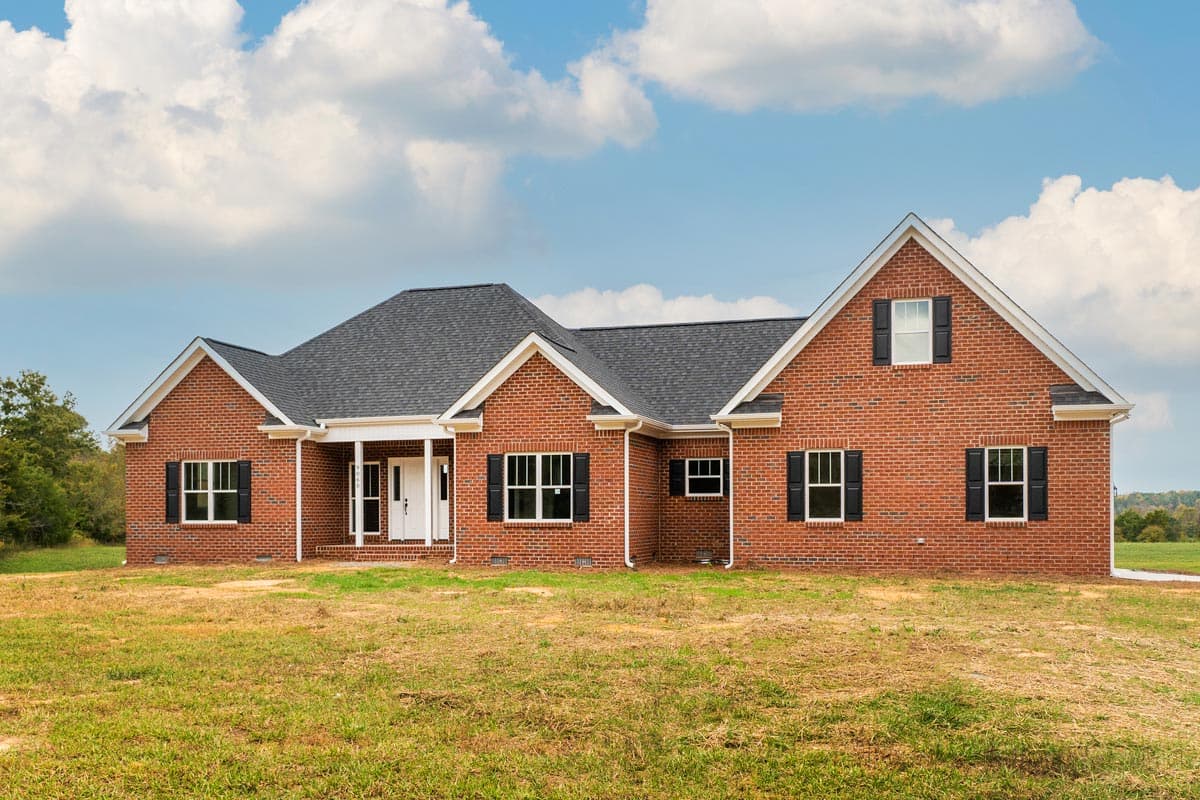

build gallery item - House Plan 5121MM Comes to life in North Carolina

House Plan 5121MM Comes to life in North Carolina

33

Photos

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

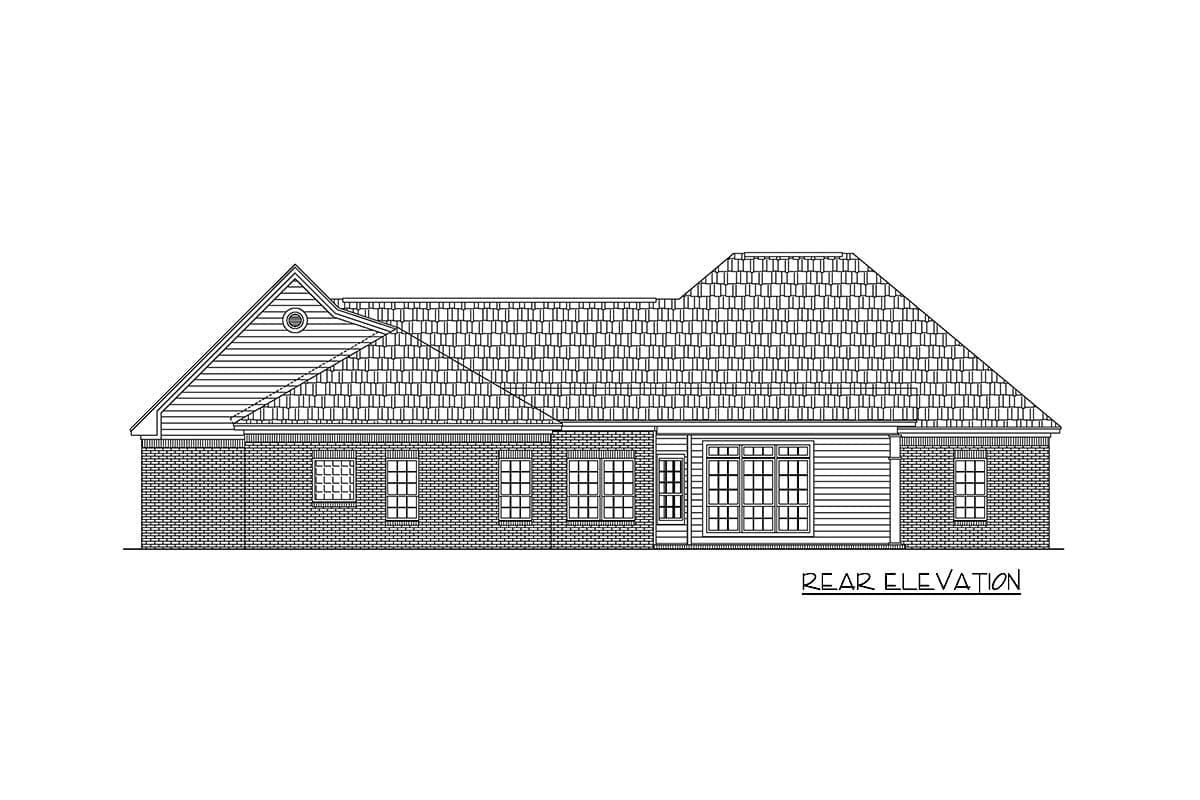

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,855 sq. ft.

1st Floor

1,855 sq. ft.

Basement Unfinished

1,960 sq. ft.

Bonus

352 sq. ft.

Porch, Front

72 sq. ft.

Porch, Rear

139 sq. ft.

Storage

36 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

72' 8"

Depth

51' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

528 sq. ft.

Count

2 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

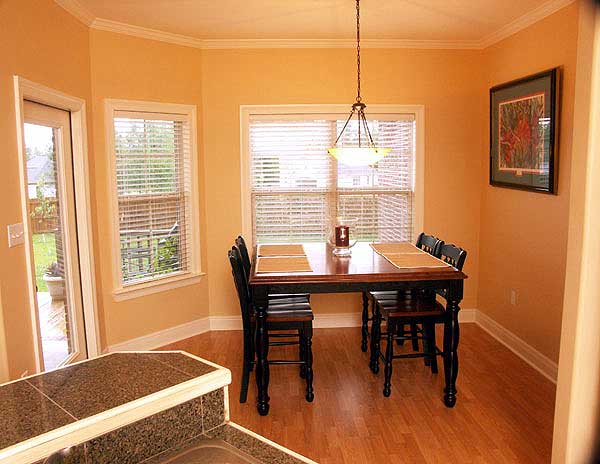

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Plan Collections

Photo Gallery

USDA Approved
