Big, Open Floor Plan

Plan 81672AB

  • 3,487

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Stone and stucco create an attractive exterior for this Northwest house plan.
  • The key design feature is the huge open floor plan where the sightlines run from room to room.
  • Interior columns and a coffered ceiling define the formal dining area while keeping the views open.
  • A walk-through pantry has two doors - one from the kitchen and one from the large, open mud room where benches and lockers keep things organized.
  • Three spacious bedrooms on the upper floor share easy access to the big laundry room that comes with hanging space and folding room on the counters.
  • The big and beautiful bonus room is vaulted and has a fireplace and a cozy window seat.
  • Finish the lower level and you'll get two more bedrooms, an exercise room and a big wet bar near the family room and games room.

Plans include the following:

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

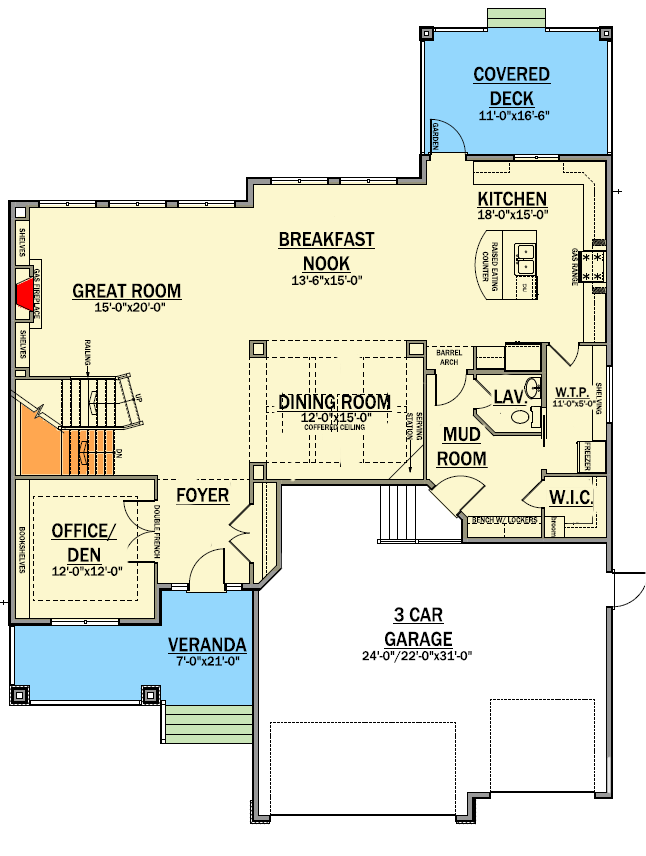

Big, Open Floor Plan - 81672AB floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

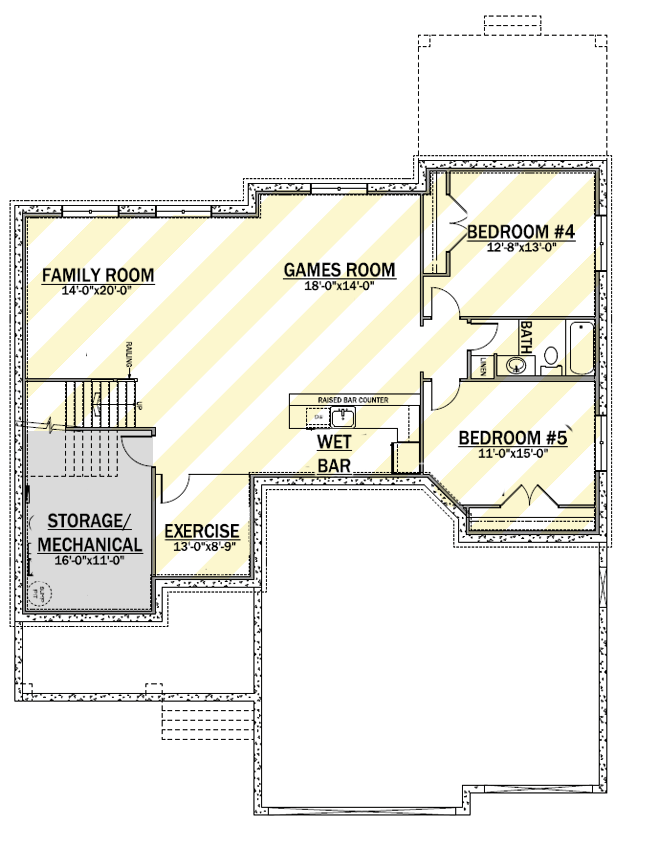

Big, Open Floor Plan - 81672AB floor plan - Lower Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

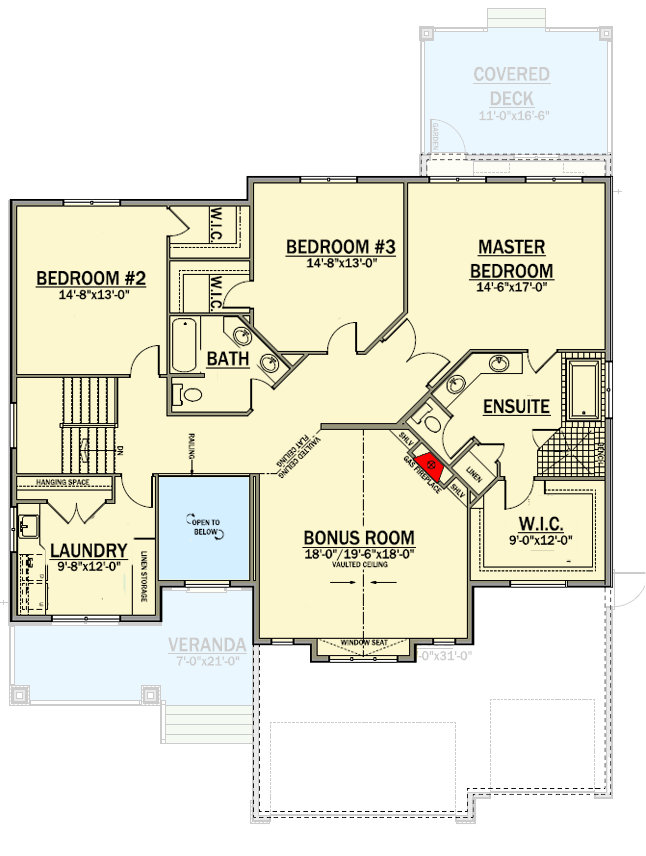

Big, Open Floor Plan - 81672AB floor plan - 2nd Floor

Big, Open Floor Plan

  • 3,487

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Lower Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,487 sq. ft.
  • 1st Floor: 1,685 sq. ft.
  • 2nd Floor: 1,802 sq. ft.

Dimensions

  • Width: 68' 6"
  • Depth: 52' 0"
  • Max ridge height: 31' 4"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 794 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
