Breathtaking Mediterranean House Plan with Main-Level Master

Plan 95072RW

  • 4,851

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

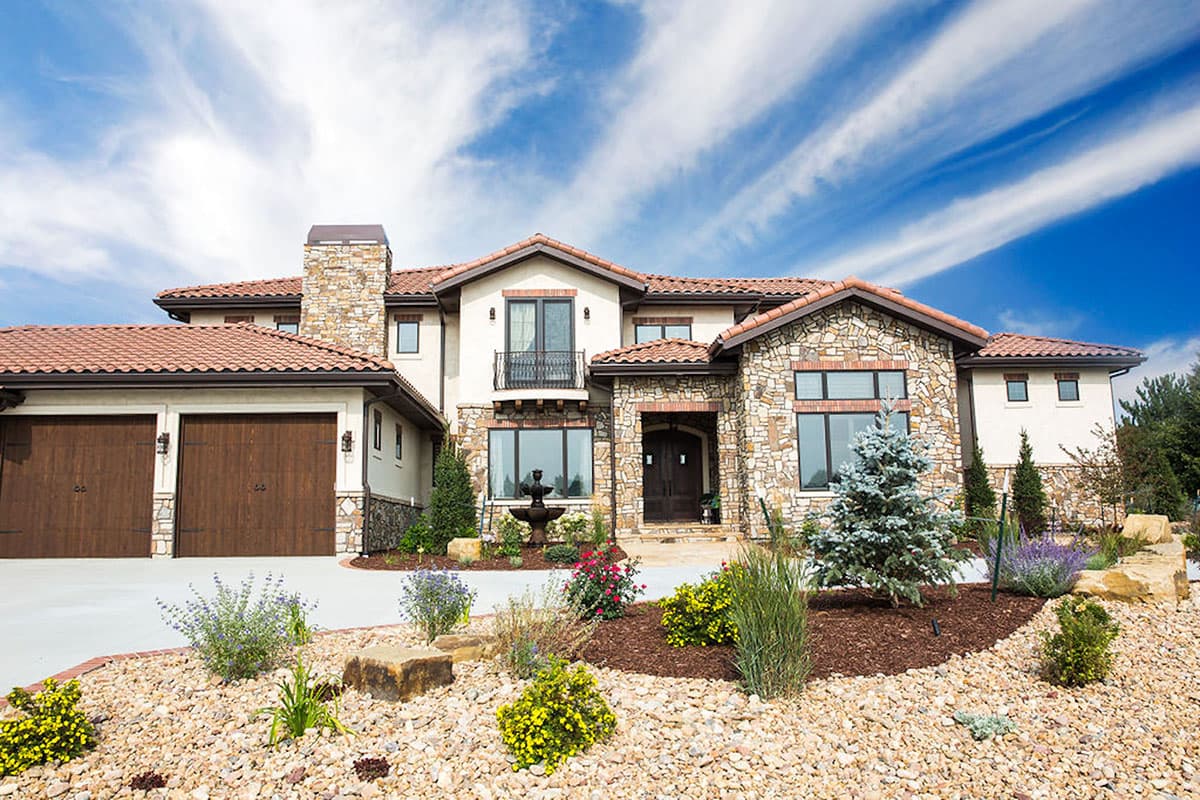

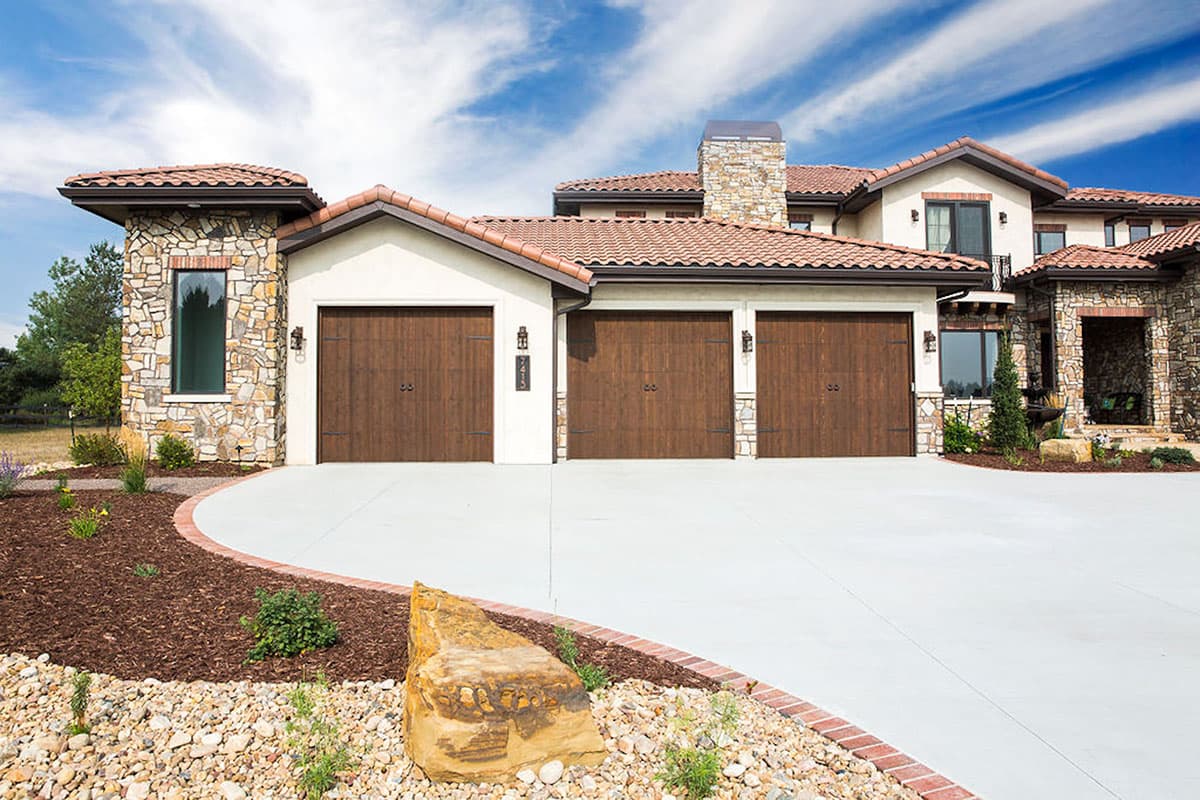

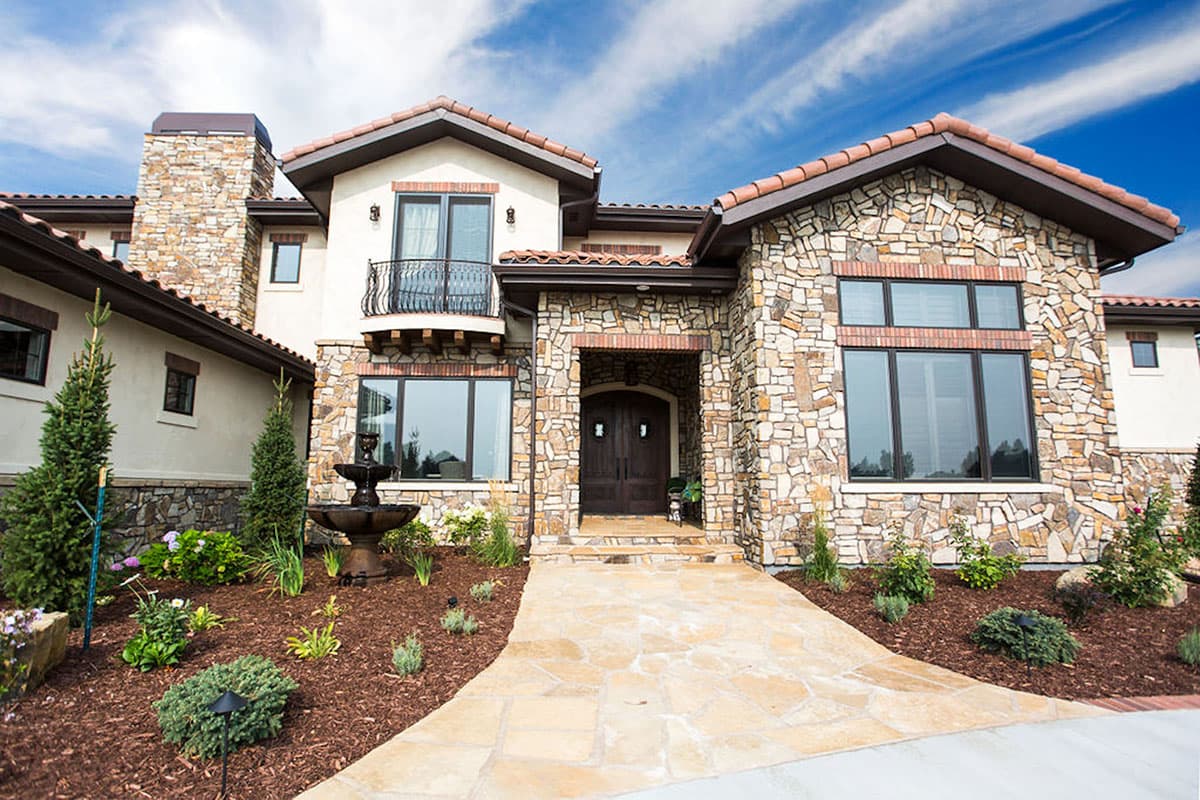

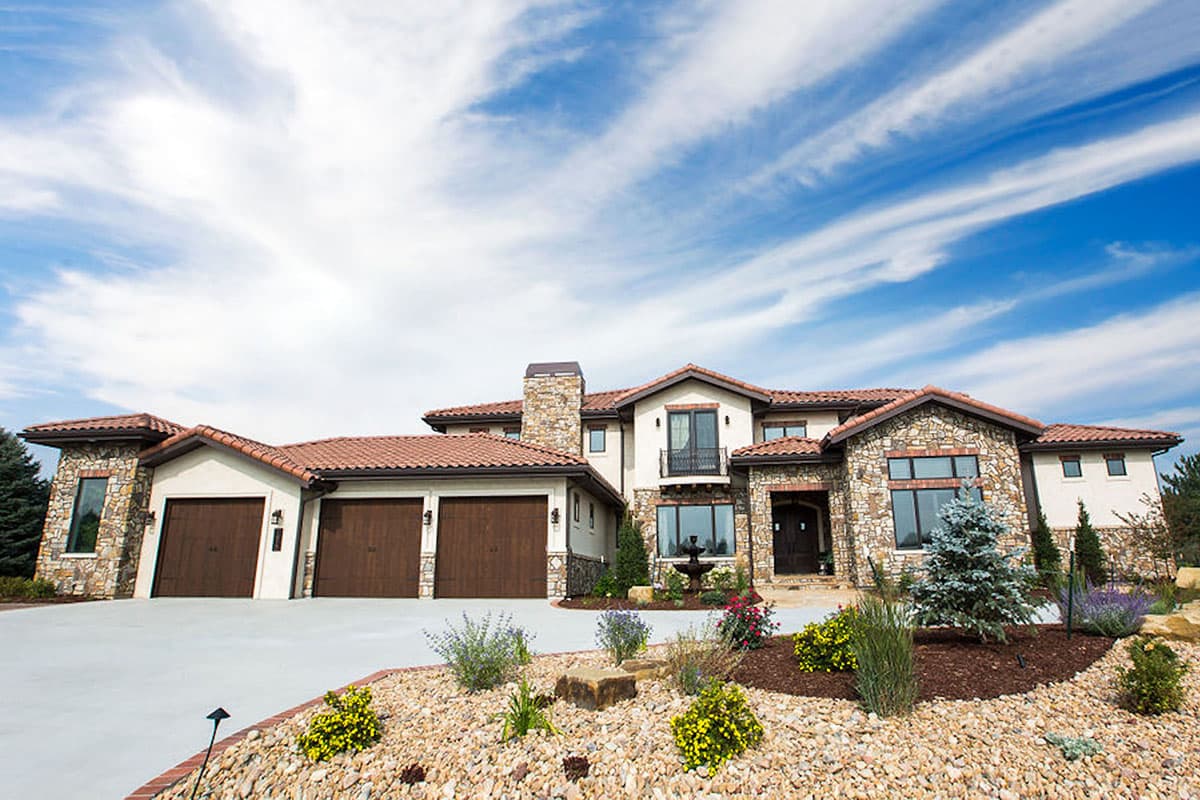

  • Terracotta roof tiles and stone accents define this Mediterranean home plan, and a Juliet balcony overlooking the front yard completes the design.

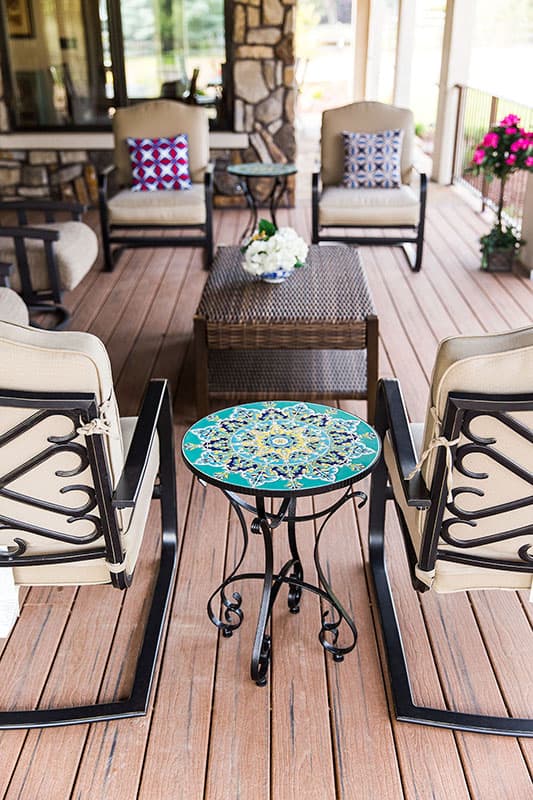

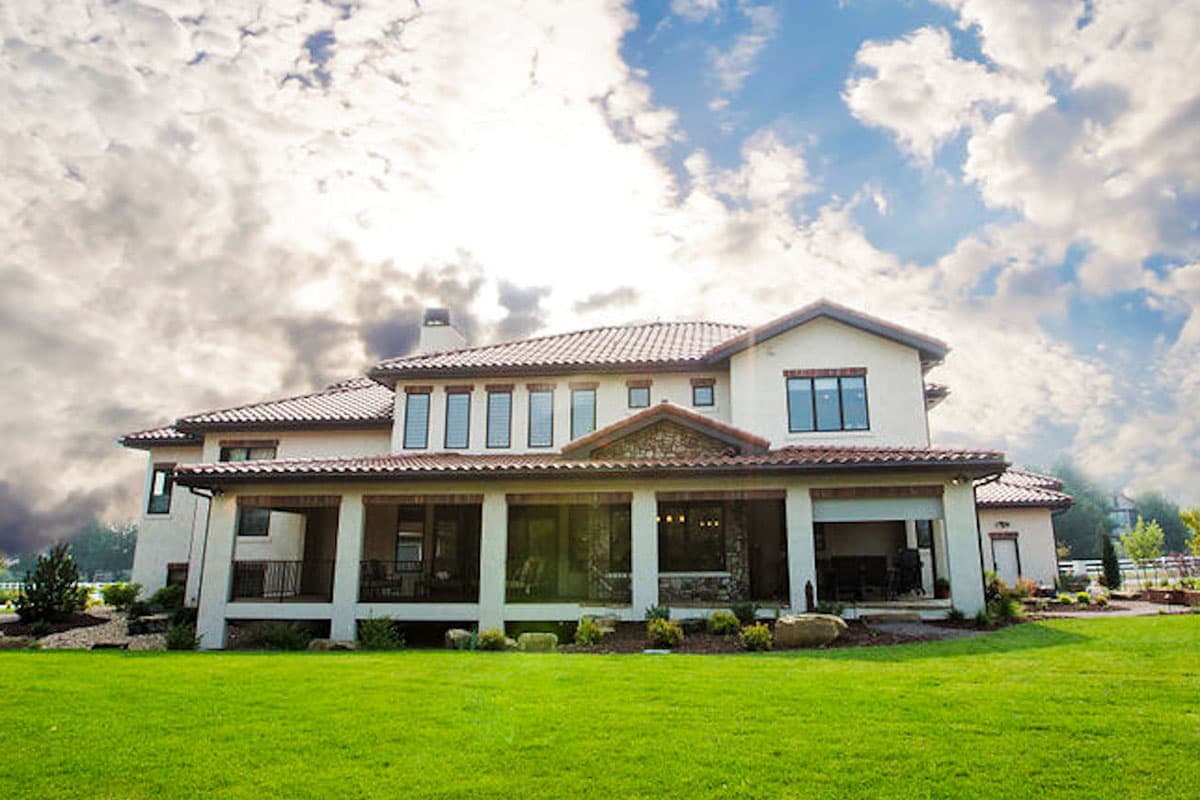

  • The shared living spaces reside towards the back of the home providing rearward views and access to the wrap-around, covered veranda.

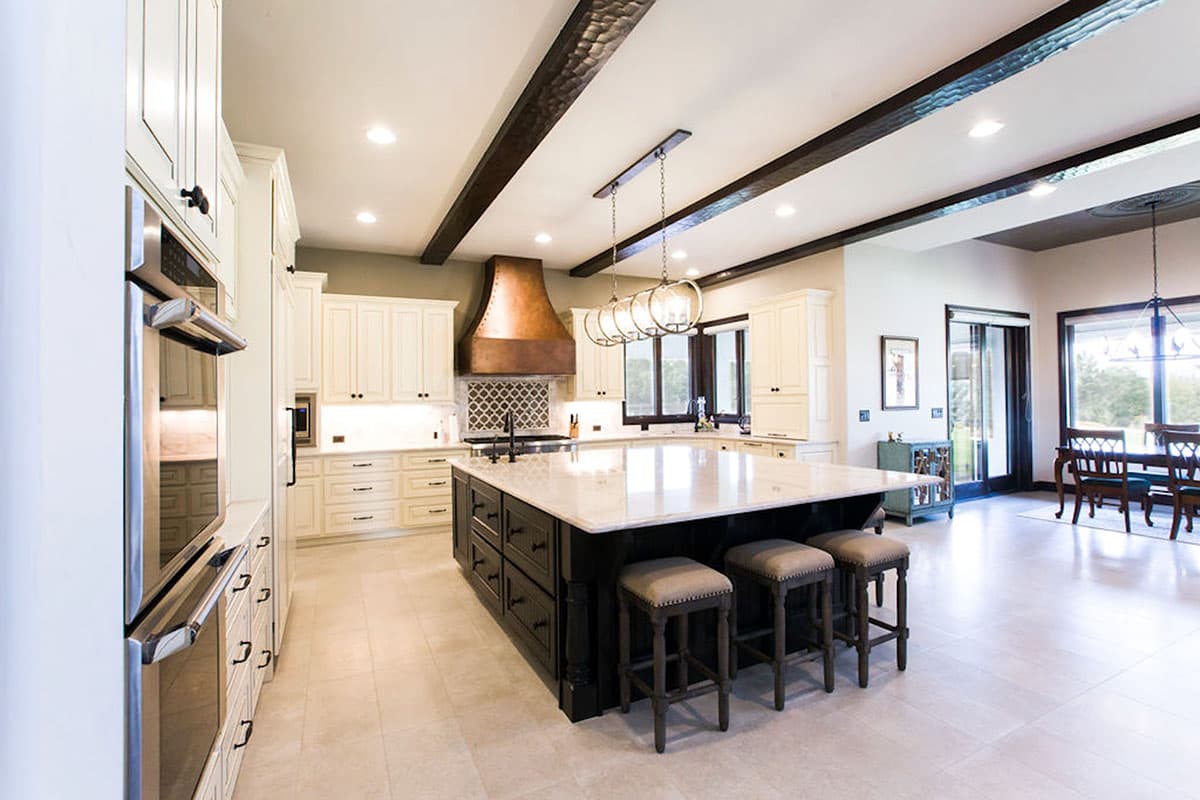

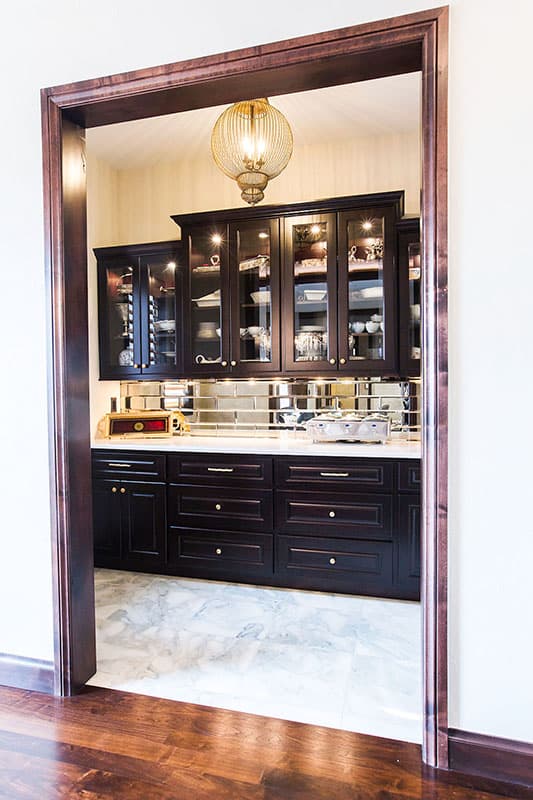

  • The spacious kitchen will spark creativity for the chef and a large central island offers ample prep space. A large walk-in pantry is just around the corner, and a butler's pantry attached to the formal dining room assists when entertaining.

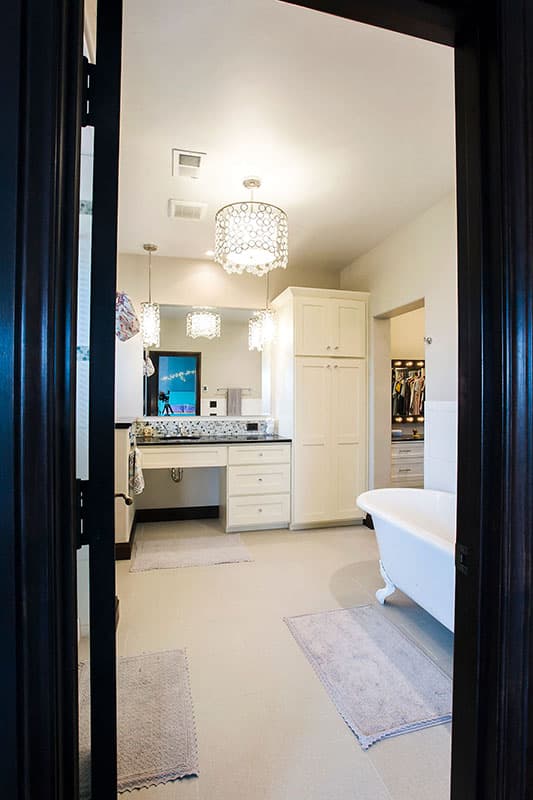

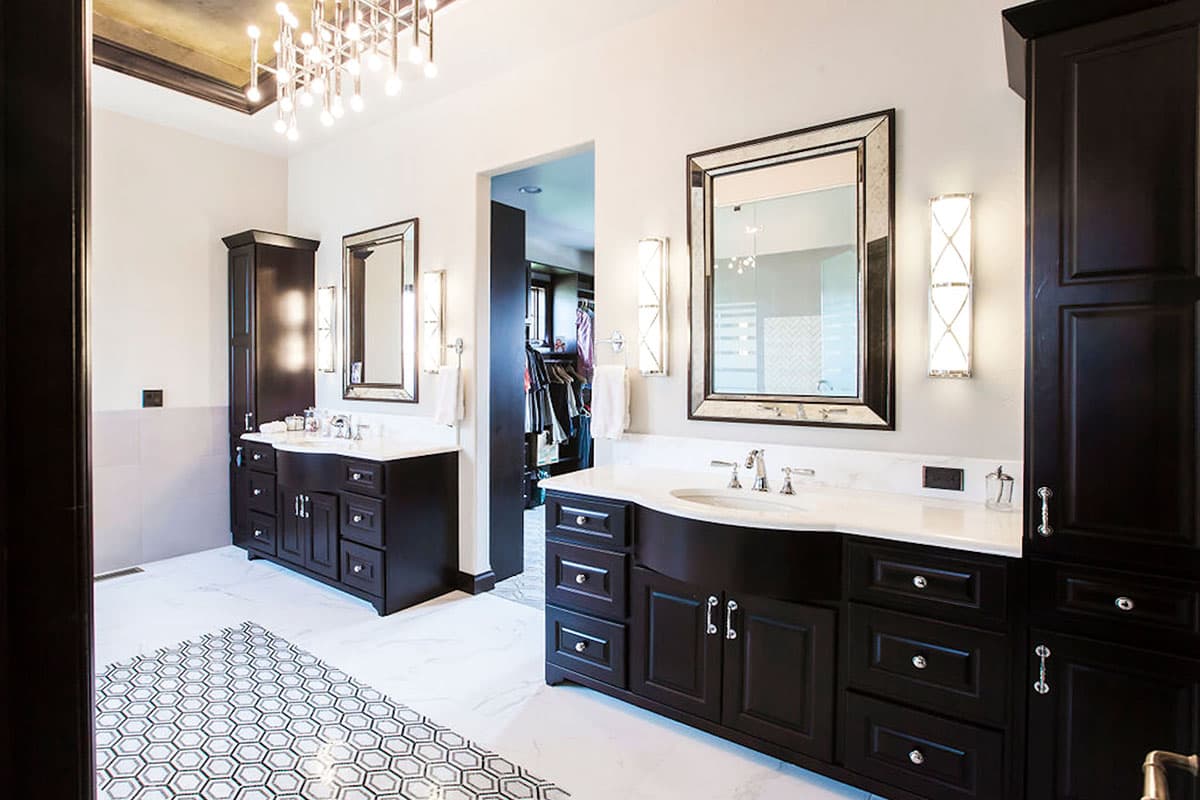

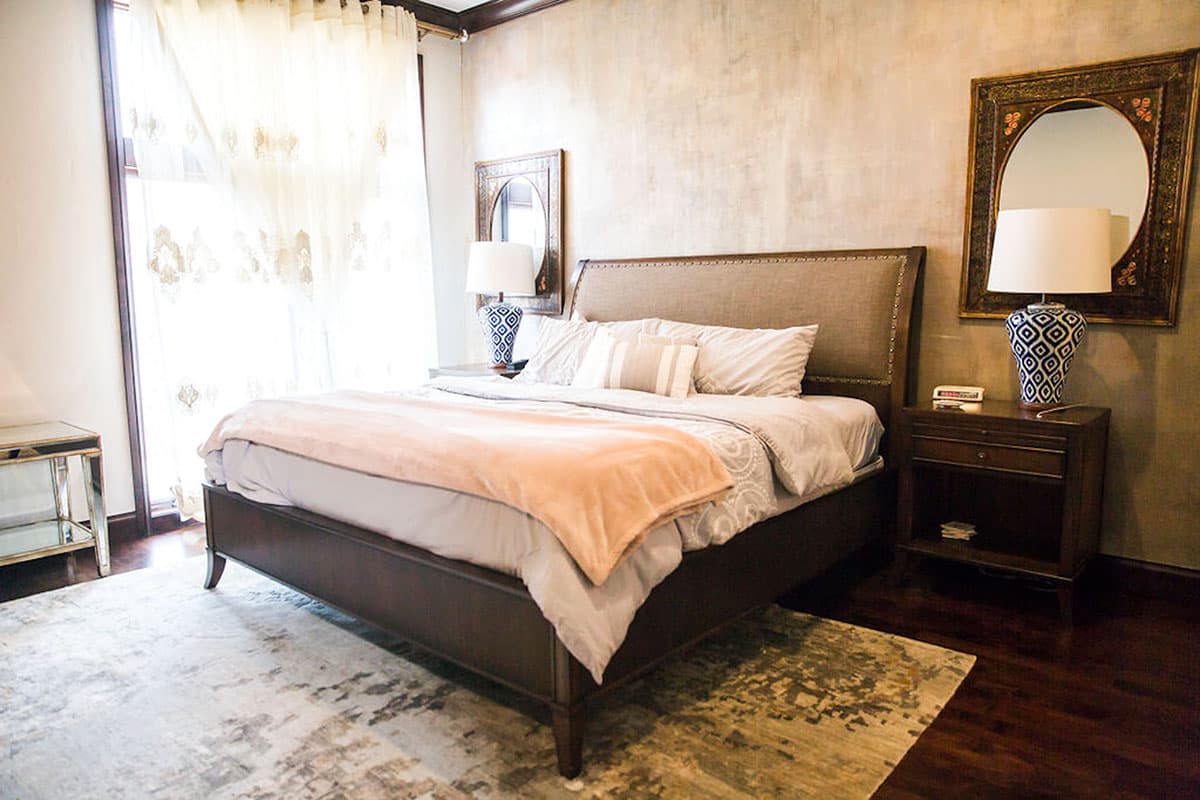

  • The main-level, master bedroom offers a space to retreat to for rest and solitude, and features a spacious ensuite with a private toilet room, two sinks, and a large walk-in closet. A quiet den and powder bath also reside on this side of the home.

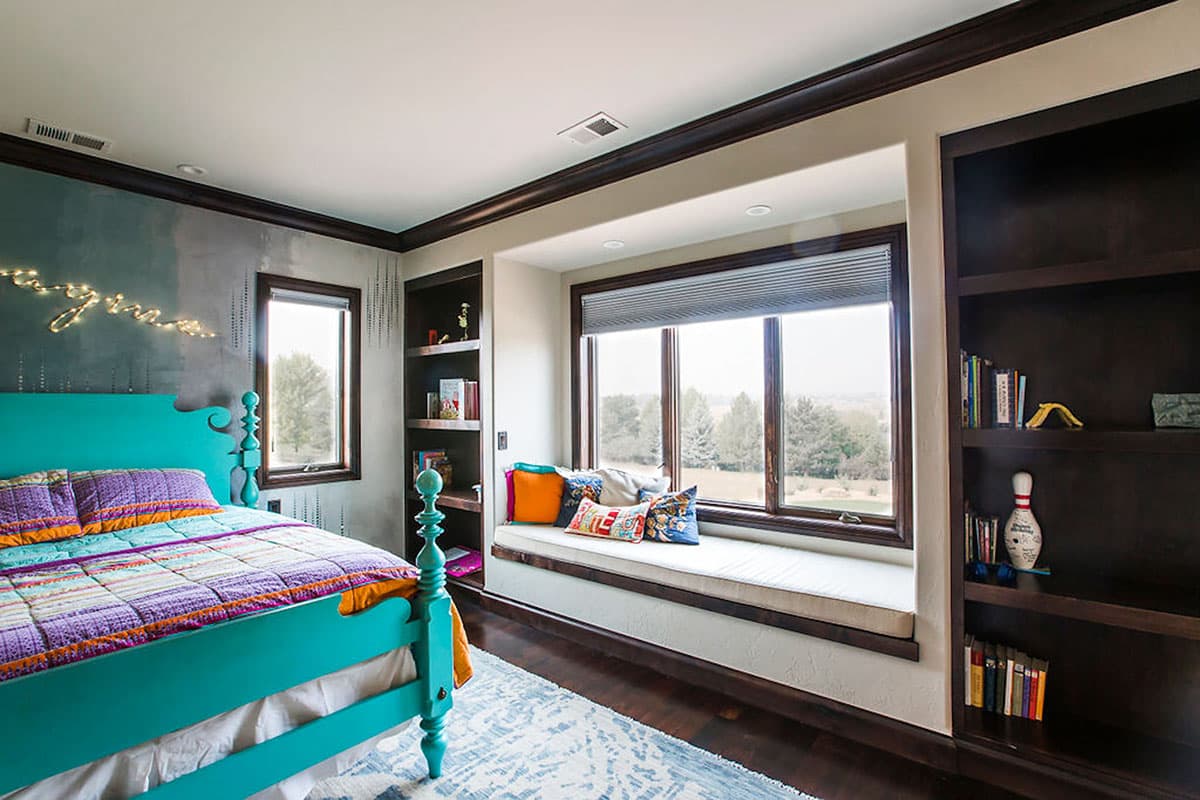

  • Upstairs, a bridge hallway leads to bedrooms 2 and 3, each with their own bathroom. A loft rests near a second set of stairs, leading to the main level near the mudroom and spacious laundry room.

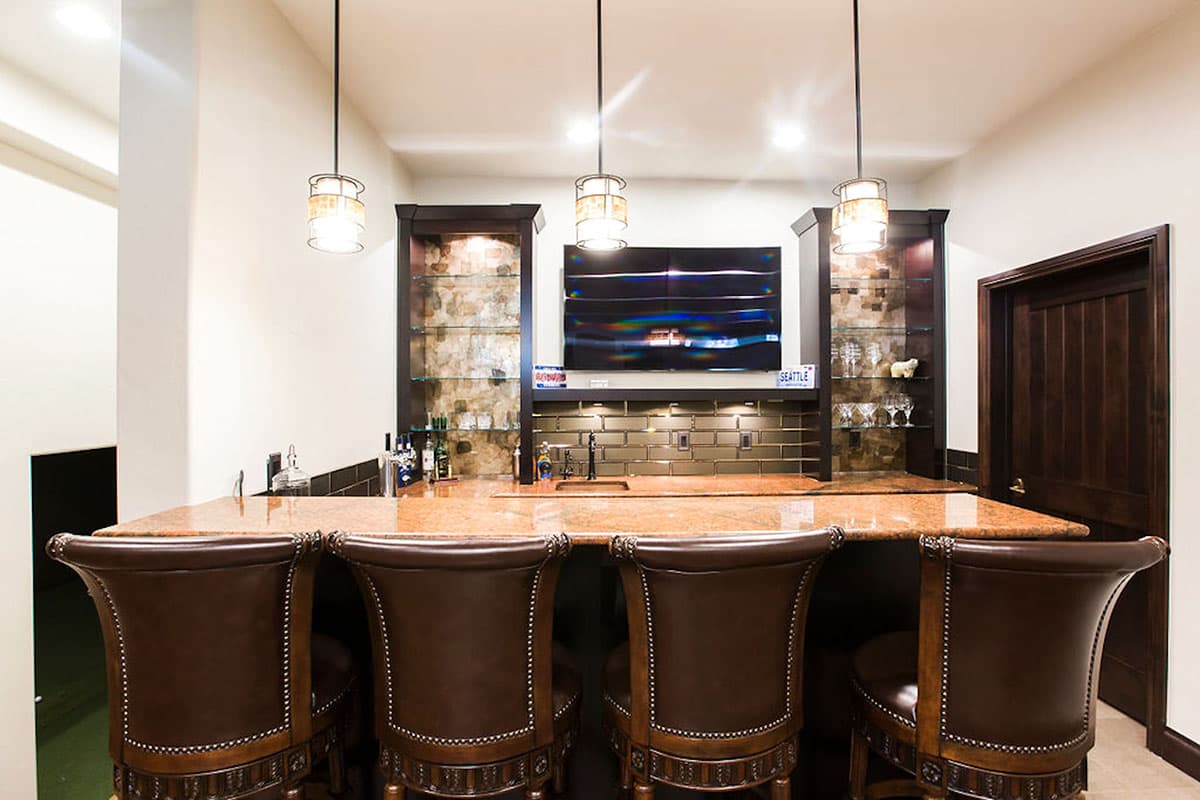

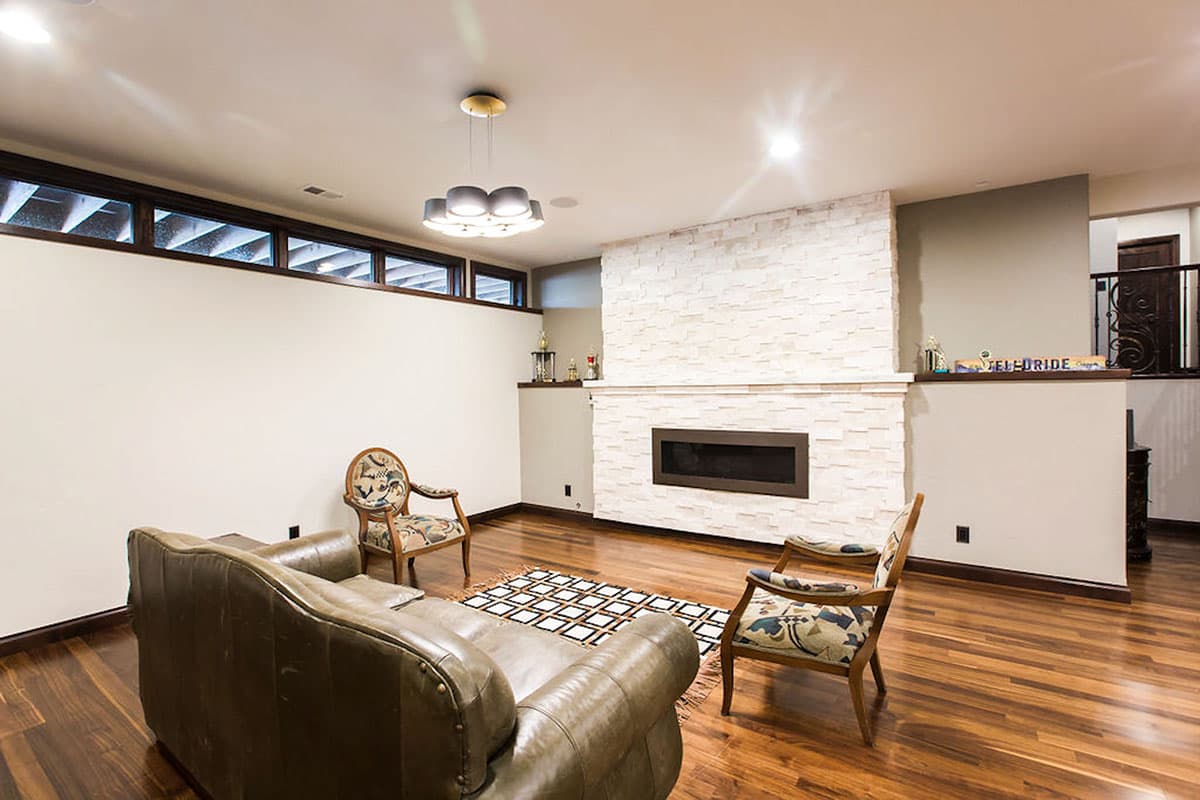

  • Should you need additional living space, the optional lower level boasts a grand living room with a wet bar, golf room, home theatre, exercise room, and bedrooms 4 and 5.

The following details are included with this house plan:
  • Cover Page
  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

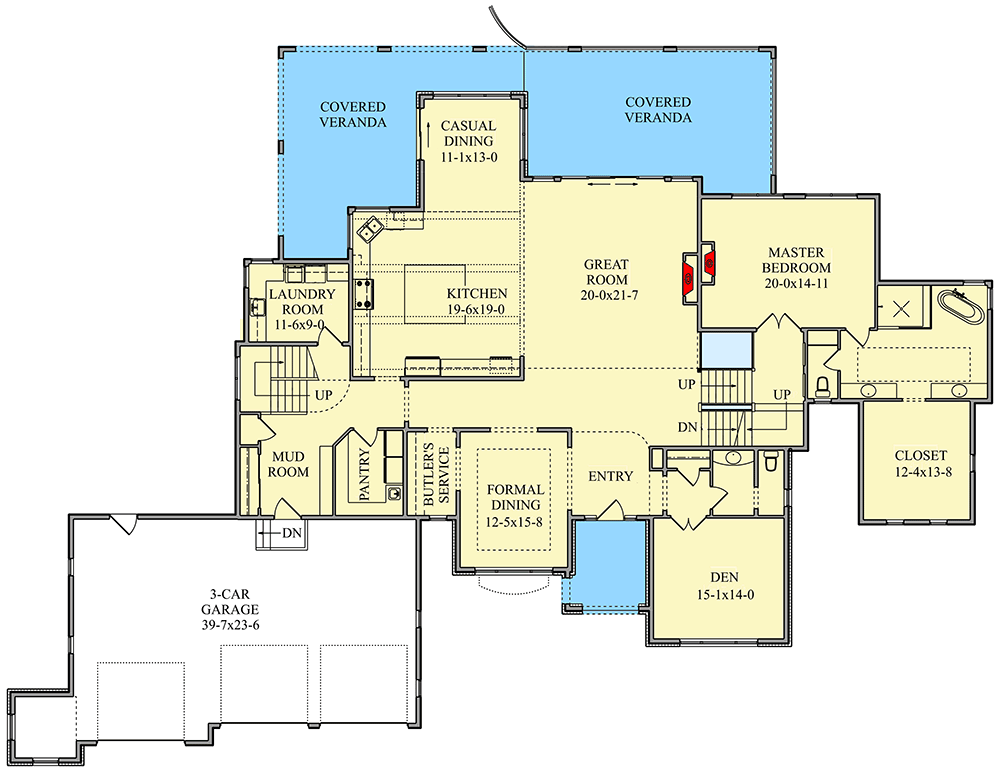

Breathtaking Mediterranean House Plan with Main-Level Master - 95072RW floor plan - Main Level

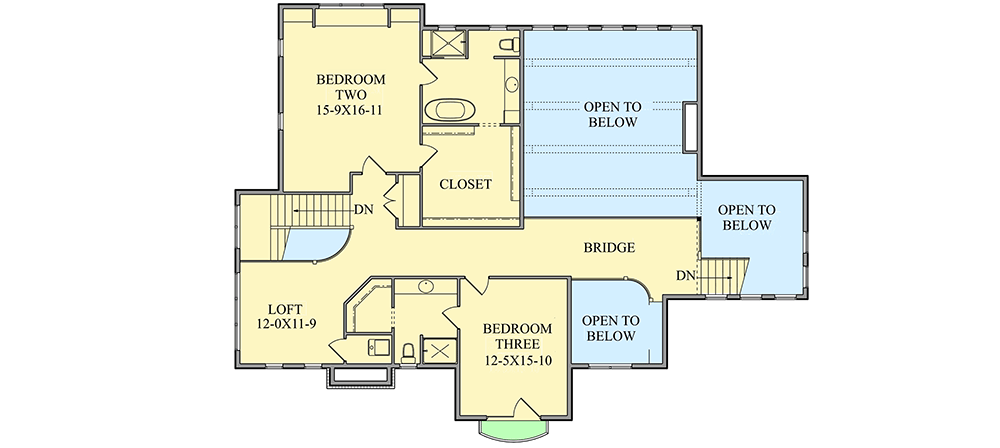

Second Level
