Plan 666000RAF

Bright and Airy Modern House Plan

Heated S.F.
3,310
Beds
4 - 5
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 666000RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666000RAF

M-F 9am-5pm EST |

1-203-761-8500

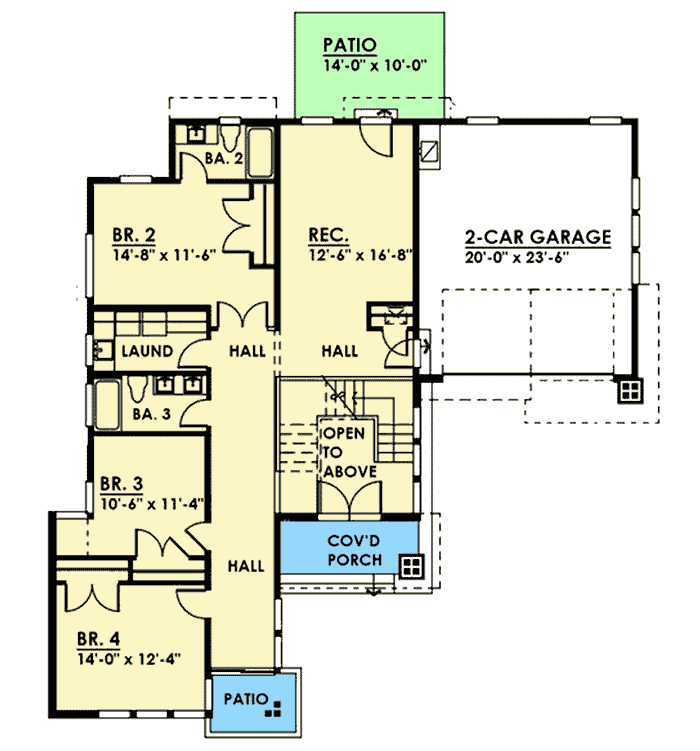

Main Level

Plan 666000RAF: Bright and Airy Modern House Plan - Floor Plan - Main Level - Contemporary, Modern, Northwest

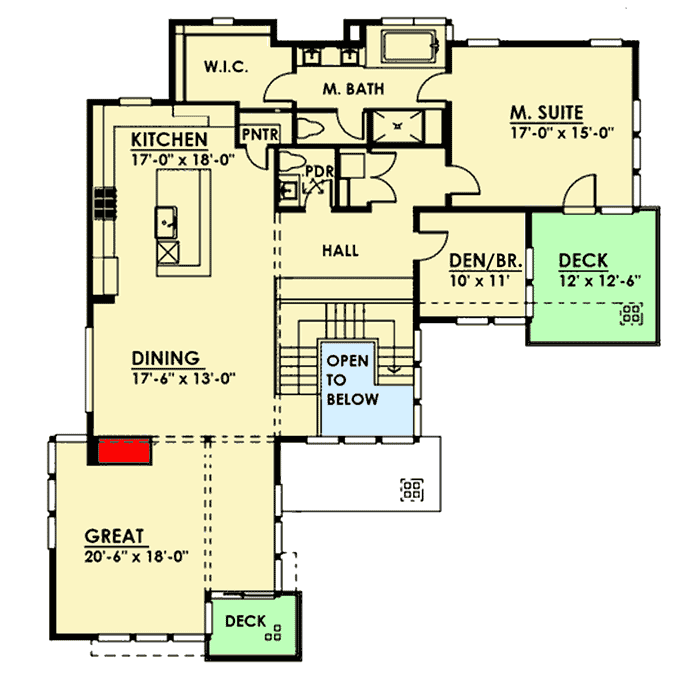

2nd Floor

Plan 666000RAF: Bright and Airy Modern House Plan - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

Plan Details

  • Lots of glass sends sunshine streaming throughout this bright and airy Modern house plan.
  • With its upside down floor plan, the bedrooms are mostly on the ground floor.
  • A large rec room, where the kids can keep their toys, lies close the the bedrooms.
  • Double doors at the front lead to the staircase that takes you up to the second floor main living area that is all open concept.
  • The great room has a small deck that faces front and there's a second deck off the large master suite.
  • A super-sized kitchen has a six burner stove and lots of counter space plus a walk-in pantry.

What's Included

This house plan has 14 pages as follows:
  1. General information and 3D rendering
  2. General notes and plan preview
  3. Main floor plan
  4. Upper floor plan

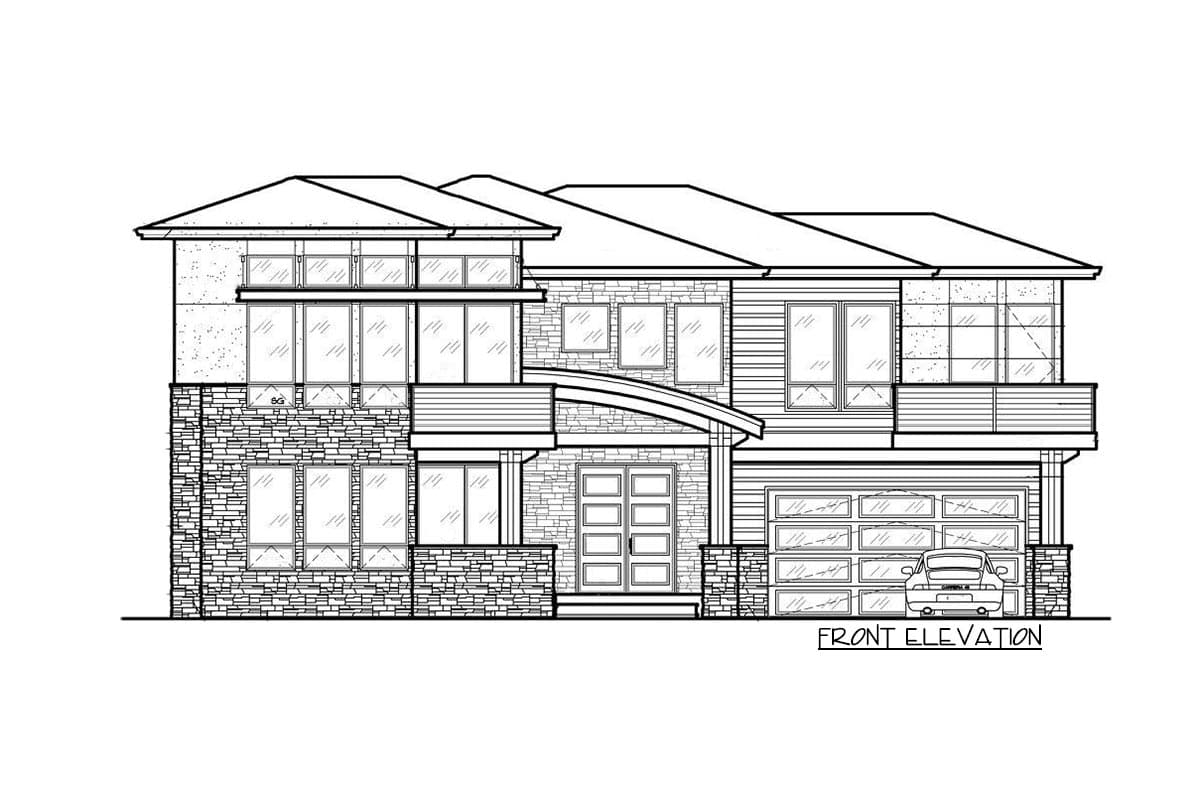

  5. Front and right elevations
  6. Rear and left elevations
  7. Building cross section
  8. Details and ventilation schedule
  9. Structural notes
  10. Foundation details
  11. Framing details
  12. Foundation/main floor framing plan
  13. Upper floor framing plan
  14. Roof framing plan

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,310 sq. ft.

1st Floor

1,493 sq. ft.

2nd Floor

1,817 sq. ft.

Deck

175 sq. ft.

Covered Patio

150 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 0"

Depth

58' 0"

Max Ridge Height

27' 5"

Garage

Type

Attached

Area

460 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

10'

Garage

10' 0''

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Game/Rec Room

Laundry - Main Level

Master Suite - Sitting Area

Master Suite - Upstairs

Walk-in Pantry
