Build Above the Garage

Plan 80634PM

  • 2,245

    Heated s.f.

  • 3

    Beds

  • 1.5+

    Baths

  • 2

    Stories

  • 1

    Cars

  • This attractive two-story house plan features several architectural details such as a large front porch with decorative posts, roof gables of various dimensions and decorative moldings.
  • The home is 43 feet 6 inches wide by 37 feet deep and provides 2,245 square feet of living space.

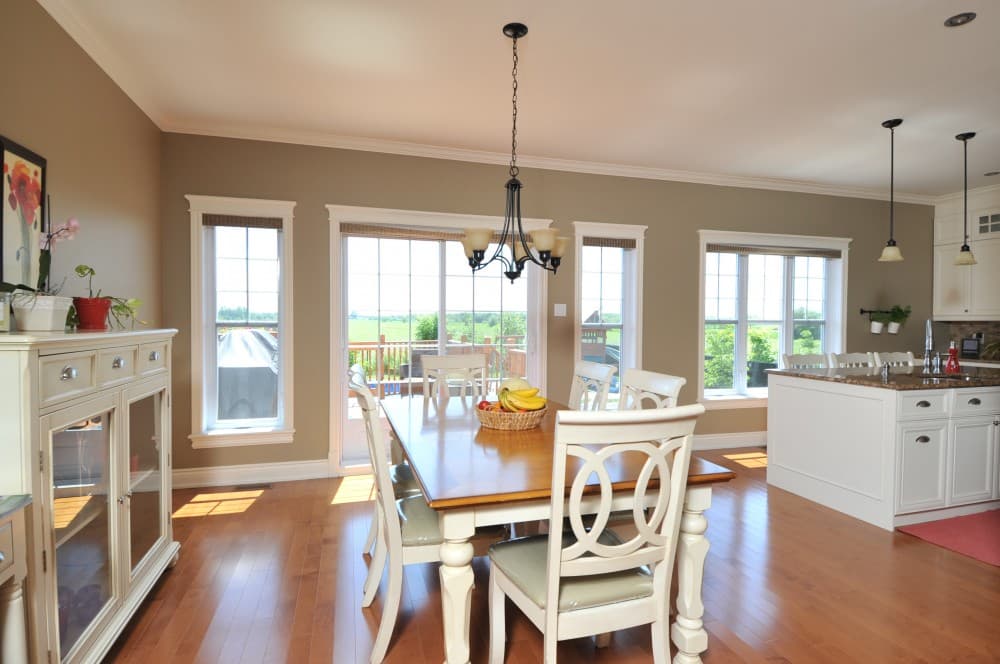

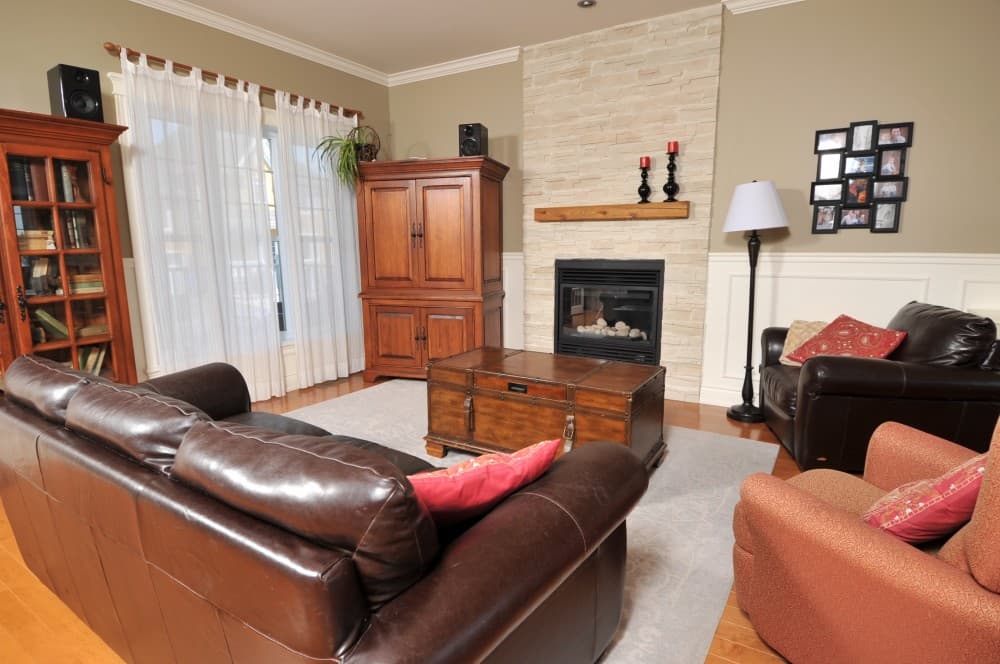

  • The ground floor covers 989 square feet and includes a large closed entrance hall, an open dining room and living room with a fireplace, a kitchen with an island, a powder room and a 378 square foot one-car garage.
  • The second floor has 1,256 square feet of living space and includes a master bedroom with a large walk-in closet, two additional bedrooms, a family bathroom with adjoining laundry room, as well as a room located above the garage that can be used as a home theater or game room.

Plan sets include the following:

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

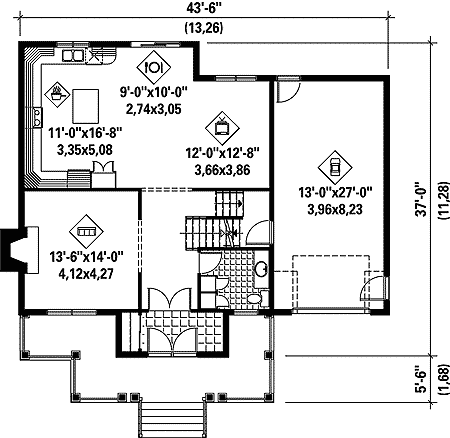

Build Above the Garage - 80634PM floor plan - Main Level

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Build Above the Garage - 80634PM floor plan - Main Level

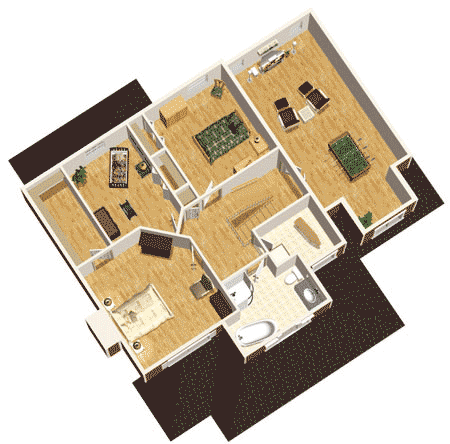

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

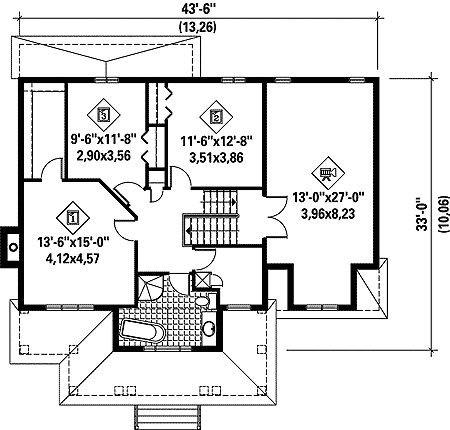

Build Above the Garage - 80634PM floor plan - 2nd Floor

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Build Above the Garage - 80634PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,245 sq. ft.
  • 1st Floor: 989 sq. ft.
  • 2nd Floor: 1,256 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 43' 6"
  • Depth: 37' 0"
  • Max ridge height: 36' 5"

Garage

  • Type: Attached
  • Area: 378 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Build Above the Garage

  • 2,245

    Heated s.f.

  • 3

    Beds

  • 1.5+

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • 5 Sets $1,097
  • 8 Sets $1,145
  • PDF - Single-Build $1,299
  • CAD - Single-Build $1,956
  • View all purchase option online

About This Plan

  • This attractive two-story house plan features several architectural details such as a large front porch with decorative posts, roof gables of various dimensions and decorative moldings.
  • The home is 43 feet 6 inches wide by 37 feet deep and provides 2,245 square feet of living space.
  • The ground floor covers 989 square feet and includes a large closed entrance hall, an open dining room and living room with a fireplace, a kitchen with an island, a powder room and a 378 square foot one-car garage.
  • The second floor has 1,256 square feet of living space and includes a master bedroom with a large walk-in closet, two additional bedrooms, a family bathroom with adjoining laundry room, as well as a room located above the garage that can be used as a home theater or game room.

Floor Plans

  • Main Level

  • Main Level

  • 2nd Floor

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,245 sq. ft.
  • 1st Floor: 989 sq. ft.
  • 2nd Floor: 1,256 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 43' 6"
  • Depth: 37' 0"
  • Max ridge height: 36' 5"

Garage

  • Type: Attached
  • Area: 378 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
