Plan 72649DA

Bungalow Garage with Guest Apartment

Heated S.F.
799
Beds
1
Baths
2
Stories
2
Cars
3

Floor Plan

Plan 72649DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72649DA

M-F 9am-5pm EST |

1-203-761-8500

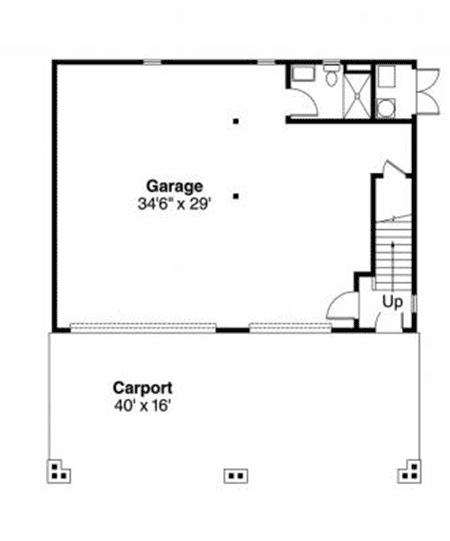

Main Level

Plan 72649DA: Bungalow Garage with Guest Apartment - Floor Plan - Main Level - Carriage, Craftsman, Rustic

2nd Floor

Plan 72649DA: Bungalow Garage with Guest Apartment - Floor Plan - 2nd Floor - Carriage, Craftsman, Rustic

Plan Details

  • This bungalow-style garage house plan can house up to 5 cars when parked tandem. The larger two car door is 16' wide and 8' tall, while the smaller door is 9' wide and 8' tall.
  • This garage plan has a guest apartment on the second floor. The guest apartment features a walk-in closet with full bathroom in the bedroom.
  • A fireplace in the great room can be enjoyed from the kitchen and nook. There is also a utility room that is accessed through the kitchen.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

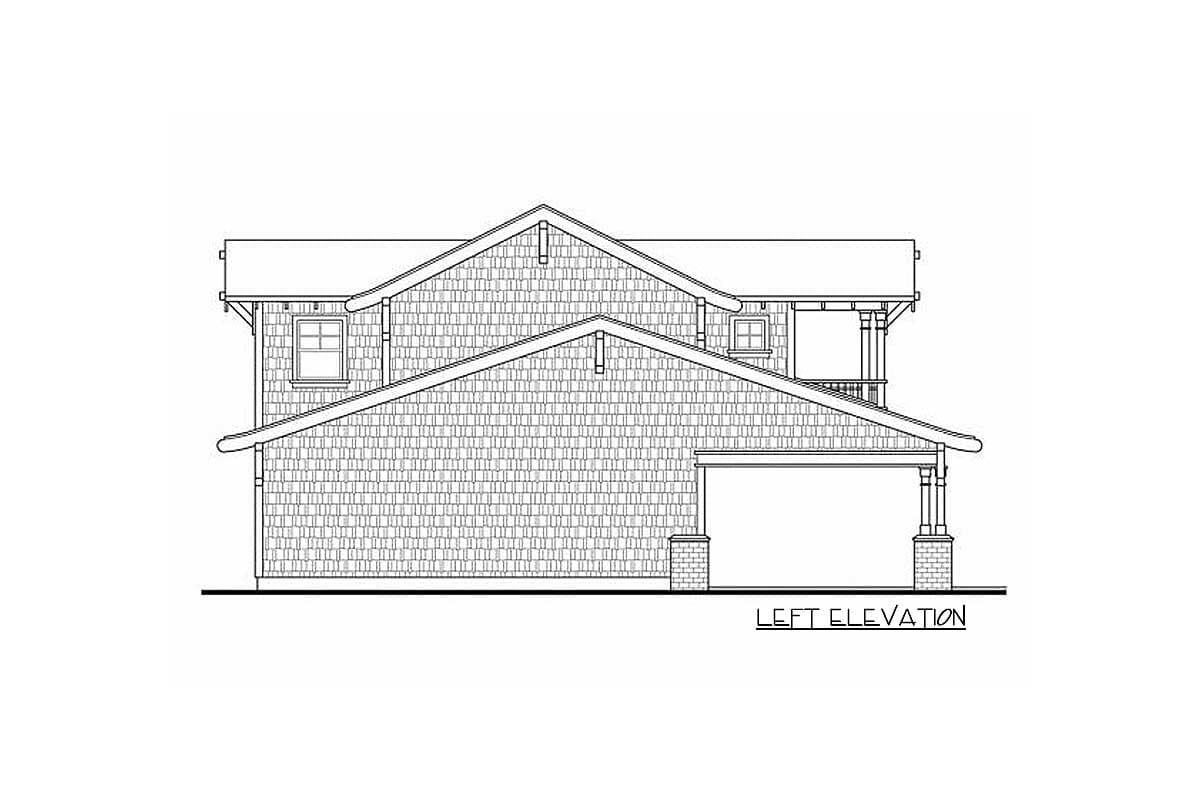

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

799 sq. ft.

1st Floor

799 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

46' 0"

Max Ridge Height

26' 0"

Garage

Area

1200 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Carriage

Craftsman

Rustic

Special Features

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

799 sq. ft.

1st Floor

799 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

46' 0"

Max Ridge Height

26' 0"

Garage

Area

1200 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Carriage

Craftsman

Rustic

Special Features

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU
