Bungalow Packed With Extras

Plan 92020VS

  • 3,011

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

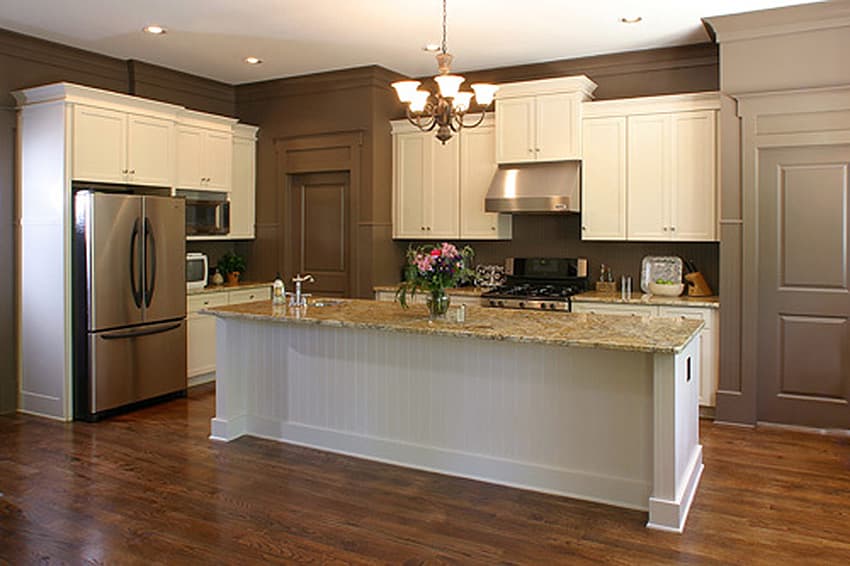

  • With extra touches such as plant ledges, built-in shelves, cubbies and a beamed ceiling in the family room, this bungalow offers plenty of charm for the modern family.
  • The chef enjoys a walk-in pantry and an island that opens to the spacious family room. A butler's pantry lies next to the dining room.
  • Graced by a tray ceiling, the master suite is a true haven with its own private sitting room and bath.
  • Sloped ceilings can be found in the three remaining bedrooms along with a built-in desk and optional bunk beds in bedroom 4. A computer station sits at the top of the second floor landing.
  • The stick framed roof has a 10:12 main pitch and a 12:12 pitch on the gable.
  • Related Plans: Get a front-facing garage with house plan 92014VS.
  • Downsize with house plan 92091VS (2,449 sq. ft.).

All plans include:

  • Foundation plan
  • Floor plans with electrical layouts
  • 1/4" Elevations (all sides)
  • Cabinet details and interior elevations (when necessary)
  • Roof Plan
  • Typical Wall Section and two standard detail sheets
  • General Notes Page containing reference to the 2012 IRC building code to supplement plans drawn prior to these changes.
  • Other details shown as required by complexity of plans


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

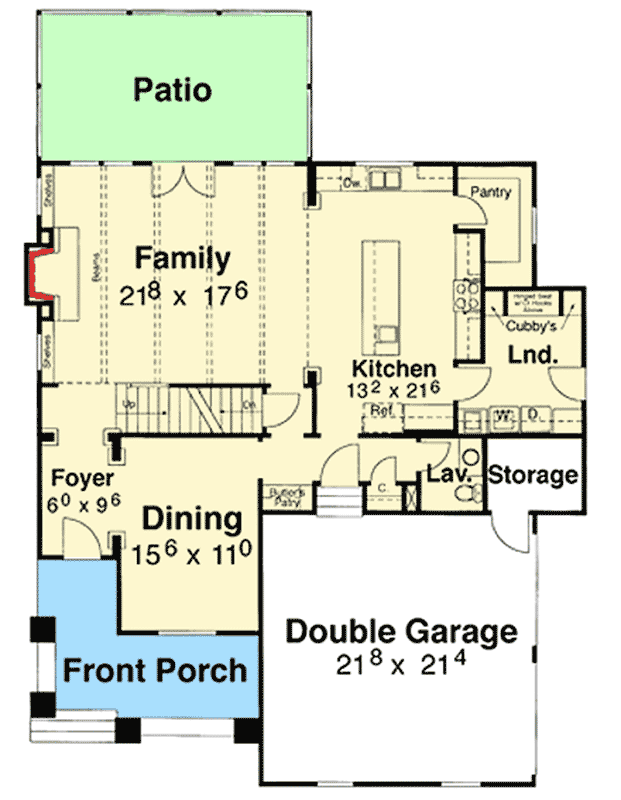

Bungalow Packed With Extras - 92020VS floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

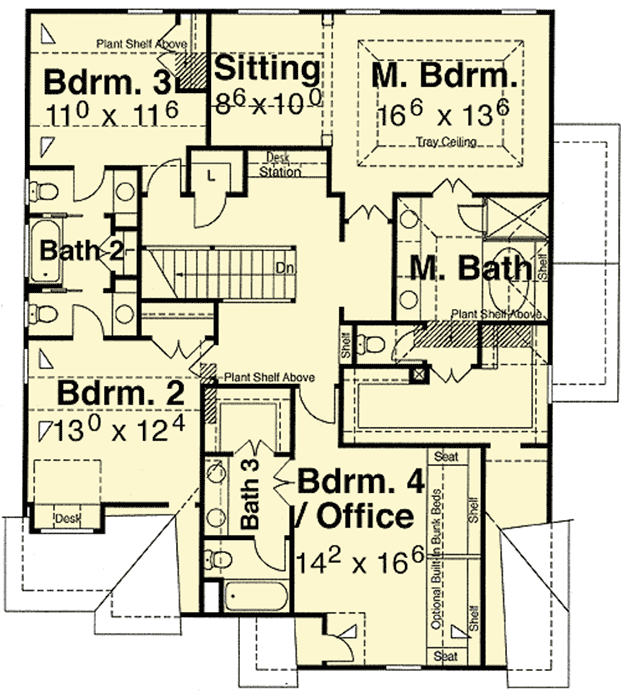

Bungalow Packed With Extras - 92020VS floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

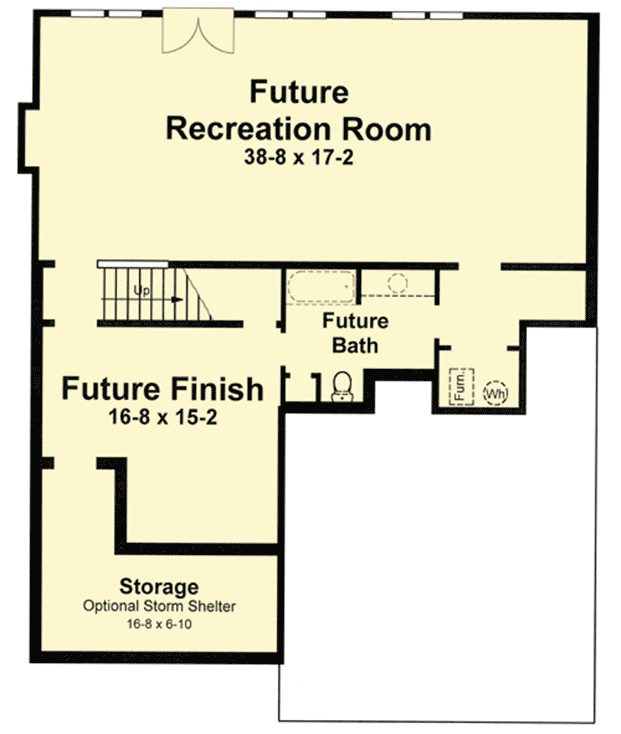

Bungalow Packed With Extras - 92020VS floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,011 sq. ft.
  • 1st Floor: 1,285 sq. ft.
  • 2nd Floor: 1,724 sq. ft.
  • Porch, Rear: 224 sq. ft.
  • Porch, Front: 228 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 50' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Bungalow Packed With Extras

  • 3,011

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,325
  • 5 Sets $1,450
  • PDF - Unlimited Build $2,650
  • View all purchase option online

About This Plan

  • With extra touches such as plant ledges, built-in shelves, cubbies and a beamed ceiling in the family room, this bungalow offers plenty of charm for the modern family.
  • The chef enjoys a walk-in pantry and an island that opens to the spacious family room. A butler's pantry lies next to the dining room.
  • Graced by a tray ceiling, the master suite is a true haven with its own private sitting room and bath.
  • Sloped ceilings can be found in the three remaining bedrooms along with a built-in desk and optional bunk beds in bedroom 4. A computer station sits at the top of the second floor landing.
  • The stick framed roof has a 10:12 main pitch and a 12:12 pitch on the gable.
  • Related Plans: Get a front-facing garage with house plan 92014VS.
  • Downsize with house plan 92091VS (2,449 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,011 sq. ft.
  • 1st Floor: 1,285 sq. ft.
  • 2nd Floor: 1,724 sq. ft.
  • Porch, Rear: 224 sq. ft.
  • Porch, Front: 228 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 50' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
Plan 92020VS
View this and more for this plan by visiting www.architechtecturaldesigns.com/92020VS
|
Need Help? 800-854-7852
|
Plan 92020VS
