Plan 92014VS
Cozy Nooks
Heated S.F.
3,011
Beds
3-5
Baths
3.5 - 4.5
Stories
2
Cars
2
What's Included
Plan Details

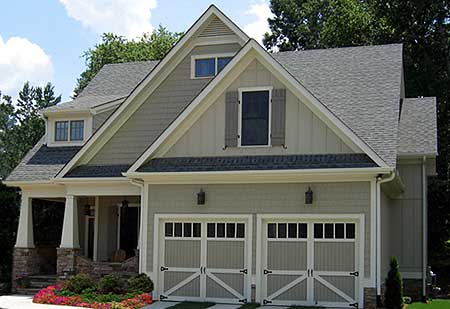

  • What a wonderful way to live! What appears to be a small cottage provides ample space to enjoy raising a family while being able to entertain as well.

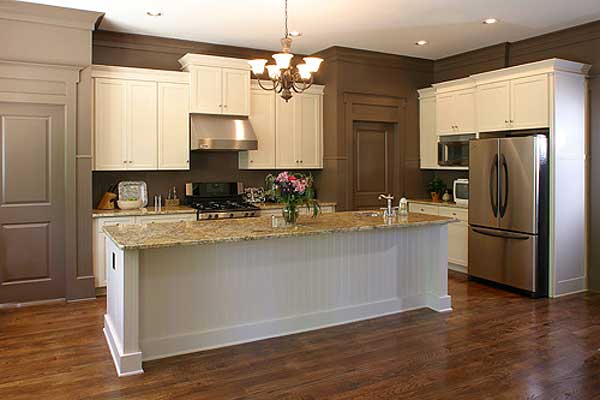

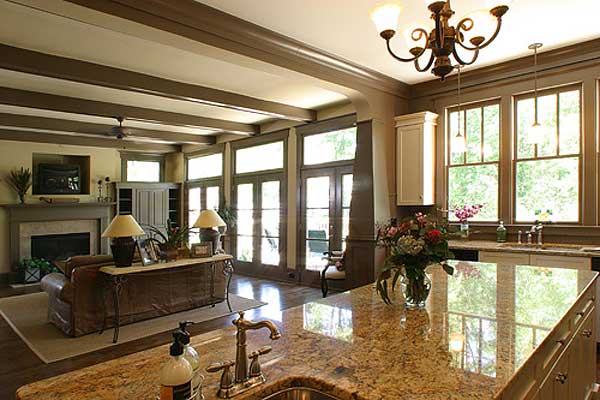

  • The expansive living/kitchen area opens to a rear deck that spans the entire length of the house.

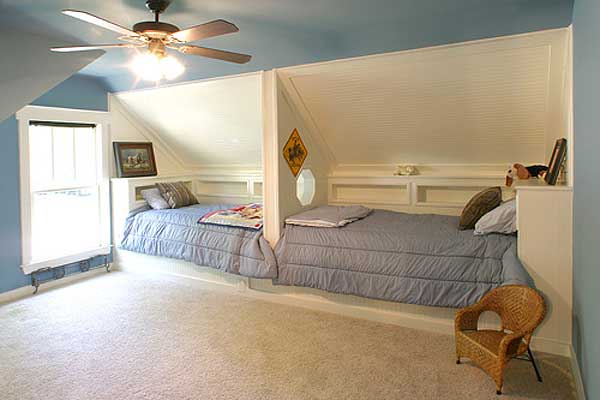

  • Cozy nooks are found all through the second floor, creating interest in almost every room.
  • The stick framed roof has a 10:12 roof pitch. The gable has a 12:12 pitch.
  • Related Plans: Get a side entry garage with house plan 92020VS. Downsize with house plan 92090VS (2,449 sq. ft.).
What's Included
  • Foundation plan
  • Floor plans with electrical layouts

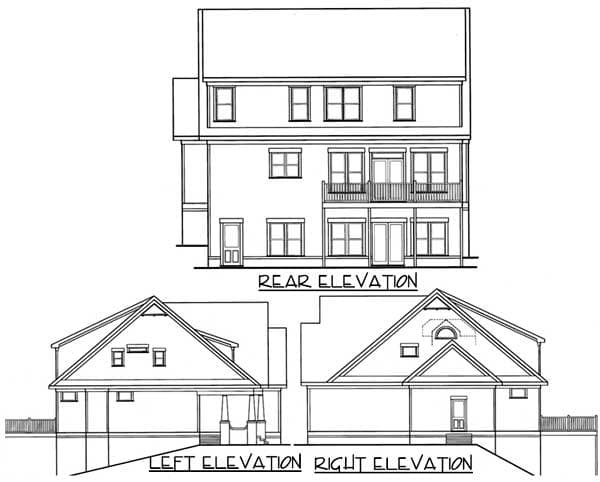

  • 1/4" Elevations (all sides)
  • Cabinet details and interior elevations (when necessary)
  • Roof Plan
  • Typical Wall Section and two standard detail sheets
  • General Notes Page containing reference to the 2012 IRC building code to supplement plans drawn prior to these changes.
  • Other details shown as required by complexity of plans
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Cozy Nooks

  • 3,011

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,011 sq. ft.
  • 1st Floor: 1,285 sq. ft.
  • 2nd Floor: 1,726 sq. ft.

Dimensions

  • Width: 44' 0"
  • Depth: 50' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Cozy Nooks

  • 3,011

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Cozy Nooks

  • 3,011

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 3,011 sq. ft.
  • 1st Floor: 1,285 sq. ft.
  • 2nd Floor: 1,726 sq. ft.

Dimensions

  • Width: 44' 0"
  • Depth: 50' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

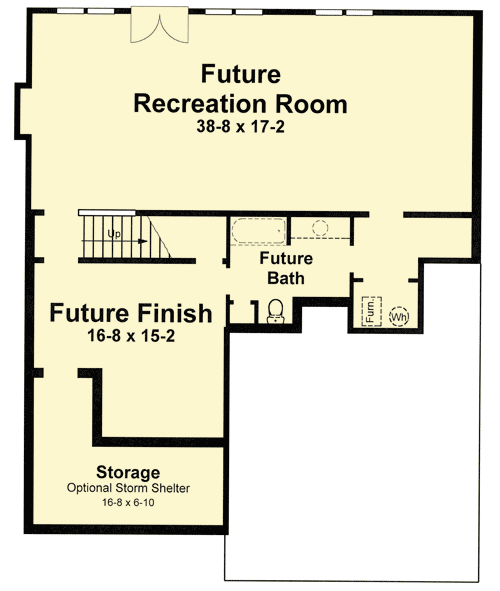

    Basement

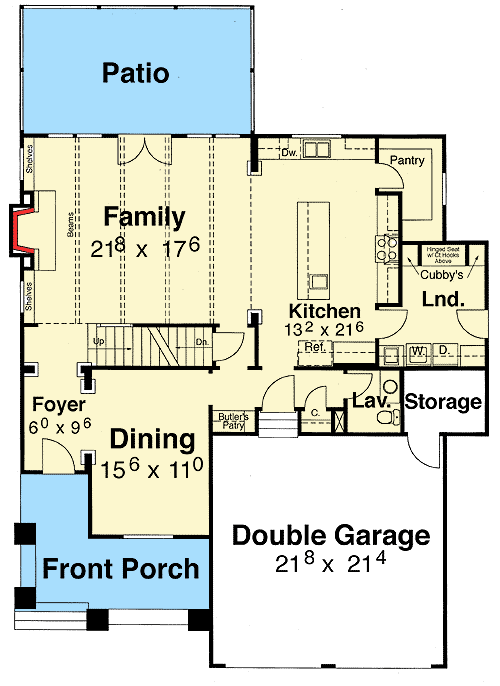

    Main Level

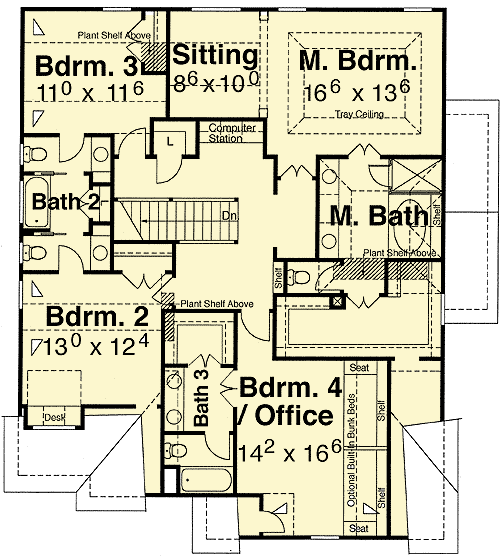

    2nd Floor
